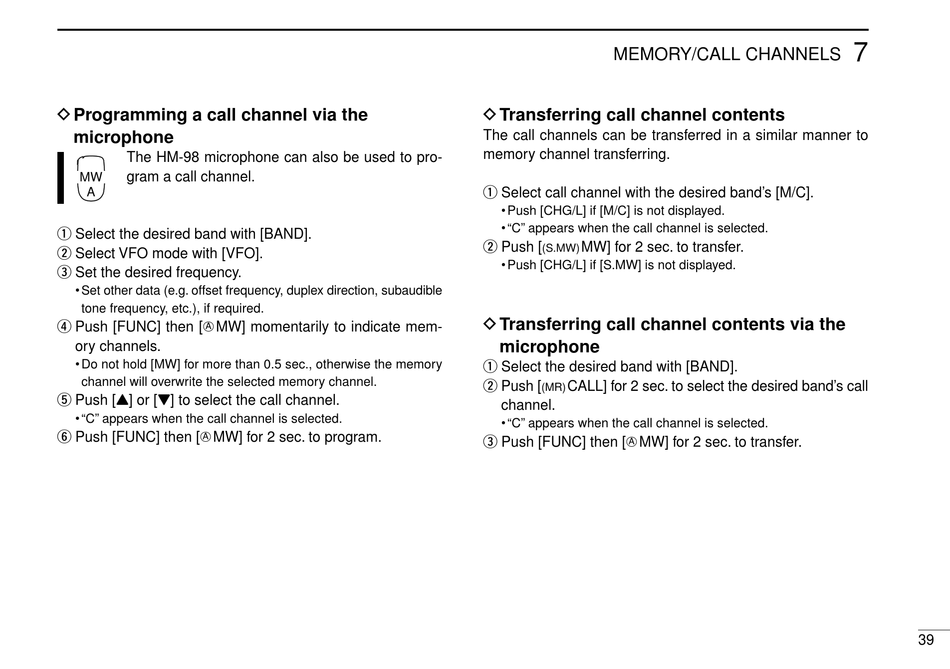

Icom IC-2800H Instruction Manual page 43

D Programming a call channel via the
microphone
The HM-98 microphone can also be used to pro-
gram a call channel.
MW
A
q Select the desired band with [BAND].
w Select VFO mode with [VFO].
e Set the desired frequency.
• Set other data (e.g. offset frequency, duplex direction, subaudible
tone frequency, etc.), if required.
r Push [FUNC] then [E MW] momentarily to indicate mem-
ory channels.
• Do not hold [MW] for more than 0.5 sec., otherwise the memory
channel will overwrite the selected memory channel.
t Push [Y] or [Z] to select the call channel.
• "C" appears when the call channel is selected.
y Push [FUNC] then [E MW] for 2 sec. to program.
MEMORY/CALL CHANNELS
D Transferring call channel contents
The call channels can be transferred in a similar manner to
memory channel transferring.
q Select call channel with the desired band's [M/C].
• Push [CHG/L] if [M/C] is not displayed.
• "C" appears when the call channel is selected.
w Push [
MW] for 2 sec. to transfer.
(S.MW)
• Push [CHG/L] if [S.MW] is not displayed.
D Transferring call channel contents via the
microphone
q Select the desired band with [BAND].
w Push [
CALL] for 2 sec. to select the desired band's call
(MR)
channel.
• "C" appears when the call channel is selected.
e Push [FUNC] then [E MW] for 2 sec. to transfer.
7
39
