Important
Please read PRECAUTIONS, this User's Manual, and the Setup Guide
(separate volume) carefully to familiarize yourself with safe and
effective usage.
• Please refer to the Setup Guide for basic information ranging from
connection of the monitor to a PC to using the monitor.
• The latest User's Manual is available for download from our web site:
http://www.eizoglobal.com

Advertisement

Table of Contents
loading

Related Manuals for Eizo FlexScan EV2216WFS3

Summary of Contents for Eizo FlexScan EV2216WFS3

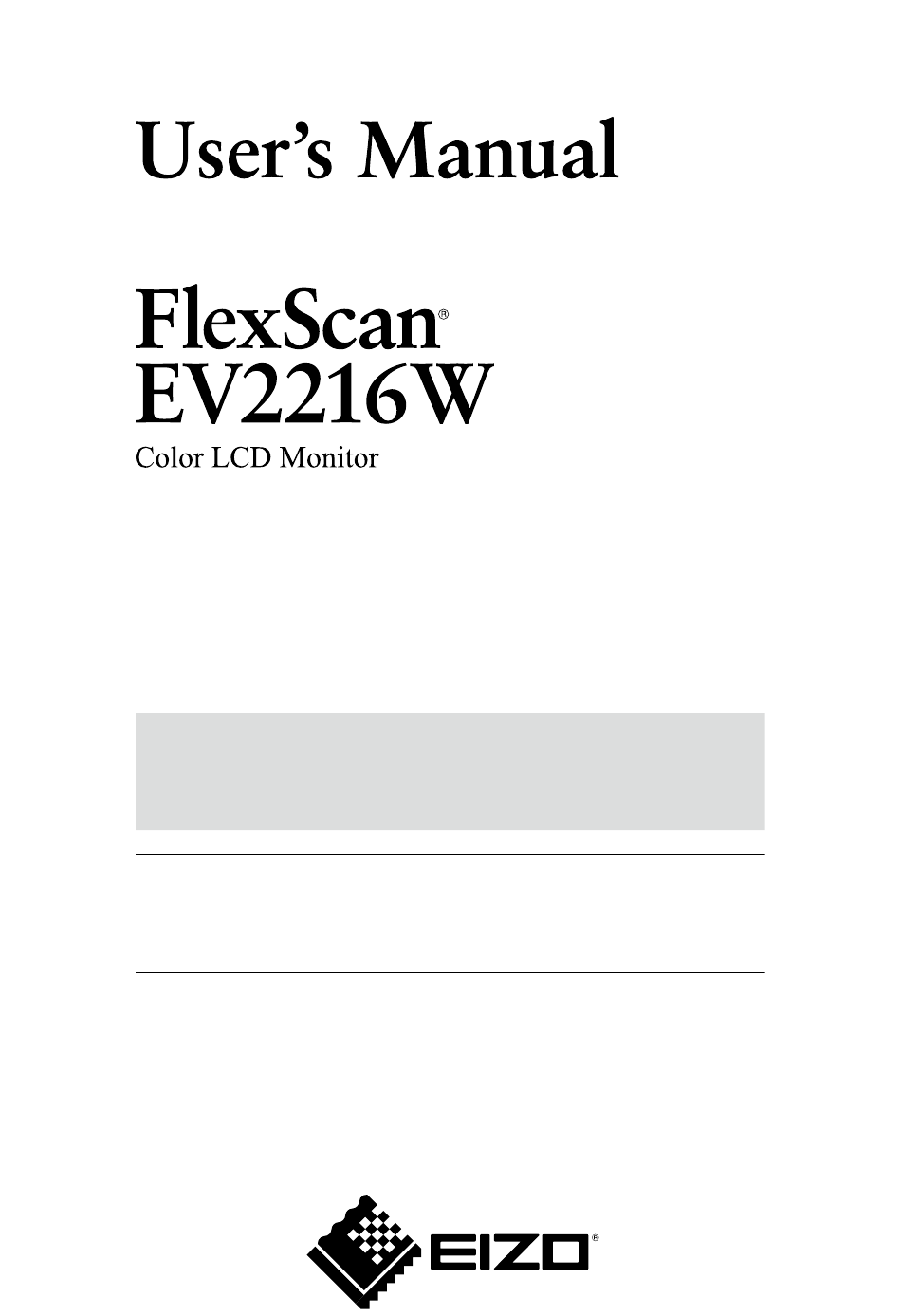

  • Page 1 Important Please read PRECAUTIONS, this User’s Manual, and the Setup Guide (separate volume) carefully to familiarize yourself with safe and effective usage. • Please refer to the Setup Guide for basic information ranging from connection of the monitor to a PC to using the monitor. •...
  • Page 2 EIZO Corporation. EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

  • Page 3: Notice For This Monitor

    The backlight of the LCD panel has a fixed lifetime. When the screen becomes dark or begins to flicker, please contact your local EIZO representative. Do not press on the panel or edge of the frame strongly, as this may result in display malfunctions, such as interference patterns, etc.

  • Page 4: Cleaning

    Cleaning Attention • Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the cabinet or panel, and also quality deterioration of the image. • Never use any thinner, benzene, wax, and abrasive cleaner, which may damage the cabinet or panel. Note •...

  • Page 5: Table Of Contents

    1-1. Features ............7 3-6. Setting Orientation ........28 1-2. Controls and Functions ....... 9 3-7. Showing and hiding the EIZO logo ... 28  ● Front..............9 3-8. Changing Setting Menu Display Position 29  ● Rear ..............10 3-9.
  • Page 6  ● ConnectionProcedure(SetupofUSB Function) ............48 6-6. Displaying Monitor Information ....48 6-7. Specifications ..........49  ● MainDefaultSettings........50  ● OutsideDimensions ........51  ● Accessories ............51 6-8. Preset Timing ..........51 Chapter 7 Glossary .......... 52 Appendix ..............

  • Page 7: Chapter 1 Introduction

    Chapter 1 Introduction Thank you very much for choosing an EIZO color LCD monitor. 1-1. Features • 22.0″ wide format LCD • Supports a resolution of 1680 × 1050 • Applicable to DisplayPort (applicable to 8 bit) The DisplayPort input receives both an image signal and an audio signal via a single DisplayPort cable.
  • Page 8 “3-3. Compensating viewing angle deficiency” (page 27). • Supports portrait and landscape formats • Displays HDCP (High-bandwidth Digital Protection) protected contents. Note • This monitor supports the portrait display. This function allows you to change the orientation of the Setting menu when using the monitor screen in vertical display position (see “3-6.

  • Page 9: Controls And Functions

    1-2. Controls and Functions ● Front Settingmenu Detectsthemovementofapersoninfrontofthemonitor(EcoViewSensefunction(page 1. EcoView Sense sensor 33)). 2. Ambient light sensor Detectsambientbrightness(AutoEcoViewfunction(page32)). Displaysthesettingmenuofthepowersavingfunction(AutoEcoView(page32)and button EcoViewOptimizer2(page33))andEcoViewSense(page33). button Switchesinputsignalsfordisplay(page46). button ChangestheFineContrastmode(page16). DisplaystheSettingmenu,determinesanitemonthemenuscreen,andsavesvalues button adjusted(page12). • Providesthemenuselectionaswellastheadjustmentandsettingofafunction. button • button:Displaysthevolumeadjustmentmenu(page26). button:DisplaystheBrightnessadjustmentmenu(page17). button Turnsthepoweronoroff. Indicatesthemonitor’soperationstatus. Blue: Operating 9. Power indicator Orange: Powersavingmode OFF:...

  • Page 10: Rear

    ● Rear 1011 10. Main power switch Turnsthemainpoweronoroff. 11. Power connector Connectsthepowercord. Left:DisplayPortconnector/Center:DVI-Dconnector/Right:D-Submini15-pin 12. Input signal connector connector 13. Security lock slot ComplieswithKensington’sMicroSaversecuritysystem. 14. Speaker Outputsaudiosource. Handleusedfortransportation Attention 15. Handle • Firmly grasp and hold the monitor by the bottom while grabbing the handle, and carefully convey the monitor so as not to drop it.

  • Page 11: Eizo Lcd Utility Disk

    1-3. EIZO LCD Utility Disk An “EIZO LCD Utility Disk” (CD-ROM) is supplied with this product. The following table shows the disk contents and the overview of the software programs. ● Disk contents and software overview The disk includes software programs for adjustment, and User’s Manual. Refer to Readme.txt file on the disk for software startup procedures or file access procedures.

  • Page 12: Basic Operations And Functions

    1-4. Basic Operations and Functions ● Basic operation of the Setting menu Displaying the Setting menu 1. Press . The Setting menu appears. Adjusting / Setting 1. Choose a menu to adjust / set with , , and then press .

  • Page 13: Functions

    Language “3-9.SettingLanguage”(page29) DDC/CI “3-4.Enabling/DisablingDDC/CI communication”(page27) BorderIntensity “Toadjustbrightnessofnon-displayarea” (page25) MenuSettings Orientation “3-6.SettingOrientation”(page28) Logo “3-7.ShowingandhidingtheEIZOlogo” (page28) MenuPosition “3-8.ChangingSettingMenuDisplay Position”(page29) Reset “Toresetalladjustmentstothedefault settings”(page30) Information “6-6.DisplayingMonitorInformation” (page48) *1 The adjustment / settings available on the “Color” menu depend on the selected Color mode (see “Adjustable...

  • Page 14: Chapter 2 Adjusting Screens

    Chapter 2 Adjusting Screens 2-1. Compatible Resolutions The monitor supports the following resolutions. ● Analog Input (D-Sub) Vertical Scan Resolution Applicable Signals Dot Clock Frequency 640×480 60Hz 800×600 VESA 60Hz 1024×768 VESA 60Hz 146.25MHz 1280×720 CEA-861 60Hz (Max.) 1280×960 VESA 60Hz 1280×1024 VESA...

  • Page 15: Setting The Resolution

    2-2. Setting the Resolution When you connect the monitor to the PC and find that the resolution is improper, or when you want to change the resolution, follow the procedure below. ● Windows 8 / Windows 7 1. For Windows 8, click the “Desktop” tile on the Start Screen to display the desktop. 2.

  • Page 16: Adjusting Color

    2-3. Adjusting Color ● To select the display mode (FineContrast Mode) This function allows easy selection of a desired mode according to monitor application. Display Modes Mode Purpose User1 Selectthistodefineadesiredsetofparametersettings. User2 sRGB SuitableforcolormatchingwithsRGBcompatibleperipherals. Paper Producesaprintedpapereffect.Suitablefordisplayingimagesfrommediasuchasbooks anddocuments. Movie Suitableforplayingbackanimatedimages. Themodemenu appears. Procedure 1.

  • Page 17: To Perform Advanced Adjustments

    ● To perform advanced adjustments The “Color” menu of the Setting menu allows you to set and save the independent color adjustment for each mode. Attention • It takes about 30 minutes for the performance of electrical parts to stabilize. Please wait 30 minutes or more after the monitor power has been turned on, and then adjust the monitor.

  • Page 18: To Adjust Contrast

    ● To adjust contrast The brightness of the screen is adjusted by varying the video signal level. Adjustable range 0 to 100 Procedure 1. Choose “Color” in the Setting menu, and press 2. Choose “Contrast” in the “Color” menu, and press The “Contrast”...

  • Page 19: To Adjust Gamma

    ● To adjust gamma Gamma can be adjusted. The brightness of the monitor varies depending on the input signal, however, the variation rate is not proportional to the input signal. To keep the balance between the input signal and the brightness of the monitor is called as “Gamma correction”.

  • Page 20: To Adjust Hue

    ● To adjust hue This function allows you to adjust hue. Adjustable range -50 to 50 Procedure 1. Choose “Color” in the Setting menu, and press 2. Choose “Advanced Settings” in the “Color” menu, and press 3. Choose “Hue” in the “Advanced Settings” menu, and press The “Hue”...

  • Page 21: Digital Signal Input

    Setting Procedures Prepare to use analog screen adjustment patterns. Load the “EIZO LCD Utility Disk” to your PC, and then open the “Screen adjustment pattern files”. Note • For details and instructions on opening the “Screen adjustment pattern files”, refer to the Readme.txt file.
  • Page 22 Perform the auto adjustment again with the analog screen adjustment pattern displayed. ● To adjust flickering, screen position, and screen size automatically Procedure 1. Display Pattern 1 in full screen on the monitor using the “Screen adjustment pattern files”. 2. Choose “Screen” in the Setting menu, and press 3.
  • Page 23 ● To remove flickering or blurring Procedure 1. Choose “Analog Adjustment” in the “Screen” menu, and press 2. Choose “Phase” in the “Analog Adjustment” menu, and press The “Phase” menu appears. 3. Adjust the phase with to minimize flickering or blurring. 4.
  • Page 24 Adjusting color gradation. ● To adjust color gradation automatically Every color gradation (0 to 255) can be displayed by adjusting the signal output level. Procedure 1. Display Pattern 2 in full screen on the monitor using the “Screen adjustment pattern files”. 2.

  • Page 25: Screen Size Changing

    2-5. Screen Size Changing ● Screen Size Changing The image with the resolution other than the recommended resolution is displayed in full screen automatically. You can change the screen size by using the “Screen Size” function. Setting Function FullScreen Displaysanimageinfullscreen.Imagesaredistortedinsomecasesbecausethevertical rateisnotequaltothehorizontalrate.

  • Page 26: Chapter 3 Setting Monitor

    Chapter 3 Setting Monitor 3-1. Adjusting Volume This function allows you to adjust the volume. Adjustable range 0 to 30 Procedure 1. Press 2. Use for adjustment. 3. Press to exit. Note • The volume for the speakers and the headphone can be set individually. 3-2.

  • Page 27: Compensating Viewing Angle Deficiency

    3-3. Compensating viewing angle deficiency When the screen is to be viewed from below, the viewing angle can be compensated for so the screen looks as if it is being seen from directly ahead. -20˚ -40˚ Adjustable range -40˚, -20˚, Off Procedure 1.

  • Page 28: Locking Operation Buttons

    “Portrait” position, settings of your graphics board need to be changed. Refer to the User’s Manual of the graphics board for details. 3-7. Showing and hiding the EIZO logo When the monitor is turned on, the EIZO logo appears on the screen. You can choose to show or hide the display of the EIZO logo. Procedure 1.

  • Page 29: Changing Setting Menu Display Position

    3-8. Changing Setting Menu Display Position You can change the display position of the Setting menu. Procedure 1. Choose “Monitor Settings” in the Setting menu, and press 2. Choose “Menu Settings” in the “Monitor Settings” menu, and press 3. Choose “Menu Position” in the “Menu Settings” menu, and press The “Menu Position”...

  • Page 30: Resetting The Monitor To The Default Settings

    3-10. Resetting the Monitor to the Default Settings The setting values are reset to the default settings. Attention • After resetting, you cannot undo the operation. Note • Regarding the default setting, see “Main Default Settings” (page 50). ● To reset the color adjustments This function only resets the color adjustments for the currently selected mode to the default settings.

  • Page 31: Chapter 4 Power Saving Functions

    Chapter 4 Power Saving Functions 4-1. Setting Power Saving ● Monitor This function allows you to set the monitor into the power saving mode according to the PC status. When the monitor has shifted to the power saving mode, the images on the screen are not displayed. Attention •...

  • Page 32: Audio Output

    ● Audio Output This monitor allows you to turn off the audio output from the speakers / headphone at the power saving mode. Procedure 1. Choose “Sound” in the Setting menu, and press 2. Choose “Power Save” in the “Sound” menu, and press The “Power Save”...

  • Page 33: Ecoviewoptimizer2

    ● EcoView Optimizer 2 Using the EcoView Optimizer 2 function automatically adjusts the screen brightness according to the white level of the input signal. This function can reduce the power consumption while maintaining the brightness specified by the input signal. Procedure 1.
  • Page 34 5. When “On” is selected, select “EcoView Sense Settings” for setting the details. Item Setting Range Description Time 5,30sec Specifiesthetimefromwhenapersonleavesthemonitoruntilthe 1,3,5,10,15,30,45, “NoPresencedetected”messageappears.Themonitorshiftsto 60min thepowersavingmodeabout20secondsafterthemessageis displayed. Sensitivity Level5 Whenthesettinglevelishigh(“Level5”atmaximum),evenminor Level4 movementsofapersonaredetected,causingthemonitortoshift Level3 tothepowersavingmodeonlyinfrequently.Ontheotherhand, Level2 whenthesettinglevelislow(“Level1”atminimum),onlymajor Level1 movementsofapersonaredetected,allowingthemonitortoshift tothepowersavingmodefrequently.EcoViewSenseisactivated whenthesensoronthefrontsideofthemonitordetectsthe movementofheat.Therefore,thesensitivityshouldbechanged dependingonthetypicaluser’sclothesorthetypicalroom temperature.Ifthemonitorshiftstoorrecoversfromthepower...

  • Page 35: Checking The Power Saving Level

    4-5. Checking the power saving level The EcoView menu allows you to check Power Reduction, CO Reduction, and Eco Performance Level. The more indicators light up representing the Eco Performance Level, the higher the power saving level attained. Indicator Procedure 1.

  • Page 36: Chapter 5 Troubleshooting

    Chapter 5 Troubleshooting If a problem still remains after applying the suggested remedies, contact your local EIZO representative. 5-1. No picture Problem Possible cause and remedy 1. No picture • Checkwhetherthepowercordisconnectedproperly. • Powerindicatordoesnotlight. • Turnthemainpowerswitchon. • Press . • Turnoffthemainpower,andthenturnitonagainafew...

  • Page 37: Imaging Problems (For Both Digital And Analog)

    5-2. Imaging problems (for both digital and analog) Problem Possible cause and remedy 1. The screen is too bright or too dark. • Use“Brightness”or“Contrast”intheSettingmenuto adjustit.(TheLCDmonitorbacklighthasalimitedlife span.Whenthescreenbecomesdarkorbeginstoflicker, contactyourlocalEIZOrepresentative.) • Ifthescreenistoobright,turnonAutoEcoView.The monitordetectstheenvironmentalbrightnesstoadjustthe screenbrightnessautomatically. 2. Characters are blurred. • CheckwhetherthePCisconfiguredtomeettheresolution andverticalscanfrequencyrequirementsofthemonitor (see“2-1.CompatibleResolutions”(page14)).

  • Page 38: Imaging Problems (For Digital Only)

    5-3. Imaging problems (for digital only) Problem Possible cause and remedy 1. The monitor configuration is changed to • WhentwomonitorsareconnectedtoonePCusing single under the multiple monitor configu- DisplayPort,andthepowertooneofthemonitorsis ration (when DisplayPort is connected). turnedoffwiththepowerbutton,thescreensettingmay bechangedtothesinglemonitorconfiguration.Insucha case,enablethe“DPHotPlug”functionwiththefollowing procedures.Enablingthisfunctionmayincreasethe powerconsumption. 1. Press toturnoffthemonitor. 2....

  • Page 39: Other Problems

    • Inthehightemperatureconditions,themonitormaynot recoverfromthepowersavingmode.Ifthescreenisnot displayedevenaftermovingthemouseorpressingany keyonthekeyboard,turnthemonitoroffandonusingits powerbutton.Whenthescreenisdisplayed,increasethe detectionsensitivityvalue(see“4-4.Settingthepower savingmodewhenapersonleavesthemonitor”(page33)). 6. USB devices connected to the monitor do • CheckwhethertheUSBcableisconnectedcorrectly(see not work. “6-5.MakingUseofUSB(UniversalSerialBus)”(page47)). • ChangetheUSBporttoanotherone.IfthePCor peripheraldevicesworkscorrectlybychangingtheUSB port,contactyourlocalEIZOrepresentative.(Refertothe manualofthePCfordetails.) • RebootthePC. • IftheperipheraldevicesworkcorrectlywhenthePCand peripheraldevicesareconnecteddirectly,pleasecontact yourlocalEIZOrepresentative. • CheckwhetherthePCandOSareUSBcompliant.(For USBcomplianceoftherespectivedevices,consulttheir manufacturers.) • CheckthePC’sBIOSsettingforUSBwhenusing Windows.(RefertothemanualofthePCfordetails.) Chapter5Troubleshooting...

  • Page 40: Chapter 6 Reference

    Chapter 6 Reference 6-1. Attaching the Optional Arm An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our web site for the corresponding optional arm (or optional stand). http://www.eizoglobal.com Attention • When attaching an arm or stand, follow the instructions of their User’s Manual. •...

  • Page 41: Detaching/Attaching Stand Base

    6-2. Detaching/Attaching Stand Base Detaching procedure The stand base that was attached during setup can be detached using the following procedures. Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down. Turn the fixing screw on the stand base to detach it.
  • Page 42 Attaching procedure The once removed the stand base can be attached to the monitor again with the following procedures. Check that the fixing screw is firmly attached to the bottom of the stand base. Place the stand base on a stable surface. Insert the stand brace into the stand base.
  • Page 43 Turn the stand brace in the clockwise direction until it clicks. Chapter6Reference...

  • Page 44: Attaching/Detaching Cable Holder

    6-3. Attaching/Detaching Cable Holder A cable holder is supplied with this product. Use the holder to organize the cables connected to the monitor. Attaching procedure Pass the cables through the cable holder. Close the opening in the cable holder. While holding the cable holder closed, attach it onto the stand. Note •...
  • Page 45 Detaching procedure Close the opening in the cable holder. While holding the cable holder closed, remove it from the stand. Chapter6Reference...

  • Page 46: Connecting Multiple Pcs

    6-4. Connecting Multiple PCs The product has multiple connections to PCs and allows you to switch to one of the connections for display. Connection examples DisplayPort D-Sub DVI-Dconnector connector connector Digital Digital(DVI) Analog(D-Sub) (DisplayPort) Signalcable Signalcable Signalcable (suppliedFD-C39) (optionMD-C87) (suppliedPP200) D-Submini15-pin...

  • Page 47: To Set Input Signal Selection

    ● To set input signal selection Setting Function Auto ThemonitorrecognizestheconnectorthroughwhichPCsignalsareinput. WhenaPCisturnedofforentersthepowersavingmode,themonitorautomatically displaysanothersignal. Manual Themonitordisplaysthesignalfromtheselectedconnectordespitethesignalinput.Select theinputsignalfordisplayusingthe operationbutton. Procedure 1. Choose “Monitor Settings” from the Adjustment menu, and press 2. Choose “Input Signal” from “Monitor Settings”, and press 3. Select “Auto” or “Manual” with or .

  • Page 48: Connection Procedure (Setup Of Usb Function)

    ● Connection Procedure (Setup of USB Function) 1. Connect the monitor first to a PC using the signal cable, and run the PC. 2. Connect the USB cable between the USB downstream port of the PC and the USB upstream port of the monitor.

  • Page 49: Specifications

    6-7. Specifications LCDPanel Size 22.0-inch(560mm) Type TFTcolorLCD,LEDbacklight Surfacetreatment Anti-GlareHardCoating Viewingangles Horizontal170˚,vertical160˚(CR≥10) DotPitch 0.282mm ResponseTime Black-white-black:Approx.5ms HorizontalScan Analog 31-68kHz Frequency Digital 31-68kHz DisplayPort 31-68kHz VerticalScan Analog 55-61Hz(non-interlace) Frequency Digital 59-61Hz(non-interlace) DisplayPort 59-61Hz(non-interlace) Resolution 1680Dots×1050Lines Max.DotClock Analog 146.25MHz Digital 119MHz DisplayPort 119MHz Max.DisplayColor Approx.16.77millioncolors...

  • Page 50: Main Default Settings

    Movablerange Tilt: 35˚Up,0˚Down Swivel: 344˚ Adjustableheight: 140mm(5.5inch) Rotation: 90˚(Clockwise) Environmental Temperature Operating: 5˚Cto35˚C(41˚Fto95˚F) Conditions Transportation/ -20˚Cto60˚C(-4˚Fto140˚F) Storage: Humidity Operating: 20%to80%R.H.(nocondensation) Transportation/ 10%to90%R.H.(nocondensation) Storage: AirPressure Operating: 700to1,060hPa Transportation/ 200to1,060hPa Storage: Standard USBSpecificationRevision2.0 Port Upstreamport×1,Downstreamport×2 CommunicationSpeed 480Mbps(high),12Mbps(full),1.5Mbps(low) Supplycurrent Downstream: Max.500mA/1port ● Main Default Settings AutoEcoView Standard EcoViewOptimizer2...

  • Page 51: Outside Dimensions

    PIVOT ● Accessories Signalcable MD-C87 CleaningKit EIZO“ScreenCleaner” For the latest information about the accessories, refer to our web site. http://www.eizoglobal.com 6-8. Preset Timing The following table shows factory preset analog signal timing. Attention • Display position may be deviated depending on the PC connected, which may require screen adjustment using Setting menu.

  • Page 52: Chapter 7 Glossary

    Chapter 7 Glossary Clock The analog signal input monitor needs to reproduce a clock of the same frequency as the dot clock of the graphics system in use, when the analog signal is converted to a digital signal for image display. This is called clock adjustment.
  • Page 53 HDCP (High-bandwidth Digital Content Protection) Digital signal coding system developed to copy-protect the digital contents, such as video, music, etc. This helps to transmit the digital contents safely by coding the digital contents sent via the DVI or HDMI connector on the output side and decoding them on the input side. Any digital contents cannot be reproduced if both of the equipments on the output and input sides are not applicable to HDCP system.

  • Page 54: Appendix

    EIZO, the EIZO Logo, ColorEdge, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor, and ScreenManager are registered trademarks of EIZO Corporation in Japan and other countries. ColorNavigator, EcoView NET, EIZO EasyPIX, EIZO ScreenSlicer, i • Sound, Screen Administrator, and UniColor Pro are trademarks of EIZO Corporation.

  • Page 55: Energy Star

    ENERGY STAR As an ENERGY STAR Partner, EIZO Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency. This product has acquired the TCO standard that relates to the safety, ergonomics (EcoView Optimizer 2: Off), environment and so forth of office equipment. For an overview of the TCO, refer to our web site.

  • Page 56: Fcc Declaration Of Conformity

    ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuant toPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst harmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,uses,andcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful interferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurin aparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception, whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrect theinterferencebyoneormoreofthefollowingmeasures. * Reorientorrelocatethereceivingantenna. * Increasetheseparationbetweentheequipmentandreceiver. * Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. * Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Changesormodifi  cationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidthe user’sauthoritytooperatetheequipment. Note Usetheattachedspecifi  edcablebeloworEIZOsignalcablewiththismonitorsoastokeepinterference withinthelimitsofaClassBdigitaldevice. - ACCord - ShieldedSignalCable(enclosed) Canadian Notice ThisClassBdigitalapparatuscomplieswithCanadianICES-003. CetappareilnumériquedeleclasseBestcomformeàlanormeNMB-003duCanada. Appendix...

  • Page 57: Hinweise Zur Auswahl Des Richtigen Schwenkarms Für Ihren Monitor

    Hinweise zur Auswahl des richtigen Schwenkarms für Ihren Monitor Dieser Monitor ist für Bildschirmarbeitsplätze vorgesehen. Wenn nicht der zum Standardzubehör gehörige Schwenkarm verwendet wird, muss statt dessen ein geeigneter anderer Schwenkarm installiert werden. Bei der Auswahl des Schwenkarms sind die nachstehenden Hinweise zu berücksichtigen: Der Standfuß...

  • Page 58: Limited Warranty

    The period of this Warranty is limited to (i) five (5) years from the date of purchase of the Product; or, limited to the expiration of (ii) 30,000 hours of its use of the Product (hereinafter referred toasthe“Warranty Period”). EIZOand...
  • Page 59 BEGRENZTE GARANTIE EIZO Corporation (im Weiteren als „EIZO“ bezeichnet) und die Vertragsimporteure von EIZO (im Weiteren als „Vertrieb(e)“bezeichnet)garantierendemursprünglichenKäufer(imWeiterenals„Erstkäufer“bezeichnet),derdasin diesemDokumentvorgegebeneProdukt(imWeiterenals„Produkt“bezeichnet)vonEIZOodereinemVertrieberworben hat,gemäßdenBedingungendieserbeschränktenGarantie(imWeiterenals„Garantie“bezeichnet),dassEIZOund derVertriebnacheigenemErmessendasProduktentwederkostenlosreparierenoderaustauschen,fallsderErstkäufer innerhalb der Garantiefrist (weiter unten festgelegt) eine Fehlfunktion bzw. Beschädigung des Produkts feststellt, die während des normalen Gebrauchs des Produkts gemäß denAnweisungen des zum Lieferumfang des Produkts...
  • Page 60 EIZO et ses Distributeurs cesseront de tenir ou conserver en stock toute pièce de ce Produit après l’expiration de la période de sept (7) ans suivant l’arrêt de la production de telles pièces. Pour réparer le moniteur, EIZO et ses...
  • Page 61 (7)añosdesdequesedejedefabricarelmismo.Paralareparacióndelmonitor,EIZOylosdistribuidoresutilizarán repuestosquecumplanconnuestrosestándaresdecontroldecalidad. LaGarantíaesválidasóloenlospaísesyterritoriosdondeestánubicadoslosDistribuidores.LaGarantíanorestringe ningúnderecholegaldelCompradororiginal. A pesar de las estipulaciones de esta Garantía, EIZO y sus Distribuidores no tendrán obligación alguna bajo esta Garantíaenningunodeloscasosexpuestosacontinuación: (a) CualquierdefectodelProductocausadopordañoseneltransporte,modifi  cación,alteración,abuso,usoincorrecto, accidente, instalación incorrecta, desastre, mantenimiento incorrecto y/o reparación indebida realizada por un terceroquenoseaEIZOosusDistribuidores.
  • Page 62 LapresenteGaranziaèlimitataa(i)cinque(5)anniapartiredalladatad'acquistodelProdottoo(ii)alloscaderedi 30.000 ore d'utilizzo del Prodotto (a cui si farà riferimento da qui in poi con “Periodo di Garanzia”). EIZO e i suoi DistributorinonsiassumonoalcunaresponsabilitàenonhannoalcunobbligoriguardoalProdottoversol'Acquirente originaleoterzidiversidaquellirelativiaquestaGaranzia. EIZO e i suoi Distributori cesseranno di tenere o di conservare qualsiasi ricambio del Prodotto allo scadere di sette...
  • Page 63 EIZOochDistributörerskainteundernågravillkorhanågotannatansvaränvadsomangesidennagarantigällande ProduktenirelationtilldenUrsprungligeköparenellertredjepart. EIZOochDistributörerkommerattupphöramedlagerhållningavProduktensdelareftersju(7)årefterattproduktionen av dessa delar upphört. Nät skärmen repareras använder EIZO och distributörer reservdelar som uppfyller våra kvalitetsstandarder. Garantin är endast giltig i de länder där det finns Distributörer. Garantin begränsar inte några av den Ursprunglige köparenslagstadgaderättigheter. OavsettandravillkoridennagarantiskainteEIZODistributörerundernågravillkorhanågotansvarinågotavdefall...
  • Page 64 ΠΕΡΙΟΡΙΣΜΕΝΗ ΕΓΓΥΗΣΗ Η EIZO Corporation (στο εξής «EIZO») και οι διανομείς που εξουσιοδοτεί η EIZO (στο εξής «Διανομείς») παρέχουν εγγύηση, υποκείμενη και σύμφωνα με τους όρους της παρούσας περιορισμένης εγγύησης (στο εξής «Εγγύηση»),στοναρχικόαγοραστή(στοεξής«Αρχικός Αγοραστής»)οοποίοςαγόρασετοπροϊόνπουκαθορίζεταιστο παρόνέγγραφο(στοεξής«Προϊόν»)απότηνEIZOήτουςΔιανομείς,ηοποίαεξασφαλίζειότιηEIZOκαιοιΔιανομείς, σύμφωναμετηδιακριτήευχέρειάτους,είτεθαεπισκευάσουνείτεθααντικαταστήσουντοΠροϊόνχωρίςχρέωσηεάνο ΑρχικόςΑγοραστής αντιληφθεί εντός της Περιόδου Εγγύησης (ορίζεται κατωτέρω) ότι το Προϊόν δυσλειτουργείήέχει...
  • Page 65 EIZO Corporation (называемая в дальнейшем “EIZO”) и авторизированные EIZO дистрибуторы (называемые в дальнейшем“Дистрибуторы”)гарантируют,всоответствиисусловиямиипунктамиэтойограниченнойгарантии (называемойвдальнейшем“Гарантия”),первичномупокупателю(называемомувдальнейшем“Первоначальный покупатель”),которыйприобрелуEIZOилиДистрибуторовпродукт,указанныйвэтомдокументе(называемый в дальнейшем “Продукт”), что EIZO или Дистрибуторы на свое усмотрение либо бесплатно отремонтируют, либо бесплатно заменят Продукт, если Первоначальный покупатель признает в пределах Гарантийного срока (определенногониже),чтоПродуктнеисправенилионповрежденпроцессенормальногоиспользованияпродукта всоответствиисописаниемвинструкциипоэксплуатации,прилагаемойкПродукту(называемойвдальнейшем...
  • Page 66 有限责任保证书 EIZOCorporation（以下简称 “EIZO”）和 EIZO 授权的经销商（以下简称 “经销商”） ，接受并依照本有限责任保证书（以 下简称 “保证书”）之条款，向从 EIZO 和经销商购买本文中所规定产品（以下简称 “产品”）的原买方（以下称 “原买方”） 提供保证 ： 在保证期内（规定如下） ，如果原买方发现按本产品所附使用说明书（以下简称 “用户手册”）所述方式正常使 用本产品过程中，本产品出现故障或损坏，EIZO 和经销商根据其独自的判断免费修理或更换该产品。 本保证期限定为 （i） 自本产品购买之日起的五 （5） 年期间或限定为到达 （ii） 使用本产品 3 万小时的期限 （以下简称“保证期限”） 。 EIZO和经销商将不向原买方或任何第三方承担本保证书所规定之外的与本产品有关的任何责任或义务。 本产品的任何部件停产七 (7) 年后，EIZO 和经销商将不再保留或保管任何这类部件。维修显示器时，EIZO 与经销商将使 用符合我方质量控制标准的替换零件。 本保证书仅对于设有经销商的国家或地区有效。本保证书并不限定原买方的任何法律权利。 无论本保证书的任何其他条款如何规定，对于任何下列情况之一，EIZO 和经销商将不承担本保证书规定责任 ：...

  • Page 67: Recycling Information

    Recycling Information Recycling Information This product, when disposed of, is supposed to be collected and recycled according to your country’s legislationtoreduceenvironmentalburden.Whenyoudisposeofthisproduct,pleasecontactadistributoror anaffi  liateinyourcountry. ThecontactaddresseesarelistedontheEIZOwebsitebelow. http://www.eizoglobal.com ForrecyclinginformationforcustomersinSwitzerland,pleaserefertothefollowingwebsite. http://www.swico.ch Informationen zum Thema Recycling Dieses Produkt muss gemäß den Vorschriften Ihres Landes zur Entlastung der Umwelt recyclet werden....
  • Page 68 Når du bortskaffer denne produkt, skal du kontakteendistributørellerettilknyttetselskabiditland. AdressernepåkontaktpersonerneerangivetpåEIZO’swebstednedenfor. http://www.eizoglobal.com Kierrätystä koskevia tietoja Tuote tulee hävittää kierrättämällä maan lainsäädännön mukaisesti ympäristön kuormittumisen vähentämiseksi.Kunhävitättuotteen,otayhteyttäjälleenmyyjääntaitytäryhtiöönmaassasi. YhteystiedotlöytyvätEIZOnInternet-sivustolta. http://www.eizoglobal.com Wykorzystanie surowców wtórnych Tenproduktpozużyciupowinienbyćzbieranyiprzetwarzanyzgodniezkrajowymiprzepisamidotyczącymi ochrony środowiska. Wyrzucając ten produkt, należy skontaktować się z lokalnym dystrybutorem lub partnerem.Adresykontaktowemożnaznaleźćwewskazanejponiżejwitrynieinternetowejfi  rmyEIZO. http://www.eizoglobal.com Appendix...
  • Page 69 Informácie o recyklácii Prilikvidáciimusíbyťtentovýrobokrecyklovanývsúladeslegislatívouvašejkrajiny,abysaznížilozaťaženie životnéhoprostredia.Keďsachcetezbaviťtohtovýrobku,kontaktujteprosímdistribútoraalebopobočkuvo vašejkrajine. Zoznamkontaktnýchadriesjeuvedenýnanasledovnejwebovejstránkefi  rmyEIZO: http://www.eizoglobal.com Pārstrādes informācija Utilizējot šo produktu, tā savākšana un pārstrāde veicama atbilstoši jūsu valsts likumdošanas prasībām attiecībā uz slodzes uz vidi samazināšanu. Lai veiktu šī produkta utilizāciju, sazinieties ar izplatītāju vai...
  • Page 70 Информация относно рециклиране Приизхвърлянетонатозипродуктсепредлагасъбиранетоирециклиранетомусъобразнозаконитена вашатастраназадасенамализамърсяванетонаоколнатасреда.Когатоискатедасеосвободитеот тозипродукт,молясвържетесестърговскиямупредставителилисъссъответнитеорганиотговарящи затовавъввашатастрана. ДаннитезавръзкаснассаописанинаследнияИнтернетсайтнаEIZO: http://www.eizoglobal.com Informaţie referitoare la reciclare Acestprodus,cânddebarasat,trebuiecolectatşireciclatconformlegislaţieiţăriirspectivecasăreducem sarcinamediului.Cândsedebaraseazădeacestprodus,vărugămsăcontactaţiundistribuitorsauunafi  liat alţăriirespective. AdreseledecontactlegăsiţipepaginadewebalEIZO: http://www.eizoglobal.com http://www.eizoglobal.com http://www.eizoglobal.com Geri Dönüşüm Bilgisi Buürünün,atılacağızaman,ülkenizinçevrekirliliğininazaltılmasıkonusundakimevzuatınagöretoplanması veyenidendeğerlendirilmesigerekmektedir.Ürünüatacağınızzamanlütfenülkenizdekibirdistribütörveya ilgilikuruluşlatemasageçiniz. İrtibatadresleriaşağıdakiEIZOwebsitesindeverilmiştir. http://www.eizoglobal.com Appendix...

  • Page 71: China Measures For Rohs Compliance In Chinarohs

    China Measures for RoHS Compliance in ChinaRoHS 关于电子信息产品污染控制标识 本标识根据「电子信息产品污染控制管理办法」 ，适用于在中华人民共和国销售的电子信息产品。标识中央的 数字为环保使用期限的年数。只要您遵守该产品相关的安全及使用注意事项，在自制造日起算的年限内，不会 产生对环境污染或人体及财产的影响。上述标识粘贴在机器背面。 • 有毒有害物质或元素的名称及含量 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 （Pb） （Hg） （Cd） （Cr（VI） ） （PBB） （PBDE） 印刷电路板 × ○ ○ ○ ○ ○ 机箱 ○ ○ ○ ○...
  • Page 72 3rd Edition-March, 2015 03V24737C1 Copyright © 2013-2015 EIZO Corporation All rights reserved. (U.M-EV2216W-Z)

This manual is also suitable for:
