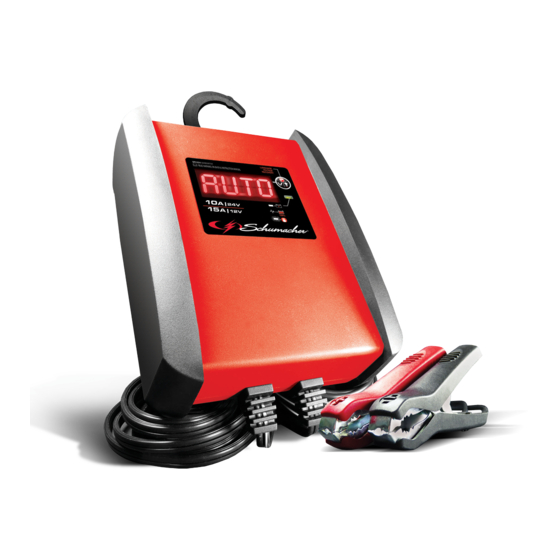

Schumacher SPI1224 Owner's Manual

Automatic battery charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

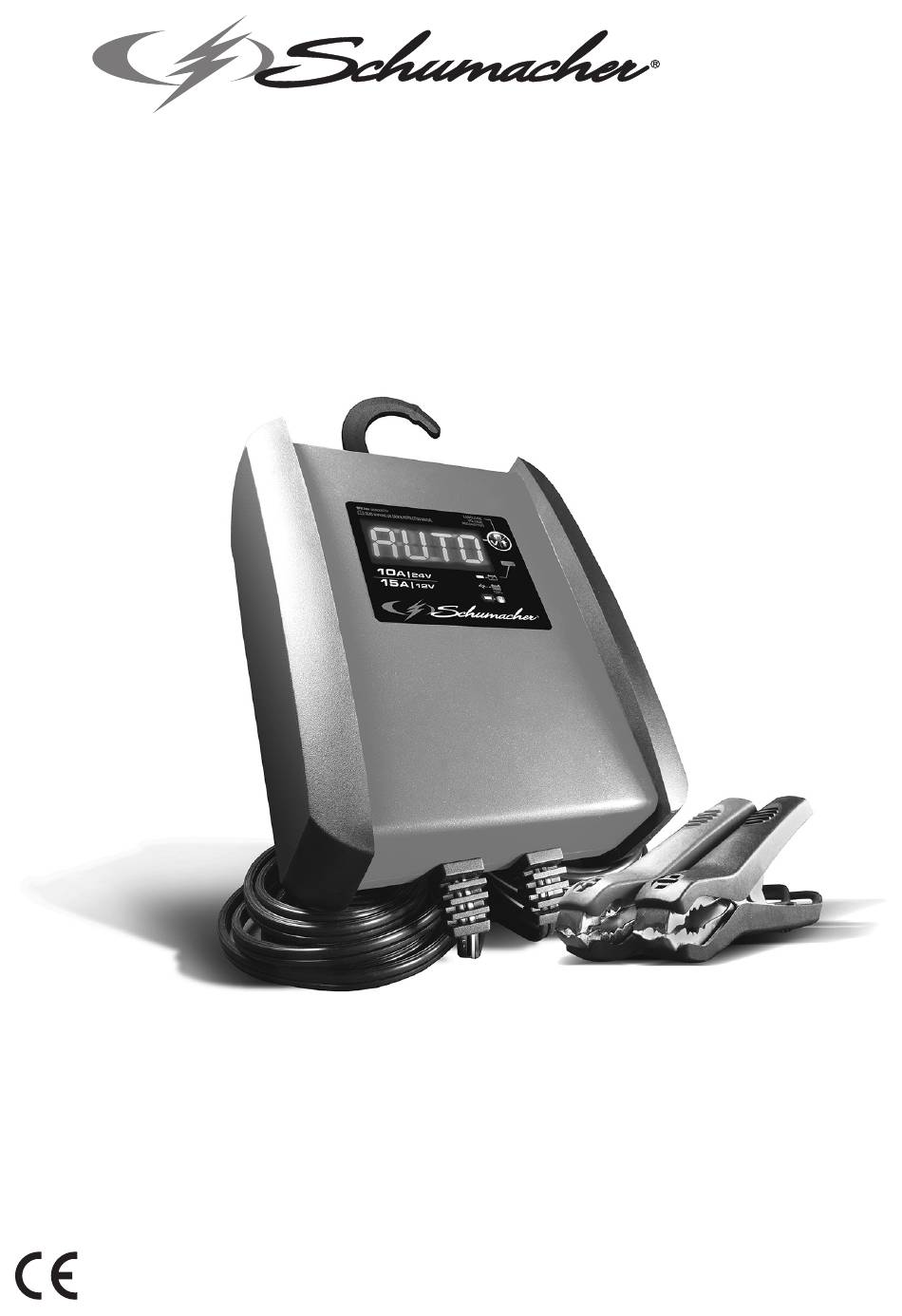

MODEL
SPI1224
Automatic
Battery Charger
OWNERS MANUAL
PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE
EACH USE. This manual will explain how to use the battery charger
safely and effectively. Please read and follow these instructions
and precautions carefully.
0099002046-00

Advertisement

Table of Contents
loading

Related Manuals for Schumacher SPI1224

Summary of Contents for Schumacher SPI1224

  • Page 1 MODEL SPI1224 Automatic Battery Charger OWNERS MANUAL PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the battery charger safely and effectively. Please read and follow these instructions and precautions carefully. 0099002046-00...
  • Page 2 Markings and symbols Read manual Caution, Do not For indoor Warning Class II before using. risk of electric expose use only. Charger shock. to rain. Contact the equipment supplier for details on how to properly dispose Use in a Keep away from of this product within well-ventilated sparks and flame –...
  • Page 3 1.4 Do not expose the charger to rain or snow. 1.5 Use only recommended attachments. Use of an attachment not recommended or sold by Schumacher Electric Corporation may result in a risk of fire, electric shock or injury to ®...

  • Page 4: Personal Precautions

    2. PERSONAL PRECAUTIONS RISK OF EXPLOSIVE GASES. WARNING 2.1 NEVER smoke or allow a spark or flame in the vicinity of a battery or engine. 2.2 Remove personal metal items such as rings, bracelets, necklaces and watches when working with a lead-acid or lithium ion battery. These batteries can produce a short-circuit current high enough to weld a ring or the like to metal, causing a severe burn.

  • Page 5: Charger Location

    4. CHARGER LOCATION WARNING WARNING WARNING RISK OF EXPLOSION AND CONTACT WITH BATTERY ACID. 4.1 Locate the charger as far away from the battery as the DC cables permit. 4.2 Never place the charger directly above the battery being charged; gases from the battery will corrode and damage the charger. 4.3 Do not set the battery on top of the charger.

  • Page 6: Grounding And Ac Power Cord Connections

    FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE OF THE VEHICLE. WARNING WARNING WARNING A SPARK NEAR THE BATTERY MAY CAUSE A BATTERY EXPLOSION. TO REDUCE THE RISK OF A SPARK NEAR THE BATTERY: 7.1 Check the polarity of the battery posts. The POSITIVE (POS, P, +) battery post usually has a larger diameter than the NEGATIVE (NEG, N, -) post.

  • Page 7: Control Panel

    The charger does not have an ON/OFF switch. The On and Off commands are controlled by plugging the SPI1224 into an AC electrical wall outlet only after the battery connections have been made. Do not start the vehicle with the charger connected to the AC outlet, or it IMPORTANT may damage the charger and your vehicle.

  • Page 8: Battery Charging Times

    CHARGING 1. Ensure that all of the charger components are in place and in good working condition. 2. Connect the battery, following the precautions listed in sections 6 and 7. 3. Connect the AC power following the precautions listed in section 8. 4.

  • Page 9: Display Messages

    MAINTAINING A BATTERY The SPI1224 maintains 12V and 24V batteries, keeping them at full charge. It is not recommended for industrial applications. NOTE: The maintain mode technology allows you to safely charge and maintain a healthy battery for extended periods of time.
  • Page 10 RECONDITION TIME REMAINING XXX MINUTES – Recondition mode has started. The remaining time on the display counts down from 180 minutes. RECONDITION SUCCESSFUL-START NORMAL CHARGING – Shows on display for 60 seconds after a successful Recondition. WARNING-CLAMPS REVERSED (No LED lit) – The output clamps are connected backwards to a battery.
  • Page 11 REKONDITIONIERUNG FERTIG - START STANDARD LADUNG VORSICHT - VERPOLUNG ANALYSE 12V BATTERIE ANALYSE 24V BATTERIE LADUNG 12V - XX% LADUNG 24V - XX% BATTERIE VOLL GELADEN-AUTOMATISCHE ERHALTUNGSLADUNG LADUNG ABGEBROCHEN - DEFEKTE BATTERIE BATTERIE GETRENNT FRENCH (FR) SELECTIONNEZ LE MODE DE CHARGE 12V - CHARGE STANDARD - APPUYEZ UNE FOIS POUR 24V - DEUX FOIS POUR LE MODE DE RECONDITIONNEMENT 12V - CONNECTEZ LES PINCES - APPUYEZ UNE FOIS POUR 24V - DEUX FOIS...

  • Page 12: Maintenance Instructions

    14. MAINTENANCE INSTRUCTIONS 14.1 Cleaning and user maintenance should not be done by children without supervision. 14.2 After use and before performing maintenance, unplug and disconnect the battery charger (see sections 6, 7 and 8). 14.3 Use a dry cloth to wipe all battery corrosion and other dirt or oil from the battery connectors, cords, and the charger case.

  • Page 13: Specifications

    19. LIMITED WARRANTY WARRANTY TERMS AND CONDITIONS Schumacher Electric Corporation (the “Manufacturer”) or the resellers authorized by the Manufacturer (the “Reseller”) warrant this Charger (the “Product”) for two (2) years, according to the following stipulations. Any and all warranties, other than the warranty included herein, are hereby expressly disclaimed and excluded to the fullest extent permissible under applicable law.
  • Page 14 Manufacturer. Manufacturer does not provide any warranty for any accessories used with the Product that are not manufactured by Schumacher Electric Corporation. This warranty does not exclude or diminish any claims the Manufacturer may have against the distributors of The Product.

  • Page 15: Declaration Of Conformity

    DECLARATION OF CONFORMITY Schumacher Electric Corporation 801 East Business Center Drive Mount Prospect, Illinois, 60056, U.S.A. certify that the Automatic Battery Charger Model SPI1224 complies with the following standards: Low Voltage Directive (LVD): 2014/35/EU EMC Directive: 2014/30/EU EN 60335-1:2012+A11:2014+A13:2017 EN 60335-2-29:2004+A2:2010...
