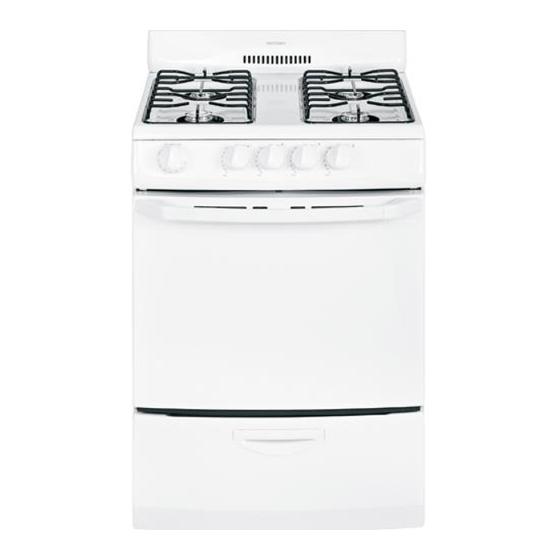

RGA724EK – Hotpoint 24" Free-Standing Gas Range
Dimensions (in inches)
NOTE: Recommended gas
hook-up locations behind
range. Gas fittings and
shut-off cock should NOT
protrude more than 2" from
the wall to allow the range
to fit against the wall.
3"
5-1/2"
12"
14"
8"
30"
3"
8"
2"
2"
Gas
Hookup
Area
Specification Revised 11/06
430219
Installation Information (in inches)
24-3/8"
30" Min.
13"
Max.
1/4"
18" Min.
36"
Electrical
8"
Connection
Area
8"
5"
24-3/8"
24
2"
Minimum
40-1/2
distance to
walls above
the cooktop
36
on each side
41
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before
installing, consult installation
instructions packed with product
for current dimensional data.
Note: LP conversion kit is required for
this model.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
CERTIFIED
