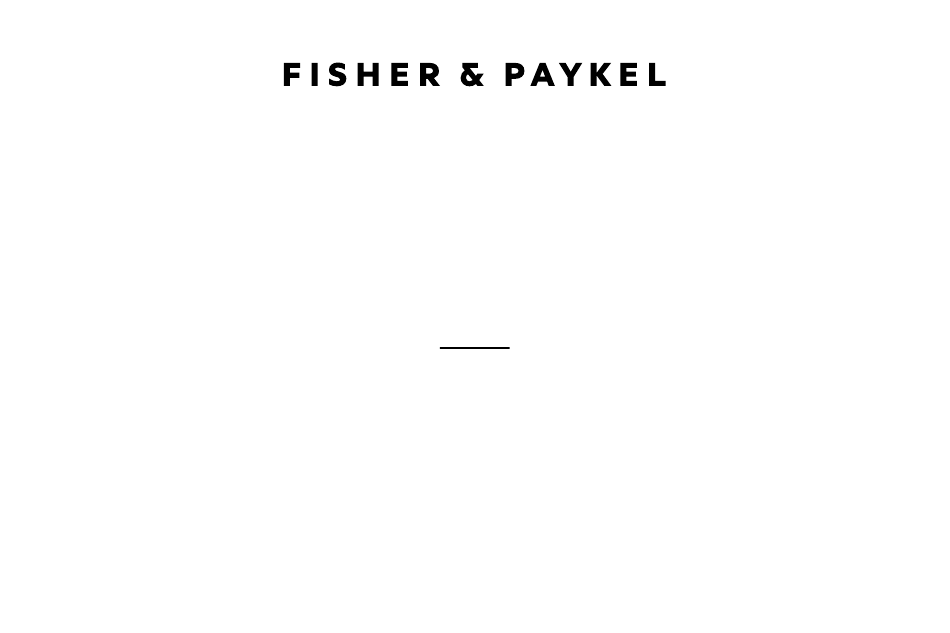

- Page 1 SINGLE DISHDRAWER™ DISHWASHER DD60SA & DD60SC models INSTALLATION GUIDE NZ AU GB IE SG 591151D 05.19...
-
Page 2: Safety And Warnings
SAFETY AND WARNINGS WARNING! WARNING! Electrical shock hazard Electrical shock hazard Before installing the dishwasher, WARNING- Improper connection remove the house fuse or open of the equipment-earthing the circuit breaker. conductor can result in a risk This appliance must be earthed. of electric shock. -
Page 3: Important Safety Instructions
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Installation of this dishwasher requires If the dishwasher is to be relocated basic mechanical and electrical skills. from one installation to another Be sure to leave these Instructions with it must be kept upright to avoid the Customer. -
Page 4: Parts Supplied
PARTS SUPPLIED Drain hose Drain hose Wire clip (1) Clamp (1) Side mounting support (1) joiner (1) (for securing (for securing bracket kit mounting Drain hose joiner) Drain hose joiner) (A and B) (2) brackets (2) OPTIONAL OPTIONAL Phillips 38 mm Rubber washer Moisture protection 16 mm... -
Page 5: Product Dimensions
PRODUCT DIMENSIONS FRONT PROFILE DD60SA DD60SCT DD60SC PRODUCT DIMENSIONS Overall height of product Overall width of product Overall depth of product Depth of chassis (to back of front drawer panel) Depth of drawer front panel Height of drawer front panel... -
Page 6: Cabinetry Dimensions
CABINETRY DIMENSIONS Bracket slots PLAN PROFILE DD60SA DD60SCT DD60SC CABINETRY DIMENSIONS Inside height of cavity min. 412 min. 456 Minimum clearances from adjacent cabinetry Inside width of cavity Inside depth of cavity min. 560 min. 560 Cavity height options allow you to match dishwasher with your cabinetry or companion products... -
Page 7: Cavity Preparation
CAVITY PREPARATION COUNTERTOP Moisture 10 mm protection tape must be applied Water Connection Recommended COLD (Maximum 60°C). These marks indicate formed bracket screw locations, if 3/4“ BSP (GB20) to securing by drawer removal. suit flat washer. If there is no side partition, you Ø... - Page 8 MAXIMUM DISTANCE OF HOSES & CORD FROM CHASSIS EDGE LEFT HAND SIDE RIGHT HAND SIDE Drain hose - 2000 mm Drain hoses - 1800 mm Inlet hose - 1650 mm Inlet hose - 1250 mm Power cord (excl.plug) - 2000 mm Power cord (excl.plug) - 2000 mm...
- Page 9 NOW CHOOSE WHICH INSTALLATION METHOD (A) OR (B) IS MORE SUITABLE FOR YOUR CABINETRY... RECOMMENDED METHOD (A) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY) ATTACH SIDE MOUNTING BRACKETS PULL THROUGH HOSES & PUSH INTO THE CAVITY Clip all four side mounting brackets into their slots using a flat-bladed screwdriver.
- Page 10 SECURE TO THE CABINETRY ON THE SIDES Open the drawer halfway. Using a flat bladed screwdriver, prise the grey rubber plug out of the trim moulding. Replace the grey rubber plug back Using a small Philips screwdriver, into the trim moulding and ensure screw through the trim moulding, securing the trim seal is facing forward.
- Page 11 ALTERNATIVE METHOD (B) - SECURE BY DRAWER REMOVAL PULL THROUGH HOSES & PUSH INTO THE CAVITY REMOVE THE LOWER DRAWER To prevent kinked hoses Either sit the drawer down on the left hand side (recommended) or rotate the drawer clockwise, resting it on its side after removal. Push drawer runners back Sit the drawer down...
- Page 12 SECURE TO THE CABINETRY ON THE SIDES The product has three pairs of fixing points: Ensure the sound insulation is repositioned correctly. a pair of fixing two pairs of formed holes either side brackets on either side on the bottom of the chassis (use 38 mm fixing (use 16 mm screws)
- Page 13 THERE ARE TWO DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE. DRAINAGE OPTION 1 DRAINAGE OPTION 2 Dishwasher and Ø 38 mm Standpipe Dishwasher using drain hose joiner onto sink trap/waste tee Supplied drain hose joiner to suit Screw Drain hose Screw Drain hose 19 mm waste tee...
- Page 14 CONNECT INLET HOSE TO COLD WATER PLUG PRODUCT IN min. 10mm 3/4” BSP connector No leaks! Ensure the supplied rubber washer is fitted inside the coupling. Tighten coupling with spanner.
-
Page 15: Troubleshooting
TROUBLESHOOTING Excessive water remaining above the filter plate, after the rinse cycle. (This is displayed as an fault) Check for a kinked drain hose, blocked waste connection, highloop not properly installed, drain hose not routed correctly or spray arm not in place. No water supply. -
Page 16: Final Checklist
FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER Turn on the power and water supplies, then open the drawer. You should hear a Check all parts are installed. beep and see a program indicator light up on the control panel. Ensure that all panels and parts thereof are secure and final electrical tests have Check the spray arms are in place, mounted correctly and free to rotate, by been conducted in accordance with local electrical regulations.
