Summary of Contents for Hoshizaki F-450MAH
-

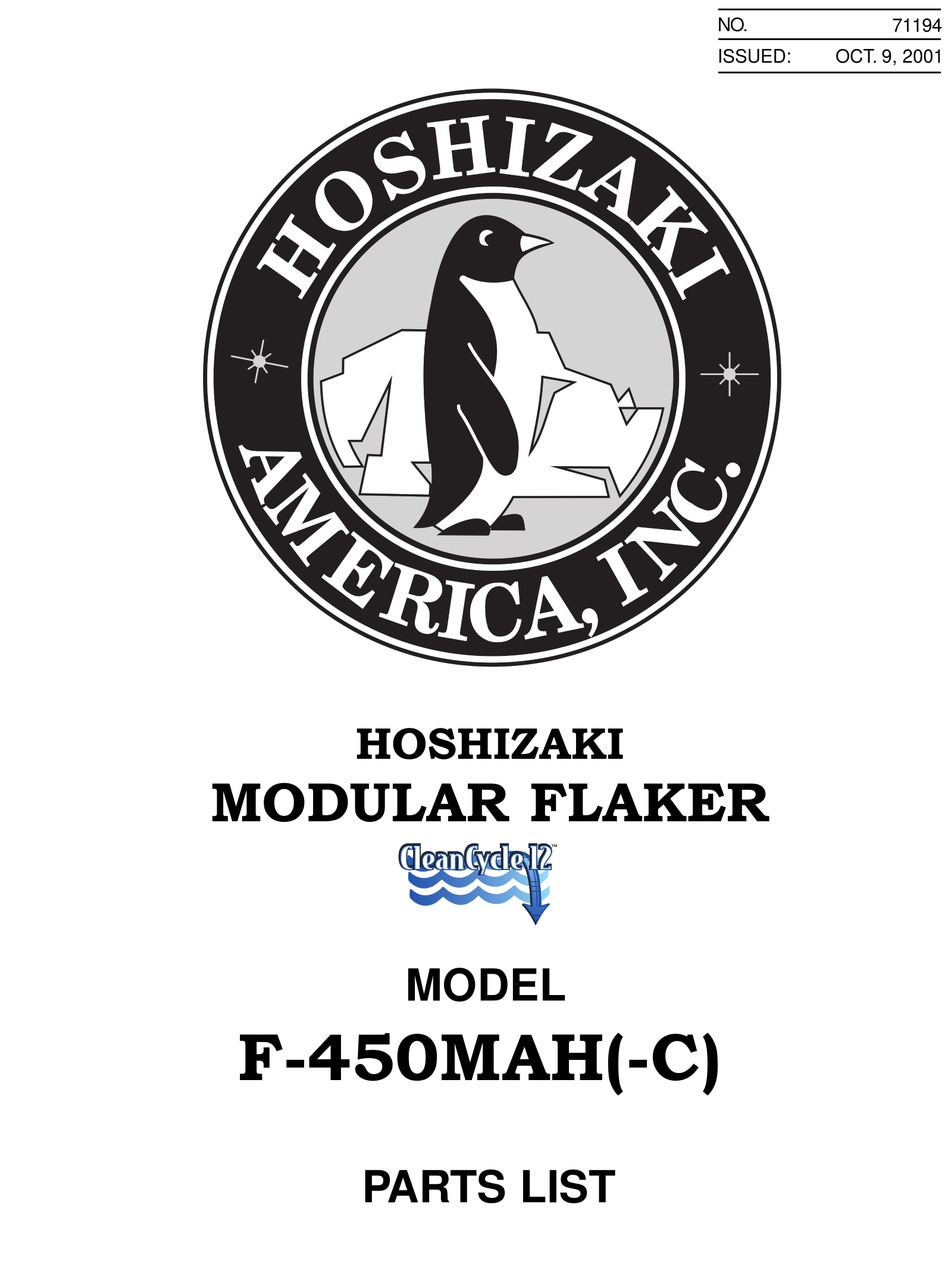

Page 1: Parts List
71194 ISSUED: OCT. 9, 2001 ??, 200? REVISED: REVISED: MODEL PARTS LIST... - Page 2 F-450MAH F-450MAH-C April, 2001 April, 2001...
-
Page 3: Material Abbreviations
ALUMINUM Aluminum COPPER Copper PLASTIC Acrylonitritrile -butadiene - styrene Polyacetal Ethylene vinyl acetate Polyamide = Nylon Polycarbonate Polyethylene Polyester PETP Polyethylene terephthalate = Tetlon Polypropylene Polystyrene PTFE Polytetrafluoroethylene = Teflon Polyurethane Polyvinyl chloride RUBBER Vinyl Nitrile EPDM EP rubber Nitrile butadiene rubber Natural rubber Neoprene SI.R... -
Page 4: Ice Flaker Assembly
F-450MAH/(-C) A. ICE FLAKER ASSEMBLY... - Page 5 F-450MAH MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER EVAPORATOR ASSEMBLY SOCKET HEAD HEX BOLT SS, 8 X 95 SPRING WASHER SS, 8 REFRIGERATION UNIT T2 SCREW SS, 4 X 8 WATER CIRCUIT CONTROL BOX ASSEMBLY FT SCREW SS, 4 X 8...
-
Page 6: Required Number
F-450MAH-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER EVAPORATOR ASSEMBLY SOCKET HEAD HEX BOLT SS, 8 X 95 SPRING WASHER SS, 8 REFRIGERATION UNIT T2 SCREW SS, 4 X 8 WATER CIRCUIT CONTROL BOX ASSEMBLY FT SCREW SS, 4 X 8... - Page 7 F-450MAH/-C MODEL INDEX DESCRIPTION CHASSIS REAR PANEL TRUSS HEAD SCREW JUNCTION BOX COVER T2 SCREW SIDE FRAME (R) TRUSS HEAD SCREW FRONT FRAME TRUSS HEAD SCREW BRACKET - RESERVOIR T2 SCREW BRACKET - GEAR MOTOR HEX BOLT DRAIN PAN STRAP...
- Page 8 F-450MAH/-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER BRACKET - CHUTE SIDE PANEL (R) TRUSS HEAD SCREW SS, 4 x 8 SIDE PANEL (L) TRUSS HEAD SCREW SS, 4 x 8 TOP PANEL FRONT PANEL TRUSS HEAD SCREW SS, 4 x 10...
-
Page 9: Evaporator Assembly
F-450MAH B. EVAPORATOR ASSEMBLY... - Page 10 F-450MAH MODEL INDEX DESCRIPTION GEAR MOTOR BARRIER - GEAR MOTOR FT SCREW COUPLING – SPLINE HOUSING BOLT “O” RING MECHANICAL SEAL RING (B) AUGER EVAPORATOR SOCKET HEAD CAP SCREW SPLIT LOCK WASHER EXTRUDING HEAD – 45F SOCKET HEAD CAP SCREW...
- Page 11 F-450MAH-C B. EVAPORATOR ASSEMBLY...
- Page 12 F-450MAH-C MODEL INDEX DESCRIPTION GEAR MOTOR BARRIER - GEAR MOTOR FT SCREW COUPLING – SPLINE HOUSING BOLT “O” RING MECHANICAL SEAL RING (B) AUGER EVAPORATOR SOCKET HEAD CAP SCREW SPLIT LOCK WASHER EXTRUDING HEAD – 45N SOCKET HEAD CAP SCREW...
-
Page 13: Refrigeration Unit
F-450MAH/-C C. REFRIGERATION UNIT 13 12... - Page 14 F-450MAH/-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER COMPRESSOR RS43C2E-CAA GROMMET 027-0073-00 SPACER 027-0072-02 PROTECTOR 071-0527-04 PROTECTOR HOLDER BOLT 8 x 45 CONDENSER 602380 FT SCREW SS, 4 x 8 SHROUD T2 SCREW 4 x 8 FAN MOTOR BRACKET SS, 5 x 12...
- Page 15 F-450MAH/-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER COPPER TUBE – ACCESS COPPER VALVE PRESSURE SWITCH ACB-ZUB04 PRESSURE SWITCH BRCKT. GS T2 SCREW 4 x 8 CLAMP CABLE TIE CV-150 INSULATION TUBE L=130 INSULATION TUBE L=30 HOLDER/EXP. VALVE – ½...
-
Page 16: Water Circuit
F-450MAH/-C D. WATER CIRCUIT... - Page 17 F-450MAH/-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER WATER VALVE BRACKET T2 SCREW 4 x 8 WATER SUPPLY PIPE COPPER T2 SCREW 4 x 8 WASHER K-59963 WATER VALVE S-30 DRAIN VALVE BRACKET FT SCREW SS, 4 x 8 WATER VALVE...
-
Page 18: Control Box Assembly
F-450MAH/-C E. CONTROL BOX ASSEMBLY... - Page 19 F-450MAH/-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER CONTROL BOX FT SCREW SS, 4 x 8 COVER - CONTROL BOX TRUSS HEAD SCREW SS, 4 x 8 RELAY LY2F AC24V RELAY LY4F AC24V RELAY LY1F AC220/240V RELAY LY1F AC120V 418271-03...
- Page 20 F-450MAH/-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER 9P PLUG HOUSING 3191-9P-201 412832-02 CAPACITOR UP25B505UEF T2 SCREW 4 x 8 6P PLUG HOUSING 3191-6P-201 412832-03 3P PLUG HOUSING 3191-3P-201 412832-06 4P PLUG HOUSING 3191-4P-201 412832-05 CONNECTOR FUSE HOLDER HTB-92M FUSE GMD 1.5A...
-
Page 21: Chute Assembly
F-450MAH F. CHUTE ASSEMBLY... -
Page 22: Required Number
F-450MAH MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER BAFFLE-CHUTE (A) WING NUT SS, 4 BAFFLE-CHUTE (B) BIN CONTROL ACTUATOR SHAFT SNAP PIN SS, SSP-5 PLATE THUMB SCREW ABS, SS PROXIMITY SWITCH RS-601 TRUSS HEAD SCREW SS, 4X8 THUMB SCREW ABS, SS... - Page 23 F-450MAH-C F. CHUTE ASSEMBLY...
- Page 24 F-450MAH-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER CHUTE INSULATION – CHUTE PE FOAM SENSOR HOUSING PHOTO–ELECTRIC SENSOR UZD12 CROSS RECESSED PAN TYPE1, NO.4, HEAD TAPPING SCREW L= ¾” F. CHUTE ASSEMBLY TITLE PART REQUIRED NUMBER NUMBER 2A0925-01 2A0989-01 436531G01...
-
Page 25: Label Location
F-450MAH/-C G. LABEL LOCATION... - Page 26 F-450MAH MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER INSTRUCTION SHEET PAPER EMBLEM PETP FILM MODEL NUMBER LABEL PETP FILM LABEL - PENGUIN - HA - L PETP FILM LABEL - AIR FILTER PETP FILM INSTRUCTION LABEL PVC FILM LABEL - CLEANING...
- Page 27 F-450MAH-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER INSTRUCTION SHEET PAPER EMBLEM PETP FILM MODEL NUMBER LABEL PETP FILM LABEL - PENGUIN - HA - L PETP FILM LABEL - AIR FILTER PETP FILM INSTRUCTION LABEL PVC FILM LABEL - CLEANING...
-
Page 28: Power Supply
F-450MAH/-C H. POWER SUPPLY... -
Page 29: Power Supply Assembly
F-450MAH-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER POWER SUPPLY GLC40-24 1 POWER SUPPLY HOUSING FT SCREW SS, 4 x 8 BOARD SUPPORT CBLS37-M RELAY JA1a-TM- DC24V TAPPING SCREW 3 x 8 LINE CONNECTOR 09053061 LINE CONNECTOR 09503031 CRIMP TERMINAL (MOLEX) 08500189 H. - Page 30 F-450MAH/-C J. ACCESSORIES...
- Page 31 DESCRIPTION MATERIAL OR MODEL NUMBER INSTRUCTION MANUAL PAPER UNIVERSAL BRACE HEX HEAD BOLT SS, 5 x 12 LABEL – FASTENER TRUSS HEAD SCREW SS, 4 X 8 F-450MAH/-C J. ACCESSORIES TITLE PART NUMBER 91A2BA10A 4A0363-01 7B02-0512 427122-01 7C32-0408 REQUIRED NUMBER...
