Summary of Contents for Hoshizaki F-2000MRH

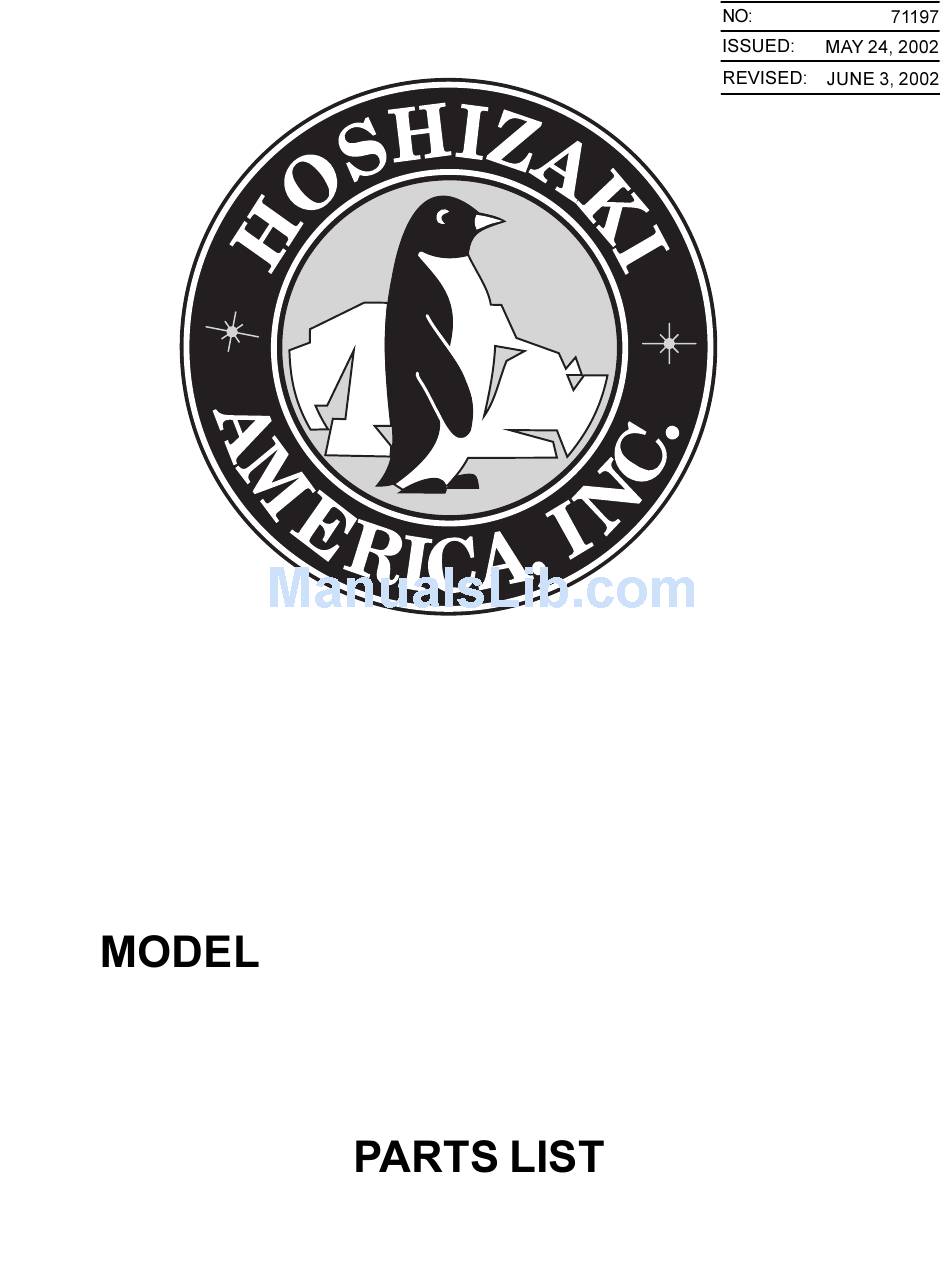

  • Page 1 HOSHIZAKI MODULAR ICEMAKER F-2000MRH(-C) F-2000MRH3(-C)

  • Page 3: Material Abbreviations

    ALUMINUM Aluminum COPPER Copper PLASTIC Acrylonitritrile -butadiene - styrene Polyacetal Ethylene vinyl acetate Polyamide = Nylon Polycarbonate Polyethylene Polyester PETP Polyethylene terephthalate = Tetlon Polypropylene Polystyrene PTFE Polytetrafluoroethylene = Teflon Polyurethane Polyvinyl chloride RUBBER Vinyl Nitrile EPDM EP rubber Nitrile butadiene rubber Natural rubber Neoprene SI.R...

  • Page 5: Ice Flaker Assembly

    F-2000MRH(-C), MRH3(-C) MODEL INDEX DESCRIPTION EVAPORATOR ASSEMBLY EVAPORATOR ASSEMBLY REFRIGERATION UNIT REFRIGERATION UNIT WATER CIRCUIT ASSEMBLY CHUTE ASSEMBLY SPOUT ASSEMBLY CONTROL BOX ASSEMBLY CONTROL BOX ASSEMBLY TRUSS HEAD SCREW FAN MOTOR ASSEMBLY TRUSS HEAD SCREW TRANSFORMER ASSEMBLY HEX HEAD BOLT...
  • Page 6 F-2000MRH(-C), MRH3(-C) MODEL INDEX DESCRIPTION CHASSIS REAR PANEL ASSEMBLY FT SCREW HEX HEAD BOLT W/WASHER JUNCTION BOX COVER T2 SCREW WASHER SCREW - GROUNDING SIDE FRAME (R) FT SCREW TRUSS HEAD SCREW SIDE FRAME (L) FT SCREW FRONT FRAME FT SCREW...
  • Page 7 F-2000MRH(-C), MRH3(-C) MODEL INDEX DESCRIPTION FLAT PLASTIC WASHER STRAP T3 SCREW RING "O" RING THUMBSCREW PACKING STRAP STRAP DRIP GUIDE WING NUT SIDE PANEL (L) TRUSS HEAD SCREW SIDE PANEL (R) TRUSS HEAD SCREW TOP PANEL FRONT PANEL LOUVER (A)
  • Page 9 F-2000M R H (-C ), M R H 3(-C ) M O D EL IND E X D ESC R IPTIO N N O . G EAR M O TOR CO U PLING HO U SING HEX H EAD BO LT W ASHER SPLIT LO CK W ASHER "O"...

  • Page 11: Refrigeration Unit

    F-2000MRH(-C), MRH3(-C) MODEL INDEX DESCRIPTION COMPRESSOR CS20K6E-PFV COMPRESSOR CS20K6E-TF5 TERMINAL COVER TERMINAL COVER GROMMET SPACER BOLT PRESSURE SWITCH PRESSURE SWITCH BRACKET T2 SCREW RECEIVER TANK HEX HEAD BOLT W/WASHER (LF) DRIER BRACKET - DRIER FT SCREW EXPANSION VALVE EXPANSION VALVE...
  • Page 12 F-2000MRH(-C), MRH3(-C) MODEL INDEX DESCRIPTION COPPER TUBE (B) - HIGH SIDE COPPER TUBE (C) - HIGH SIDE COPPER TUBE (D) - HIGH SIDE HEAT EXCHANGER INDICATOR INSULATION TUBE INSULATION TUBE INSULATION TUBE INSULATION TUBE CABLE TIE INSULATION - COMPRESSOR TITLE...

  • Page 13: Water Circuit

    F-2000MRH(-C), MRH3(-C) D. WATER CIRCUIT L-0, M-0...
  • Page 14 F-2000MRH(-C), MRH3(-C) MODEL INDEX DESCRIPTION WATER SUPPLY PIPE T2 SCREW WATER VALVE BRACKET (A) TRUSS HEAD SCREW WATER VALVE WASHER INLET - RESERVOIR RESERVOIR COVER - RESERVOIR FLOAT SWITCH SEPARATOR - RESERVOIR FITTING T2 SCREW WATER VALVE BRACKET (B) FT SCREW...
  • Page 15 F-2000MRH(-C), MRH3(-C) MODEL INDEX DESCRIPTION HOSE CLAMP CABLE TIE HOSE CLAMP HOSE CLAMP COLLAR THUMBSCREW TITLE MATERIAL PART OR MODEL NUMBER NUMBER L-0 M-0 4A2017-05 CV-150 7920-0003 4A2017-01 4A2017-02 423416-03 415949G04 D. WATER CIRCUIT REQUIRED NUMBER...

  • Page 16: Chute Assembly

    F-2000MRH(-C), MRH3(-C) E. CHUTE ASSEMBLY L-0, M-0...
  • Page 17 F-2000MRH(-C), MRH3(-C) MODEL INDEX DESCRIPTION CHUTE INSULATION - CHUTE BAFFLE (A) - CHUTE BAFFLE (B) - CHUTE W ING NUT BIN CONTROL ASSEMBLY ACTUATOR SHAFT SNAP PIN PLATE THUMBSCREW THUMBSCREW PROXIMITY SW ITCH TRUSS HEAD SCREW PACKING E. CHUTE ASSEMBLY...

  • Page 18: Spout Assembly

    F-2000MRH(-C), MRH3(-C) F. SPOUT ASSEMBLY L-0, M-0...
  • Page 19 F-2000MRH(-C), MRH3(-C) MODEL INDEX DESCRIPTION SPOUT ACTUATOR BELT SWITCH SWITCH COVER THUMBSCREW LABEL - DIRECTION F. SPOUT ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER NUMBER 105378G01 327038-01 BS500 440973-01 327037-01 SS, ABS 415949G04 PVC FILM 442816-01 REQUIRED NUMBER...

  • Page 20: Control Box Assembly

    F-2000MRH(-C) G. CONTROL BOX ASSEMBLY L-0, M-0...
  • Page 21 F-2000MRH(-C) MODEL INDEX DESCRIPTION CONTROL BOX COVER - CONTROL BOX TRUSS HEAD SCREW TIMER SCREW CONNECTOR TRANSFORMER T2 SCREW RELAY RELAY RELAY TAPPING SCREW MAGNETIC CONTACTOR TRUSS HEAD SCREW TIMER BOARD BOARD SUPPORT STARTER T2 SCREW START CAPACITOR CAPACITOR CAPACITOR STRAP G.
  • Page 22 F-2000MRH(-C) MODEL INDEX DESCRIPTION STRAP T2 SCREW FUSE HOLDER FUSE ROCKER SWITCH LAMP PROTECTOR 12P PLUG HOUSING 6P PLUG HOUSING 02P PLUG HOUSING G. CONTROL BOX ASSEMBLY TITLE MATERIA PART L OR NUMBER MODEL NUMBER L-0 J-0 427254-20 434580-16 7P31-0408...
  • Page 23 F-2000MRH3(-C) G. CONTROL BOX ASSEMBLY L-0, M-0...
  • Page 24 F-2000M R H 3(-C ) M O D EL IN D E X D ES C R IPT IO N NO . C O N TR O L B O X C O V E R - C O N TR O L B O X TR U S S H E A D S C R E W TIM E R SC R EW...
  • Page 25 F - 2 0 0 0 M R H 3 ( - C ) M O D E L IN D E X D E S C R IP T IO N N O . L A M P P R O T E C T O R S L ID E S W IT C H 1 2 P P L U G H O U S IN G 6 P P L U G H O U S IN G...

  • Page 26: Fan Motor Assembly

    F-2000MRH(-C), MRH3(-C) H. FAN MOTOR ASSEMBLY L-0, M-0...
  • Page 27 F-2000MRH(-C), MRH3(-C) MODEL INDEX DESCRIPTION BRACKET - FAN MOTOR GS FAN MOTOR SCREW BUSHING FAN BLADE HEX NUT WASHER H. FAN MOTOR ASSEMBLY TITLE MATERIA PART L OR NUMBER MODEL NUMBER L-0 M-0 227639-01 440917-01 B8HBER16 436863-01 SB-625-8 420470-01 434959-01...

  • Page 28: Transformer Assembly

    F-2000MRH3(-C) J. TRANSFORMER ASSEMBLY L-0, M-0...
  • Page 29 F-2000MRH3(-C) MODEL INDEX DESCRIPTION TRANSFORMER BASE TRANSFORMER TRUSS HEAD SCREW TRANSFORMER COVER T2 SCREW J. TRANSFORMER ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER NUMBER 340326-01 2U0128-01 7C31-0508 327035-01 7P31-0408 REQUIRED NUMBER...

  • Page 30: Label Location

    F-2000MRH(-C), MRH3(-C) K. LABEL LOCATION L-0, M-0...
  • Page 31 F-2000MRH(-C), MRH3(-C) MODEL MATERIAL INDEX DESCRIPTION OR MODEL NUMBER INSTRUCTION SHEET PAPER EMBLEM MODEL NUMBER (F-2000MRH) LABEL MODEL NUMBER (F-2000MRH-C) LABEL MODEL NUMBER (F-2000MRH3) LABEL MODEL NUMBER (F-2000MRH3-C) LABEL LABEL - PENGUIN - HA- INSTRUCTION LABEL PVC FILM LABEL - CLEANING...
  • Page 32 F-2000MRH(-C), MRH3(-C) MODEL MATERIAL INDE DESCRIPTION OR MODEL NUMBER TAG - FAN MOTOR LEADS CAUTION – REMOTE LABEL LABEL - CHARGE MANUAL LABEL - TAP SWITCH CAUTION TAPE – 404A L=250 RATING LABEL (F-2000MRH) (F-2000MRH-C) (F-2000MRH3) (F-2000MRH3-C) K. LABEL LOCATION...

  • Page 33: Accessories & Packaging

    F-2000MRH(-C), MRH3(-C) M O DEL INDE DESCRIPTIO N NO . INSTRUCTIO N MANUAL UNIVERSAL BRACE HEX HEAD BOLT LABEL – FASTENER TRUSS HEAD SCREW PACKAG ING CARTON CO RNER PO ST CO RNER PO ST SIDE PRO TECTOR W O O D BLOCK B...
