Summary of Contents for Hoshizaki F-2000MRH

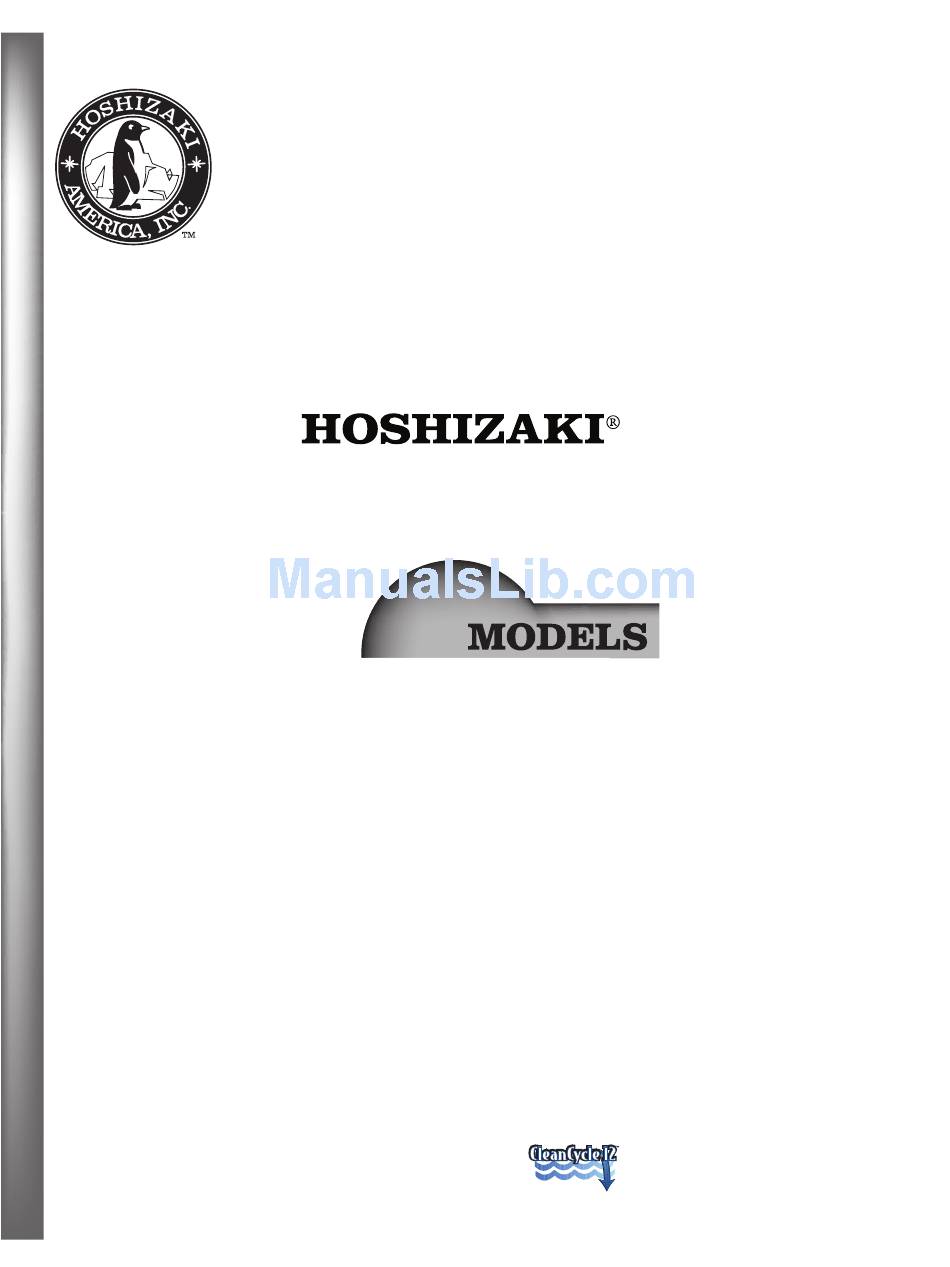

- Page 1 Reliability is a beautiful thing MODULAR FLAKER INSTRUCTION MANUAL F-2000MWH(-C) F-2000MRH(-C) F-2000MRH3(-C) ISSUED: REVISED: December 30, 2004 February 28, 2001...
- Page 2 HOSHIZAKI provides this manual primarily to assist qualified service technicians in the installation, maintenance and service of the icemaker. Should the reader have any questions or concerns which have not been satisfactorily addressed, please call or write to the HOSHIZAKI Technical Support Department for assistance.
-
Page 3: Table Of Contents
• Keep this manual with the icemaker for later reference. I. Specifications ... 4 1. Nameplate Rating ... 4 [a] F-2000MWH, F-2000MWH-C (water-cooled) ... 4 [b] F-2000MRH, F-2000MRH-C (remote air-cooled) ... 5 [c] F-2000MRH3, F-2000MRH3-C (remote air-cooled) ... 6 2. Dimensions/Connections ... 7 [a] F-2000MWH, F-2000MWH-C ... 7 [b] F-2000MRH, F-2000MRH-C, F-2000MRH3, F-2000MRH3-C ... -
Page 4: Specifications
We reserve the right to make changes in specifications and design without prior notice. NOTE: Only the “MODEL NUMBER” is replaced for F-2000MWH-C. HOSHIZAKI ICE MAKER 208-230/60/1 (3 wire with neutral for 115V) 240V 10.8RLA... -
Page 5: [B] F-2000Mrh, F-2000Mrh-C (Remote Air-Cooled)
We reserve the right to make changes in specifications and design without prior notice. NOTE: Only the “MODEL NUMBER” is replaced for F-2000MRH-C. HOSHIZAKI ICE MAKER 208-230/60/1 (3 wire with neutral for 115V) 240V 10.8RLA... -
Page 6: [C] F-2000Mrh3, F-2000Mrh3-C (Remote Air-Cooled)
This nameplate is located on the upper right hand side of rear panel. We reserve the right to make changes in specifications and design without prior notice. NOTE: Only the “MODEL NUMBER” is replaced for F-2000MRH3-C. HOSHIZAKI ICE MAKER 240V 9.0RLA 120V 5.6FLA 0.54HP... -
Page 7: Dimensions/Connections
2. Dimensions/Connections Unit = inches [mm.] [a] F-2000MWH, F-2000MWH-C... -
Page 8: [B] F-2000Mrh, F-2000Mrh-C, F-2000Mrh3, F-2000Mrh3-C
[b] F-2000MRH, F-2000MRH-C, F-2000MRH3, F-2000MRH3-C Unit = inches [mm.]... -
Page 9: [C] With Storage Bin
[c] With Storage Bin Unit = inches [mm.]... -
Page 10: [D] Condenser Unit Model Urc-20F
[d] Condenser Unit Model URC-20F Unit = mm. [inches]... -
Page 11: Installation And Operating Instructions
6) See the nameplate on the rear panel, and check that your voltage supplied corresponds with the voltage specified on the nameplate. 7) This icemaker needs a storage bin. The recommended storage bin is HOSHIZAKI ICE STORAGE BIN, Model B-500 series. -
Page 12: Location
To produce coarse flakes, the upper cutter head must be removed. If adjustment is desired, please contact an authorized Hoshizaki service company. 8) Replace the top panel and the front panel in their correct positions, and secure the front panel with the screw. -
Page 13: Electrical Connection
5. Electrical Connection 1. Electrical connection must be made in accordance with the instructions on a “WARNING” tag provided with the pig tail leads in the junction box. 2. This icemaker requires a ground that meets the national and local electrical code requirements. -
Page 14: Installation Of Remote Condenser Unit
6. Installation of Remote Condenser Unit [a] Checks Before Installation 1) Unpack and remove shipping carton, tape(s) and packing. 2) Check that the refrigerant lines do not rub or touch lines or other surfaces, and that the fan blade turns freely. 3) Make sure that the icemaker, line sets and remote condenser unit all use R-404A refrigerant. -
Page 15: [C] Setup
The two copper tubings should be insulated separately. See Fig. 7. • Precharged tubing kits, available as optional equipment from HOSHIZAKI AMERICA, are recommended. 4) Line sets fabricated in the field should be evacuated through the charging ports on the Aeroquip couplings and charged with R-404A refrigerant vapor to a pressure of 15-30 PSIG. -
Page 16: [D] Electrical Connection
3) Connect the fan motor leads in the junction box of the remote condenser unit to the fan motor leads in the junction box of the HOSHIZAKI remote air-cooled icemaker. 4) Install a ground wire from the icemaker to the remote condenser unit. -
Page 17: [E] Stacking Condenser Unit
[e] Stacking Condenser Unit 1) Secure the lower condenser unit to the legs with eight bolts (not included). 2) Attach the upper condenser unit on the top of the lower. 3) Secure the upper condenser unit with the four screws provided. 4) Install refrigerant lines, and make electrical connection for each fan motor as shown in Items [c] and [d]. - Page 18 F-2000MRH F-2000MRH3 F-2000MWH Fig. 10...
-
Page 19: Final Checklist
8. Final Checklist 1) Is the icemaker level? 2) Is the icemaker in a site where the ambient temperature is within +45°F to +100°F and the water temperature within +45°F to +90°F all year around? 3) Is there at least 6" clearance at rear and sides and 24" at top for maintenance or service? 4) Have all shipping carton, tape(s) and packing been removed from the icemaker? 5) Are all components, fasteners and thumbscrews securely in place? -
Page 20: Startup
9. Startup 1. All parts are factory-adjusted. Improper adjustments may result in failure. 2. If the unit is turned off, wait for at least 3 minutes before restarting the icemaker to prevent damage to the compressor. 1) Clean the storage bin. (See “III. 2. Maintenance Instructions.”) 2) Open the water supply line shut-off valve. -
Page 21: Preparing The Icemaker For Long Storage
10. Preparing the Icemaker for Long Storage - See Fig. 11 When shutting off the icemaker for an extended time, drain out all water from the water line and remove the ice from the storage bin. The storage bin should be cleaned and dried. -
Page 22: Cleaning And Maintenance
[a] Cleaning Solution Dilute 4.8 fl. oz. (142 ml) of recommended cleaner Hoshizaki “Scale Away” or “LIME-A-WAY” (Economics Laboratory, Inc.) with 0.8 gallons (3 l) of warm water. This is a minimum amount. Make more solution if necessary. -
Page 23: [C] Sanitizing Solution
9) Pour the cleaning solution over the extruding head until the evaporator assembly and the reservoir are filled and the solution starts to overflow into the drain pan. Note: If there is excess scale on the extruding head, fill the evaporator assembly and reservoir as described above, then use a clamp on the reservoir hose between the reservoir and evaporator assembly to block flow. -
Page 24: [E] Sanitizing Procedure - Final
4) Pour the sanitizing solution over the extruding head until the evaporator assembly and the reservoir are filled and the solution starts to overflow into the drain pan. 5) Remove the thumbscrews securing the proximity switch to the chute assembly. 6) Remove the chute assembly from the icemaker. - Page 25 5) Remove the strap connecting the spout to the chute assembly. 6) Remove the thumbscrews securing the spout and lift it off. 7) Pour the sanitizing solution over the extruding head until the evaporator assembly and the reservoir are filled and the solution starts to overflow into the drain pan. 8) Replace the spout and strap in their correct positions.
-
Page 26: Maintenance Instructions
More frequent inspection and maintenance are recommended. Consult with your local distributor about inspection and maintenance service. To obtain the name and phone number of your local distributor, call Hoshizaki Technical Support at 1-800-233-1940 in the USA. 1) Stainless Steel Exterior To prevent corrosion, wipe the exterior occasionally with a clean and soft cloth. - Page 27 4) Air Filter A plastic mesh air filter removes dirt or dust from the air, and keeps the condenser from getting clogged. As the filter gets clogged, the icemaker’s performance will be reduced. Check the filter at least twice a month. When clogged, use warm water and a neutral cleaner to wash the filter.
- Page 28 HOSHIZAKI HOSHIZAKI AMERICA, INC. 618 HIGHWAY 74 SOUTH PEACHTREE CITY, GA 30269 U.S.A. PHONE: 770-487-2331 www.hoshizakiamerica.com 91A2MA10D...
