Safety Precautions WARNING May cause serious injury or death. Children must not use it alone. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Page 3
In case of failure or damaged power cord, Accumulated dust stop use and ask the service centre. may cause fire. Securely insert the ground prong. Wipe the power plug periodically. Call your local dealer for a new socket. Use a socket appropriate for this Keep away from appliance.
Page 4
Safety Precautions (continued) CAUTION May cause injury. Be careful not to get your fingers caught. Do not climb or put objects on the appliance. If the lid is broken, immediately stop using. Do not touch when it is hot. Be careful of your hands and feet.
Page 5
May cause failure. Keep away from heat and direct Do not wash waterproof sunlight. items. Raincoats, wet suits, etc. Do not obstruct. Do not use hot water. Do not obstruct the openings of Over 50 ºC the bottom face with carpet, etc. For Machine-washable items only.
Part Names / Accessories Part names Operation panel Water supply valve (P. 8) (P. 26) Detergent and Leveller (P. 27) softener drawer (P. 12) Lint filter (P. 20) Power cord and plug* (P. 3) * The plug shape varies with the region.
Before Washing Laundry preparation and check Pre-laundry check Use laundry nets for delicates Overpack For “Stain Master +” (P. 16) Pretreatments for heavily stains Reverse Observe the clothes' care labels Clothes likely to pill Paper diapers • Coloured clothes • Shirts with stiff fabric To prevent colour staining •...
Washing Preset timer (P. 10) (P. 14) Measures the amount of laundry. 10 sec 5 sec 20 sec (P. 8) (P. 12) After pressing “Start” To change each operation (while washing). Start Pause To check or change the water level (while washing). You cannot change the program.
Variety of Programs Max. Program Purpose capacity (kg) Everyday clothes Normal (P. 9) 12.5 Anti-tangling Tangle • Washing more gently than “Normal” to Care (P. 9) reduce tangle. • Disentangling clothes after spin: 6 kg or less. For light soil Speedy 12.5 (P.
Max. Program Purpose capacity (kg) For heavy soil Soak 12.5 (P. 9) Presoaking to wash (P. 16) For the following stains Sweat Light Soya/Sauce Collar/Sleeve (40 ºC) Oily (40 ºC) Heavy Bacteria Elimination (60 ºC) Drying synthetic fibre clothes Air Dry (90 min) (P.
Detergent / Softener / Bleach Follow the instructions on each package. For cleaning (P. 21) Close detergent and softener drawer completely before use. Detergent Do not pour detergent directly into the tub. The level of foaming depends on the load size, soil, detergent, and water hardness.
Page 13
Liquid Powder Softener detergent detergent Max. 100 ml Softener To put softener while the machine is Water operating: Pause Concentrated softener Softener cannot be used with the Do not use separated “Water Save” program. or solidified softeners...
Washing Options Preset Wash / Rinse / Spin Set how many hours later to finish operation. 2 min All other indications turn off. 2 - 24 1 - 24 2 - 24 2 - 24 NOTE Not available for “Tangle Care”. 3 - 24 (P.
Delicate Blanket 65 L 4.2 kg 4.2 kg Max. 55 L 3.0 kg • 100 % synthetic fibre water amount • 100 % cotton NOTE Liquid delicate Bleach detergent After operation ends Take out immediately. NOTE Liquid Powder detergent detergent NOTE The water amount indication shows...
Air Dry ECONAVI (90 min) The air blown from the tub rotation “Normal” program only removes water from clothes. Weight / Temperature Water and time saving Dryable clothes: Synthetic fibre (Max. 2.0 kg) Lamp indications Detecting ECONAVI enabled ECONAVI disabled ...
Convenient Functions Setting Auto Tub Clean Setting Child Lock Preventing black mould, available with all programs except “Water Save” and “Air Dry”. Lamp indications Detecting Function enabled Function disabled Forcible 10 sec drainage To turn on/off * This function does not lock the lid and button operations.
Contents of Programs Total time Wash Rinse Spin Program (min) (min) (times) (min) Normal Speedy Delicate Baby Care Water Save Blanket Soak (Soak 59) Sweat Soya/Sauce (Soak 29) Collar/Sleeve Oily Bacteria Elimination Tub Hygiene (Soak 62) *1 Total time is approximate (When the standard water supply rate is 15 L / min and the water temperature is 28 ºC).
Maintenance Lint filter After each operation Water Click NOTE If it is difficult to remove If the filter is broken Without the filter the filter (P. 18) Local dealer...
Page 21
Detergent and softener drawer If stained with detergent or softener Remove Thin Thick Click Attach Main unit, lid For heavy soil Neutral kitchen detergent...
Page 22
Maintenance (continued) Water supply filter If water does not flow smoothly Water supply filter Start Approx. 40 sec Loosen Tighten...
Page 23
Once a week <Air Dry> (P. 17) Empty Once a month <Tub Hygiene> Whiten bleach (chlorine bleach) 200 ml Start Empty Approx. 2.5 hours Start Pause Full...
Make sure to ask a service person for installation. Check the location. Do not install by yourself. Follow this installation method. If you do not, Panasonic will not be liable for any accident or damage. Bottom cover External drain water hose...
Page 25
Attach the bottom cover Attach the external drain water hose NOTE Over 10 cm Over 3 m...
Page 26
Installation (continued) Connect the water supply hose Thread: Approx. 4 mm Check that the Loosen elbow is not loose. Tighten CAUTION Tighten the nut firmly. Tighten securely Do not twist, squash, modify or cut (To prevent water the hose. leakage).
Page 27
Connect the power plug and grounding Check that the washing machine is level If the bubble is out of the mark Mark Bubble Loosen Adjust Inside the mark Tighten Trial operation Abnormal sounds (P. 28)

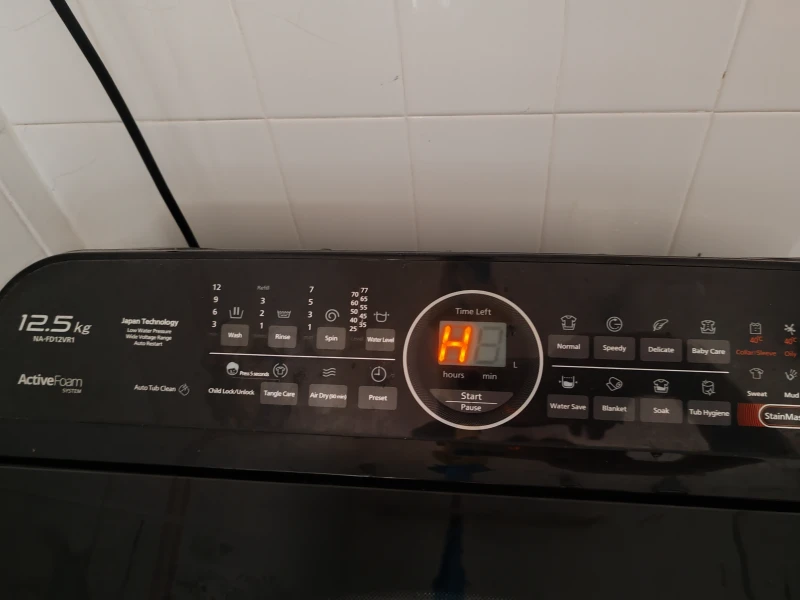

Error Display Preparation Cancel Child Lock (P. 18) if it is set. Error Display Points to be checked Check Lint Water cannot drain. Over 10 cm Over 3 m The lid is open. Even Uneven Spin or “Air Unstable or incline Stable Dry”...
Page 29
Error Display Points to be checked Water outage Turned off Water cannot be supplied. Water supply filter (P. 22) With Child Lock set Forcible drainage 10 sec Water has been forcibly drained. 5 sec Inspection is required.
Troubleshooting Symptoms Points to be checked Time indication is approximate. Indication increases or Remaining time is corrected during operation. does not decrease. Longer than the indication. When clothes When the water When the water are uneven. drainage is not good. supply is not good.
Page 31
Symptoms Points to be checked Water is supplied while When water When amount of washing. level drops. laundry is large. Water is added automatically. The water level When there is water When laundry is wet. in the tub before operation. too high The water level may be higher When clothes are light...
Arahan Pengendalian & Pemasangan Mesin Basuh Automatik Sepenuhnya (Kegunaan domestik) NA-FD12VR1 No. Model Kandungan Langkah Berjaga-jaga Keselamatan Nama Bahagian / Kelengkapan Sebelum Membasuh Panel Operasi Membasuh Pelbagai Program Washing / Softener / Bleach Pilihan Membasuh • Preset (Pratetapan) • Wash / Rinse / Spin •...
Langkah Berjaga-jaga Keselamatan AMARAN Boleh mengakibatkan kecederaan serius atau kematian. Jangan benarkan kanak-kanak menggunakannya sendirian. Perlengkapan ini bukan untuk kegunaan individu (termasuk mental, atau kurang pengalaman atau pengetahuan, kecuali jika mereka telah diberikan penyeliaan atau arahan berkaitan penggunaan perlengkapan ini oleh individu yang bertanggungjawab keatas keselamatan mereka.
Page 35
Sekiranya berlaku kegagalan atau kord kuasa yang rosak, Debu terkumpul boleh hentikan penggunaan dan minta pusat perkhidmatan. menyebabkan kebakaran. Masukkan dengan selamat prong tanah. Lap palam kuasa secara berkala. Hubungi peniaga tempatan anda untuk soket baru. Gunakan soket yang sesuai untuk Jauhkan daripada perkakas ini.
Page 36
Langkah Berjaga-jaga Keselamatan (sambungan) AWAS Boleh menyebabkan kecederaan. Berhati-hati agar jari anda tidak tersepit. Jangan panjat atau letakkan benda di atas mesin basuh. Jika penutupnya rosak, berhenti menggunakan serta-merta. Jangan sentuh tab dan air Berhati-hati dengan tangan panas yang mengalir. dan kaki anda.
Page 37
Boleh menyebabkan kegagalan. Jauhi mesin daripada cahaya Jangan basuh barang kalis matahari terik atau haba. air. Baju hujan, sut basah, dll. Jangan halang. Jangan gunakan air panas. Jangan halang bukaan muka Melebihi 50 ºC bawah dengan karpet, dll. Hanya untuk barang boleh dibasuh mesin. Perkakas ini dimaksudkan untuk digunakan dalam rumah tangga.
Nama Bahagian / Kelengkapan Nama bahagian Panel Operasi Injap pembekal air (H. 8) (H. 26) Penutup Laci detergen dan Pelaras pelembut (H. 12) pengimbang (H. 27) Penapis rumbai (H. 20) Kord dan palam kuasa* (H. 3) * Bentuk palam rantau. Pulsator Hos air saliran luar...
Sebelum Membasuh Persediaan dan pemeriksaan basuhan Pemeriksaan sebelum membasuh Menggunakan jaring dobi untuk kain halus Berlebihan Untuk “Stain Master +” (H. 16) Pretreatments untuk noda berat Menterbalikkan Mematuhi label penjagaan pakaian pakaian cenderung untuk “pill” Untuk Lampin kertas • Pakaian berwarna •...
Panel Operasi Tukar tetapan Jumlah detergen Jumlah air proses (H. 14) Jumlah air (L) Detergen * kira-kira 5 saat Berkelip Baki masa (dalam kemajuan) : 1 sudu detergen ECONAVI (H. 17) Stain Master + (H. 16) Pemanas on: Refill (H. 19) berkelip lampu Penjagaan Pratetapan...
Membasuh Pratetapan (H. 10) (H. 14) Mengukur jumlah dobi 10 saat 5 saat 20 saat (H. 8) (H. 12) Selepas menekan “Start (Mula)” Untuk menukar setiap operasi (semasa membasuh). Mula Jeda Untuk memeriksa atau menukar paras air (semasa membasuh). Anda tidak boleh menukar program tersebut.
Pelbagai Program Kapasiti Program Tujuan maksimum (kg) Pakaian harian Normal (Biasa) (H. 9) 12.5 Anti-kusut Tangle Care • Mencuci lebih lembut daripada “Normal” (Penjagaan untuk mengurangkan kusut. Kusut) (H. 9) • Melerai kusut pakaian selepas memutar: 6 kg atau lebih rendah. Untuk kotoran ringan Speedy (Cepat) 12.5...
Page 43
Kapasiti Program Tujuan maksimum (kg) Soak (Rendam) Untuk sangat kotor 12.5 (H. 9) Prarendam untuk membasuh (H. 16) Untuk jenis noda yang berikut Kotoran Sweat ringan (Peluh) (Lumpur) Soya/Sauce (Kicap/Sos) Collar/Sleeve (40 ºC) (Kolar/Lengan) Oily (40 ºC) Kotoran (Berminyak) berat Bacteria Elimination (60 ºC) (Penyingkiran Bakteria) Mengeringkan...
Page 44
Detergen / Pelembut / Peluntur Ikut arahan di setiap bungkusan. Untuk pembersihan (H. 21) Tutup laci detergen dan pelembut sepenuhnya sebelum digunakan. Detergen Jangan masukkan detergen terus ke dalam tab. Tahap berbuih bergantung kepada kekotoran, jenis detergen, dan kekerasan air. Peluntur Peluntur memutihkan (peluntur klorin)
Page 45
Detergen Detergen Pelembut cecair serbuk Maks 100 ml Pelembut Untuk menambah pelembut semasa operasi: Jeda Pelembut pekat Bahan pelembut tidak boleh Jangan gunakan digunakan dengan program “Water pelembut terasing Save (Jimat Air)”. atau pepejal.
Pilihan Membasuh Pratetapan Wash (Basuh) / Rinse (Bilas) / Spin (Perah) Tetapkan berapa jam kemudian untuk menyelesaikan operasi. 2 saat Semua tanda- tanda lain dimatikan. 2 - 24 1 - 24 2 - 24 2 - 24 NOTA Tidak tersedia untuk “Tangle Care (Penjagaan Kusut)”.
Delicate (Halus) Blanket (Selimut) 65 L 4.2 kg 4.2 kg Maksimum 55 L 3.0 kg • Gentian sintetik 100 % jumlah air • Kapas 100 % NOTA Detergen halus Peluntur cecair Selepas operasi berakhir Keluarkan pakaian dengan segera. NOTA Detergen Detergen cecair serbuk...
Pilihan Membasuh (sambungan) Stain Master + Persediaan: (H. 7) NOTA Maks 5.0 kg Pratetapan pemasa (jam) (H. 14) Collar/Sleeve: 3 - 24 Jumlah maksimum air: 65 L Oily: 3 - 24 Anda tidak boleh mengubah tetapan Bacteria Elimination: 4 - 24 proses basuhan program ini.
Air Dry ECONAVI (90 min) (Kering Udara (90 min) Program “Normal” sahaja Air disingkirkan daripada pakaian dengan Berat Suhu Air dan penjimatan masa tiupan udara daripada putaran tab. Pakaian kering: Gentian sintetik (Mask 2.0 kg) Penunjuk lampu Mengesan ECONAVI didayakan ECONAVI dinyahdayakan Hidup / matikan...
Fungsi Menyenangkan Menetapkan Auto Tab Bersih Menetapkan Child Lock (Kunci Kanak-kanak) Mencegah kulapuk, tersedia dengan semua program kecuali “Water Save (Jimat Air)” dan “Air Dry (Kering Udara)”. Penunjuk lampu Mengesan Fungsi didayakan Fungsi dinyahdayakan Saliran 10 saat Hidup / matikan paksa * Fungsi ini tidak mengunci penutup dan operasi butang.
Penyenggaraan Penapis rumbai Selepas setiap operasi Klik NOTA Jika sukar untuk Jika penapis rosak Tanpa penapis menanggalkan penapis (H. 18) Peniaga tempatan...
Page 53
Laci detergen dan pelembut Jika ada kotoran sisa detergen atau pelembut Keluarkan Hujung nipis Hujung Klik tebal Lampirkan Unit utama, penutup Untuk kotoran degil Pencuci neutral untuk dapur...
Page 54
Penyenggaraan (sambungan) Penapis bekalan air Jika air tidak mengalir dengan lancar Penapis bekalan air Hidup Mula Mati Anggaran 40 saat Longgarkan Ketatkan...
Page 55
Sekali seminggu <Air Dry (Kering Udara)> (H. 17) Kosong Sekali sebulan <Tub Hygiene (Kebersihan Tab)> Peluntur memutihkan (peluntur klorin) 200 ml Hidup Hidup Kosong Anggaran 2.5 jam Mula Jeda Penuh...
Pemasangan Pastikan anda meminta juruservis melakukan pemasangan. Periksa lokasi. Jangan pasang sendiri. Mengikut kaedah pemasangan ini. Jika kamu tidak, Panasonic tidak akan bertanggungjawab atas sebarang kemalangan atau kerosakan. Penutup bawah Hos air saliran luar...
Page 57
Pasangkan penutup bawah Pasangkan hos air saliran luar NOTA Lebih 10 cm Lebih 3 m...
Page 58
Pemasangan (sambungan) Sambungkan hos bekalan air Bebenang: kira-kira 4 mm Periksa bahawa Longgarkan sikunya tidak longgar. Ketatkan AWAS Ketatkan nat dengan rapi. Ketatkan dengan kukuh Jangan pintal, penyek, ubah suai (Untuk mencegah atau potong hos. kebocoran air).
Page 59
Sambungkan palam kuasa dan wayar pembumian Pastikan mesin basuh adalah sekata Jika gelembung adalah di luar tanda Tanda Gelembung Longgarkan udara Melaraskan Dalam tanda Ketatkan Operasi percubaan Bunyi yang tidak normal (H. 28)
Paparan Ralat Persediaan Batalkan Kunci Kanak-kanak jika ia telah ditetapkan. (H. 18) Paparan ralat Perkara perlu diperiksa Semak Serpihan Air tidak boleh disalirkan keluar. Lebih 10 cm Lebih 3 m Penutup terbuka. Sekata Tidak sekata Perah atau “Kering Udara” Tidak stabil atau condong Stabil tidak boleh dipilih.
Page 61
Paparan ralat Perkara perlu diperiksa Air terputu Tutup Air tidak boleh dibekalkan. Penapis bekalan (H. 22) Dengan Kunci Kanak-kanak ditetapkan Keluar secara paksa 10 saat Air disalirkan keluar secara paksa. 5 saat Pemeriksaan diperlukan.
Penyelesaian Masalah Gejala Perkara perlu diperiksa Petunjuk masa adalah anggaran sahaja. Penunjuk masa meningkat Baki masa diperbetulkan semasa operasi. atau tidak menurun. Lebih lama daripada penunjuk masa. Apabila pakaian Apabila saliran air Apabila bekalan tidak sekata. tidak baik. air tidak baik. Operasi ini melewati masa pratetapan.
Page 63
Gejala Perkara perlu diperiksa Air dibekalkan semasa Apabila paras Apabila jumlah mencuci. air menurun. dobi besar. Air ditambah secara automatik. Paras air Apabila terdapat air di Apabila pakaian basah. dalam tab sebelum operasi. Terlalu tinggi Paras air mungkin lebih tinggi. Dengan pakaian ringan (gentian sintetik, dll.).
