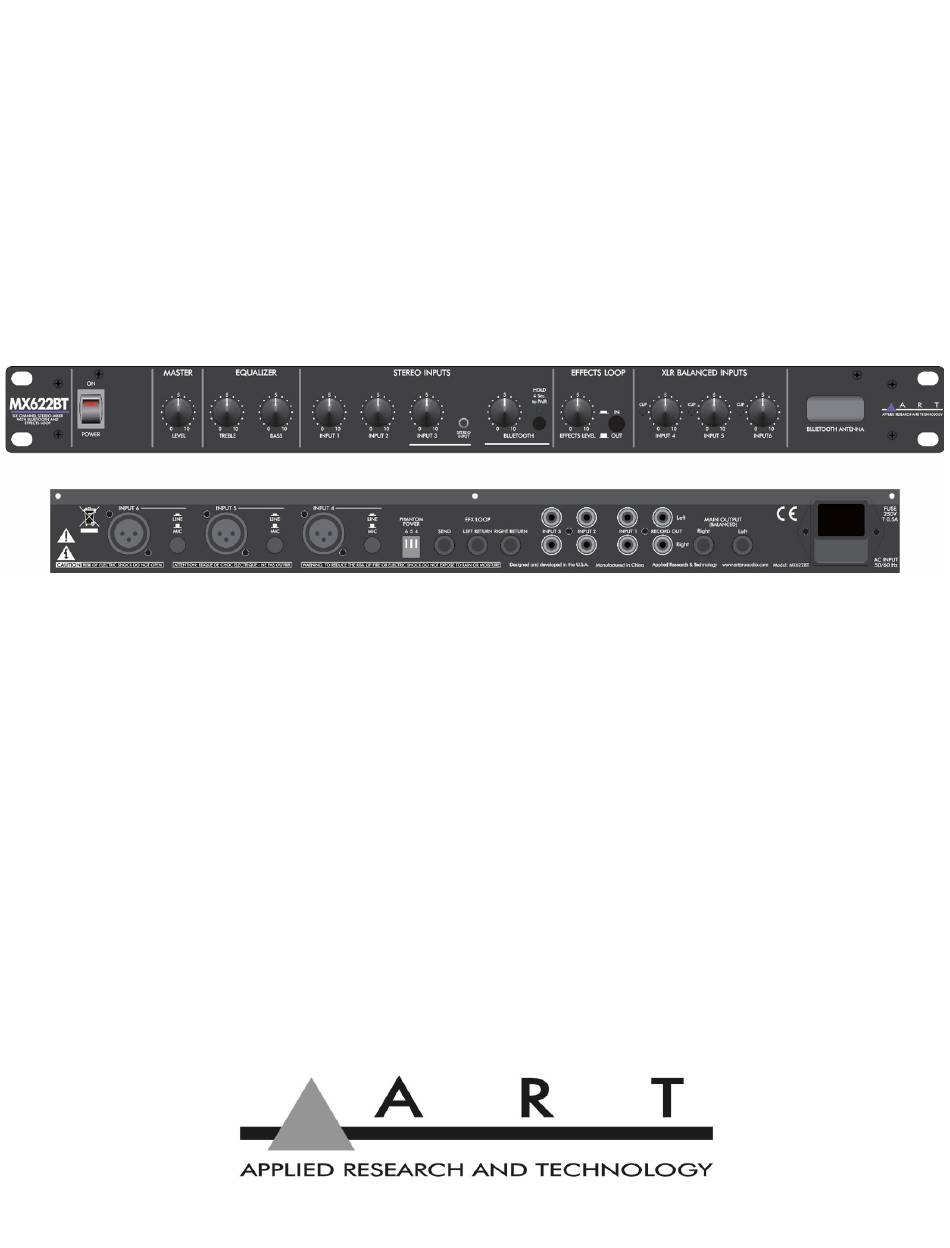

- Page 1 MX622BT SIX CHANNEL STEREO MIXER WITH BLUETOOTH AND EFFECTS LOOP USER'S MANUAL...
-
Page 2: Important Safety Instructions - Read First
IMPORTANT SAFETY INSTRUCTIONS - READ FIRST This symbol, wherever it appears, This symbol, wherever it appears, alerts you alerts you to the presence of uninsulated to important operating and maintenance dangerous voltages inside the enclosure that instructions in the accompanying literature. may be sufficient to constitute a risk of shock. - Page 3 INTRODUCTION The ART MX622BT Six Channel Stereo Mixer with BLUETOOTH and Effects Loop is a versatile single high rack mixer combining three balanced microphone or line level inputs with three stereo line inputs plus a stereo Bluetooth input into a single stereo line level mix. Each mono balanced XLR input includes fully variable Input gain, Mic/Line switch, Clip indicator, and selectable 15 Volt Phantom power.
-
Page 4: Operation
OPERATION Verify proper voltage selection on the IEC style power connector for your location. Connect the AC cord to a grounded AC outlet. Connect Mics or balanced Line inputs to the XLR sockets. For Mic channels requiring phantom power (for condenser mics), move the DIP switch to the down position to activate phantom power for each XLR input. -
Page 5: Bluetooth™ Section
Level can also be controlled directly at your streaming device. The MX622BT Bluetooth™ operating range is rated for 30 meters (100 feet) line of sight. The quality of the link can be affected by an excess of traffic in the 2.4GHz band or structures between the streaming device and the MX622BT unit. - Page 6 You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration. 2. If you believe that the ART unit is at fault, go to www.artproaudio.com. 3. Select “Support”, then “Return Authorization Request” to request a return authorization number.
-
Page 7: Specifications
6.2 lbs. (2.8kg) Note: 0 dBu = 0.775Vrms ART maintains a policy of constant product improvement. ART reserves the right to make changes in design, or make additions to, or improvements upon, this product without any obligation to install same... - Page 8 E-mail: support@artproaudio.com © 2022 Applied Research & Technology MX622BT 622BT5004101 SIX CHANNEL STEREO MIXER WITH BLURTOOTHAND EFFECTS LOOP...
