Summary of Contents for Art MX822

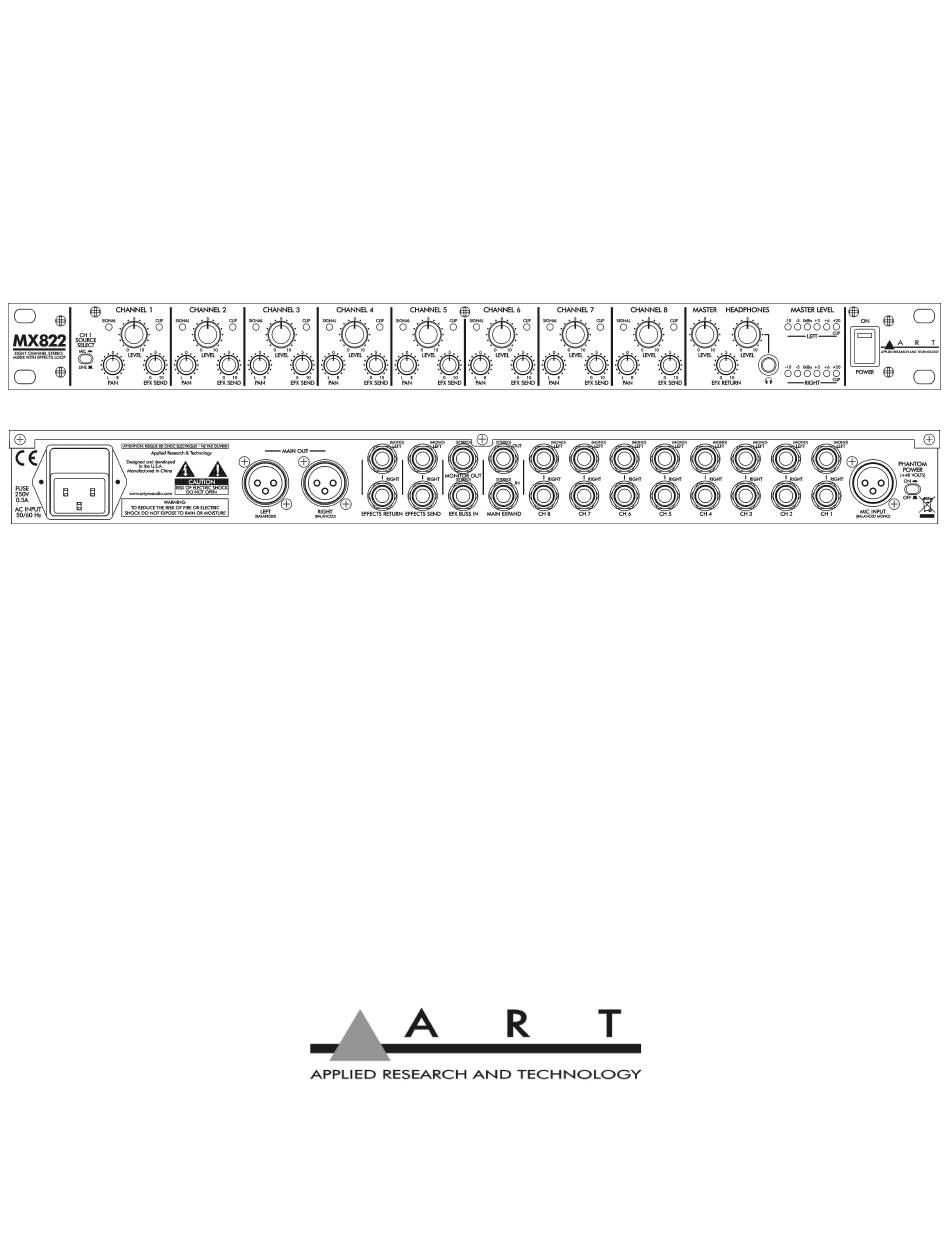

- Page 1 MX822 Eight Channel Stereo Mixer with Effects Loop USER'S GUIDE...
-
Page 2: Important Safety Instructions - Read First
IMPORTANT SAFETY INSTRUCTIONS - READ FIRST This symbol, wherever it appears, This symbol, wherever it appears, alerts you alerts you to the presence of uninsulated to important operating and maintenance dangerous voltages inside the enclosure that instructions in the accompanying literature. may be sufficient to constitute a risk of shock. - Page 3 The ART MX822 may be used on stage, in the studio, or for permanent install applications including conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more.
-
Page 4: Mic Input
CONNECTIONS Rear Panel Connections MIC INPUT Channel 1 may be used with either an unbalanced line level signal or a lower level balanced microphone signal, controlled by the CH 1 SOURCE SELECT switch on the front panel. A female XLR connector is provided If you choose to use a microphone in Channel 1. An additional 40 dB of gain is provided for use with low output level mics. - Page 5 These jacks allow you connect an external effects processor (such as a reverb unit or vocal processor) to your MX822 in order to add effects to your mix. Connect the EFFECTS SEND outputs to the inputs of your processor and the processor outputs to the EFFECTS RETURN inputs. Use cables with 1/4"...
-
Page 6: Operation
OPERATION Front Panel Controls Channel Controls (1-8) CH 1 SOURCE SELECT This pushbutton switch selects whether the Channel 1 signal comes from the 1/4" line jacks or the XLR microphone jack. In the LINE (out) position, the line signal is selected. Pushing the button in (MIC position) lights the switch green and selects the microphone signal. - Page 7 POWER Switch Controls the application of AC power to the MX822. When the switch is pushed in at the top (ON position), an indicator lights, showing power is applied. Rear Panel Control...
-
Page 8: Block Diagram
BLOCK DIAGRAM... -
Page 9: Warranty Information
This warranty is void if the serial number is altered, defaced, or removed. ART reserves the right to make changes in design or make additions to or improvements upon this product without any obligation to install the same on products previously manufactured. - Page 10 You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration. 2. If you believe that the ART unit is at fault, go to www.artproaudio.com. You may contact Customer Service for more assistance, or directly request a Return Authorization for service in the “resources”...
-
Page 11: Specifications
Export units configured for country of destination Dimensions (HWD) 1.75" x 19" x 6" 44.5mm x 483mm x 152mm Weight 6.5 lbs. (2.95 kg) Note: 0 dBu = 0.775Vrms ART maintains a policy of constant product improvement. Therefore, specifications are subject to change without notice. - Page 12 E-mail: cserve@artproaudio.com © 2012 Applied Research & Technology MX822 822-5004-101 V1.0...
