ZXi4408 / ZXi6408 / ZXi8408 4 CHANNEL AMPLIFIER APPLICATIONS

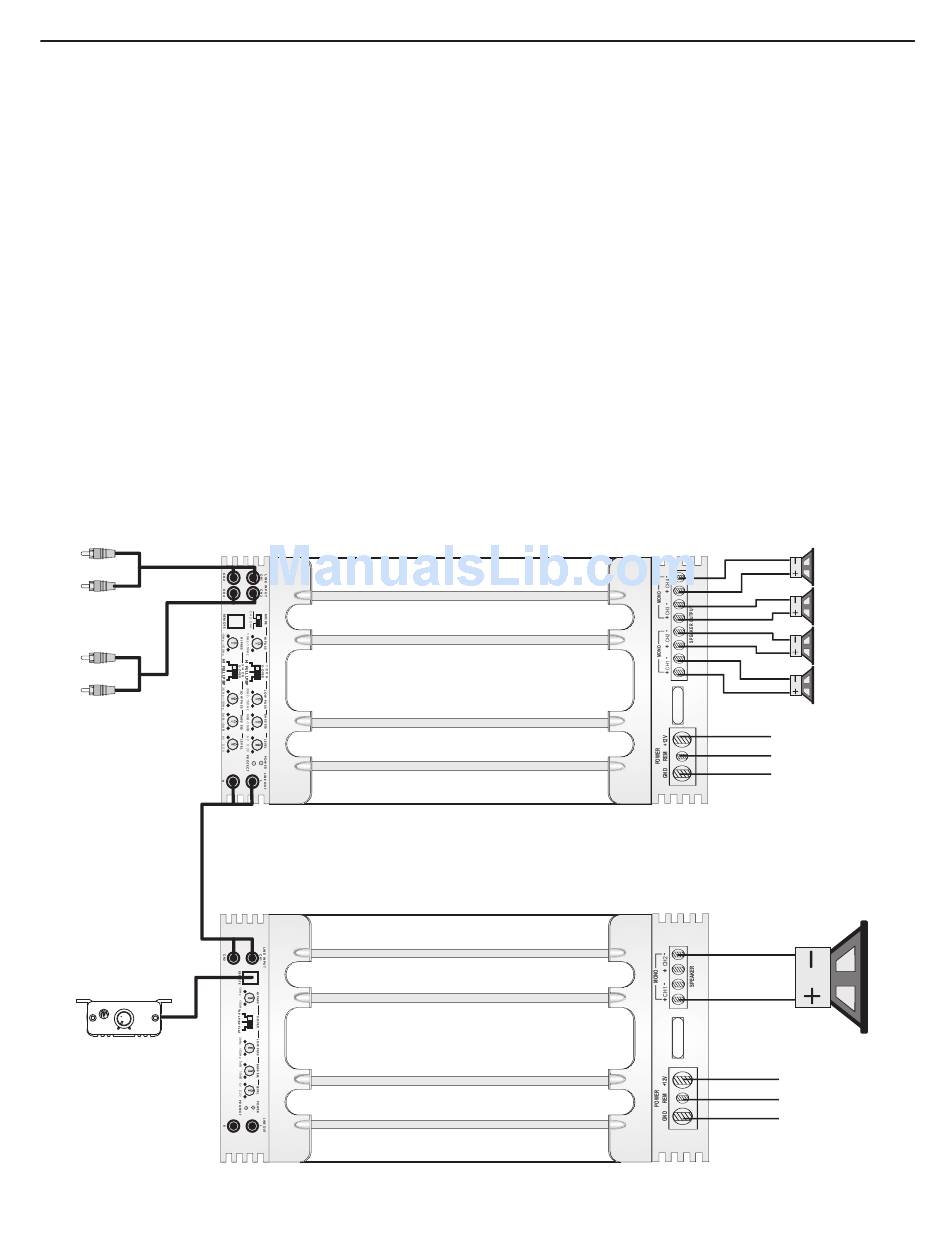

Front/rear high pass, using a 2 channel amplifier for mono sub bass
The combination of a 2 and a 4 channel amplifier, utilizing their built in
crossovers, makes it a snap to put together a full system with front and rear
highs, with mono sub bass.
Interconnect cable checklist:
- Using good quality RCA cables, feed the front and rear outputs of a head unit to
the inputs of the 4 channel amplifier as shown.
- Also connect the LINE OUT of the 4 channel amplifier to the LINE INPUT of the
2 channel amplifier as shown.
Mono bass woofer wiring:
Connect the mono speaker positive terminal to the LEFT +, and its negative
terminal to RIGHT -.
Switch setting checklist:
4 channel highs amplifier:
- 1/2CH X-OVER: HI
- 3/4CH X-OVER: HI
2 channel bass amplifier:
- X-OVER switch: LP/BP
Crossover frequency control checklist:
- 4 channel highs amplifier:
FRONT
INPUTS
REAR
INPUTS
B O O S T
H F R - 3 MI N MA X X
6
STEREO
INTERCONNECT
RCA CABLE
2 CHANNEL AMPLIFIER
Channels 1/2:
- HI PASS: 100 Hz
LOW PASS: N/A
Channels 3/4:
- HI PASS: 100 Hz
- LOW PASS: N/A
2 channel bass amplifier:
- HI PASS (Subsonic filter): 10 Hz to 40 Hz
- LOW PASS: 100 Hz
Please note that these frequency points are suggestions only. Refer to the
loudspeaker manufacturer specifications and the section "Setting up systems
after installation for best performance"
Level control checklist:
- Refer to the section "Setting up systems after installation for best performance"
Minimum final loudspeaker impedances:
- 2 ohm per channel in stereo mode.
- 4 ohm mono bridged.
