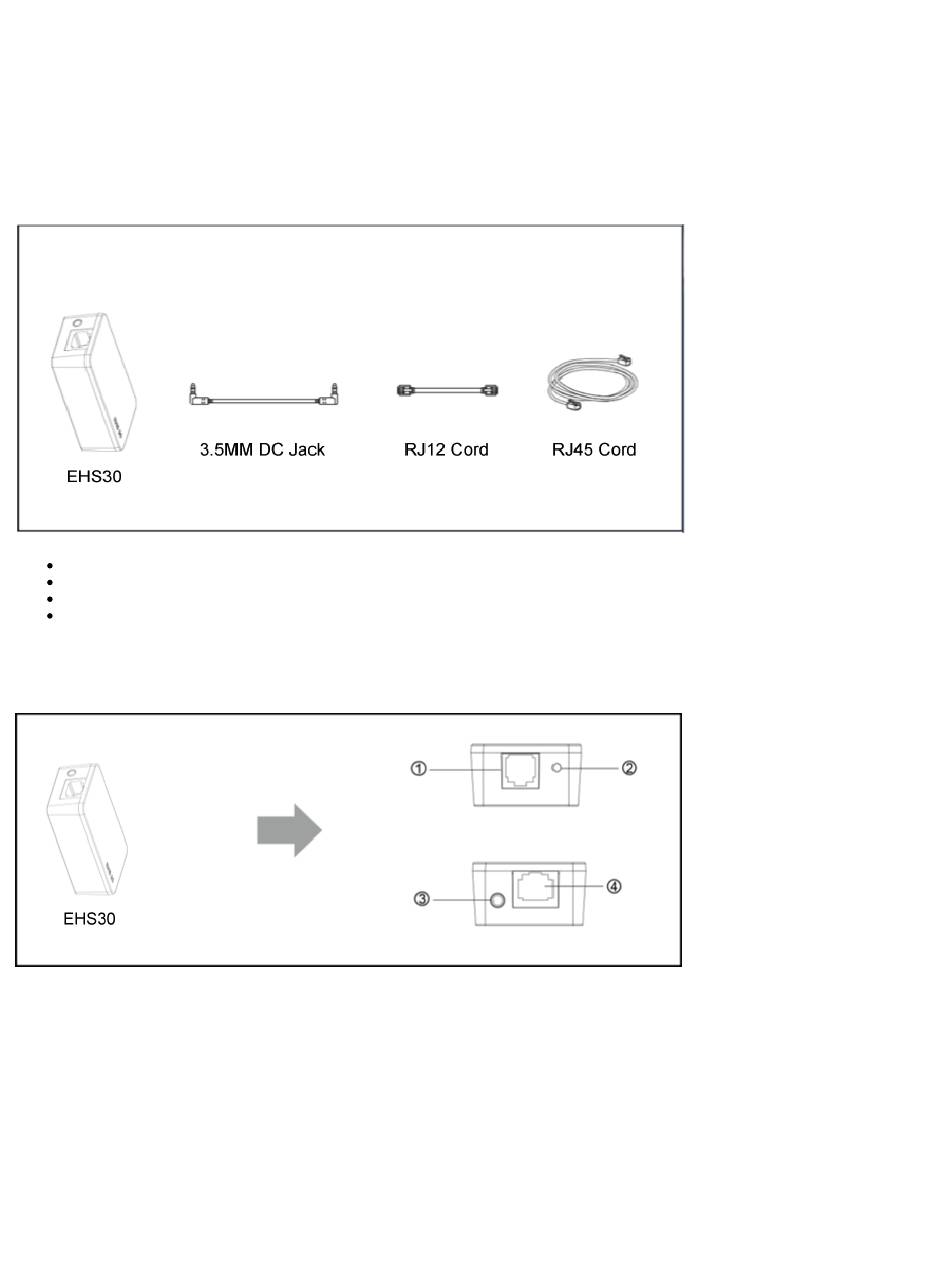

- Page 1 Sennheiser Headset Installation Overview EHS30 Included Contents EHS30 3.5MM DC Jack RJ12 Cord RJ45 Cord EHS30 Ports RJ-12 Port for IP Phone EXT/EHS or Expansion Module Operation LED 3.5mm DC Power Jack RJ-45 Jack Headset Base and Phone Ports...
-
Page 2: Connecting The Cables
Back of Sangoma S700 Phone Sennheiser SD Series Installation with EHS30 Connecting the Cables Connect the green end of the Y-shaped EHS adapter cable provided by Sennheiser to the Phone port on the headset base. Phone port on Sennheiser headset base... - Page 3 Connect the "Telephone Headset Port" end of the Y-shaped EHS adapter cable to the headset port of the Sangoma Phone. Headset port on Sangoma S700 Phone Connect the "EHS Adapter" end of the Y-shaped EHS adapter cable to the RJ45 port (Port 4) of the EHS30 Adapter. RJ45 Port on EHS30...
- Page 4 4. Connect the included RJ-12 cord between the EHS30 Adapter RJ12 Port (Port 1, next to the green LED light) and the EXT/EHS Port of the Sangoma Phone. RJ12 Port on EHS30 EXT/EHS Port on Sangoma S700 Phone...
- Page 5 5. Connect the headset base station's power cable between the DC port on the base station and a power outlet. DC Port on Sennheiser headset base...
