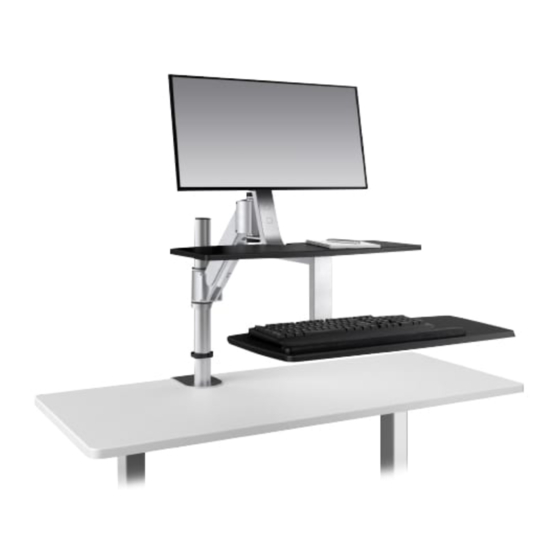

- Page 1 CLIMB1 Model CLIMB1-SLV SIT/STAND WORKSTATION CLIMB1 Rev B 11/17 ASSEMBLY AND ADJUSTMENT...
-
Page 2: Parts And Tools
CLIMB1 PARTS AND TOOLS PLEASE REVIEW these instructions before beginning the assembly and adjustment procedures. Check that all the parts and tools listed below were provided with your order. Contact your supplier if any materials are missing. Do not discard the packaging until content that the product operates to your satisfaction. PARTS AND TOOLS PROVIDED Base and Column Assembly (1) Writing Platform Assembly (1) - Page 3 ASSEMBLY CLIMB1 Clamp Base and Column Assembly to Work Surface The base clamp requires 4" of clearance under the work surface for attachment. The clamp accommodates work surface thicknesses from .75" to 3.3" (20mm to 80mm). Adjust Clamp, If Necessary •...
- Page 4 CLIMB1 ASSEMBLY Attach Writing Platform to Main Assembly Arm • Insert the threaded bolts on the writing platform through the holes on the mount at the end of the main assembly arm. Main • Secure the bolts using the nuts and star washers Assembly provided, as shown.
- Page 5 ASSEMBLY CLIMB1 Attach the Paddle to the Keyboard Platform By default, the paddle is attached to the right side of the keyboard platform, where there are two holes for the Paddle on M6x15 screws. If desired, the two Right Side screws on the left side of the (Default) platform may be moved to the...
- Page 6 CLIMB1 ASSEMBLY Attach VESA Mount to Writing Platform Column Loosen Knobs • Loosen the knobs on each side of the VESA VESA Mount mount to allow the mount to fit over the writing platform column. • With the open slots on top, slide the VESA mount Open Slots over the column and position at the desired...
-
Page 7: Cable Management
ASSEMBLY CLIMB1 Attach Monitor to VESA Mount • Hang the monitor on the VESA mount. — If the outer set of VESA holes was used (100mm apart), hang the two top screws in the open slots. — If the inner set of holes was used (75mm apart), insert the two screw heads through the top inner holes and hang the monitor from those screws. - Page 8 CLIMB1 ADJUSTMENT Adjust Angle of Monitor, If Necessary • Remove the plastic caps from the sides of the VESA mount to allow access to the bolt and nut. • Use the ½" socket wrench to loosen the bolt and nut (counterclockwise). Tilt the VESA mount and monitor to the desired viewing angle.
- Page 9 ADJUSTMENT CLIMB1 If Necessary, Adjust for Load Weight This adjustment can be used to maximize ease of operation. When operating this product, the main assembly arm should move easily to any position and hold that position. • If the arm is difficult to raise or lowers too easily, increase the load adjustment (+). •...
- Page 10 800.833.3746 esiergo.com © 2017 ESI Ergonomic Solutions. All rights reserved. CLIMB1 Rev B 11/17...
