Harman Kardon AVR 240 Reference Manual

¡ FM Antenna Jack
™ CD Audio Inputs
£ Tape Outputs
¢ Tape Inputs
∞ Remote IR Input
§ Remote IR Output
¶ Preamp Outputs
• Subwoofer Output
ª Front Speaker Outputs
‚ Surround Back Speaker Outputs
⁄ Surround Speaker Outputs
¤ Center Speaker Outputs
‹ Component Video Monitor Outputs

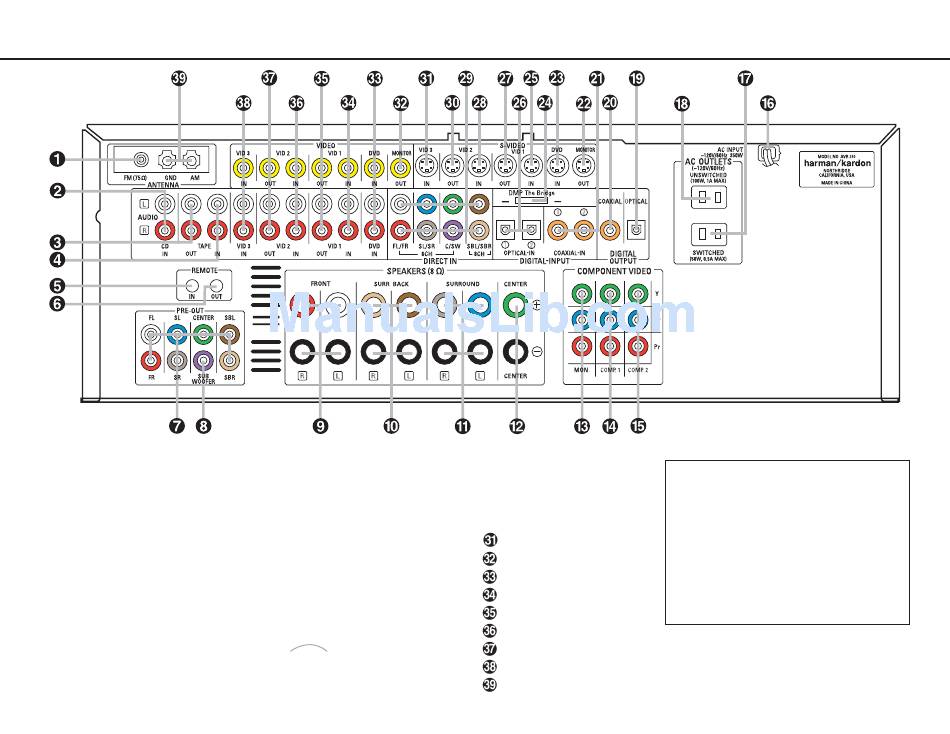

AVR 240 REAR-PANEL CONNECTIONS
› Component Video 1 Inputs
fi Component Video 2 Inputs
fl AC Power Cord
‡ Switched AC Accessory Outlet
° Unswitched AC Accessory Outlet
· Optical Digital Audio Output
a Coaxial Digital Audio Output
b Coaxial Digital Audio Inputs
c S-Video Monitor Output
d DVD S-Video Input
e
Bridge DMP Connector
The
TM
f Video 1 S-Video Input
g Optical Digital Audio Inputs
h Video 1 S-Video Output
i Video 2 S-Video Input
j 6/8-Channel Direct Inputs
k Video 2 S-Video Output
Video 3 S-Video Input
Video Monitor Output
DVD Audio/Video Inputs
Video 1 Audio/Video Inputs
Video 1 Audio/Video Outputs
Video 2 Audio/Video Inputs
Video 2 Audio/Video Outputs
Video 3 Audio/Video Inputs
AM Antenna Terminals
NOTE: To assist in making the correct connections for
multichannel input, output and speaker connections, all
connection jacks and terminals are color-coded in
conformance with the latest CEA ® standards as follows:
Front Left: White Subwoofer: Purple
Front Right: Red
Digital Audio: Orange
Center: Green Composite Video: Yellow
Surround Left: Blue Component Video "Y": Green
Surround Right: Gray Component Video "Pr": Red
Surround Back Left: Brown
Component Video "Pb": Blue
Surround Back Right: Tan
