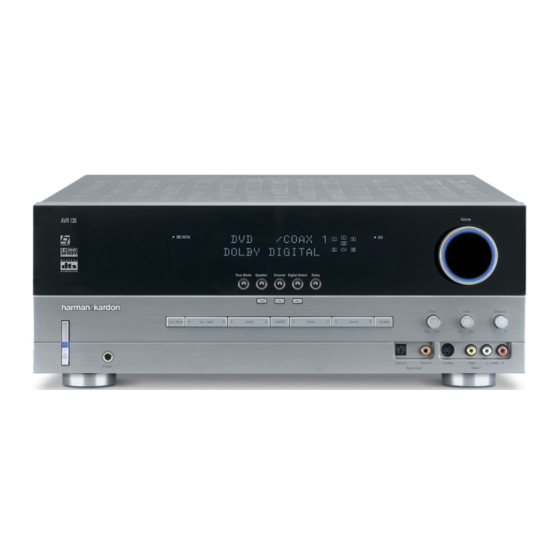

Harman Kardon AVR 130 Quick Start Manual

Thank you for purchasing a Harman Kardon AVR 130. This Quick-Start
Guide will help you with a basic system installation. For detailed information
on any step in this Guide, please refer to the pages referenced in the
Owner's Manual. We strongly recommend that you read the Owner's
Manual for complete details on how to install, configure and operate the
AVR 130, as well as for the important safety information it contains.
Figure 1 – Speaker Placement
The colors shown for each speaker correspond to
the matching output terminal connection on the
back of the AVR 130 (see page 15).
Connections Color Guide
Audio Connections Left Right
Front
Center
Surround
Subwoofer
Digital Audio Connections
Coax
Optical
Video Connections
Composite
S-Video
Match the colored jacks on the AVR 130 to the appropriate
jacks on your source equipment or speakers. The colors are
standardized, but not all equipment or connectors use them.
AVR 130 QUICK-START GUIDE
FRONT
RIGHT
SPEAKER
CENTER
SPEAKER
(Green)
FRONT
LEFT
SPEAKER
(Red)
(White)
SUBWOOFER
(Purple)
SURROUND
LEFT
SPEAKER
(Blue)
SURROUND
RIGHT
SPEAKER
(Gray)
Step 1. Place your speakers in the listening room
(see page 15).
SPEAKER PLACEMENT
