Harman Kardon DVD 37 Connection Manual

Front Speakers
(Left/Right)
Dolby Digital/DTS A/V Receiver or Processor
To To coaxial
To optical
HDMI digital
digital
audio
or DVI
audio
input
port
input
connectors
connectors
˙ © ƒ

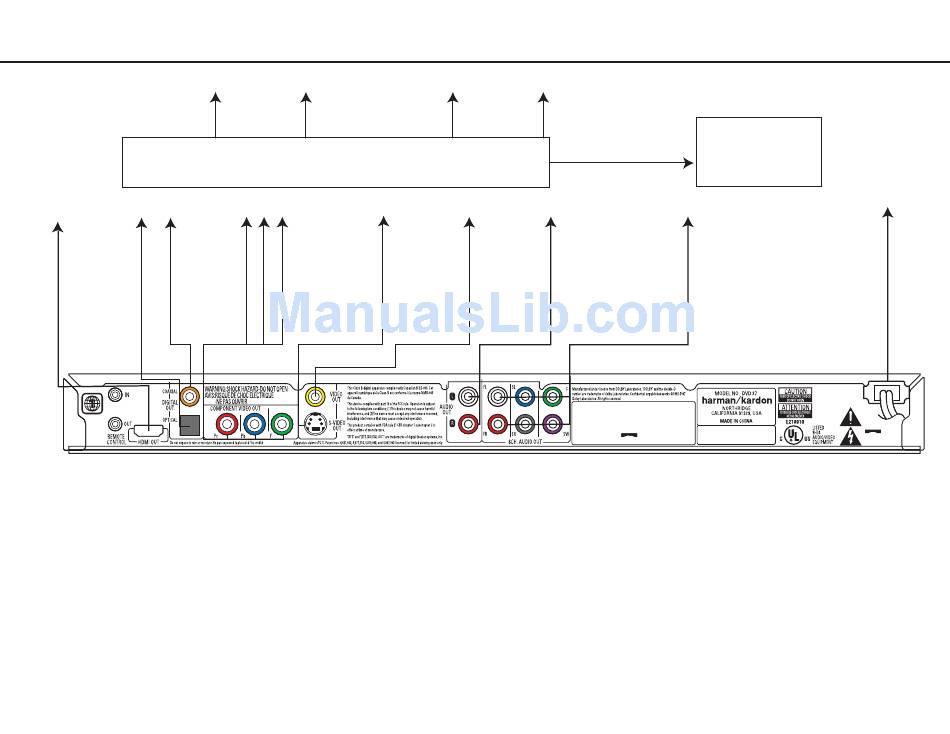

Connecting to a Receiver
When using the DVD 37 with an audio/video receiver or processor, connect it as follows.
First, make one of the video connections (Composite Video ç, S-Video ∂,
Component Video é or HDMI ˙) to the video input jacks on the A/V receiver, and then
connect the receiver's video monitor output to the TV. If you will sometimes use the TV
without the audio component, you may optionally make the Analog Audio Connection ∫
to the TV. In addition, to benefit from the high-resolution surround sound formats recorded
on DVD-Audio discs, which are not output via the HDMI connection, you will need to make
the 6-Channel Audio Connection å to your receiver or processor.
Second, if your receiver or processor is not HDMI-capable, make either the Optical Digital
Audio Connection © or the Coaxial Digital Audio Connection ƒ, to the receiver
or processor.
DVD 37 CONNECTION GUIDE 2
Center Surround Speakers
Speaker (Left/Right)
To Y (green)/
To S-video
Pb (blue)/
input
Pr (red)
connectors
component
video
connectors
é ∂
HDMI, DVI, Component,
Subwoofer
S-video and/or
Composite video
monitor outputs
To video
To analog audio
input
input connectors
connectors
(red/white)
(yellow)
on the TV
or receiver
(see above)
ç ∫ å
Remember that when the HDMI connection is used with a receiver or processor that is
compliant with the HDMI format, a single connection suffices for both audio and video,
except for DVD-Audio discs, as noted.
If your receiver or processor is not capable of processing the HDMI audio signal, then a
separate audio connection is required.
If your receiver/processor has multiroom capability, you may also connect the DVD 37's
analog audio outputs to the DVD analog audio inputs on the receiver.
IMPORTANT NOTE: Make certain that any device being connected, including the DVD 37,
your receiver or processor and your TV or video display, is turned off whenever you make
connections between products.
TV
To 6-channel
analog audio
inputs on
receiver To power outlet
(AC 120V/60Hz)
AC INPUT
120V~, 60Hz
13W
