Tools you will need:
• Soldering iron
• Wire stripper
• Metal drill 3.5mm (or similar)
• Metal drill for a 15mm hole (stepping drill for example)
• Center punch
• Screw driver
• Stranded wire to extend the power and MIDI connectors
Included in the kit:
• OrganDonor Main Board
• 3x organ Donor Switch Board, 2x 16pin connector, 1x 20pin
connector
• Analog switch connection: 1x 20pin 35cm, 2x 16pin 30cm
• Interconnect cables: 3x 12cm
• Midi connector assembly
• Power connector
• Learn button
• Midi socket drill guide
• 2x M3 bolt, 2xM3 nut for midi socket
• 13x 2,9x6,5mm screws
Tubbutec OrganDonor

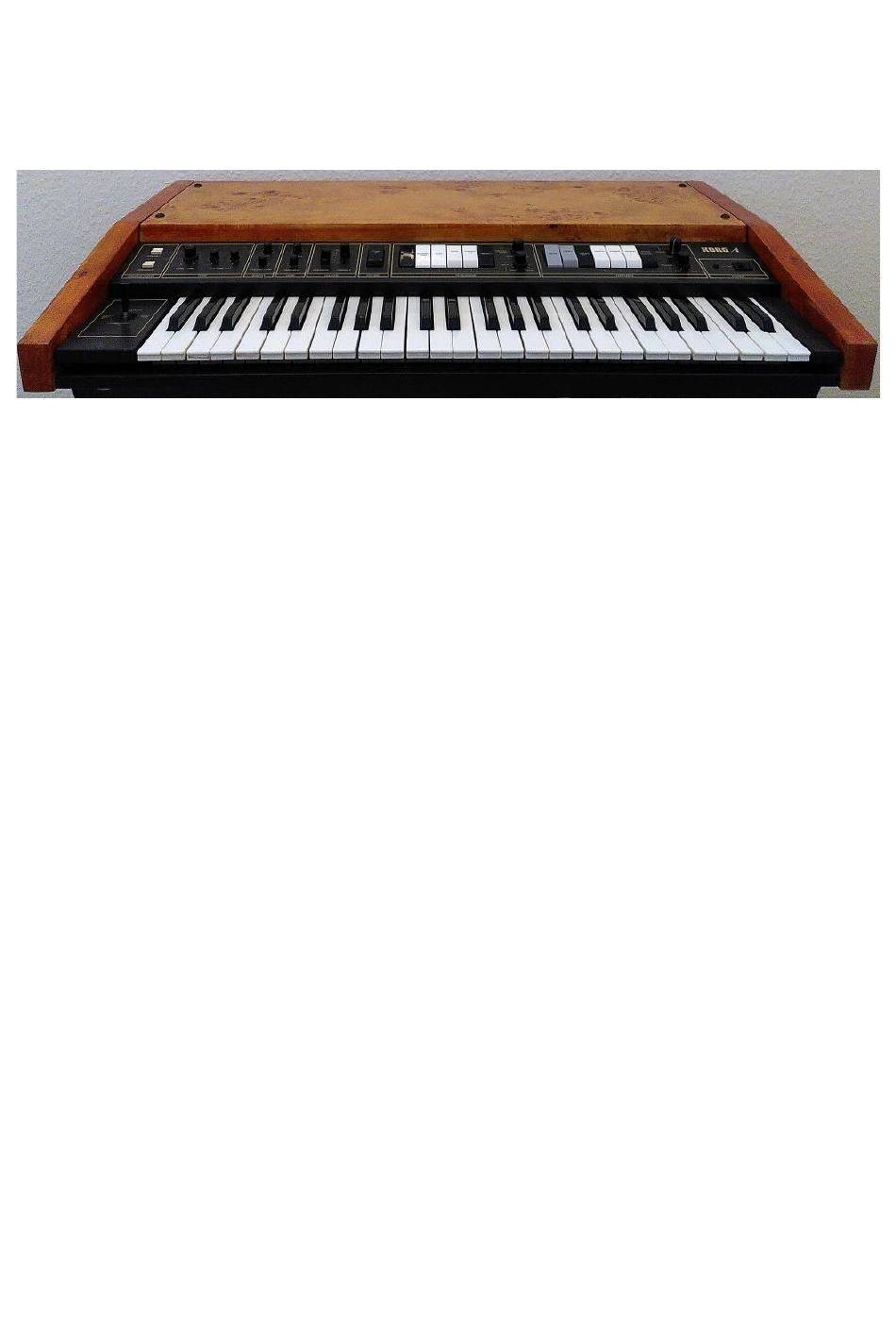

Installation manual for Korg Lambda ES-50

Advertisement

loading

Summary of Contents for Korg Lambda ES-50

  • Page 1 Tubbutec OrganDonor Installation manual for Korg Lambda ES-50 Tools you will need: • Soldering iron • Wire stripper • Metal drill 3.5mm (or similar) • Metal drill for a 15mm hole (stepping drill for example) • Center punch • Screw driver •...
  • Page 2: Principle Of Operation

    We already connect these jumpers for you. In the case of the Korg Lambda there is 1 common signal. Installation Before you place the boards please stick insulation tape on the bottom side of the boards to prevent short circuits with the tinfoil.
  • Page 3 Now solder the switch board wires to the key contacts: Take care that you don’t accidentally desolder the internal wires. Switch board 1 (20pin connector): Wire 1 gets soldered to the common connection (bus bar). Wire 2 gets cut. Wires 3 – 18 get soldered to key contacts 1 – 16. Wires 19 and 20 get cut.
  • Page 4: Power Connection

    Power connection You need to extend the wires of the power connector by about 20cm. To do so take some stranded wire with different colors, strip and solder to the power connector wires. Use shrinking tube to cover the joints. Then solder the wires to the power supply board.
  • Page 5 Installing the midi socket Decide where you want to install the MIDI socket. Use the provided drill guide to center punch the locations of the 3 holes. The two small holes need to be about 3.5mm in diameter, the large hole 15mm.
