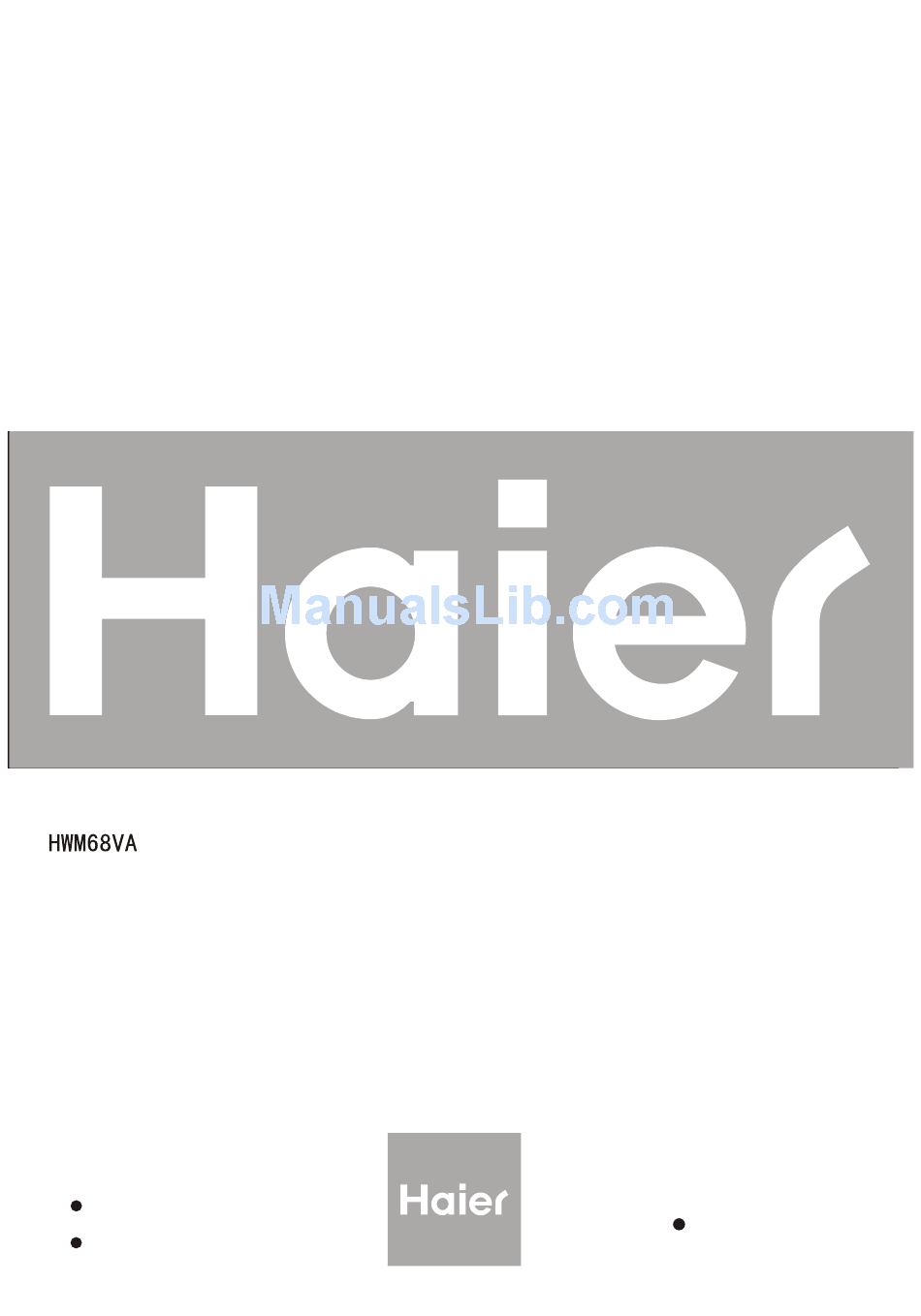

- Page 1 Twin-tub Washing Machine Twin-tub Washing Machine This manual is for Please read this manual carefully before using. Retain it for future reference. User's manual User's manual Special number:0030807643C...
-
Page 2: Table Of Contents
Contents Packing list Names of the parts Safety precautions Installation and adjustment Preparation before washing The musts in washing Usage of the detergent Washing sequence Disposal after washing Trouble-Shooting Answers to question Specification × ° Ï ä Ë µ Ã ÷ Packing list Name User's manual... -
Page 3: Names Of The Parts
¸ ÷ ² ¿ Î » Ã û ³ Æ Names of the parts Meaning and description of the symbols Warning sign Forbidding sign Please check if the power receptacle has good earthing condition before using to guarantee your safety. Contents marked with that symbol are related to the safety of the product and the personal safety of the users. -
Page 4: Safety Precautions
× ¢ Ò â Ê Â Ï î Safety precautions Please insert the power cord into special receptacle with rated vol- tage.Be sure to use single-phase three pins receptacle.The earthing terminal of the receptacle must be earthed reliably.If possible,please adopt electric leakage protector. If the supply cord is damaged,it must be replaced by the manufacturer or its service agent or a similarly qualified person... - Page 5 × ¢ Ò â Ê Â Ï î Safety precautions Do not stretch hands into the working machine. It is dangerous even if the rotation is slow. Take special care of the children. Do not put any hot or heavy items ( such as the kettle with hot water ) on the washing machine.
-
Page 6: Installation And Adjustment
Installation and adjustment Please install and adjust the machine according to the requirement of the manual. It is very important to your security and correct operating the machine. Install the lint filter After opening the package,please take out the lint filter from the document bag,install it to the overflow filter of the wash tub.See to the figure. -
Page 7: How To Change The Direction Of The Drain Hoses
How to change the direction of the drain hoses Figure 1 indicates the ex factory installation position of the drain hose. Extend the drain hose from the side of wash tub. Put soft items on the ground. Lean the machine down gently with the front surface facing the ground. -
Page 8: Preparation Before Washing
Preparation before washing Ï ´ Ç ° × ¼ ± ¸ Pay attention to followings before washing the laundries Check if Clear the the laundries pocket. Take has special out the coins, requirement sand, hairpins on washing etc. a. Check if the laundries are applicable for washing with machine. b. -
Page 9: The Musts In Washing
The musts in washing Ï ´ µ Ó Ð ë Ö ª Ï ´ µ Ó Î ï µ Ä ² Î ¿ ¼ Ö Ø Á ¿ Usage of the detergent How to use the whitener Ï ´ µ Ó ¼ Á µ Ä Ê ¹ Ó Ã Fill water to decided level. -
Page 10: Washing Sequence
Washing sequence Ï ´ µ Ó Ë ³ Ð ò Wash timer (To set to below 2 minute, Water-filling entrance first set to 5 minute then turn it back. it can increase the service life of the timer). WASH TIMER Wash 1. -
Page 11: Rinse With Water-Filling
Midway spinning 1.Put the laundries into the spin tub evenly and smoothly. 2.Spin (1) Put the gland in properly. Please put in the gland properly even if the laundries quantity is small. Push Proper (2) Close the inner and outer cover of the spin tub. (3) Spin for 1-2 minutes. - Page 12 Rinsing Rinse with stored water (Repeat the midway spinning and rinsing with stored water for 2-3 times) 1. Put the laundries into the wash tub. Select suitable current according to the laundries. 2. Fill water to preset water level. 3. Rinse Adjust the wash timer to 2-3 minutes to do rinsing.
-
Page 13: Disposal After Washing
Ï ´ º ó ´ ¦ À í Disposal after washing After using, please clean the lint and eyewinker of the lint filter and overflow filter in time. Otherwise it may influence your using the machine. Please first pull off the power plug from the receptacle before cleaning. Cleaning the lint filter The lint filter must be used during washing. -
Page 14: Cleaning The Overflow Filter
Ï ´ º ó ´ ¦ À í Cleaning the overflow filter 2. Take off the corrugation pipe. Dismantle the upper part of the corrugation pipe inside overflow filter ( as indicated in Figure 1). 3. Cleaning the overflow filter Clean the lint around the filter and flush with tap water. -
Page 15: Protective Cover
Ï ´ º ó ´ ¦ À í Cleaning the 2.cleaning dirty under the take out the sundries using the plier or other wiry 3.install the protective cover after cleaning, install it as origin assure it reliable Disposal of the complete unit Wipe the complete unit with soft cloth twisted dry. -
Page 16: Specification
Trouble-shooting Answers to question (If there's breakdown, please pull off the power plug before checking) The following phenomena are not breakdowns sometimes. Please confirm again before sending it to repair. If there are real breakdowns, please come to the special maintenance department or after-sale service department of our company.
