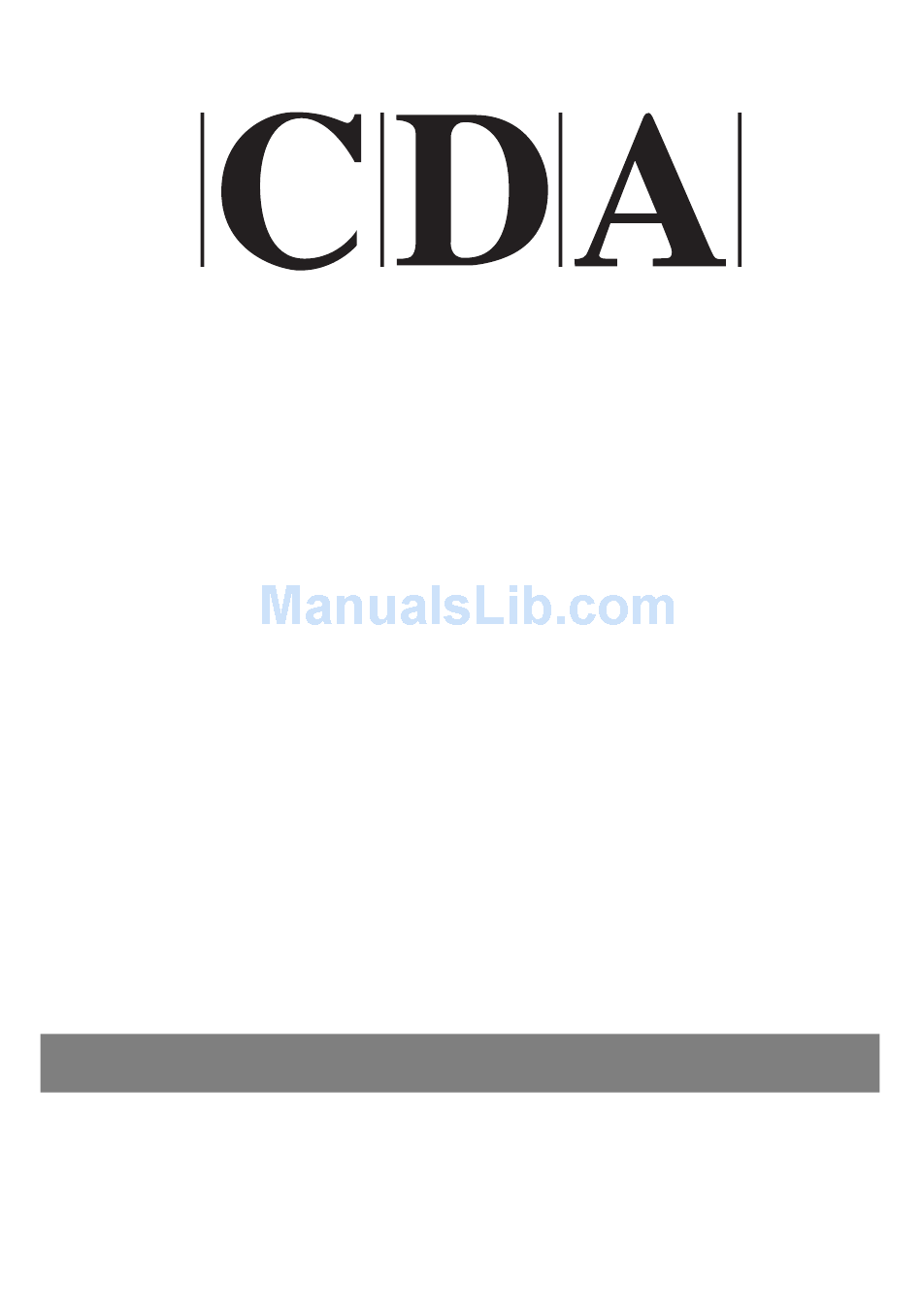

- Page 1 Integrated Dishwasher CW493 BL/WH/SS Users Operating Instructions Before operating this appliance, please read these instructions carefully...
- Page 3 CDA appliance carry a five-year parts and one-year labour guarantee. CDA will repair or replace any defect or part attributable to faulty material or workmanship. Within the first year this will be free of both labour and parts charges. After the first year and within five years, the parts will be supplied free of charge provided that the repair is carried out by an agent authorised by CDA and the labour will be charged at the commercial rate applicable at the time of repair.
-
Page 4: Safety Is Very Important
- After removing the packing, check to make sure that the appli- ance is not damaged. If in doubt, contact a qualified professional. - The dishwasher must only be used by adults for the washing of household dishes and cooking utensils. -
Page 5: Close-Up View (Interior)
Close-up View (Interior) Upper Rack Rack Height Adjustor Top Spray Arm Lower Rack Technical Characteristics Width Depth Height Capacity Mains water pressure Power voltage Total absorber power Bottom Spray Arm Washing Filter Detergent and Rinse Aid Dispenser Salt Container Cap Third Sprayer 12 standard place settings 220-240V~ 50Hz... - Page 6 Salt... Salt The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the water.
- Page 7 Detergent and Rinse Aid... Detergent Detergent specifically intended for use with dishwashers must be used. The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Wash Cycle Table." The detergent dispenser is located on the inside panel the door.
-
Page 8: Loading The Dishwasher
Loading the Dishwasher Before placing the dishes in the dishwasher, remove larger food particles to prevent the filter from becoming clogged, which re- sults in reduced performance. If the pots and pans have baked-on food that is extremely hard to remove, we recommend that they are soaked before washed. -
Page 9: Turning On The Appliance
- Make sure that the plug for the appliance is inserted into the wall socket. - Make sure that the water supply is turned on to full pressure. - Load the dishwasher (see the section entitled, "Loading the Dishwasher" on page 5). - Pour in the detergent (see the section entitled, "Salt, Detergent and Rinse Aid"... -
Page 10: Energy Saving Tips
Energy Saving Tips It is important to try and run the dishwasher when it is fully loaded to save on energy. In order to prevent odors from form- ing and food from caking onto the dishes, you can run the soak cycle. -
Page 11: Wash Cycle Table
Wash Cycle Table Rapid Cycle Button Button Intensive Wash Intensive Wash Normal Wash Normal Wash (IEC-EN50242) Rinse Rinse Glassware Glassware Soak Cycle Selection Description of Information Cycle Pre-wash with hot water. Rinse with cold water. Very dirty dishes, pots and Extended wash at 60 pans (not to be used with Rinse with hot water at 70... -
Page 12: Cleaning And Special Maintenance
Troubleshooting It may occur that the dishwasher does not function properly or at all. Before calling for assistance, Iet us see what can be done first: Have you forgotten to press one of the buttons or to per-... -
Page 13: Installation
Levelling the Appliance Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the dishwasher, making it level. The appliance should not be inclined more than 2 . If the appliance is level, it will help ensure proper performance. - Page 14 Mounting the Wood Door Panel onto the Dishwasher Place the wood panel onto the door of the dishwasher. Then perform the installation steps described below, based on whether the panel is for a totally built-in model or integrated with the con- trol panel.
- Page 15 1 Install the continuous base moulding , following the manufacturer’s instructions . 2 Slowly open the door of the dishwasher to check to see if the door strikes or rubs against the base moulding. 3 If so, rest the bottom edge of the panel on the base moulding and mark the part to be cut.
- Page 16 Assembly Instructions for Integrated Dishwasher Fig.1 Fig.2 122.5 137.5 152.5 432mm 436mm 440mm 444mm LARGH.=448mm LARGH.=448mm 444mm 440mm 436mm 432mm Fig.3 Fig.4 2-7Kg Fig.5 .13. Fig.6...
- Page 17 Assembly Instructions for Integrated Dishwasher Fig.7 Fig.8 Fig.9 Fig.10 .14.
- Page 18 Installation Diagram 3(1) 1(3) 4(2) 2(4) Filter D-Ed IAQS .15. TS.50 n.a. TS.58 n.a. 3(2) I1/2 1(1) EV1/2 CL 1...
-
Page 20: Appliance Servicing
4. Clear and concise details of the fault 5. Full address including postcode and any contact phone numbers Contact telephone numbers CDA Customer Care Department Harby Road Langar Nottingham NG13 9HY Telephone: 01949 862000 Email:service@cda-europe.com CW493 BL/WH/SS Dishwasher Appliance servicing...
