- Page 1 GB162 Concentric Horizontal Vent Kit FOR BUDERUS GB162 SERIES BOILERS Installation Instructions...
- Page 2 Installation Manual 2 | Concentric Horizontal Vent Kit Data subject to change Bosch Thermotechnology Corp.
-
Page 3: Table Of Contents
Installation Manual Concentric Horizontal Vent Kit | 3 Table of Contents 1 Explanation Of Symbols 1.1 Key To Symbols 1.2 Safety Instructions 2 Scope Of Delivery 3 Installation 3.1 Notes On Installation 3.2 Appliance Adapter 3.3 Elbow and Wall Termination 4 Spare Parts Bosch Thermotechnology Corp. -
Page 4: Explanation Of Symbols
Installation Manual 4 | Concentric Horizontal Vent Kit 1 Explanation Of Symbols 1.1 Key To Symbols 1.2 Safety Instructions Warnings WARNING: Read all instructions before installing. Perform the steps in the indicated sequence. Failure to comply Warnings in this document are identifi ed by a with these instructions can result in severe, possibly warning triangle printed against a grey background. - Page 5 GB162 series boilers (hereafter referred to as "appliance"): WARNING: Maintenance - GB162-80 kW - GB162-100 kW Customers are required to: Sign a maintenance and inspection contract with an authorized contractor. Inspect and maintain the gas appliance on a yearly basis or more frequently if required.
-
Page 6: Scope Of Delivery

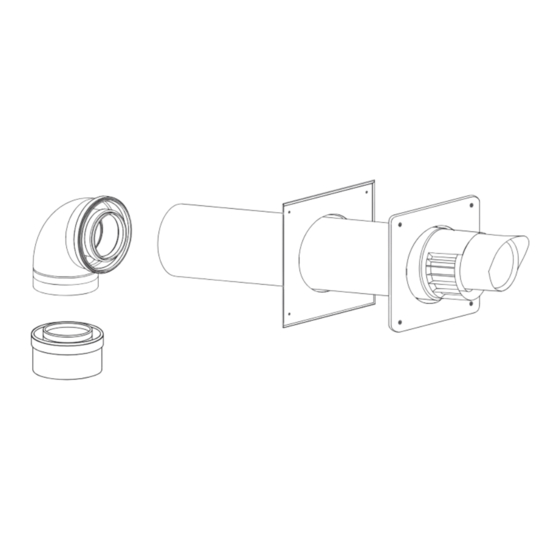

Installation Manual 6 | Concentric Horizontal Vent Kit 2 Scope Of Delivery The GB162 Concentric Vent Kit comes packaged as described below. 9⁷⁄ ₁ ₆" (240) Ø 5⅞" (150) Fig. 1 Scope of delivery - dimensions in inches (mm) Fig.1 Legend: Components: 1 90°... -
Page 7: Installation
Installation Manual Concentric Horizontal Vent Kit | 7 3 Installation 3.2 Appliance Adapter Discard original appliance adapter, vent fl ange and gasket that 3.1 Notes On Installation was supplied with the boiler. Set the appliance adapter down onto the pipe ensuring that the analyzer ports are facing to the front of the appliance and the NOTICE: adapter screw holes are aligning with those of the appliance. - Page 8 1.14 90 deg 4"/6" (100/150mm), PolyPro Elbow 1.72 Example: ig. 4 Penetration through the outside wall — Model: GB162-80 — 90° elbows used: 3 Select the required diameter [K] of the hole in the wall — 45° elbows used: 0 according to the wall thickness S.
- Page 9 Installation Manual Concentric Horizontal Vent Kit | 9 Position terminal [1] from the outside through the vent opening so rubber thimble [2] is flush against outside wall (Fig. 6) . Slide the inner wall seal [3] onto the terminal [1] as shown (Fig.
-
Page 10: Spare Parts
Installation Manual 1 0 | Concentric Horizontal Vent Kit 4 Spare Parts Concentric Vent Kit Components Description Bosch Part Number Concentric Vent Kit PP 100/150, GB162 7738004825 Concentric Adapter GB162 PP 80-100/150 7738004826 Wall Plate pe 150 7738004835 Wall Plate Fire Stop Support alu 150... - Page 11 Installation Manual Concentric Horizontal Vent Kit | 11 Notes: Bosch Thermotechnology Corp. Data subject to change...
