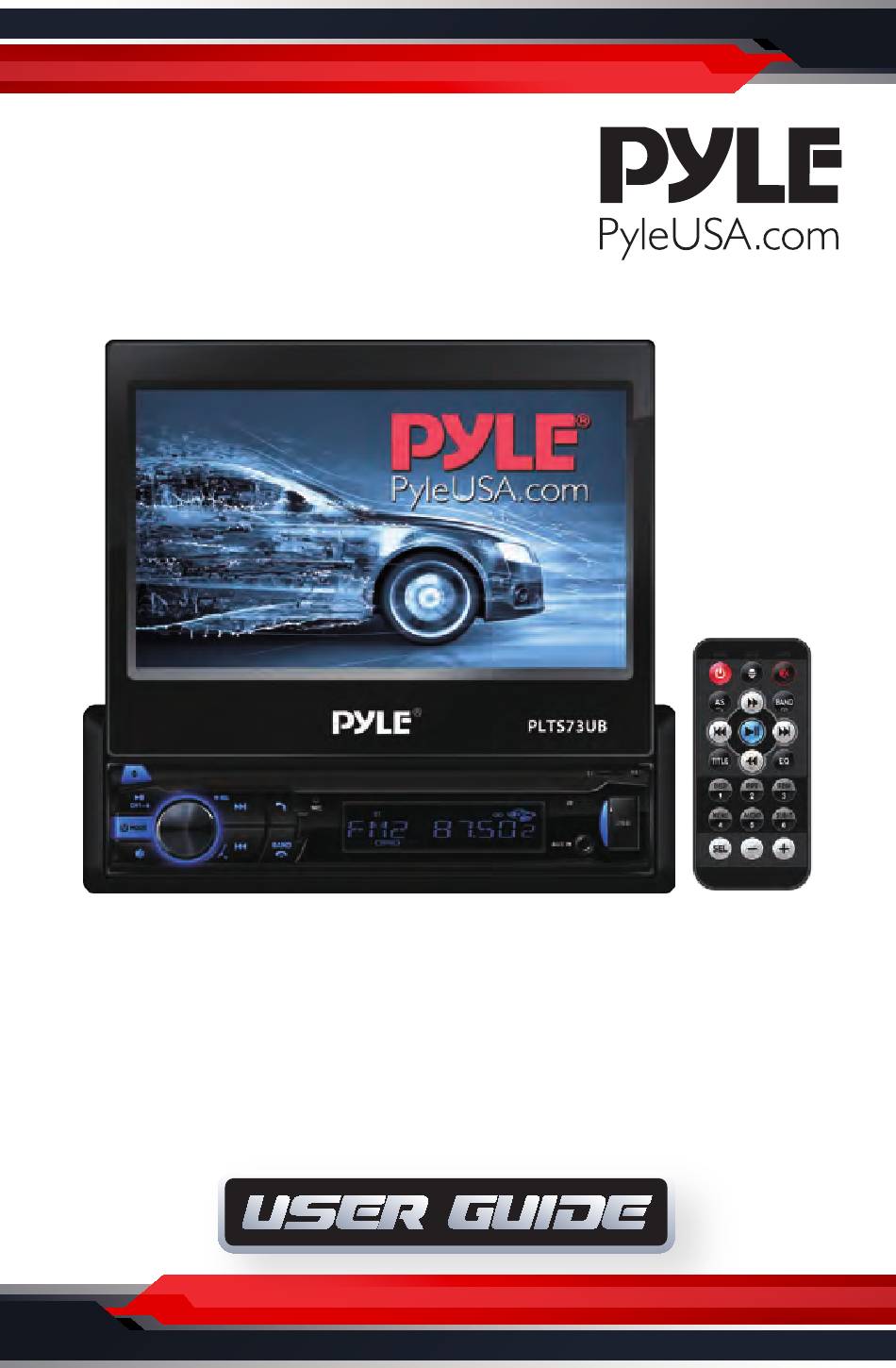

- Page 1 PLTS73UB Car Stereo Video Receiver with Multimedia Player, BT Wireless Streaming, Hands-Free Talking, Motorized Fold-Out 7’’ Touchscreen Display, MP4/MP3/USB/SD/AM/FM Radio, Single DIN...
-
Page 2: Table Of Contents
CONTENTS Safety Information Precautions Installation Control Panel Remote Control Set Up Operations Radio Operations USB/SD Card Device Operations Wireless BT Operations Android Phone Link Operations Features Technical Specs Download the “Phonelink” Apk from Google Play Store www.PyleUSA.com... - Page 3 IMPORTANT: • Do not operate this digital video player while the vehicle is moving. • This is a safety feature to prevent driver distraction. • It’s illegal in most country for the driver to view video while the vehicle is moving.
-
Page 4: Installation
INSTALLATION: Before Installation: • We recommend you to let a professional technician install the unit in the vehicle. • Disconnect negative battery terminal of vehicle. Installation Process: • Carefully remove the existing head unit. • Before finally installing this product, connect wiring harness temporarily and make sure it’s all connected up properly and test the head unit if it can work properly. - Page 5 Wiring Connections: BLACK SWC - GND BROWN SWC - 1 BROWN / WHITE SWC - 2 YELLOW ORANGE REVERSE (+) PINK BLACK PARKING BRAKE (B-) GROUND ORANGE / BLACK BLUE ILLUMINATION (+) POWER ANTENNA GRAY WHITE FRONT LEFT FRONT RIGHT CHANNEL SPEAKER CHANNEL SPEAKER WHITE/BLACK...
-
Page 6: Control Panel
Control Panel Buttons: 1. OPEN/ BUTTON • Briefly press this button to slide the monitor out of slot. • Repeatedly press this button to tilt up and down the monitor. • Press and hold this button to slide the monitor inside of the slot. /MODE BUTTON In power on mode, short press it repeatedly to select one mode of the RADIO, USB, SD Card, Phonelink, Bluetooth and AUX IN(AV IN). - Page 7 8. Tune Next/ Skip Next track In Radio mode, press it to scan strong singal radio station upward step by step. Press and hold it to tune radio frequency upward one step at a time. In USB/Micro SD card/BT music playback, press to skip next track. Press and hold to fast forward playback.
-
Page 8: Remote Control
REMOTE CONTROLS: 1. OPEN / Briefly press this button to slide the monitor out of slot. Repeatedly press this button to tilt up and down the monitor. Press and hold this button to slide the monitor inside of the slot. 2. - Page 9 9. RPT (Repeat playback) / 2 In USB/SD playback mode, press and hold the RPT button to repeat playback modes: Repeat Track, Repeat All, Repeat Cancell. In radio mode, press to store or recall the preset station 2. 10. DISP / 1 In video playing mode, press and hold the DISP to show information such as Title number, Chapter number, Track number, elapsed time, remain time etc..
-
Page 10: Setup Operations
Setup Operations: Main Menu: In each mode, touch the icon to enter the main menu as below image. In the main menu screen, press the desired icon to enter each of the following settings : Radio, Bluetooth(Phone & Music), USB, SD Card, Phonelink, AUX In(AV In), F. CAM (Front View Camera), Setup. - Page 11 • SWC(Steering Wheel Control) Tap “SWC” to enter the study operation menu. First, make sure the SWC connecting wires have been connected to this unit. Before study, tap the icon to clear all previous settings. Press and hold a steering wheel button, at the same time, tap the function button on touch screen that you want to set on to the steering wheel.
- Page 12 C. Audio Settings Tap the icon to enter the audio setting: mode, tap the EQ button to enter EQ setting. • Sound e ect: Tap the FL, FR, RL, RR, ALL button to preset the Move the blue circle at the middle of “car inside” front seat passenger, left back passenger, right back passenger and all passengers in the car.
-
Page 13: Radio Operations
Radio Operations: Press MODE button on the control panel or on the remote control, or tap the “Radio” icon on touch screen until Tuner is selected. 1. Home Page 2. Clock Time 3. Volume Level Adjust 4. TFT Screen Backlight brightness Adjust 5. -
Page 14: Usb/Sd Card Device Operations
USB/SD Card Operations: USB Connection, Mini SD Card Slot The USB port is designed for media playback from a flash memory device. The mini SD card slot is desiged for media playback from mini SD card. If you would like to play video/song/photo files contained in a USB flash memory device or SD card, please insert the USB flash memory device into the USB port or insert a mini SD into the mini SD card slot. - Page 15 USB/SD Card Operations: - Movie Playback: 10 11 12 13 14 15 16 17 18 1. Home Page 10. View the Movie File List 2. Clock Time 11. Next Page 3. Volume Level Adjust 12. Previous Page 4. TFT Screen Backlight Brightness Adjust 13.
-
Page 16: Wireless Bt Operations
Wireless BT Operations: Pairing and Connecting Before using a Wireless BT phone with this unit, the phone must be paired and connected. The Wireless BT signal of the unit will broadcast when the power is on. This multimedia player will displayed as "PyleUSA" on your phone. When prompted, enter the pass code "0000"... - Page 17 Contacts List (Phonebook) icon to view the contacts(phonebook). icon to refresh the phone book. icon to and input a key-letter to retrieve the Streaming Audio In Wireless BT phone mode, tap icon to change to BT music (A2DP) mode. icon to skip to the previous track. icon to play or pause the music.
-
Page 18: Android Phone Link Operations
Android Phone Link Operations: Phone link allows you to mirror the screen of certain Android smartphones on the screen of this car DVD player. Simply connect your device to the USB port and you're ready to see your favorite smartphone apps directly on the screen. - Android phone link: 1) Please scan one of QR code on right side to download the “Phonelink”... - Page 19 www.PyleUSA.com...
-
Page 20: Features
Features: • Multimedia Stereo Radio Receiver • 7’’ -inch HD Video Display • Wireless BT Music Streaming • Built-in Microphone for Hands-Free Talking • CD/DVD Player • Touchscreen Control • User-Friendly Control Interface • AM/FM Radio with LCD Display • Connect & Stream Audio from External Devices •... -
Page 21: Technical Specs
What’s in the Box: • Single DIN Receiver • Remote Control • Power & Wiring Harness Technical Specs: • Single DIN Size Universal Standard • Power Output: 4 x 80 Watt (320 Max.) • Wide Screen TFT - LCD Display •... - Page 22 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
