ESI 5D Access Thermal Reader Assembly Manual And Mounting Instruction Manual

5D Access Thermal Reader
Device Mounting Instruction Guide
Packing list
Digital thermal detection module
Screw kit. (There are two types of screw kits. Screw kit 1: two M4x16 pan head screws, two M4
nuts, and two M3x6 pan head screws. Screw kit 2: two M3x6 pan head screws)
D5 access control terminal
Screws and component
Bracket (one Thermal Detection Module bracket and one 5D Access Thermal Reader bracket)
T10 tamper-proof driver
Installation sticker
20-pin cable
2-pin power cable
12 volt Power supply and barrel jack
Tools
Antistatic wrist strap
Marker
Drill
Phillips screwdriver
Slotted screwdriver
Tape Measure
5D Access thermal Reader Installation Manual 0455-0267.

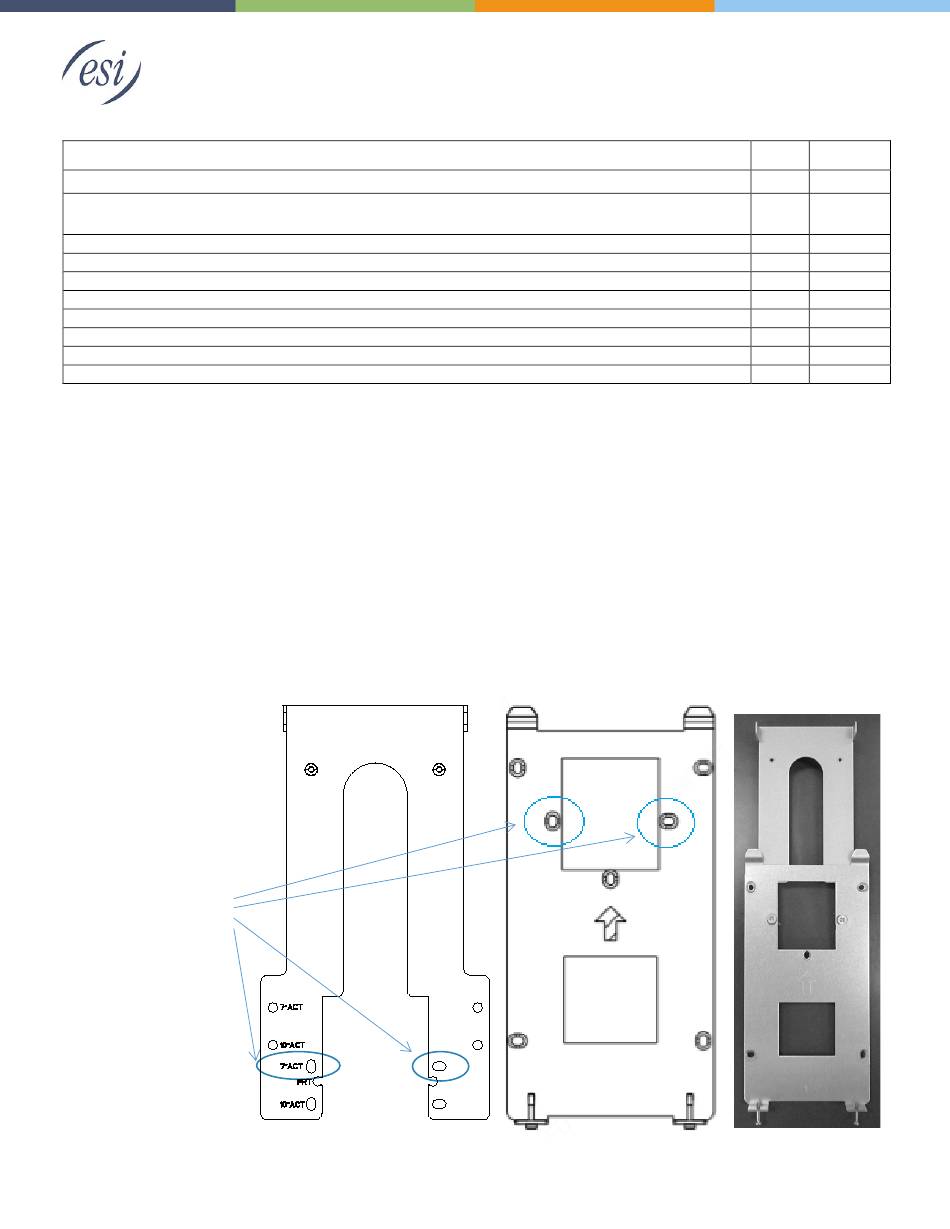

Bracket Introduction
The bracket for mounting the Thermal Detection Module to the 5D Access Thermal Reader is delivered with four M4x11
screws and two M4 wing nuts. Use the 7-ACT holes to mount the Thermal Detection Module bracket to the 5D Access
Thermal Reader bracket. See diagram below.
Use the 7-ACT
holes circled in blue
for assembling the
thermal dection
module bracket (left
image) to the 5D
Access Thermal
Reader bracket
(middle image).
The final
assembled bracket
will look like the
image on the far
right.
Page 1 of 4
Name Qty Unit
1 PCS
2
Set
1 PCS
1 Set
2 PCS
1 PCS
1 PCS
1 PCS
1 PCS
1 PCS
0455-0269 Rev B
