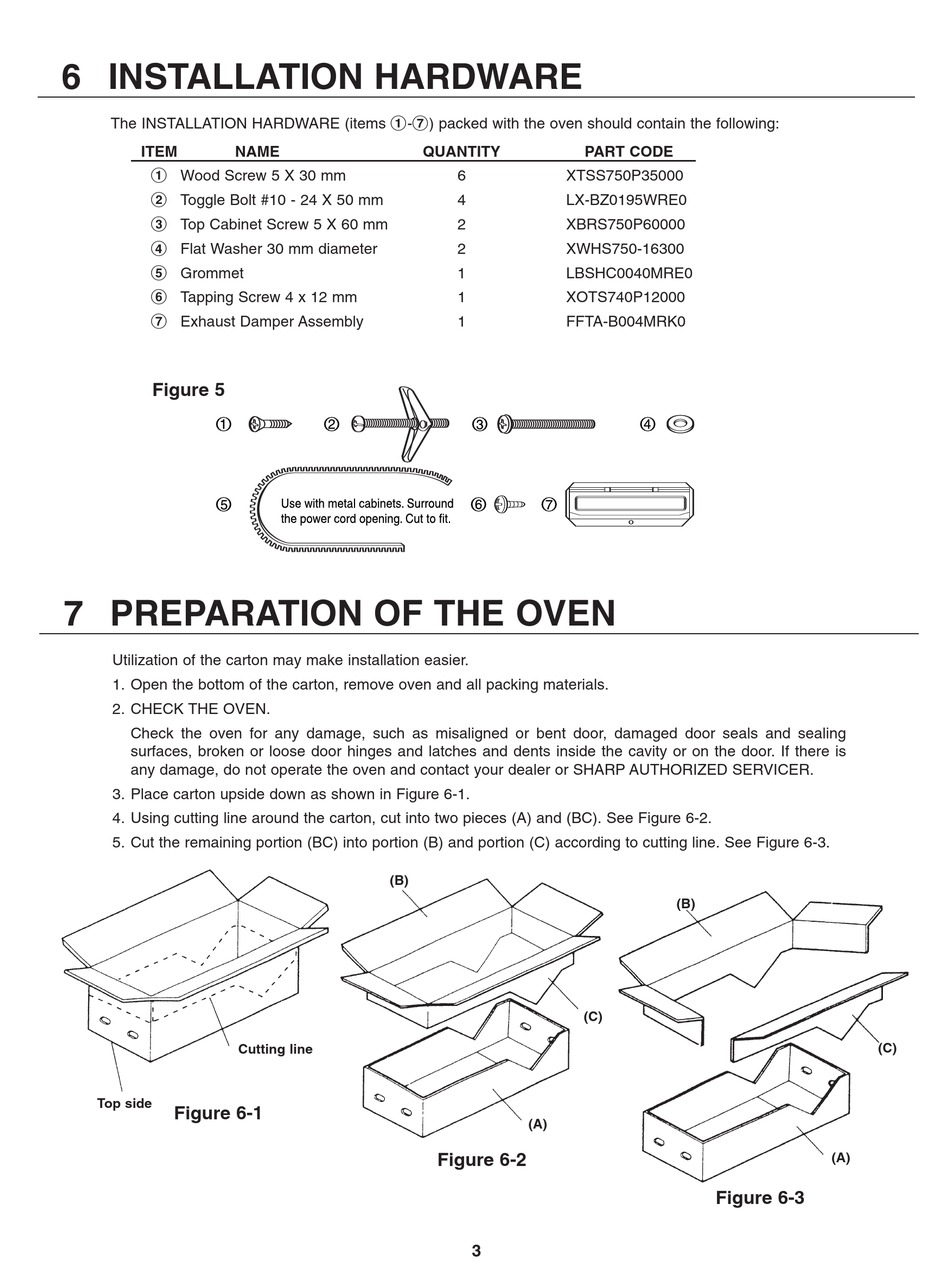

6 INSTALLATION HARDWARE

The INSTALLATION HARDWARE (items 1-7) packed with the oven should contain the following:
ITEM NAME
1 Wood Screw 5 X 30 mm
2 Toggle Bolt #10 - 24 X 50 mm
3 Top Cabinet Screw 5 X 60 mm
4 Flat Washer 30 mm diameter
5 Grommet
6 Tapping Screw 4 x 12 mm
7 Exhaust Damper Assembly
Figure 5

7 PREPARATION OF THE OVEN

Utilization of the carton may make installation easier.
1. Open the bottom of the carton, remove oven and all packing materials.
2. CHECK THE OVEN.
Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing
surfaces, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is
any damage, do not operate the oven and contact your dealer or SHARP AUTHORIZED SERVICER.
3. Place carton upside down as shown in Figure 6-1.
4. Using cutting line around the carton, cut into two pieces (A) and (BC). See Figure 6-2.
5. Cut the remaining portion (BC) into portion (B) and portion (C) according to cutting line. See Figure 6-3.
Cutting line
Top side
Figure 6-1
QUANTITY
6 XTSS750P35000
4 LX-BZ0195WRE0
2 XBRS750P60000
2 XWHS750-16300
1 LBSHC0040MRE0
1 XOTS740P12000
1 FFTA-B004MRK0
(B)
(A)
Figure 6-2
3
PART CODE
(B)
(C)
Figure 6-3
(C)
(A)
