Haier HC-XG72D Installation And User Instruction

HOUSEHOLD GAS HOB
INSTALLATION AND USER INSTRUCTIONS
JZY/T-QB330
HC-XG72D
Note: Do not use the hob until you have read the instruction manual.
Even if you have used a gas hob before, it is important that you read these instructions thoroughly
before using the appliance, paying particular attention to the installation and safety instructions. If you
have any problems installing, operating or cooking with your hob, please check through these instruc-
tions to ensure all of them have been adhered to.
WARNING! For your own safety, make sure that these instructions on installation, use and
maintenance are followed.
Please keep these instructions in a safe place for future reference.
Should the appliance be sold or transferred, please pass on these instructions to the new owner.
1. INTRODUCTION
◆Product features
● Accidental flameout protection design
In case of an accidental flameout due to air, overflow, accidental flameout protection function will
start to automatically cut off internal gas access of gas hob and avoid mass gas leakage to ensure
user safety.
● Glass panel hob applies tempered glass with explosion-proof mesh, which is safe, durable and
easy to clean.

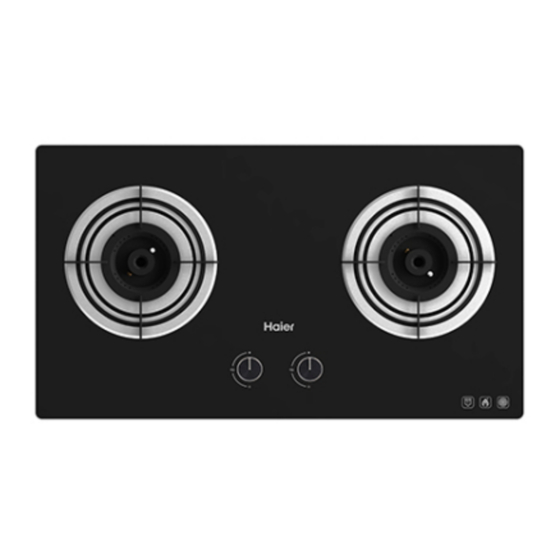

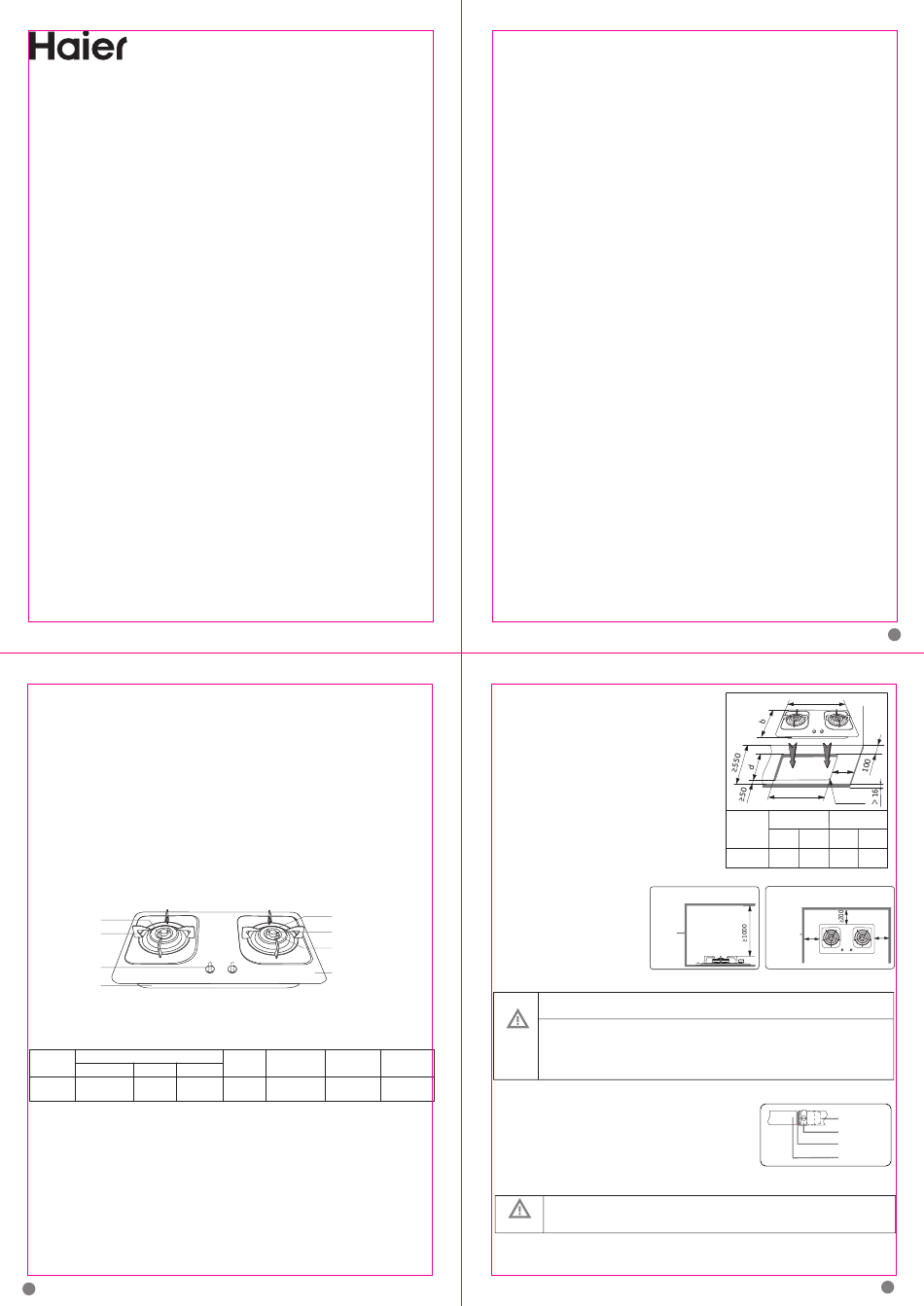

◆ Part name
Ignition porcelain needle
pot rack
knob
hob shell
Note: the picture is the appearance sketch of the product and the specific appearance and color are
subject to the purchased product.
2. TECHNICAL DATA
Rated heat load
Type
Total Heat Input Left burner Right burner
4.5kW 4.5kW
JZY/T-QB330
9.0kW(655g/h)
HC-XG72D
(327.5g/h) (327.5g/h)
3. INSTALLATION INSTRUCTIONS
◆ Installation method
● When the gas hob is embedded in the cooktop, please follow the steps 1-5 to install.
When the gas hob is put on the cooktop, please follow the steps 4-5 to install.
1. Please choose the cabinet with table thickness greater than 16mm, width not less than 550mm;
Note: The cabinet countertops should be made of fire, high temperature-resistant, thermocycling-
resistant material. The coating layer and plywood on the cabinet must be fire-resistant and glued
together to avoid deformation or surface detachment.
2. According to the hole-digging size and requirements in the instruction, dig holes in the
corresponding position of the table with fillet radius around the holes less than 50mm;
2
Cod:0070303644-D
Outer-ring fire cover
inner-ring fire cover
thermocouple
cooktop
Size(mm)
Applicable
Rated pressure
Net Weight /
Length × Width
gas type
(Pa) Gross Weight(kg)
× Height
LPG
11.5/13.0
3000 730×410×135
I3B/P(30)
SAFETY INSTRUCTIONS
Make sure that this instruction booklet is read thoroughly and understood before attempting
to install or operate this hob.
The instructions are provided in the interest of your safety.
GAS SAFETY REGULATIONS AND USE OF YOUR HOB
1. Please carefully read the nameplate of the gas hob you purchased and make sure the
type of gas specified on the nameplate matches the type of gas you are currently using.
2. It is recommended to check the connections of gas hob for air tightness at least once a
year and replace the gas-dedicated connecting pipe.
3. In the use process of gas hob, note ventilation, open the window or turn on the ventilation
fan on a regular basis to ensure fresh air convection and ventilation.
4. In case of a leakage, avoid all the acts and sources of fire that cause gas explosion,
immediately close the gas valve and open the windows and doors for ventilation.
5. It is a legal requirement that all gas appliances are installed by qualified personnel only in
accordance with current legislation. It is your responsibility to ensure compliance with the
law.
6. Repairs or servicing of this product must only be carried out by an authorised service
agent using approved parts.
7. No attempt must be made to modify this appliance under any circumstances.
8. Cooking appliances can become very hot in use – please keep children and pets away
from them.
9. Do not allow children to operate or play with any part of the appliance.
10.Do not use unstable pans and ensure that the handle is positioned away from the edge of
the worktop.
11. In the interest of hygiene and safety, please ensure the hob is kept clean.
12. This appliance is designed for domestic cooking only. Commercial use will invalidate the
warranty.
13. Do not cover the hob or place combustible materials on or near the surface even when
the hob is not in use.
14. Do not fill deep fat frying containers more than one third full of oil and NEVER leave
unattended.
15. Before cleaning the hob, switch off at the mains.
16. When cooking is finished, switch off all controls and allow to cool.
17. These appliances are not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
18. If the supply cable is damaged, it must be replaced by the authorised service agent or
qualified person only.
19. Do not immerse the appliance or the power cable into water or any other liquid.
20. Prior to installation, ensure that the local distribution conditions (nature of the gas and
gas pressure) and the adjustment of the appliance are compatible.
21. The adjustment conditions for this appliance are stated on the label (or data plate)
22. This appliance is not connected to a combustion products evacuation device. It shall be
installed and connected in accordance with current installation regulations. Particular
attention shall be given to the relevant requirements regarding ventilation.
23. The use of a gas cooking appliance results in the production of heat and moisture in the
room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation
holes open or install a mechanical ventilation device (mechanical extractor hood).
24. Prolonged intensive use of the appliance may call for additional ventilation, for example
opening of a window, or more effective ventilation, for example increasing the level of
mechanical ventilation where present.
3. gas hob fitted with a battery is installed in the hole
of the table;
4. Refer to the connection method and connect the
gas hob and gas source with the gas special
connecting pipe. If the rubber pipe is used, please
use the pipe clamp to fix it firmly and avoid turning
the gas pipe joint;
5. After installation, carry out gas leakage detection,
apply soap water on the connection parts, open the
indoor gas valve and carefully observe whether there
is a bubble. If bubbles are generated, immediately
close the indoor gas main valve, and adjust the
intake connection according to the connection
method. If there is no bubble, please refer to the
instruction manual for ignition commissioning; after
commissioning, make sure that the indoor gas main
valve is closed.
● Gas hobs should strictly follow the
dimensions specified the diagram and
Unit: mm
keep the distance from combustible
materials. If it's surrounded by
fire-resistant materials, it's not subject
combustibles
to the requirements; if a range hood is
installed above, it should be
650-700mm away from the hob
(specific installation requirements of
range hood refer to its instruction
manual).
Do not install the gas hob above poorly ventilated ovens, refrigerators, freezers,
dishwashers, sterilizer, or other types of kitchen appliances.
At least 100mm vacant space shall be reserved below the bottom of hob after the gas hob
is embedded into cabinet and all items are prohibited to be stored in the vacant space. To
Note
ensure good ventilation and cooling of the gas hob, open 2 openings of about 50mm in
diameter on the back or side of the cabinet to the atmosphere to avoid the explosion
caused by the accumulation of unburned gas mixture. If the cabinet is not perforated, take
ventilation measures.
◆Connection method
● Gas-dedicated rubber hose
If you select the gas-dedicated rubber hose (length should not
exceed 1.5m) with diameter of 9.5mm, please connect the
rubber hose to the intake joint of red marking of gas hob and fix
it firmly with pipe clamps. The rubber hose used should meet
the relevant safety standards within service period.
After the installation, make sure the gas connecting pipe is not twisted, squeezed, bent
and is not in touch with any movable part of the cabinet, such as drawers, rails, etc .;
Note
avoid high temperature area.
1
a
Unit: mm
150
c
<R50
Overall dimensions Cooktop hole size
Type
a(mm) b(mm) c(mm) d(mm)
JZY/T-QB330
730 410 620 345
HC-XG72D
Unit: mm
combustibles
≥ 200 ≥ 200
Rubber hose
Pipe clamp
Red line
Intake joint
