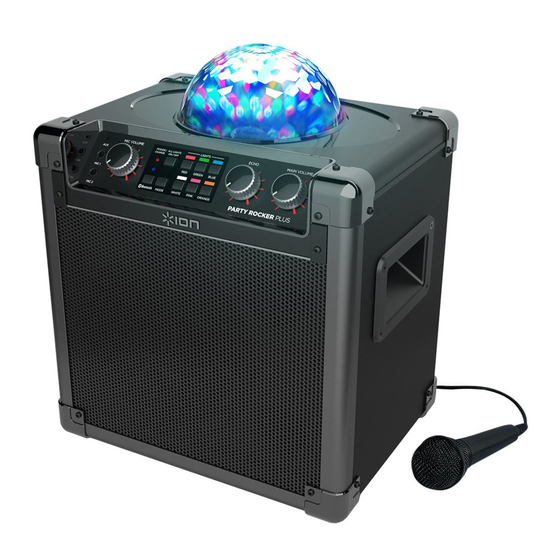

Party Rocker Plus
Service Manual
This document contains sensitive proprietary information.
All recipients must have a current non-disclosure agreement
on file with ION Audio.
Do not make illegal copies of this document.
The information in this document contains privileged and confidential information. It is
intended only for the use of those authorized by ION Audio. If you are not the authorized,
intended recipient, you are hereby notified that any review, dissemination, distribution or
duplication of this document is strictly prohibited. If you are not authorized, please
contact ION Audio and destroy all copies of this document. You may contact ION Audio
at support@ionaudio.com.
© Copyright ION Audio
Confidential
ION Audio
[iPA75]
v1.0
2017-11-17
ATTENTION!
ION Audio Service Manual
Advertisement
Related Manuals for ION Party Rocker Plus
Summary of Contents for ION Party Rocker Plus
- Page 1 The information in this document contains privileged and confidential information. It is intended only for the use of those authorized by ION Audio. If you are not the authorized, intended recipient, you are hereby notified that any review, dissemination, distribution or duplication of this document is strictly prohibited.
- Page 2 You shall not use, sell or otherwise transfer spare or replacement parts supplied by ION Audio to you (i) to repair or be used in products manufactured for or by third parties or (ii) to any third parties for any purpose.
- Page 3 ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED ION AUDIO SERVICE CENTER SHALL BE SOLELY THE RESPONSIBILITY OF THAT ENTITY, AND ION AUDIO SHALL HAVE NO LIABILITY TO THAT ENTITY OR TO ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.
- Page 4 The product is exposed to water or excessive moisture, The AC power supply plug or cord is damaged, d. The product shows an inappropriate change in performance or does not operate normally, or The enclosure of the product has been damaged. Confidential ION Audio Service Manual...
- Page 5 Part No. Part name Spec CR010989 IPA75 MOTOR IPA75 MOTOR ASSY 12040036 touch switch AN-S436,RM-021-01B 16040916 plug cable AN-W4476,2P,26#,UL1007,200mm 26020782 FR4 PCB board AN-B20552,MOTOR,147*130*1.6mm CR010990 IPA75 LED IPA75 LED ASSY AN-WA28,CFF100-08T1- 16080030 FFC connecting cable 370,P1.0,FFC,8P,L=370mm,44/88 18040187 LED AN-L0186,BRL-10C3A06-S, 3W, red, SMD 18040188 LED AN-L0187,BGL-10C3A06-S, 3W, green, SMD 18040189 LED...
- Page 6 18040122 LED AN-L0122,DIP,BL-BB53C4,Φ3*5mm 18040212 LED DIP,LUEUG30292-R-P01, 20260086 LED cover LED3B-7.5 20260087 LED cover LED3*7.5 20500006 insulation grain W05-253，￠5.3*1.8MM 24060112 ferrite inductor AN-I6053,PFY014-010DR10*10,15uH,4.5A 30050006 mica sheet 13*18*0.1mm 30150156 copper foil IPA75,25*62*0.03mm, V1.0 40030050 6.35 socket AN-J0349,SJ6325B-3P 40040017 3.5 socket AN-J0418,PJK-0358 40240031 FPC connector AN-J2431,CF1005A-08T-S01-BB,FPC-P1.0-8P 40360350 pin header AN-JP413,1P,TJC1-1A...
- Page 7 11171136 chip resistor 1/10W,27KΩ,±1%,0603 11171153 chip resistor 1/4W,5.6Ω,±5%,1206 11171167 chip resistor 1/10W,13KΩ,±1%,0603 11171184 chip resistor 1/10W,124Ω,±1%,0603 11171189 chip resistor 1/10W,11.5KΩ,±1%,0603 11171203 chip resistor 1/10W,40.2KΩ,±1%,0603 11171224 chip resistor 1/10W,11KΩ,±1%,0603 11171231 chip resistor 1/10W,249KΩ,±1%,0603 11171249 chip resistor 1/10W,4.99Ω,±1%,0603 11171255 chip resistor 1/10W,121K,±1%,0603 11171335 chip resistor 1/10W,52.3KΩ,±1%,0603 11171353 chip resistor...
- Page 8 22UF VDC6.3,±10%,X5R,1206 50050459 novacap syfer 823,VDC50,±10%,X7R,0603 ESD interference 60190108 0603ESDA-TR1 suppressor IPA75 AB1511 CR011292 BLUETOOTH SMT IPA75,AIROHA bt name: party Rocker Plus ASSY 11171008 chip resistor 1/16W,0Ω,±1%,0402 11171018 chip resistor 1/16W,300Ω,±1%,0402 11171116 chip resistor 1/16W,4.7KΩ,±1%,0402 11171289 chip resistor 1/16W,10Ω,±1%,0402 14041033 IC...
- Page 9 20660041 layer DN-PC6039,ABS,80%,UL94V-2, ROHS,V1.0 21010535 cabinet DN-X10227,MDF,T=6mm, CARB,V1.0 22011043 english manual IPA75, english manual, V1.0 22011120 safety manual ION, safety manual, 7-51-1340-B 22050006 drying agent 50g, DMT,SGS 23010534 packing bag 600*600*0.06mm, V1.1 23010562 packing bag PE,120*280*0.06mm, V1.0 23010563 packing bag PE,160*260*0.025mm, V1.0...
- Page 10 90060158 compliance label IPA75, 82*50mm,V1.1 90080001 destination label GA0/GA1/GA2 90220431 special label 40.5*6.5mm, V1.0 90250046 CARB label ION,78*23mm, V1.1 90270014 date label ION, 13*6mm, V1.2 90270019 date label 45*10mm, V1.1 IPA75 lens silkscreen DR001987 DN-PL1111,PC, V1.0 ASSY 20110142 lens DN-PL1111, V1.0...
