Coleman Weather Master Setup Instructions

Before you begin
•ꢀ Readꢀallꢀinstructionsꢀbeforeꢀsetꢀup.
•ꢀ Setꢀupꢀtentꢀpriorꢀtoꢀfirstꢀcampingꢀtripꢀ
to become familiar with the setup and
disassembly procedures.
•ꢀ Selectꢀaꢀlevelꢀsiteꢀclearꢀofꢀrocks,ꢀbranches,ꢀ
and other hard or sharp objects, to install
your tent.
WARNING: Keep clear of overhead
power lines.
•ꢀ Doꢀnotꢀsetꢀupꢀyourꢀtentꢀunderꢀtreesꢀbecauseꢀ
of potential lightning strikes or falling tree
limbs in inclement weather.
•ꢀ NOTICE: Secure product with all ground
stakes, guylines and rainfly attachments for
optimalꢀperformanceꢀandꢀtoꢀpreventꢀpropertyꢀ
damage or personal injury.
•ꢀ Forꢀbestꢀresultsꢀinꢀwindyꢀconditions,ꢀpositionꢀ
narrow end of tent into the wind.
•ꢀ Two people recommended for setup.
Self Rolling Spring for Auto Roll
Length (mm) &
360 Red
Color Marking
Replacement #
5010000624
Fiberglass Pole Repair Kit Size Guide
Diameter 6.0 mm
Pole Repair Kit
5010000544
Pole List
A
. Center Roof Pole ... x 2
B
. Center Leg Pole .... x 4
C
. Side Roof Pole ....... x 2
D
. Side Leg Pole ........ x 4
E
. Short Door Pole....... x 1
F
. Long Door Pole ....... x 1
G
. Awning Pole .......... x 2

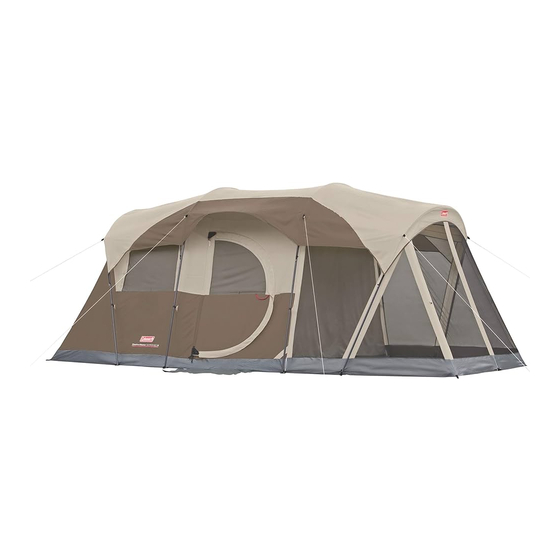

Front view of complete tent
How to Store
TENT SETUP INSTRUCTIONS
(The product may look different from yours. It is for illustration purposes only.)
Things You Should
Know
•ꢀ Condensation is normal and IS NOT
LEAKAGE.ꢀItꢀcanꢀbeꢀminimizedꢀbyꢀprovidingꢀ
goodꢀventilation.
•ꢀ Tree limbs, tree sap, bird droppings, or
moisture steadily dripping off tree limbs
can cause damage to the tent fabric and its
coating.
•ꢀ Do not store tents without drying it off
thoroughly and brushing off caked dirt.
•ꢀ Store in a cool, dry place.
•ꢀ Stakesꢀshouldꢀbeꢀremovedꢀbyꢀpullingꢀonꢀtheꢀ
stake itself. NEVER PULL ON THE TENT TO
REMOVE STAKES AS THIS COULD RESULT IN
PROPERTY DAMAGE OR PERSONAL INJURY.
•ꢀ Prolonged exposure to the sun can seriously
damage material and/or cause it to become
discolored.
460 Blue 550 Yellow
5010000625 5010000626
6.3 mm 6.9/7.0 mm
5010000543 5010000542
G
Clean and dry
1
Tent - Weather Master
Window Option
TM
610 Green 640 Black
5010000627 5010003717
Note: To get the repair kit number, you can compare the end of the pole
with the circles on below table, or measure diameter of the pole end.
7.9 mm 8.5 mm
5010000569 5010000541
C
B
D
Tent without rainfly
Rear view of complete tent
Fold and roll
2
WARNING: KEEP ALL FLAME
ANꢀ HEAT SOꢁRCES AWAY
FROM THIS TENT FABRIC.
This tent meets the flammability
requirements of CPAI-84. The fabric
may burn if left in continuous contact
with any flame source. The application
of any foreign substance to the tent
fabric may render the flame-resistant
propertiesꢀineffective.
