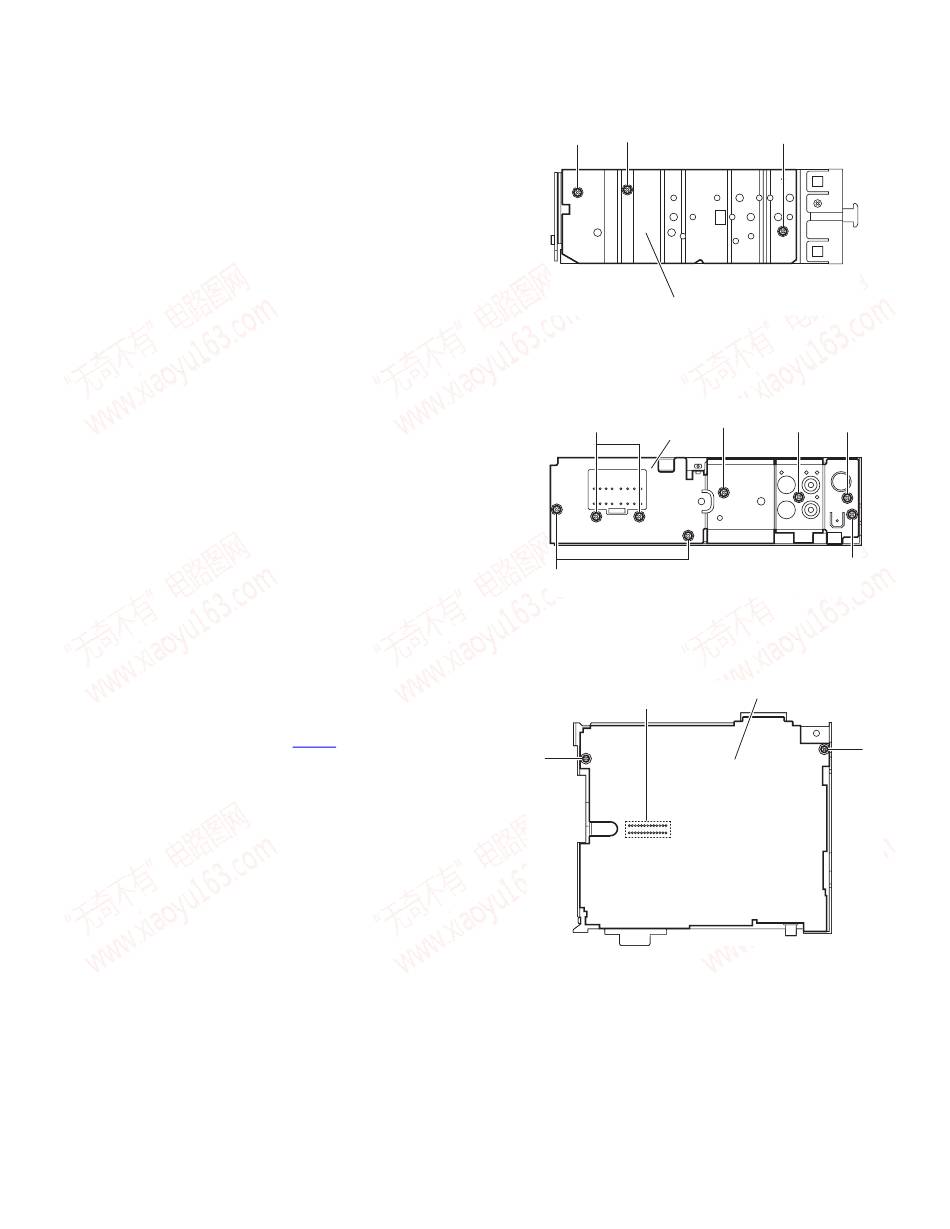

3.1.4 Removing the side panel
(See Fig.4)
• Prior to performing the following procedure, remove the front
panel assembly as required.
(1) Remove the screw B and two screws C attaching the side
panel on the left side of the main body, and remove the side
panel.
3.1.5 Removing the rear bracket
(See Fig.5)
• Prior to performing the following procedure, remove the bottom
cover.
(1) Remove the three screws D, three screws E and two
screws F attaching the rear bracket on the back side of the
main body.
(2) Remove the rear bracket.
TE
L 13942296513
3.1.6 Removing the main board
(See Fig.6)
• Prior to performing the following procedure, remove the front
panel assembly, front chassis assembly, side panel, bottom
cover and rear bracket.
(1) Remove the two screws G attaching the main board.
(2) Disconnect the connector
board.
www
.
http://www.xiaoyu163.com
CN501
and remove the main
x
ao
u163
y
i
http://www.xiaoyu163.com
2 9
8
B
C
E
D
Q Q
3
6 7
1 3
1 5
CN501
G
co
.
9 4
2 8
C
Side panel
Fig.4
F
E
Rear bracket
0 5
8
2 9
9 4
2 8
Fig.5
Main board
Fig.6
