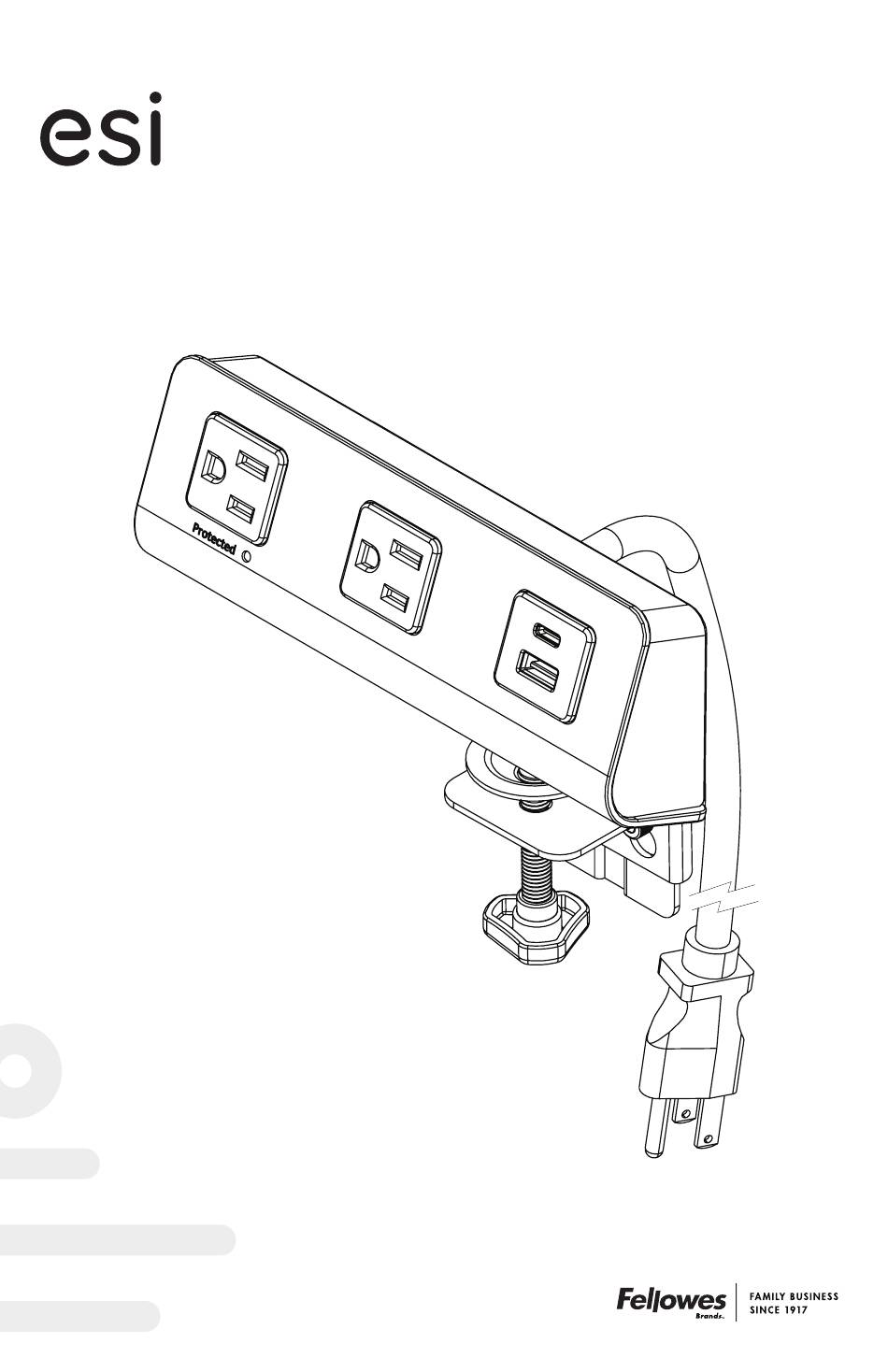

- Page 1 FlexCharge ™ Assembly instructions Personal desktop power Model # FCH4C-WHT Model # FCH4C-BLK...
-
Page 2: Safety Instructions/Warnings
FlexCharge4C Safety instructions/warnings Safety instructions/warnings Always read the safety instructions carefully. • Do not install near heat sources such as radiators, heat registers, stoves or other equipment (including amplifiers) that produce heat. • Unplug the unit during lightning storms or when unused for extended periods of time. -
Page 3: Parts And Tools
FlexCharge4C Parts and tools Parts provided power module (1) bracket/clamp assembly (1) USB-C charging por t M3x12 panhead protected screw (2) indicator light power outlets USB-A charging port M4x14 wood screw (4) M4 Allen key (1) Important : Hand-tighten screws only. Additional tools required •... - Page 4 FlexCharge4C Edge mount Edge mount With edge mounts, the product is clamped to the edge of the worksurface. Step #1: if necessary, raise clamp on bottom bracket Skip this step if worksurface thickness is 0.9" or more. • The clamp is attached to the lower two holes on bottom bracket. If worksurface thickness is less than 0.9", clamp attachment must be moved to the upper two holes.
- Page 5 FlexCharge4C Edge mount Step #3: clamp FlexCharge4C assembly to worksurface • Position the assembly in the desired location and clamp it securely to the worksurface by tightening the triangle knob. • Plug the power cord into an AC outlet. worksurface triangle knob You are now ready to use the two AC power outlets, one USB-A, and one USB-C charging ports on the FlexCharge4C.
- Page 6 FlexCharge4C Grommet mount Grommet mount The grommet mount method is similar to the edge mount method, except here the assembly is clamped to the edge of a grommet hole rather than the edge of the worksurface. Minimum diameter of the grommet hole is 2.3". Step #1: remove clamp from bottom bracket •...
- Page 7 FlexCharge4C Grommet mount Step #3: attach bracket assembly to power module • Route the power cord through the opening in the top bracket. power module • Attach the top bracket to the rear of the power module using the two M3x12 panhead screws. Hand-tighten securely.
-
Page 8: Under-Desk Mount
FlexCharge4C Under-desk mount Under-desk mount With this method, the top bracket is turned upside-down so that it can be mounted to the underside of the worksurface with M4x14 wood screws. As with the other methods, the power module is mounted to the bracket using two M3x12 panhead screws. - Page 9 FlexCharge4C Under-desk mount Step #3: attach top bracket to underside of worksurface • Attach the bracket using the four M4x14 wood screws. Hand-tighten securely. M4x14 Step #4: attach power module to bracket • Route the power cord through the opening in the top bracket. •...
-
Page 10: Additional Features
FlexCharge4C Additional features Additional Features • FlexCharge4C offers built-in surge protection with an indicator light. The light displays when surge protection is active on your FlexCharge4C. — If the light is not illuminated, please contact Customer Service. • AC outlet orientation can be rotated to accommodate large plugs •... - Page 11 FlexCharge4C Page 11...
- Page 12 ESI’s option, of the product or any defective part. Costs (such as installation, labor fees or express shipping) incurred due to replacement of products are not covered under warranty. IN NO EVENT SHALL FELLOWES, ITS AFFILIATES, SUBSIDIARIES, RELATED ENTITIES OR THEIR RESPECTIVE OFFICERS, DIRECTORS, OR EMPLOYEES, BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, EXEMPLARY, OR SPECIAL DAMAGES.
