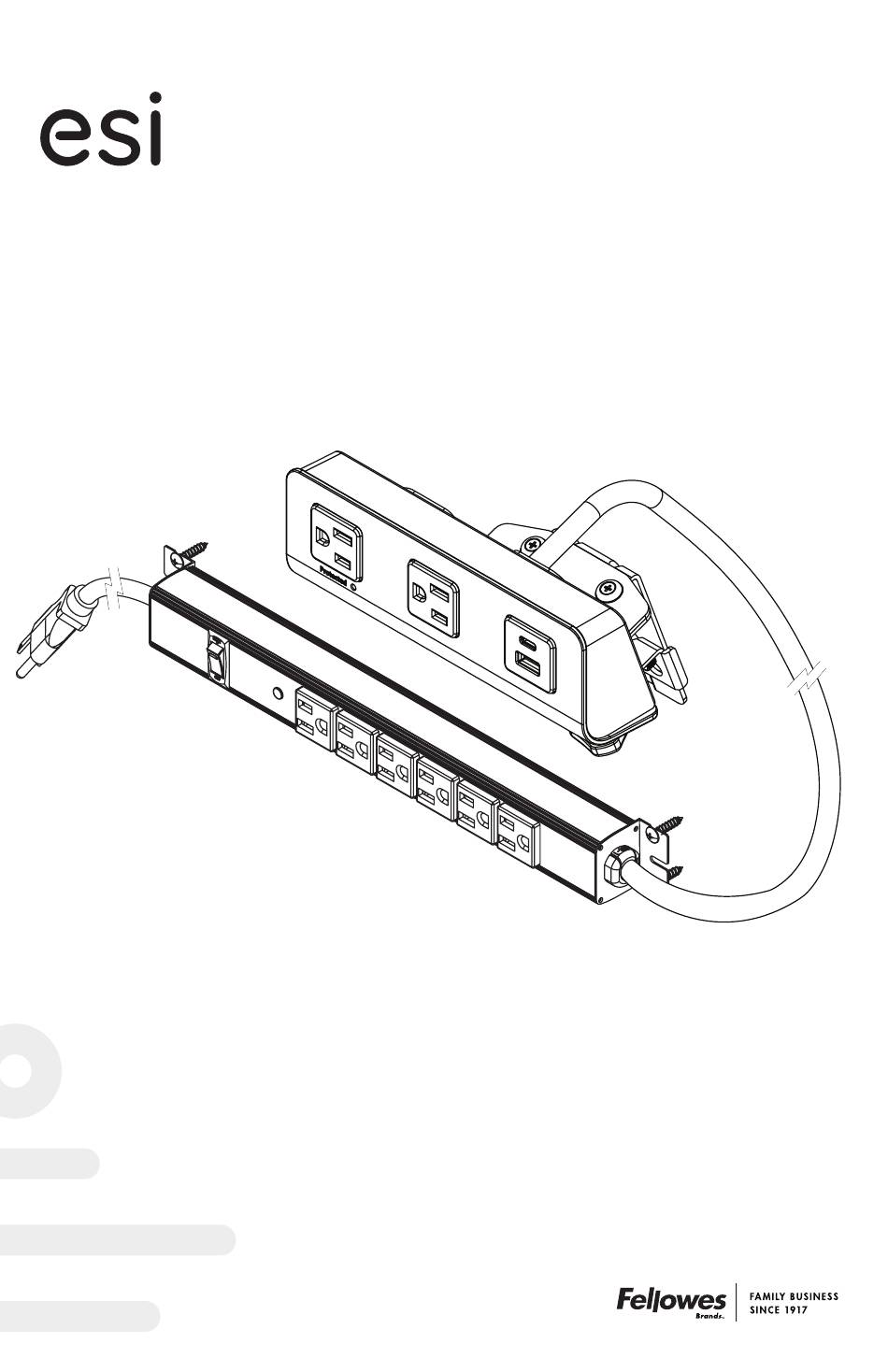

- Page 1 FlexCharge ™ Assembly instructions Personal desktop power Model # FCH4CX-WHT Model # FCH4CX-BLK...
-
Page 2: Safety Instructions/Warnings
FlexCharge4CX Safety instructions/warnings Safety instructions/warnings Always read the safety instructions carefully. • Do not install near heat sources such as radiators, heat registers, stoves or other equipment (including amplifiers) that produce heat. • Unplug the unit during lightning storms or when unused for extended periods of time. -
Page 3: Parts And Tools
FlexCharge4CX Parts and tools Parts provided power module (1) power strip with double sided tape (1) M4 Allen key (1) bracket/clamp assembly (1) M3x12 panhead M4x14 wood screws (2) screws (8) Additional tools required • Phillips screwdriver • Power drill with "... - Page 4 FlexCharge4CX Edge mount Edge Mount With edge mounts, the product is clamped to the edge of the worksurface. Step #1: if necessary, raise clamp on bottom bracket Skip this step if worksurface thickness is 0.9" or more. • The clamp is attached to the lower two holes on bottom bracket. If worksurface thickness is less than 0.9", clamp attachment must be moved to the upper two holes.
- Page 5 FlexCharge4CX Edge mount Step #3: clamp FlexCharge4CX unit to worksurface and mount power strip • Position the unit in the desired location and clamp it securely to the worksurface by tightening the triangle knob. • Mount the power strip underneath the worksurface in the desired location using the double-sided tape and four M4x14 wood screws.
- Page 6 FlexCharge4CX Grommet mount Step #1: remove clamp from bottom bracket • Unscrew the two M5x8 socket cap screws using the M4 Allen key. — Remove the clamp from the bottom bracket. bottom bracket clamp M5x8 socket cap screw Step #2: attach M5x8 screws to bottom bracket •...
- Page 7 FlexCharge4CX Grommet mount Step #4: clamp power module assembly to worksurface and mount power strip • Insert the bottom bracket through the grommet hole. • Attach the clamp to the bottom bracket. — Fit the keyhole openings in the clamp over the M5x8 screw heads. Tighten the screws securely over the narrow portion of the keyholes using the M4 Allen key.
-
Page 8: Under-Desk Mount
FlexCharge4CX Under-desk mount Under-desk mount With this method, the top bracket is turned upside-down so that it can be mounted to the underside of the worksurface with M4x14 wood screws. As with the other methods, the power module is mounted to the bracket using two M3x12 panhead screws. - Page 9 FlexCharge4CX Under-desk mount Step #3: attach top bracket to underside of worksurface • Attach the bracket using the four M4x14 wood screws. Hand-tighten securely. M4x14 Step #4: attach power module to bracket • Route the power cord through the opening in the top bracket. •...
-
Page 10: Additional Features
FlexCharge4CX Additional features Additional features • FlexCharge4CX offers built-in surge protection with an indicator light. The light displays when surge protection is active on your FlexCharge4CX. — If the light is not illuminated, please contact ESI Customer Service Department. • AC outlet orientation accommodate large plugs •... - Page 12 ESI’s option, of the product or any defective part. Costs (such as installation, labor fees or express shipping) incurred due to replacement of products are not covered under warranty. IN NO EVENT SHALL FELLOWES, ITS AFFILIATES, SUBSIDIARIES, RELATED ENTITIES OR THEIR RESPECTIVE OFFICERS, DIRECTORS, OR EMPLOYEES, BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, EXEMPLARY, OR SPECIAL DAMAGES.
