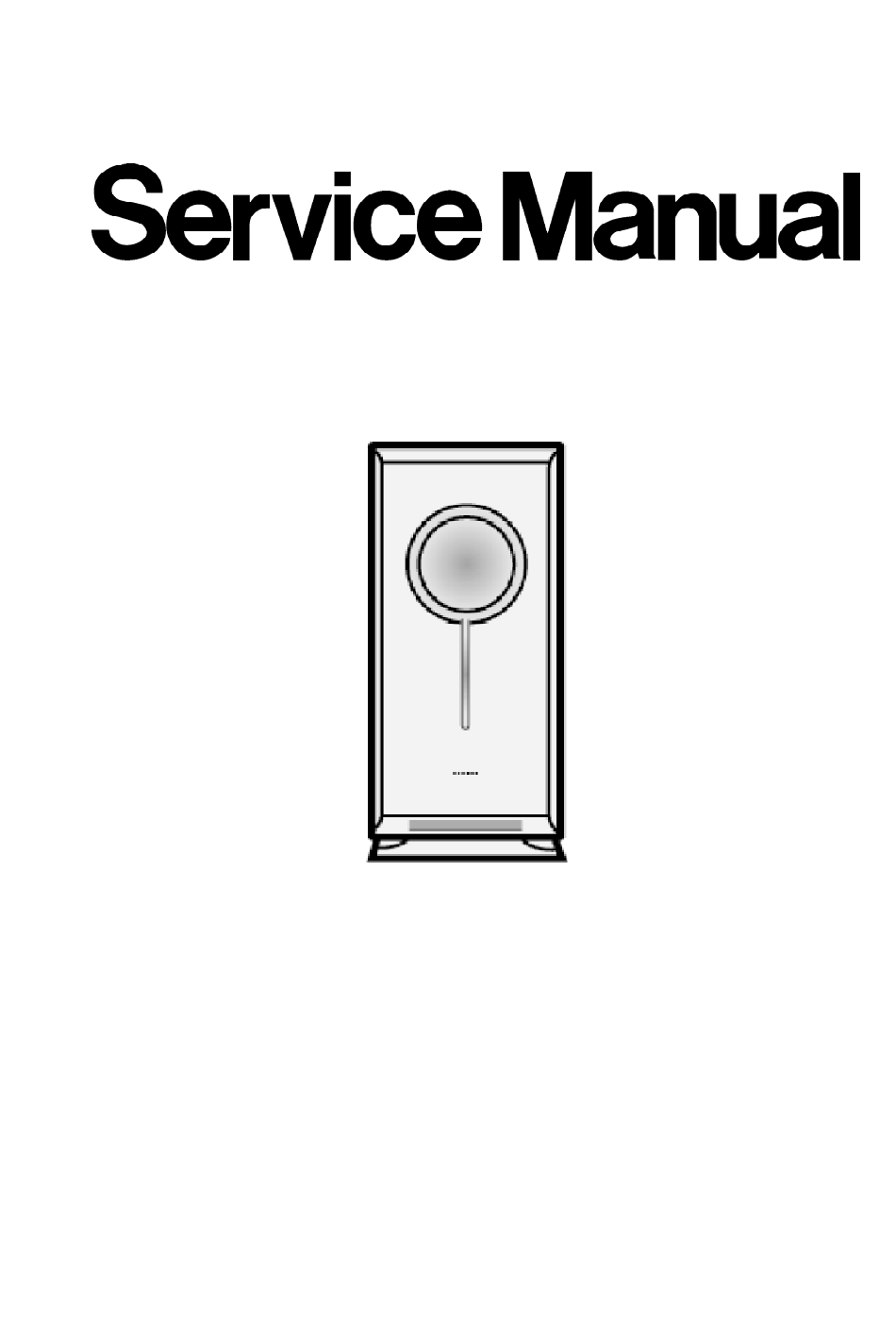

- Page 1 ORDER NO. MD0402047C2 Active Subwoofer System SB-WA05E / SB-WA05EB Colour (S)...Silver Type SPECIFICATIONS Specification...
- Page 2 System : SC-HT05EB1 Satellite speakers: SB-HT05P Active Subwoofer: SB-WA05EB SB-HT05P-S consists of : SB-PF725P-S x 2, SB-FS725P-S x 2 and SB-PC725P-S x 1 2004 Panasonic AVC Networks Singapore Pte. Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.
-
Page 3: Safety Precautions
1. Safety Precautions 1.1. GENERAL GUIDELINES 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed. -
Page 4: Handling The Lead-Free Solder
1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check. 2. Connect a 1.5k , 10 watts resistor, in parallel with a 0.15 capacitors, between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1. -
Page 5: Protection Circuitry
DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices. After repairs are completed, restore power gradually using a variac, to avoid overcurrent. Current consumption at AC 230V, 50Hz in NO SIGNAL mode should be ~1000 mA. 4. -
Page 6: Disassembly Procedure
Notes : - To prevent damage to circuitry, never short-circuit positive (+) and negative (-) speaker wires. - Be sure to connect only positive (red) wires to positive (+) terminals and negative (black) wires to negative (-) terminals. 6. Disassembly Procedure “ATTENTION SERVICER”... - Page 7 - Disassembly of the Speaker Unit - Main Component Replacement Procedures 6.1. Disassembly flow chart The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the servicing. To assemble the unit, reverse the steps shown in the chart below. 6.2.
- Page 8 Step 1: Remove all the screws. Step 2: Remove the stand base. Step 3: Remove all the screws from the bottom of the speaker unit. Step 4: Remove the screws from the rear panel’s speaker unit guide.
- Page 9 Step 5: Remove the screws from the subwoofer. - Disassembly of Power Amp unit. Step 6: Remove 2 screws from the Power Amp unit. Step 7: Pull out the Power Amp unit slightly as shown. (Note: Be careful of attach wire at CN506).
- Page 10 Step 8: Release the connector CN506 then pull out the entire Power Amp unit. Steps 9 & 10: Remove all the screws. Step 11: Release the connector CN507 to remove the rear panel. - Checking for the Power and AC Inlet P.C.B.
- Page 11 Step 12: Remove the screws from the AC Inlet P.C.B. Steps 13 & 14: Remove the screws. Step 15: Place the Power P.C.B. and the AC Inlet P.C.B. as shown for checking. - Checking for the Transformer P.C.B.
- Page 12 Step 16: Remove the screws. Step 17: Place the P.C.B. as shown for checking. - Replacement of the Power IC and Transistor Step 1: Desolder the Power IC and Transistor terminals.
-
Page 13: Connection Of The Speaker Wiring
Step 2: Remove the screws from the IC501. Step 3: Remove the screw. Step 4: Replacement of the Power IC and Transistor. 7. Connection of the Speaker Wiring... - Page 14 8. Block Diagram 9. Schematic Diagram (All schematic diagrams may be modified at any time with the development of the new technology) Note: - The voltage value and waveforms are the reference voltage of this unit measured by DC electronic voltmeter (high impedance) and oscilloscope on the basis of chassis.
- Page 15 etc are used. When replacing any of these components, be sure to use only manufacturer’s specified parts shown in the parts list. - The parenthesized indications in the Remarks columns specify the areas or colour. (Refer to the cover page for area or colour) Parts without these indications can be used for all areas.
- Page 16 13.1.2. Cabinet Parts List...
-
Page 17: Electrical Parts List
Ref. No. Part No. Part Name & Description Remarks CABINET AND CHASSIS RFKHBWA05PPS ACT. SUBWOOFER ASS’Y RMVX0077-H SPEAKER UNIT GUIDE RMQ0783 EVA PACKING RGKX0255-S STAND ORNAMENT RGRX0033C-F1 REAR PANEL [M]E RGRX0033C-H1 REAR PANEL [M]EB REM0072-3 RKQ0089A PCB SUPPORT RMN0203 PCB SUPPORT RMRX0047-W LED HOLDER RKA0147-K... - Page 18 Ref. No. Part No. Part Name & Description Remarks Q520 KRA102MTA TRANSISTOR Q552 KTA1267GRTA TRANSISTOR Q553 2SD0592ARA TRANSISTOR Q554 KTA1267GRTA TRANSISTOR Q555 2SD0592ARA TRANSISTOR Q556 KTA1267GRTA TRANSISTOR Q557 2SD0592ARA TRANSISTOR DIODES D500 B0AACK000004 DIODE D501 B0JAPG000019 DIODE D502 B0JAPG000019 DIODE D503 MA2C700A0F DIODE...
- Page 19 Ref. No. Part No. Part Name & Description Remarks CP502 K1KA07A00123 CONNECTOR COILS & TRANSFORMERS L500 RLQZ371 CHOKE COIL L501 G0AR76Y00001 COIL L502 G0AR76Y00001 COIL L503 G0AR76Y00001 COIL L504 G0AR76Y00001 COIL L505 G0AR76Y00001 COIL T501 G4C7AGH00003 POWER TRANSFORMER T502 G4C2AAJ00005 BACK UP TRANSFORMER COMPONENT COMBINATION Z501...
- Page 20 Ref. No. Part No. Part Name & Description Remarks E500 K4CZ01000027 EARTH LUG E501 K4CZ01000027 EARTH LUG WIRES REE1205 WIRE UNIT REE1204 WIRE UNIT W500 REXX0361 WIRE UNIT W505 RWJ1103320XX WIRE UNIT RESISTORS R401 ERDS2TJ224T 220K 1/4W R402 ERDS2TJ102T 1K 1/4W R403 ERDS2TJ104T 100K 1/4W...
- Page 21 Ref. No. Part No. Part Name & Description Remarks R540 ERDS2TJ101T 100 1/4W R541 ERDS2TJ101T 100 1/4W R542 ERDS2TJ101T 100 1/4W R543 ERDS2TJ101T 100 1/4W R544 ERDS2TJ101T 100 1/4W R545 ERDS2TJ224T 220K 1/4W R546 ERDS2TJ102T 1K 1/4W R547 ERDS2TJ394T 390K 1/4W R548 ERDS2TJ334T 330K 1/4W...
- Page 22 Ref. No. Part No. Part Name & Description Remarks R606 ERDS2TJ100T 10 1/4W R607 ERDS2TJ100T 10 1/4W R608 ERDS2TJ100T 10 1/4W R609 ERDS2TJ100T 10 1/4W CAPACITORS C500 ECKWRS102MBC 1000P 400V C501 F1D1H102A012 1000P 50V C502 F1D1H102A012 1000P 50V C503 F1D1H102A012 1000P 50V C504 F1D1H102A012...
-
Page 23: Packing Materials & Accessories Parts List
Ref. No. Part No. Part Name & Description Remarks C555 ECEA1VKA4R7B 4.7 35V C556 F1E1H1030001 0.01 50V C557 ECEA1AKA470B 47 10V C558 F2A1C1020029 1000P 16V C559 F1E1H1030001 0.01 50V C560 ECA1HM100B 10 50V C561 ECEA1HKA2R2B 2.2 50V C562 ECQB1H562JF3 5600P 50V C563 ECQV1H823JZ3 0.082 50V... - Page 24 FLE0402/P/A/S/E/N...
- Page 25 AC INLET P.C.B (REPV0025C...E) (REPV0025A...EB) (BLU) (BRW) FC501 FC502 F1 125V 2A T502(SUB TRANSFORMER) C500 JK500 RLY501 L500 Q516 AC IN J500 230V C555 J501 R589 50HZ...E Q519 R578 230V-240V C557 50HZ...EB C558 J502 J503 Q517 J527 J526 R580 J540 J522 C556 CN502...
- Page 26 SCHEMATIC DIAGRAM-1 : MAIN SIGNAL LINE : -B SIGNAL LINE POWER CIRCUIT : +B SIGNAL LINE IC501 C551 IC501 0.01 E501 RSN311W64B-P K4CZ01000027 POWER HIC R501 R513 4.7K R502 C507 18P 4.7K R514 C508 18P R524 120K D501-D502 R506 B0JAPG000019 R516 R526 C510 22P...
- Page 27 SCHEMATIC DIAGRAM-2 : MAIN SIGNAL LINE : -B SIGNAL LINE POWER CIRCUIT : +B SIGNAL LINE R597 C564 R594 1200P Q513,Q514 R592 R403 KTC3199GRTA 100K C565 DC DETECT SWITCH Q514 R593 R599 R591 Q513 6.8K 470K R571 C568 R572 C562 0.01 IC502 3.3K...
-
Page 28: Schematic Diagram
SCHEMATIC DIAGRAM-3 : -B SIGNAL LINE : +B SIGNAL LINE C555 R589 35V4.7 Q516 R578 KRC102MTA SYNC SWITCH CN502 D527~D530 R580 B0EAKM000122 PCONT Q517 C570 D530 D528 POWER CIRCUIT R587 2.7K KTC2026 (CP502) ON SYNC VOLTAGE REGULATOR SCHEMATIC SYS6V DIAGRAM-2 C559 HELP 0.01... - Page 29 CN501 TO MAIN UNIT CN503 7..1 CP502 CENTER SPEAKER JK502 SURROUND RIGHT SPEAKER LED P.C.B. SURROUND CN507 LEFT SPEAKER FRONT RIGHT SPEAKER SPEAKER FRONT LEFT JK501 WOOFER SPEAKER H505A/W505 SOLDER SIDE SOLDER SIDE POWER P.C.B. SOLDER SIDE T501(POWER TRANSFORMER) TRANSFORMER P.C.B.
- Page 30 C0AABB000055 KRA102MTA RSN311W64B-P KTA1267GRTA KTC3199GRTA 2SD0592ARA KRC102MTA KTC2026 MA2C700A0F B0HARM000017 B0BA9R600002 B0AACK000004 B0BA01900005 KTA1046 Cathode Cathode Anode Anode B0JAPG000019 B0BA6R600008 SLI325URCT31 B0EAKM000122 B0EAKM000117 B0BA5R100013 B0BA8R700009 Cathode Cathode Anode Cathode Cathode Anode Anode Anode...
- Page 31 IC501 RSN311W64B-P POWER HIC POWER CONTROL CIRCUIT POWER CONTROL/PROTECTION CIRCUIT 11(12) (25) (19) D501 D502 Q506 INTERFACE SWITCH TO MAIN BLOCK (JK406) OF Q505 SA-HT05EB/EG/EP-S SWITCHING SL(R)/SURRL(R) FILTER JK502(JK501) SURROUND SPEAKER CCH/CENTRE FILTER JK502 CENTRE SPEAKER FILTER SUBWOOFER FL(R)/FRONTL(R) FILTER JK501 FRONT SPEAKER...
- Page 32 POWER P.C.B (REPV0025C...E) (REPV0025A...EB) J570 CN501 J581 J528 CP502 R543 E500 R544 R540 TO MAIN UNIT D508 Q513 Q557 R539 Q556 C577 R572 R542 J504 R541 J533 R566 Q514 R582 R522 C532 D559 D558 R521 D557 R537 R581 R609 R545 Q555 JK502 C522...
- Page 33 D562 Q557 Q556 Q552 C577 CN503 C570 J505 C580 R566 J586 J513 R550 Q501 R582 R558 Q502 D555 D559 D557 Q520 R564 R581 R402 J587 Q555 Q554 J544 J588 J543 J568 J553 J567 J554 D512 D511 D514 J566 D513 J555 J552 D517 D515 D518...
