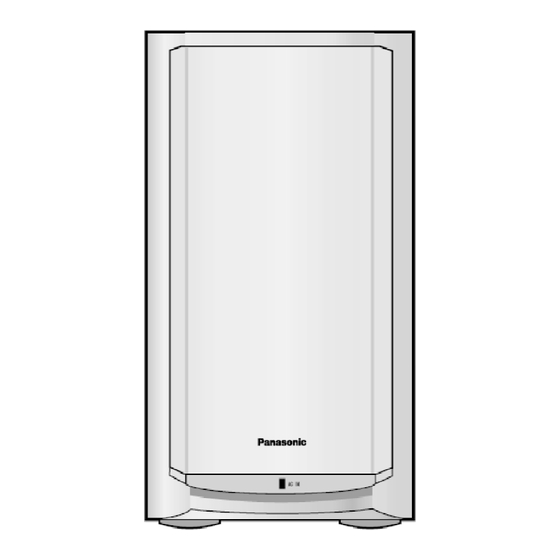

- Page 1 ORDER NO. MD0502023C1 Active Subwoofer System SB-WA733P Colour (S)...Silver Type PDF created with pdfFactory Pro trial version www.pdffactory.com...
-
Page 2: Specifications
SPECIFICATIONS Specification PDF created with pdfFactory Pro trial version www.pdffactory.com... - Page 3 Active subwoofer Type 1 way, 2 speaker system, Bass reflex Speaker unit(s) 1. Woofer 13 cm (5 1/ 8”) Cone type, 4 2. Woofer 13 cm (5 1/ 8”) Cone type, 4 Output sound pressure level 80 dB/W (1.0 m) Frequency range 40 Hz-220 Hz (-16 dB) 45 Hz-180 Hz (-10 dB)
-
Page 4: Safety Precautions
1. Safety Precautions 1.1. GENERAL GUIDELINES 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, ensure that all the protective devices such as insulation barriers, insulation papers shields are properly installed. -
Page 5: Leakage Current Cold Check
5. Before returning the serviced equipment to the customer, be sure to make the following insulation resistance test to prevent the customer from being exposed to a shock hazard. 1.1.1. LEAKAGE CURRENT COLD CHECK 1. Unplug the AC cord and connect a jumper between the two prongs on the plug. -
Page 6: Handling The Lead-Free Solder
leakage current tester (Simpson Model 229 or equivalent) may be used to make the hot checks, leakage current must not exceed 1/2 milliamp. Should the measurement is outside of the limits specified, there is a possibility of a shock hazard, and the equipment should be examine and rechecked before it is returned to the customer. -
Page 7: Protection Circuitry
After repairs are completed, restore power gradually using a variac, to avoid overcurrent. Current consumption at AC 120V, 60Hz in NO SIGNAL mode (volume at min) should be ~750 mA 4. Protection Circuitry The protection circuitry may have operated if either of the following conditions are noticed: - No sound is heard when the power is turned on. -
Page 8: Disassembly Procedure
6. Disassembly Procedure “ATTENTION SERVICER” Some chassis components may have sharp edges. Be careful when disassembling and servicing. 1. This section describes procedures for checking the operation of the major printed circuit boards and replacing the main components. 2. For reassembly after operation checks or replacement, reverse the respective procedures. -
Page 9: Disassembly Flow Chart
6.1. Disassembly flow chart The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the servicing. To assemble the unit, reverse the steps shown in the chart below. 6.1.1. Disassembly of Front Panel Assembly 6.1.2. - Page 10 Cabinet Assembly as arrow shown. Steps 2: Slot a piece of wood chip in between the Front Panel Unit and the steel ruler as arrow shown. Step 3: Use the screwdriver to slightly lift up the Front Panel Unit as arrow shown. Note: Be careful with the bosses which are glued to the Subwoofer Cabinet Assembly.
- Page 11 Step 4: Remove the Front Panel Unit from the Subwoofer Cabinet Assembly. - Assembly of the Front Panel Unit. Step 1: Clean up all the glue at the 6 Boss points and replace with the normal glue. Step 2: Replace the Front Panel Unit firmly back to the cabinet. PDF created with pdfFactory Pro trial version www.pdffactory.com...
- Page 12 6.2.2. Disassembly of the Woofer 1 Follow Step (1) to Step (4) described in section 6.2.1. Step 1: Remove 4 screws from the Woofer 1. Step 2: Remove the Woofer 1 by detaching the (+) and (-) wires. 6.2.3. Disassembly of the Woofer 2 PDF created with pdfFactory Pro trial version www.pdffactory.com...
- Page 13 Step 1: Remove 4 screws from the Woofer 2. Step 4: Remove the Woofer 2 by detaching the (+) and (-) wires. 6.2.4. Disassembly of the Power Amp Unit Step 1: Lay the speaker unit as shown. Remove 6 screws from the bottom of the woofer unit. PDF created with pdfFactory Pro trial version www.pdffactory.com...
- Page 14 Step 2: Remove 3 screws from the rear panel. Step 3: Pull out the Power Amp Unit slightly as shown. Step 4: Disconnect connector CN506. PDF created with pdfFactory Pro trial version www.pdffactory.com...
- Page 15 Step 5: Pull out the entire Power Amp Unit. 6.2.5. Disassembly of the Rear Panel and Fan Unit Follow Step (1) to Step (5) described in section 6.2.4. Step 1 & 2: Remove 7 screws from the rear panel. Step 3: Disconnect the connector (CN507) to detach the rear panel. PDF created with pdfFactory Pro trial version www.pdffactory.com...
- Page 16 Step 4: Remove 4 screws from the rear panel. Step 5: Lay the rear panel and remove the Fan Unit as arrow shown. 6.2.6. Disassembly and checking of the AC Inlet P.C.B., Power P.C.B. and Transformer P.C.B. Follow Step (1) to Step (5) described in section 6.2.4. Follow Step (1) to Step (3) described in section 6.2.5.
- Page 17 Step 4 & 5: Remove 8 screws. Step 6: Remove 4 screws. Step 7: Connect back the connector CP502 between Power and AC Inlet P.C.B. for checking. 6.2.7. Replacement of Power IC and Transistor PDF created with pdfFactory Pro trial version www.pdffactory.com...
- Page 18 Follow Step (1) to Step (5) described in section 6.2.4. Follow Step (1) to Step (3) described in section 6.2.5. Step 1: Desolder the Power IC and Transistor terminal. Step 2: Remove 2 screws. and Power IC501. Step 3: Remove the screw and Transistor holder. Step 4: Detach the Power IC and Transistor from Heat sink.
-
Page 19: Voltage Measurement And Waveform Chart
7. Voltage Measurement and Waveform Chart Note: - Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance) with the chassis taken as standard. Therefore, there may exist some errors in the voltage values, depending on the internal impedance of the DC circuit tester. -
Page 20: Schematic Diagram
- Cover the parts boxes made of plastics with aluminium foil. - Put a conductive mat on the work table. - Ground the soldering iron. - Do not touch the pins of IC, LSI or VLSI with fingers directly. 10. Schematic Diagram 10.1. - Page 21 etc are used. When replacing any of these components, be sure to use only manufacturer’s specified parts shown in the parts list. - The parenthesized indications in the Remarks columns specify the areas or colour. (Refer to the cover page for area or colour) Parts without these indications can be used for all areas.
- Page 22 PDF created with pdfFactory Pro trial version www.pdffactory.com...
- Page 23 14.1.2. Cabinet Parts List PDF created with pdfFactory Pro trial version www.pdffactory.com...
-
Page 24: Electrical Parts List
Ref. No. Part No. Part Name & Description Remarks CABINET AND CHASSIS RFKHBWA730PP SUB WOOFER CAB. ASSY XTB4+12AFJ WOOD SCREW (TBZP) B3AAA0000583 LED (RED) RGKX0284-H XTB3+12GFJ SCREW RKAX0019-KJ LEG CUSHION RYQX0167-S FRONT PANEL UNIT RMQX0106 EVA PACKING (WOOFER) RGNX0273A-S SPEC LABEL XTS4+16JFJ SCREW (TBZP) REM0072-4... - Page 25 Ref. No. Part No. Part Name & Description Remarks PRINTED CIRCUIT BOARD REPX0470A POWER P.C.B./ AC INLET P.C.B./ TRANSFORMER P.C.B. [M] RTL INTEGRATED CIRCUITS IC501 RSN311W64D-P IC HIC (PBF) TRANSISTORS Q501 B1AACF000117 TRANSISTOR Q502 B1AACF000117 TRANSISTOR Q503 B1AACF000117 TRANSISTOR Q505 B1AACF000117 TRANSISTOR Q506...
- Page 26 Ref. No. Part No. Part Name & Description Remarks D597 B0FBAM000009 DIODE D598 B0FBAM000009 DIODE D599 B0FBAM000009 DIODE CONNECTORS CN501 K1FB125B0095 SYSTEM CONNECTOR CN502 K1KB07B00020 7P CONNECTOR CN503 K1KA15A00159 15P CONNECTOR CN506 K1KA04A00105 4P CONNECTOR CN507 K1KA02A00008 2P CONNECTOR CP502 K1KA07A00123 7P CONNECTOR TRANSFORMERS...
- Page 27 Ref. No. Part No. Part Name & Description Remarks JK501 K4BC06B00055 JK SPEAKER TERMINAL JK502 K4BC04B00107 JK SPEAKER EARTH TERMINALS E500 K4CZ01000027 TERMINAL E501 K4CZ01000027 TERMINAL WIRES REEX0459 PRIMARY WIRE (BROWN) REEX0458 PRIMARY WIRE (BLUE) W503 REXX0456 15P STRAND TYPE WIRE RESISTORS R401 ERDS2TJ224T...
- Page 28 Ref. No. Part No. Part Name & Description Remarks R536 ERDS1FVJ100T 10 1/2W R537 ERDS1FVJ100T 10 1/2W R538 ERDS1FVJ100T 10 1/2W R545 ERDS2TJ224T 220K 1/4W R546 ERDS2TJ102T 1K 1/4W R547 ERDS2TJ394T 390K 1/4W R548 ERDS2TJ334T 330K 1/4W R549 ERDS2TJ392T 3.9K 1/4W R558 ERDS2TJ104T 100K 1/4W...
-
Page 29: Packing Materials & Accessories Parts List
Ref. No. Part No. Part Name & Description Remarks C511 ECBT1H220JC5 22P 50V C512 ECBT1H220JC5 22P 50V C513 F1D1H473A012 0.047 50V C514 ECEA0JKA101B 100 6.3V C515 F1B2H103A060 0.01 500V C516 F1B2H103A060 0.01 500V C517 ECBT1C103NS5 0.01 16V C518 F1D1H473A012 0.047 50V C519 F1D1H473A012 0.047 50V... -
Page 30: Packing Materials
Ref. No. Part No. Part Name & Description Remarks PACKING MATERIALS RPNX0295 POLYFOAM RPFX0071 MIRAMAT BAG 14.4. Packaging FLE0502/P/A/S/E/N/J PDF created with pdfFactory Pro trial version www.pdffactory.com... - Page 31 AC INLET P.C.B (REPX0470A) (BLU) (BRW) 125V 5A FC502 FC501 T502 (SUB-TRANSFORMER) Q517 Q516 J6001 J900 RLY501 C555 J6002 R589 R578 Q519 C557 AC IN C558 J6003 120V 60Hz J901 J6004 C571 Q515 R588 R500 C556 J6007 R580 J6005 J6008 CN502 7 6 5 4 3 2 1 CAUTION...
- Page 32 SCHEMATIC DIAGRAM-1 : MAIN SIGNAL LINE : -B SIGNAL LINE POWER CIRCUIT : +B SIGNAL LINE C551 IC501 0.01 IC501 RSN311W64D-P POWER HIC E501 K4CZ01000027 R501 R513 4.7K R502 C507 18P 4.7K R514 C508 18P R524 120K D501-D502 R506 B0JAPG000019 R516 R526 C510 22P...
- Page 33 SCHEMATIC DIAGRAM-2 : MAIN SIGNAL LINE : -B SIGNAL LINE POWER CIRCUIT : +B SIGNAL LINE JK501 SRLch FRch FLch C519 C518 0.047 0.047 R534 R533 JK502 SRRch CENTER C569 0.047 C520 C523 C521 C522 0.047 0.047 0.047 0.047 SUB WOOFFER R535 R536 R537...
-
Page 34: Transformer Circuit
SCHEMATIC DIAGRAM-3 : -B SIGNAL LINE : +B SIGNAL LINE C555 R589 35V4.7 Q516 R578 B1GACFJJ0018 SYNC SWITCH CN502 HELP R580 PCONT D.GND Q517 POWER CIRCUIT R587 D528 B1BACG000048 2.7K (CP502) ON SYNC B0EAKM000122 VOLTAGE REGULATOR SCHEMATIC SYS6V DIAGRAM-2 C559 SUB +B 0.01 C556... - Page 35 INLET P.C.B. Ref No. Q515 Q516 Q517 Q519 MODE CD PLAY -0.4 12.5 STANDBY -0.4 TRANSFORMER P.C.B. IC501 Ref No. MODE CD PLAY 63.2 -63.1 30.4 -30.4 -0.1 -0.2 30.7 -30.7 -10.5 63.3 STANDBY 16.3 -0.2 17.3 IC501 Ref No. MODE CD PLAY -63.2...
- Page 36 CP502 PIN 4 CP502 PIN 6 CN503 PIN 4 CN503 PIN 7 CD PLAY CD PLAY CD PLAY CD PLAY 5.32Vp-p (10msec.div) 1.18Vp-p (10msec.div) 63.6Vp-p (10msec.div) 63.6Vp-p (10msec.div) CN503 PIN 10 CN503 PIN 11 CN503 PIN 13 CN503 PIN 14 CD PLAY CD PLAY CD PLAY...
- Page 37 CN501 7..1 TO MAIN UNIT CN503 CP502 CENTER SPEAKER JK502 SURROUND RIGHT SPEAKER SURROUND LEFT SPEAKER FRONT RIGHT SPEAKER CN507 SPEAKER FRONT LEFT JK501 SPEAKER WOOFER CN506 SOLDER SIDE POWER P.C.B. SOLDER SIDE T501(POWER TRANSFORMER) TRANSFORMER P.C.B.
-
Page 38: Signal Lines
IC501 RSN311W64D-P POWER HIC POWER CONTROL CIRCUIT POWER CONTROL/PROTECTION CIRCUIT 12(11) (25) (19) D501 D502 Q506 INTERFACE SWITCH TO MAIN BLOCK Q505 (JK2000) OF SA-HT733P-S SWITCHING SL(R)/SURRL(R) FILTER JK501(JK502) SURROUND SPEAKER CCH/CENTRE FILTER JK502 CENTRE SPEAKER FILTER SUBWOOFER FL(R)/FRONTL(R) FILTER JK501 FRONT SPEAKER... - Page 39 B1GACFJJ0018 RSN311W64D-P B1AACF000117 B1BACG000048 2SD0592ARA B1BCCG000023 B0FBAM000009 B0BA5R600016 B0AACK000004 B1GCCFJJ0016 B1ACCF000094 B0BA01900005 B0BA01100004 MA2C700A0F B0JAPG000019 B0EAKM000122 B0BA5R100013 B0EAKM000117 B0BA6R600008 Cathode Cathode Cathode Cathode Anode Anode Anode Anode...
- Page 40 POWER P.C.B (REPX0470A) CN501 J539 J570 J528 CP502 C550 E500 TO MAIN UNIT D508 J567 R583 J504 J533 C576 D504 C577 R606 Q506 Q505 J512 D558 R521 R522 R581 J521 JK502 C532 CENTRE SPEAKER R537 SURROUND RIGHT 1-SR SPEAKER J538 J622 J593 SURROUND LEFT...
- Page 41 D562 Q557 Q556 Q552 D508 J567 R583 C570 C580 J504 CN503 J533 C576 J586 R606 R582 Q505 Q506 Q501 D560 R558 Q502 D555 D558 Q553 D557 J587 Q520 R564 R402 R581 J544 J588 D599 J543 J578 J553 J630 J554 D598 J555 J569 J556...
