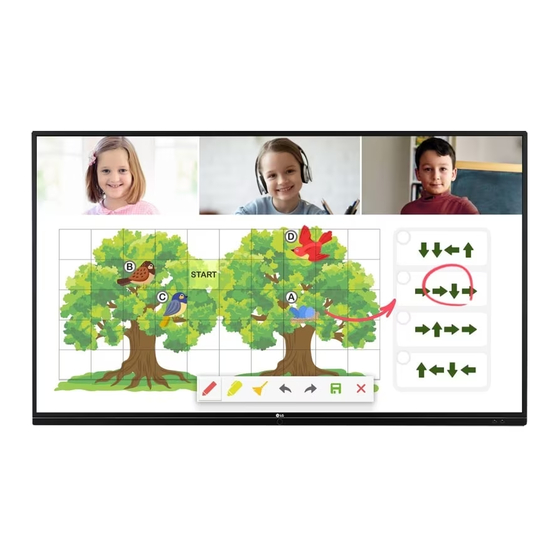

- Page 1 OWNER’S MANUAL LG Digital Signage (MONITOR SIGNAGE) Please read this manual carefully before operating your set and retain it for future reference. 65TR3PJ-B 65TR3PJ-I 75TR3PJ-B 75TR3PJ-I 86TR3PJ-B 86TR3PJ-I www.lg.com Copyright © 2021 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
TABLE OF CONTENTS BASIC ..........3 - Checking the Accessories ..........3 - Learning the Buttons ............4 GETTING READY ......5 - Precaution When Using the Touch Pen ....5 CHECKING BEFORE INSTALLATION ......6 - Installation Orientation ..........6 - Installation Location ............7 - Wall Mount Holder ............8 PRECAUTIONS FOR USE ....9 - Dust ..................9 - Afterimage ................9... -
Page 3: Basic
Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. BASIC NOTE • The accessories provided with your product may vary depending on the model or region. • Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions. -
Page 4: Learning The Buttons
Learning the Buttons The image may be different according to the model. Power Turns the power on or off. -
Page 5: Getting Ready
GETTING READY CAUTION • Always use genuine components to ensure safety and product performance. • The product warranty will not cover damage or injury caused by the use of counterfeit components. NOTE • The accessories provided with your product may vary depending on the model or region. •... -
Page 6: Checking Before Installation
CHECKING BEFORE INSTALLATION We are not responsible for product damage caused by failure to follow the guide. Installation Orientation Tilt Angle 15˚ 40 mm Ceiling, Floor Orientation... -
Page 7: Installation Location
Installation Location We are not responsible for product damage caused by failure to follow the guide. Indoor Installing on a Wall A: 100 mm or more • The warranty will not cover any damage caused by using the product in direct sunlight on the front panel. -
Page 8: Wall Mount Holder
Take caution, and ensure that the wall mount holder (optional) is securely fixed to the monitor and to the wall. The VESA dimensions of the wall mount by model are as follows. VESA Dimensions Standard Length (Maximum) Model Quantity (A x B) (mm) Dimensions (mm) 65TR3PJ-B 600 x 400 65TR3PJ-I 75TR3PJ-B 800 x 400 75TR3PJ-I 86TR3PJ-B 800 x 600 86TR3PJ-I CAUTION •... -
Page 9: Precautions For Use
PRECAUTIONS FOR USE Dust The warranty will not cover any damage caused by using the product in an excessively dusty environment. Afterimage • After-image appears when the product is turned off. - Pixels may be damaged rapidly if a still image is displayed on the screen for a long period of time. Use the screen- saver function. - Page 10 • Recommended Usage Condition Change the background color and text color at equal intervals. - Afterimages occur less when the colors to be changed are complementary to one another. ITO or MoTi Pixel Layer Switch the screen at equal time intervals. - Take caution, and ensure that text or images from before the screen change are not left in the same location after the screen change.
-
Page 11: Product Specifications
PRODUCT SPECIFICATIONS The product specifications below may be changed without prior notice due to upgrade of product functions. “ ” refers to alternating current (AC), and “ ” refers to direct current (DC). Input/ Output ports Embedded battery Applied VGA: 1920 x 1080 @ 60 Hz Recommended Resolution HDMI1/ HDMI2/ HDMI3: 3840 x 2160 @ 60 Hz Resolution... - Page 12 65TR3PJ-B 65TR3PJ-I Power Voltage 100-240 V~ 50/60 Hz 4.0 A Power On Mode: 400 W (Max) Power Consumption Standby Mode: ≤ 0.5 W Dimensions (Width x Height x Thickness)/ 1,488.4 mm x 896.7 mm x 86.3 mm/ 40.2 kg Weight...
- Page 13 VGA (PC) Support mode Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remark 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 60.004 1280 x 768 47.396 59.99 1280 x 960 1280 x 1024 63.981 60.002 1360 x 768 47.712 60.015...
- Page 14 USB Type-C Support Mode Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remark 640 x 480/60 Hz 37.927 59.94 800 x 600/60 Hz 37.879 60.317 1024 x 768/60 Hz 48.363 60.004 1280 x 768/60 Hz 47.396 59.995 1280 x 960/60 Hz 1280 x 1024/60 Hz 63.981 60.002...
- Page 15 HDMI/ OPS Support Mode Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remark 720(1440) x 480i/60 Hz 15.734 480p/59 Hz 31.469 59.94 480p/60 Hz 31.5 576i/50 Hz 15.625 576p/50 Hz 31.25 720p/60 Hz 1080i/60 Hz 33.75 1080i/59 Hz 33.716 59.94 1080i/50 Hz 28.125 1080p/60 Hz 67.5...
-
Page 16: Licenses
LICENSES Supported licenses may differ by model. For more information of the licenses, visit www.lg.com. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. - Page 17 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. Temporary noise is normal when powering ON or OFF MODEL this device. SERIAL NO.
