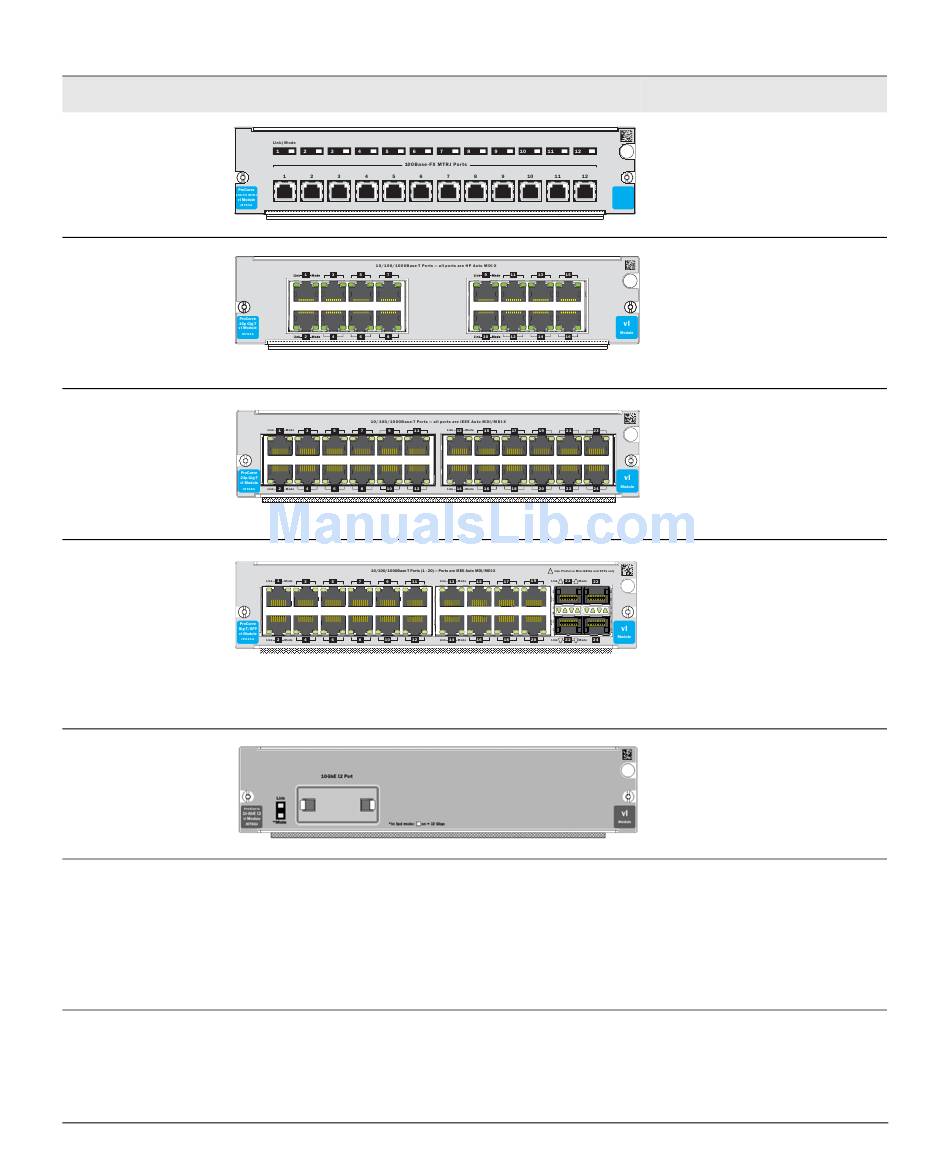

ProCurve Switch vl Modules
Descriptions
ProCurve Switch vl
12-Port 100-FX MTRJ
Module
(J8763A)
ProCurve Switch vl 16-
Port Gig-T Module
(J8764A)
ProCurve Switch vl
24-Port Gig-T Module
(J8768A)
ProCurve Switch vl 20-
Port Gig-T + 4-Port SFP
Module (J9033A)
See page 1 for
supported mini-GBICs
and this module also
supports the J9054B
ProCurve 100-FX SFP-
LC Transceiver.
ProCurve Switch vl
1-Port 10-GbE Module
(J8766A)
**Supported transceivers: The following ProCurve transceivers are supported by the J8766A vl Module (as of this
printing):
• ProCurve 10-GbE X2-SC SR Optic (J8436A)
• ProCurve 10-GbE X2-SC LR Optic (J8437A)
• ProCurve 10-GbE X2-SC ER Optic (J8438A)
• ProCurve 10-GbE X2 CX4 Xcvr (J8440B)
• ProCurve 10-GbE CX4 Optical Media Converter (J8439A)
2
Module
Contact your ProCurve authorized networking reseller or your ProCurve
representative for information on availability of other products. You can also
visit the ProCurve Web site at
12 100-FX ports with MT-RJ
connectors for 100 Mbps
networking over multimode
fiber-optic cable.
vl
Module
16 twisted-pair ports with RJ-45
connectors for 10/100/1000 Mbps
operation over Category 5 or better
100-ohm UTP or STP cable
(category 5e recommended for
Gigabit) -- all ports have the IEEE
802.3ab Auto MDI/MDI-X feature.
24 twisted-pair ports with RJ-45
connectors for 10/100/1000 Mbps
operation over Category 5 or better
100-ohm UTP or STP cable
(category 5e recommended for
Gigabit) -- all ports have the IEEE
802.3ab Auto MDI/MDI-X feature.
20 twisted-pair ports with RJ-45
connectors for 10/100/1000 Mbps
!
operation over Category 5 or better
100-ohm UTP or STP cable
(category 5e recommended for
Gigabit) -- all ports have the IEEE
802.3ab Auto MDI/MDI-X feature,
plus 4 mini-GBIC or SFP ports.
1 port for installing any of the
supported ProCurve 10 Gig X2
transceivers.**
www.procurve.com to get more information.
Description
