Chromalox UB-2502A Installation, Operation And Renewal Parts Identification

Forced-air heater

Advertisement

Quick Links

ENEWAL PA TS IDENTIFICATION
WARNING: Hazard of Electric Shock. Disconnect
all power before installing heater.
WARNING: This heater is not intended for use in
hazardous atmospheres where flammable vapors,
gases, liquids or other combustible atmospheres
are present as defined in the National Electrical
Code. Failure to comply can result in explosion or
fire. For these applications see PDS CXH-EP
(PF305).
WARNING: Users should install adequate back-up
controls and safety devices with their electric
heating equipment. Where the consequences of
failure may be severe, back-up controls are essen-
tial. Although the safety of installation is the
responsibility of the user, Chromalox will be glad to
make equipment recommendations.
© 2010 Chromalox, Inc.
nstallation, Operation
nd
Type UB-2502A and UB-3002A
Forced-Air Heater

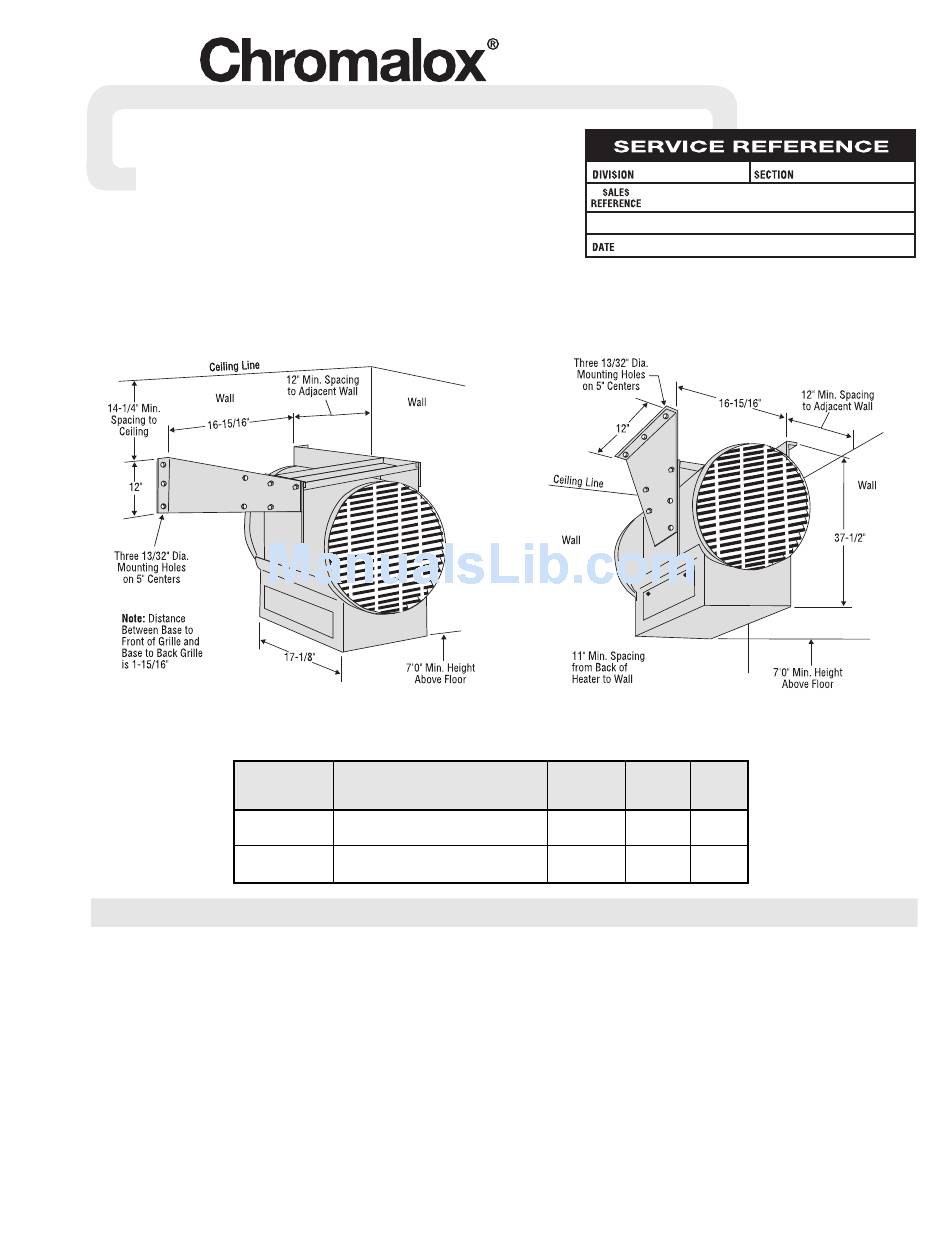

Figure 1
(Wall Mounted)
Specifications – Table A
Model
240V, 550V, 575V, 600V (3ø)
UB-2502A
480V (1ø or 3ø)
240V, 550V, 575V, 600V (3ø)
UB-3002A
480V (1ø or 3ø)
Volts and Phase
IMPORTANT
Do not mount mercury type thermostat directly on unit. Vibration
could cause heater to malfunction.
The heater must be mounted at least 7' above the floor to prevent
accidental contact with the heating elements or fan blade which
could cause injury.
Keep at least 5' clearance in front of the heater. Refer to Figures 1
and 2 for side, top and back clearance requirements.
The wall or ceiling mounting structure and the anchoring provision
must be of sufficient strength to support the combined weight of
the heater and mounting bracket. (Refer to Table A for weights of
heater and bracket).
Fan blade rotation must be checked. If airflow is not moving out
through the louvers, interchange any two of the three customer
power leads on three-phase units only.
4
(Supersedes PF423-3)
JULY, 2002
Figure 2
(Ceiling Mounted)
Horizontal
Wt.
Air
kW
(Lbs.)
Discharge
25
48'
185
30
48'
185
UB
PF423-4
161-027048-001

Advertisement

loading

Summary of Contents for Chromalox UB-2502A

  • Page 1 Where the consequences of failure may be severe, back-up controls are essen- tial. Although the safety of installation is the responsibility of the user, Chromalox will be glad to make equipment recommendations. © 2010 Chromalox, Inc. Forced-Air Heater...
  • Page 2: Wiring Diagrams

    WARNING: Hazard of Electric Shock. Disconnect all power before installing heater. WARNING: These heaters are designed for wall or ceiling mounting only. Other modes of mounting voids factory warranty. 1. Height above floor A. In areas where ceiling height is more than 12 feet, recom- mended mounting height is approximately 10 feet to under- side of heater.
  • Page 3 WIRING DIAGRAMS Figure 4 Figure 5...
  • Page 4 WIRING DIAGRAMS Figure 6 Figure 7...
  • Page 5 WIRING DIAGRAMS Figure 8 Figure 9...
  • Page 6: Operation

    Figure 10 Figure 11 1. DANGER: Hazard of Fire. A. Do not restrict air flow through heater by placing fabric or other obstructions in front of or behind the heater. Increased discharge temperatures can discolor or ignite some heat sensitive combustible materials. B.
  • Page 7: Maintenance

    1. Fan motors in these heaters are provided with sealed ball bear- ings, factory lubricated, requiring no further lubrication under normal service conditions. Model UB-2502A UB-3002A Note: Number in parentheses ( ) indicates the quantity of that part required. MAINTENANCE 2.
  • Page 8 Grille ......134-119147-003 Louver Assembly ....182-047073-003 Please refer to the Chromalox limited warranty applicable to this product at http://www.chromalox.com/customer-service/policies/termsofsale.aspx.
