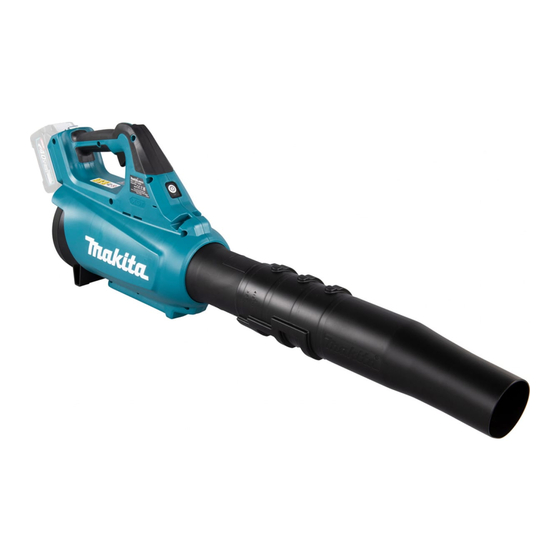

- Page 1 INSTRUCTION MANUAL Cordless Blower UB001G Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: UB001G Capacities Air volume 0 - 16.0 m /min Air speed (average) 0 - 53.5 m/s Air speed (max.) 0 - 64.0 m/s Overall length (with end nozzle) 850 mm / 900 mm / 950 mm Rated voltage D.C. -
Page 3: Safety Warnings
SAFETY WARNINGS NOTE: The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with Cordless Blower Safety Instructions another. NOTE: The declared noise emission value(s) may also be used in a preliminary assessment of WARNING: Read all safety warnings and exposure. all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or WARNING: Wear ear protection. - Page 4 A charger that is suitable for before restarting and operating the blower. If one type of battery pack may create a risk of fire the blower is damaged, ask Makita Authorized when used with another battery pack. Service Centers for repair. Use power tools only with specifically desig- 16.
- Page 5 Under abusive conditions, liquid may be WARNING: DO NOT let comfort or familiarity ejected from the battery; avoid contact. If con- with product (gained from repeated use) replace tact accidentally occurs, flush with water. If strict adherence to safety rules for the subject liquid contacts eyes, additionally seek medical product.
- Page 6 SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. ► 1 . Triangle mark 2. End nozzle 3. Front pipe Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting To remove the end nozzle, perform the installation causing fires, personal injury and damage. It will procedure in reverse.
- Page 7 Installing the flat nozzle or Installing the gutter nozzle set extension nozzle Optional accessory Align the groove on the adapter pipe with the pro- Optional accessory trusion on the front pipe, then attach the adapter pipe to Align the groove on the adapter pipe with the pro- the front pipe, and then turn it to lock it into place.
- Page 8 Place the hose clamps onto the grooves as illus- Connect the end nozzle to the extension pipe. trated and tighten the screws. When connecting, align the triangle marking on the end nozzle and the extension pipe, and then push the end nozzle until it clicks.
-
Page 9: Attaching The Shoulder Strap
CAUTION: Always be sure that the machine is harness included in the machine package, but use switched off and the battery cartridge is removed the hanging band recommended by Makita. before adjusting or checking function on the If you put on the shoulder harness included in the machine. machine package and the shoulder harness of the... -
Page 10: Overheat Protection
Overheat protection Indicating the remaining battery capacity When the machine or battery is overheated, the Press the check button on the battery cartridge to indi- machine stops automatically. When the machine is cate the remaining battery capacity. The indicator lamps overheated, the main power lamp of the machine light up for a few seconds. lights up in red. When the battery is overheated, the main power lamp of the machine blinks in red. Let the machine and battery cool down before turning the machine on again. Overdischarge protection When the battery capacity is not enough, the machine stops automatically and the main power lamp of the... - Page 11 Switch action NOTE: Depending on the usage conditions or battery conditions, use of the Boost mode is restricted to protect the machine. If the main power lamp of the WARNING: Before installing the battery car- machine blinks in green when you pull the switch tridge into the machine, always check to see that trigger fully or while you are using the machine in the the switch trigger actuates properly and returns Boost mode, the Boost mode is not available.
-
Page 12: Blower Operation
OPERATION CAUTION: Do not use the gutter nozzle set near electric wires. Blower operation CAUTION: Do not place the machine on the ground while it is switched on. Sand or dust may enter from suction inlet and cause a malfunction or personal injury. Hold the machine firmly with a hand and perform the blowing operation by moving it around slowly. When blowing around building, big stone or vehicle, direct the nozzle away from them. When performing an operation in a corner, start from the corner and then move to wide... -
Page 13: Cleaning The Machine
Store the machine in a place out of the reach of children be performed by Makita Authorized or Factory Service and not exposed to moisture, rain, or direct sunlight. Centers, always using Makita replacement parts. The hook hole on the bottom of the machine is convenient for hanging the machine from a nail or screw on the wall. -
Page 14: Troubleshooting
Remove the battery immediately! OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita prod- uct specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center. - Page 16 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885864-227 www.makita.com 20201204...
