10 OPERATION Control Panel Before Use Quick Start and Stop Operating the Microwave Operating the Oven Cookware Guide Cooking Guide 32 SMART FUNCTIONS LG ThinQ Application Smart Diagnosis Feature 35 MAINTENANCE Cleaning Replacing Parts 37 TROUBLESHOOTING FAQs Before Calling for Service 41 LIMITED WARRANTY PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY.
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Safety Messages Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.
Page 4
IMPORTANT SAFETY INSTRUCTIONS - Do not immerse cord or plug in water. Keep cord away from heated surfaces. - Do not let cord hang over edge of table or counter. • To reduce the risk of fire in the oven cavity: - Do not overcook food.
Page 5
IMPORTANT SAFETY INSTRUCTIONS • During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. • The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
Page 6
IMPORTANT SAFETY INSTRUCTIONS • When flaming foods under the hood, turn the fan on. • Use care when cleaning the vent-hood filter. Corrosive cleaning agents, such as lye-based oven cleaners, may damage the filter. • Suitable for use above both gas and electric cooking equipment 36 inches wide or less. Radio/TV/Wireless Equipment Interference •...

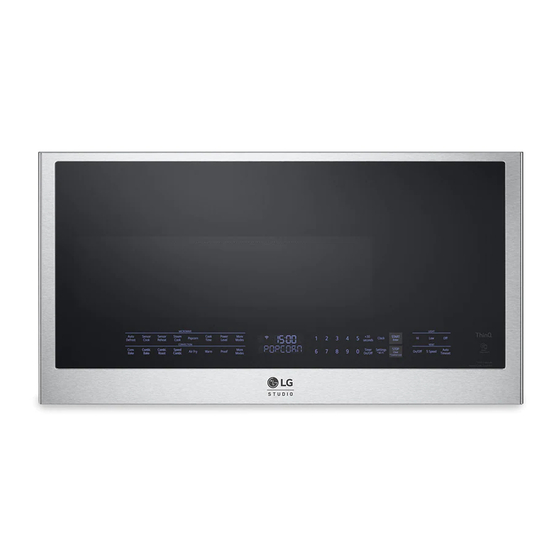

INSTALLATION INSTALLATION Product Overview WARNING • Do not operate the oven when it is empty or Front View without the glass tray. It is best to leave a glass of water in the oven when not in use. The water will safely absorb all microwave energy, if the oven is accidentally started.
INSTALLATION How to Use Accessories Microwave Convection Combination Auto Defrost, Sensor Cook Convection Bake, Air Fry Combination Bake Sensor Reheat, Steam Cook Warm, Proof, Dehydrate Combination Roast Mode Popcorn, Soften, Melt Speed Combination Kids Meal, Simmer : Recommended method : Alternate method -: Do not use •...
Page 9
INSTALLATION constructed of a minimum of 2" x 4" wood grounding plug. The plug must be plugged into an studding and 3/8" thick drywall or plaster/lath. outlet that is properly installed and grounded. • Attach the 2 lag screws supporting the oven to a •...
10 OPERATION OPERATION Control Panel Control Panel Features • Press +30 seconds during cooking to MICROWAVE increase the cook time by 30 seconds. (Add • Select various microwave cooking functions. up to 99 minutes and 59 seconds) See Manual Cooking section and Cooking Mode section.
OPERATION Canceling Child Lock • Set the light. press Hi, Low, or Off to adjust the cooktop light. Press and hold STOP/Clear until LOCKED disappears in the display (approximately 3 • Set the ventilation. seconds). - Press On/Off to turn the vent fan on or off. - Press 5 Speed to set the vent fan speed.
Page 12
12 OPERATION Turning the Vent Fan On or Off Item Option Press On/Off once to turn the vent fan on. 4 Defrost Weight • 1 Lbs • 2 Kg Press On/Off again to turn the vent fan off. • Turntable On 5 Turntable •...
The Wi-Fi icon appears at the top (5:30). of the display. Press Power Level. Follow the instructions in the LG ThinQ application. Press 8 to select power level 8, and press START/Enter. NOTE • When cooking is complete, a chime sounds •...
Page 14
14 OPERATION Using the Sensor Functions - Food temperature: Refrigerated - Instructions: Add water (1 - 2 cups: 2 tbsp The sensor features offer convenient cooking or water, 3 - 4 cups: 4 tbsp water). Cover with reheating of popular food items automatically vented plastic wrap.
Page 15
OPERATION • 9 Shrimp (4 - 16 oz) • 1 Dinner Plate (1 - 2 servings) - Cookware: Microwave-safe plate - Cookware: Microwave-safe plate - Food temperature: Refrigerated - Food temperature: Refrigerated - Instructions: Cover with vented plastic wrap. - Instructions: Cover with lid or vented plastic After cooking, let stand for 2 minutes.
Page 16
16 OPERATION long). Pour 10 oz (300 ml) tap water into the CAUTION steam water bowl. Place the steam plate on the steam water bowl. Place prepared food on • Only pop popcorn in a microwavable container the steam plate in a single layer. Cover with or in commercial packages designed for the steam cover.
Page 17
OPERATION Auto Defrost Mode • 1 Meat (0.1 - 6.0 lbs) - Beef: Ground beef, round steak, stew cubes, Using Defrost Menu tenderloin steak, pot roast, rib roast, rump roast, chuck roast, hamburger patties The oven has 4 preset defrost cycles. The Defrost - Lamb: Chops (1 inch thick), rolled roast Menu shows the suggested defrost cycle for various foods.
Page 18
18 OPERATION Use the number keys to enter the desired Press START/Enter. amounts from the Soften Menu. • When the cook time ends, a melody sounds and COOK END appears in the display. Press START/Enter. Melt Menu • When the cook time ends, a melody sounds Refer to the information below to set the desired and COOK END appears in the display.
Page 19
OPERATION Simmer Menu Press START/Enter. • When the cook time ends, a melody sounds Refer to the information below to set the desired and COOK END appears in the display. menu item and see the recommended amounts. • 1. Rice (1, 2, 3 servings) Kids Meal Menu †...
Page 21
OPERATION the oven temperature. (Do not enter the Set the cook time: Press 3, 0, 0 and 0. time.) Press START/Enter. When the melody sounds, place the food in • When the cook time ends, a melody sounds the oven. and COOK END appears in the display.
Page 22
22 OPERATION Food Temp Time (min) Comments Vegetables, Baked Potatoes 425 ℉ 55 to 65 Potatoes: Pierce skin with fork before Other Acorn Squash Halves 375 ℉ 60 to 70 baking. desserts Meringue Shells 250 ℉ 70 to 85 Squash: Pierce skin several places. Add ½...
Page 23
OPERATION Press START/Enter. - 1 serving: 6 ea, 2 servings: 12 ea • When the oven beeps, turn the food over. - Alternative: Conv. Bake at 450 ℉ for 19 - 20 min. • When the cook time ends, a melody sounds and COOK END appears in the display.
Page 24
24 OPERATION Set the cook time: Press 3, 0, 0 and 0. Press START/Enter. • When the cook time ends, a melody sounds and COOK END appears in the display. Combination Bake Menu Time Food Temp Comments (min) Pie, Pastries Quiche 400 ℉...
Page 25
OPERATION Time Food Temp Comments (min/lb) Poultry Whole Chicken (2 to 4 lbs) 375 ℉ 20 to 25 Turn over halfway Chicken Pieces (1 to 2 lbs) 375 ℉ 35 to 45 through the cooking time. Seafood Fish (1 to 3 lbs, fillets) 350 ℉...
Page 26
26 OPERATION More Modes • Medium: 165 ℉ (74 ℃) • Low: 140 ℉ (60 ℃) The product firmware may be updated to include additional functions through More Modes. The function currently includes the Dehydrate mode. Press START/Enter to start warming. Dehydrate Press STOP/Clear at any time to cancel.
OPERATION • Kiwi • China - Preparation: Peel and cut into 3/8" (8 - 12 mm) - Use bowls, cups, serving plates, pottery, slices. stoneware, ceramic, and platters without metal rims or handles. Many containers made - Set temp / Time: 160 ℉ / 5 - 8 hrs of these materials are microwave-safe, but test - Use: Snacks them before use.
Page 28
28 OPERATION Testing Cookware before Use - Do not put plates with painted decoration in the oven, as the paint may contain metal and Most heat resistant and non-metallic cookware is cause arcing. safe for use in your oven. However, some cookware may contain materials that are not suitable for microwave use.
OPERATION • Heat-resistant plastic microwave cookware (safe foods cooks more quickly than the lower to 450°F) may be used, but is not recommended portion. for foods that require crusting or all-around - Shaping: Place the thickest portions of foods browning, because plastic is a poor conductor of like meat, poultry or fish toward the outside of heat.
Page 30
30 OPERATION food is still frozen solid in the center, return it dense foods such as meats, casseroles, and to the microwave oven for more defrosting. poultry without preheating. - Depending on the shape of the food, some • All heatproof cookware or metal accessories can areas may defrost more quickly than others.
Page 31
OPERATION occurs when microwaves come in contact with metal. - If arcing occurs, immediately stop the cooking cycle and place a heat resistant dish between the pan and the metal rack. - For best results, use the metal tray supplied with your oven.
Internet service provider or refer to your wireless router manual. • Firmware Update • LG ThinQ is not responsible for any network - Keep the appliance updated. connection problems or any faults, malfunctions, or errors caused by network connection.
Page 33
Installing the LG ThinQ Application the party responsible for compliance could void the user’s authority to operate the equipment. Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone. Follow instructions to download and FCC RF Radiation Exposure Statement install the application.
If you experience a problem with your Wi-Fi equipped appliance, it can transmit troubleshooting data to a smartphone using the LG ThinQ application. • Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions provided in the LG ThinQ application.
MAINTENANCE MAINTENANCE Cleaning Cleaning the Accessories Wash the glass tray and rotating ring in mild, Cleaning the Interior sudsy water. For heavily soiled areas, use a mild cleanser and scouring sponge. Dry completely before use. Use a damp cloth to clean the surfaces of the door and wipe out crumbs between the door •...
36 MAINTENANCE Rinse well and shake to dry. • Do not use ammonia or place in a dishwasher. The aluminum will darken. To reinstall, slide the filter in on the back side and push it upward to secure it. NOTE •...
TROUBLESHOOTING TROUBLESHOOTING FAQs Frequently Asked Questions Will the oven be damaged if it operates while empty? Yes. Never operate the oven while it is empty or without the glass tray. Does microwave energy pass through the viewing screen in the door? No.
Page 38
38 TROUBLESHOOTING Can I pop popcorn in my oven? How do I get the best results? Yes. Pop packaged microwave popcorn following manufacturer’s guidelines or use the preprogrammed Popcorn button. Do not use regular paper bags. Use the listening test by stopping the oven as soon as the popping slows to a pop every one or two seconds.
TROUBLESHOOTING Before Calling for Service Operation Problem Possible Cause & Solution Microwave oven Power cord is unplugged, door is open, or cooking time has not been set. does not start • Plug in power cord. Or, check for a blown circuit fuse or a tripped main circuit breaker. •...
Page 40
During Wi-Fi setup, the app is requesting a password to connect to the product (on certain phones). • Locate the network name which starts with "LG" under Settings > Networks. Note the last part of the network name. - If the network name looks like LGE_Appliance_XX-XX-XX, enter lge12345.
Should your LG Microwave Oven ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product ("You") and applies only when purchased lawfully and used within the United States...
Page 42
• Damage or failure of the Product resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes the use of parts not authorized by LG. Improper installation or maintenance includes installation or maintenance contrary to the Product owner’s manual.
Page 43
LIMITED WARRANTY Problem Cause Solution • Mounting bracket screw not fixed completely. Microwave oven Check with installer first. installation issue. • Mounting plate not aligned. • Vibration noise - 3/16" Hole on Studs, 5/8" Hole on Drywall • Unit is not level Only •...
Page 44
Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Ave, Englewood Cliffs, NJ 07632. You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim.
Page 45
AAA in the manner described in the AAA Rules. You must also send a copy of your written demand to LG at LG Electronics, USA, Inc.
