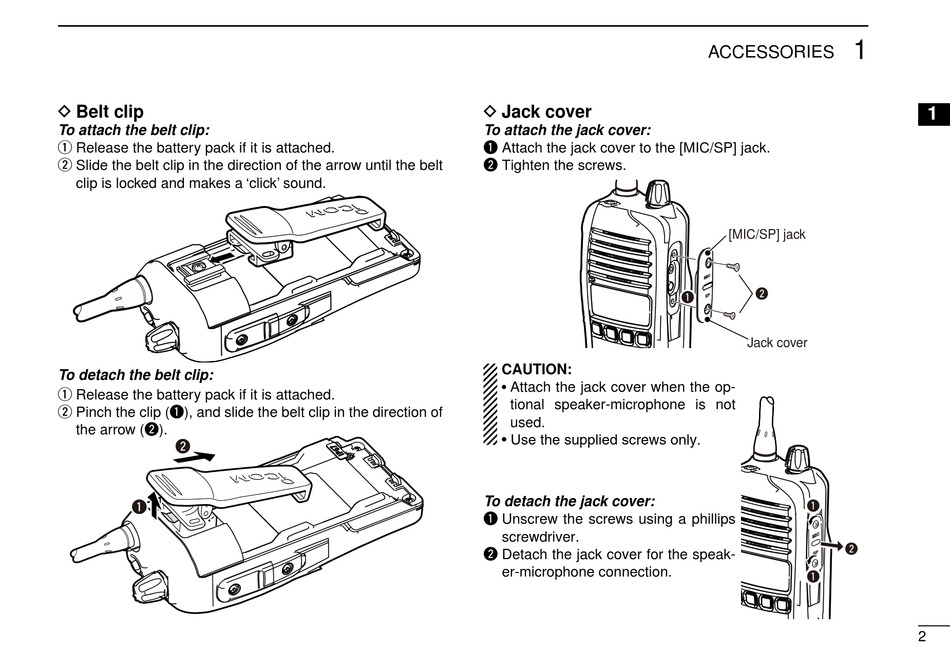

Icom F3020 Series Instruction Manual page 7

D
Belt clip
To attach the belt clip:
q
Release the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow until the belt
clip is locked and makes a 'click' sound.
To detach the belt clip:
q
Release the battery pack if it is attached.
w q), and slide the belt clip in the direction of
Pinch the clip (
the arrow (w).
w
q
D
Jack cover
To attach the jack cover:
q Attach the jack cover to the [MIC/SP] jack.
w Tighten the screws.
CAUTION:
•
Attach the jack cover when the op-
tional speaker-microphone is not
used.
• Use the supplied screws only.
To detach the jack cover:
q Unscrew the screws using a phillips
screwdriver.
w Detach the jack cover for the speak-
er-microphone connection.
1
ACCESSORIES
[MIC/SP] jack
w
q
Jack cover
q
w
q
1
2
