SECO-LARM ENFORCER SLI PR-B1124-PQ Additional Information

Bluetooth
Proximity Reader
What's in
the Box:
Specifications:
Operating voltage
Standby
Current
draw
Active (max.)
Form C
Outputs
Alarm
Egress input
Door sensor input
Proximity reader
IP Rating
Enclosure material
Operating humidity
Operating temperature
Dimensions
Weight
IMPORTANT NOTES:
*
Because the keypad uses a solid-state relay, you must install the enclosed diode—with the cathode (striped
end ) toward the positive side—for DC powered locks and install the varistor (MOV,
for AC powered locks and for electromagnetic locks unless your lock has a diode/MOV built in. Failure to
use these as directed will void the warranty.
†
Use the blue wire for fail-secure applications and the yellow wire for fail-safe applications. Use electrical
tape to insulate the end of any unused wire.
®
1x PR-B1124-PQ ENFORCER Bluetooth
10x Proximity cards 4x Mounting screws 4x Plastic wall anchors 12x Wire crimps 1x Diode
1x Varistor 1x Security screw bit 1x Quick Installation/Setup Guide 1x Additional Information
9~25 VDC
63mA@12VDC, 36mA@24VDC
80mA@12VDC, 45mA@24VDC
2.5A@30VDC (Solid state relay)
50mA@30VDC
N.O. Ground
N.C. Ground
EM 125kHz
IP65 Weather-resistant
ABS Plastic
0-95%, non-condensing
-4°~122° F (-20°~50° C)
1 1 11
3 / "x4 / "x / " (80x114x18 mm)
8 2 16
6.3-oz (180g)
™
Additional Information

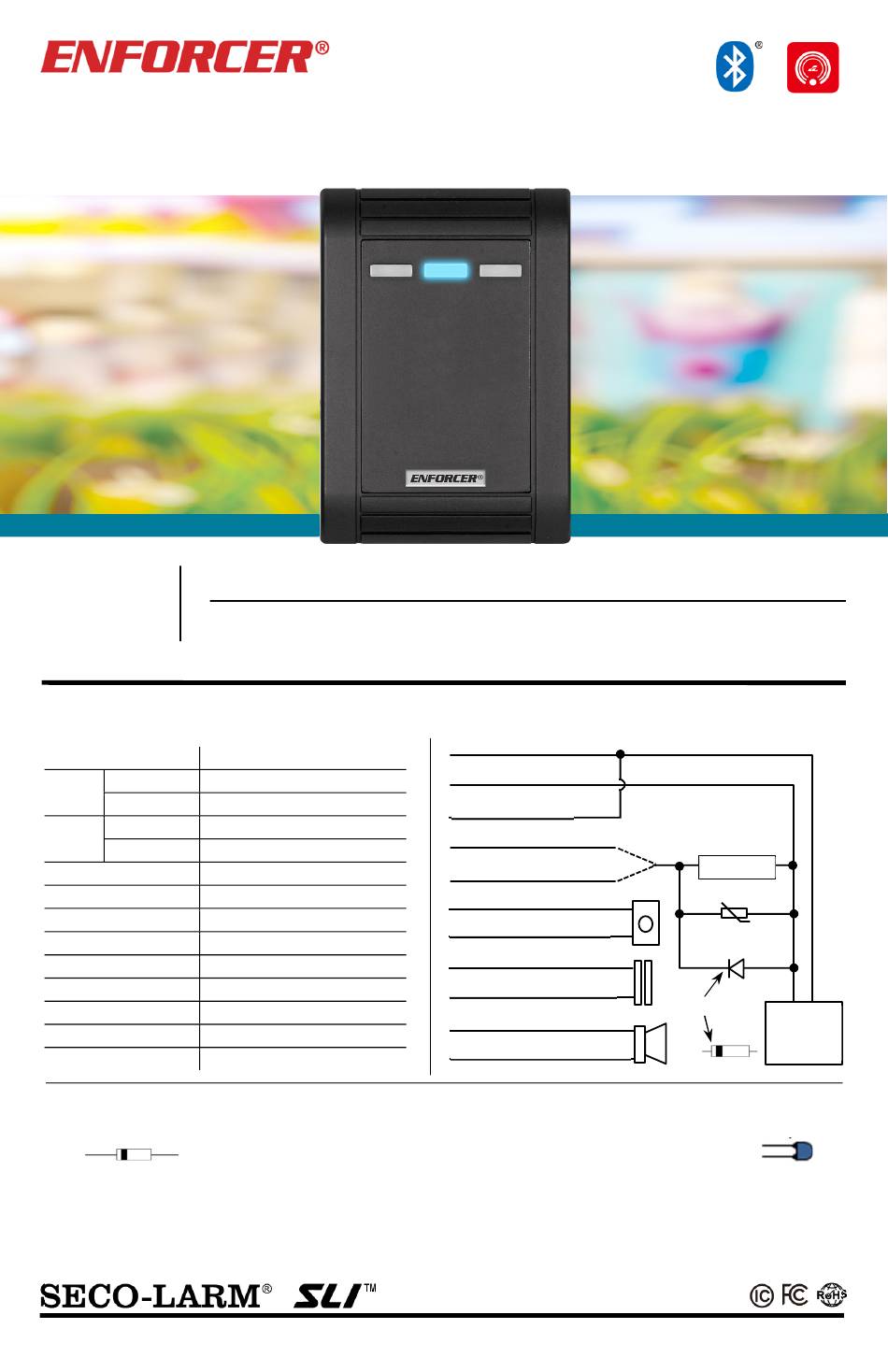

Sample Wiring Diagram:
Red – power (+)
Black – power (–)
White – COM
Blue – N.O. fail-secure
or
Yellow – N.C. fail-safe
Green pair – RTE button
Brown pair – door sensor
Orange pair – external alarm
PR-B1124-PQ
®
Proximity Reader
†
+ Lock –
*
MOV
*
Diode
–
Cathode
12/24 VDC
™
SL Access
+
Power
Supply
)
