We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities.
For further information on the product: www.smeg.com
Contents
26
26
27
27
27
28
28
28
29
29
30
31
31
32
32
39
39
39
39
39
40
41
41
42
43
44
46
25
Advertisement
Table of Contents
Related Manuals for Smeg SIM581B
Summary of Contents for Smeg SIM581B
-
Page 1: Table Of Contents
5.3 Section cut from the work surface 5.4 Mounting 5.5 Fixing brackets We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com... -
Page 2: Instructions
Instructions 1 Instructions • Do not modify this appliance. • Do not insert pointed metal objects 1.1 General safety instructions (cutlery or utensils) into the slots in the appliance. Risk of personal injury • Do not try to repair the appliance •... -
Page 3: Manufacturer Liability
Instructions For this appliance 1.3 Appliance purpose • This appliance is intended for cooking • If your hob has a cookware detector, do food in the home environment. Every not rely on it exclusively. other use is considered improper. • Remove any traces of liquid from the lid •... -
Page 4: Identification Plate
Instructions 1.7 How to read the user manual • Deliver the appliance to the appropriate recycling centre for electrical and This user manual uses the following reading electronic equipment waste, or return it to conventions: the retailer when purchasing an Instructions equivalent product, on a one for one basis. -
Page 5: Description

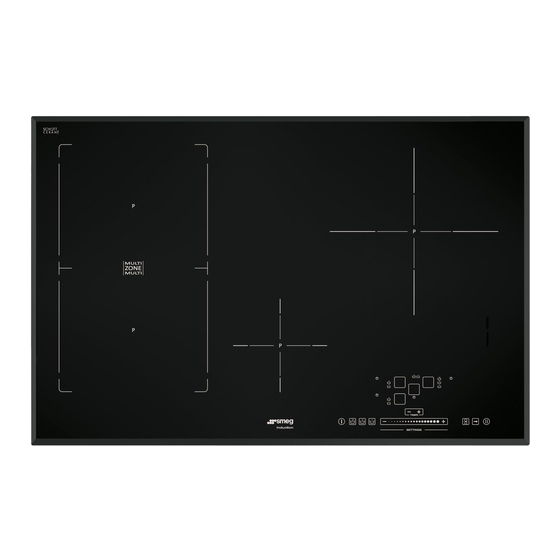

Description 2 Description 2.1 General Description Outer diameter Inner diameter Max. power consumed Consumed power in Zone (mm) (mm) (W)* Power function (W)* 1300 1400 2300 3000 * power levels are indicative and can vary according to the pan used or the settings made. -
Page 6: Available Accessories
Description 2.2 Available accessories Advantages of induction cooking The hob is equipped with an Scraper induction generator for each cooking zone. Each generator located under the glass ceramic cooking surface creates an electromagnetic field which induces a thermal current in the base of the pan. -
Page 7: Use
3 Use High temperature Danger of fire or explosion 3.1 Instructions High temperature • Do not use or leave flammable materials near the appliance or directly Danger of burns underneath the hob. • Do not cook using closed tins or •... -
Page 8: Preliminary Operations
3.2 Preliminary operations 3.3 Using the hob In order to remove any moisture that could On first connection to the electrical have accumulated during the manufacturing mains, an automatic check will be process and for the electronic circuits and carried out that will switch on all control keypad to work properly: indicator lights for a few seconds. - Page 9 Cookware suitable for use in induction To see whether the pan is suitable, bring a cooking magnet close to the bottom: if it is attracted, the pan is suitable for induction cooking. If Cookware used on the induction cooking you do not have a magnet, you can put a surface must be made of metal, with small amount of water in the pan, place it magnetic properties and a sufficiently large...
- Page 10 Limiting the cooking duration Advice on energy-saving The hob has an automatic device which • The diameter of the base of the pan must limits the duration of use. correspond to the diameter of the cooking zone. If the cooking zone settings are not changed, the maximum duration of operation for each zone depends on the power level selected.
- Page 11 Power levels Switching off the cooking zone The power in the cooking zone can be 1. Select the cooking zone you wish to adjusted to various levels. The table shows switch off using the zone selection keys. the levels suitable for various types of 2.
- Page 12 Power Function Minute minder timer This function allows you to use the This function is used to set a minute maximum possible power for the minder timer, which will sound a cooking zone. buzzer at the end of the pre-set time (from 1 to 99 minutes).
- Page 13 Control lock Cooking zone automatic switch-off timer After activating the hob: This function is used to program the 1. Press keys at the same time. automatic switch-off of each cooking zone at the end of a 2. Press the button after the beep. period of time (from 1 to 99 minutes).
- Page 14 Power control Cooking guidelines To optimise energy consumption, the groups The table below shows the power values made up of two hot plates are prevented which can be set, together with the from supplying more than a determined corresponding type of food. Settings may maximum operating power.
-
Page 15: Cleaning And Maintenance
Cleaning and maintenance 4 Cleaning and maintenance 4.3 Ordinary weekly cleaning Clean and maintain the hob once a week 4.1 Instructions using an ordinary glass cleaning product. Always follow the manufacturer's Improper use instructions. The silicon in these products Risk of damage to surfaces creates a protective, water-repellent membrane which also resists dirt. -
Page 16: What To Do If
Cleaning and maintenance 4.5 What to do if... Changes in colour do not affect the operation and stability of the glass. These The hob does not work: are not alterations to the material of the hob • Make sure that the hob is connected but just residues which have not been and that the main switch is turned on. -
Page 17: Installation
Installation 5 Installation type Connection type Cable type (cm) 5.1 Electrical connection Power voltage 3-pole 220-240 V 1N~ Danger of electrocution 3 x 1.5 mm² • Have the electrical connection performed by authorised technical 220-240 V 1N~ personnel. 3-pole • Use personal protective equipment. 3 x 2.5 mm²... -
Page 18: Safety Instructions
Installation 5.2 Safety instructions Fixed connection Fit the power line with an omnipolar circuit Heat production during appliance breaker in compliance with installation operation regulations. Risk of fire The circuit breaker should be located near the appliance and in an easily reachable •... -
Page 19: Section Cut From The Work Surface
Installation 5.3 Section cut from the work surface Mounting dimensions for hob with straight edge The following operation requires building and/or carpentry work and must therefore be carried out by a competent tradesman. Installation can be carried out on various materials such as masonry, metal, solid wood or plastic laminated wood as long as they are heat resistant (>90°C). -
Page 20: Mounting
Installation 5.4 Mounting Over empty kitchen unit or drawers If there are other pieces of furniture (lateral Over built-in oven walls, drawers, etc.), dishwashers or fridges The clearance between the hob and the under the hob, a double-layer wooden kitchen furniture or other installed base must be installed at least 30 mm from appliances must be enough to ensure the bottom of the hob to avoid any... - Page 21 Installation Ventilation Hob seal The illustrations below show two examples To prevent leakage of liquid between the of installation suitable for proper ventilation frame of the hob and the work surface, and one example of incorrect installation to place the adhesive seal provided along the be avoided.
-
Page 22: Fixing Brackets
Installation 5.5 Fixing brackets Screw the fixing brackets (A) into the holes on the sides of the bottom casing to properly fasten the hob to the structure. If tightened too much the glass may be strained and crack.
