STRAIGHT EDGE SHAPING ...19 ACROSS THE GRAIN ...19 LARGE WORKPIECE...20 CURVED WORKPIECE ...20 DUST COLLECTION ...21 MAINTENANCE ...22 BELT REPLACEMENT ...22 CLOSURE ...23 DATA SHEET ...24 PARTS BREAKDOWN ...25 PARTS LIST ...26 WARRANTY ...27 G8693 Mini Shaper Table Of Contents...
12. SECURE WORK. Use clamps or a vise to hold work when practical. It’s safer than using your hand and frees both hands to operate tool. G8693 Mini Shaper 13. DON’T OVERREACH. Keep proper foot- 14. MAINTAIN TOOLS WITH CARE. Keep 15. DISCONNECT TOOLS before servicing 16.
4. Feed workpiece against rotation of cutter. 5. Do not use awkward hand positions. Like all power tools, there is danger asso- ciated with the Model G8693 Mini Shaper. Use the tool with respect and caution to lessen the possibility of mechanical dam- age or operator injury.
SECTION 2: CIRCUIT REQUIREMENTS 110V Operation Your G8693 Mini Shaper is prewired for 110 volt, single phase operation. The ⁄ approximately 2.2 amps. We strongly recom- mend fusing your Mini Shaper at 15 amps. Fusing higher will not adequately protect the motor.

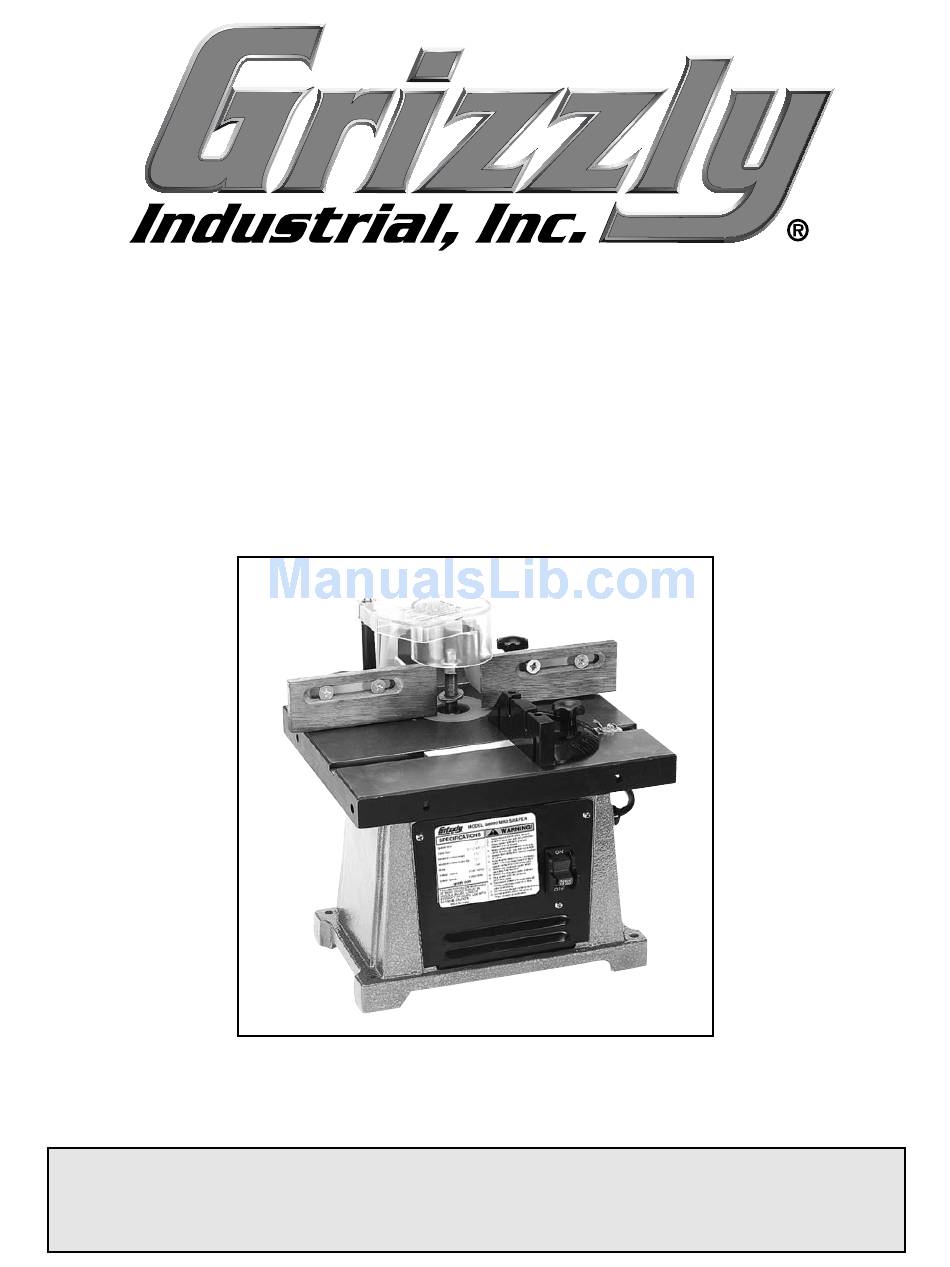

SECTION 3: GENERAL INFORMATION Commentary We are proud to offer the G8693 Mini Shaper. The Model G8693 is part of a growing Grizzly family of fine woodworking machinery. When used according to the guidelines set forth in this manual, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s com-...
Unpacking Model G8693 Mini Shaper is Shipped complete in one carton. If you discover the machine is dam- aged after you’ve signed for delivery, and the truck and driver are gone, you will need to file a freight claim with the carrier. Save the containers and all packing materials for possible inspection by the carrier or its agent.
The unpainted surfaces are coated with a waxy oil to protect them from corrosion during shipment. Remove this protective coating with a solvent cleaner or citrus-based Degreaser such as Grizzly’s G7895 Degreaser. Avoid chlorine-based solvents as they may damage painted surfaces should they come in con- tact.
Typically, the Spindle Shaft is already installed from the factory. To remove the Spindle, reverse the following steps. 1. Place the Shaper Nut (REF 36) onto the Spindle Shaft (REF 35) and insert the Shaft into the Spindle Bore. See Figure 2.
Fence Body. 4. If you plan to use a dust collection system with your mini Shaper, attach the Dust Port to the back of the Fence using the four M5-0.8 x 10mm screws supplied.
Most commercial or home shop benches should be sufficient to carry the weight of the G8693. If you question the strength of your workbench, you can opt to reinforce it, or consider securing the Mini Shaper on a freestanding bench like Grizzly’s Shop Fox...
Be certain the safety glass- es you wear meet the appropriate stan- dards of the American National Standards Institute (ANSI). Fence Assembly Ring Guard Lock Knob Spindle Adjustment Knob G8693 Mini Shaper...
Mini Shaper. Failure to unplug Mini Shaper could result in accidental starting causing serious injury. To turn Mini Shaper “On” after it has been locked in the “off” position, the switch key must be replaced in the switch. Be sure switch is in the “off”...
See Figure 11. Spindle cutters can be raised by using the collar (REF 59) provided. Insert Installed Spindle Height ⁄ ''. The large knob on the rear of the Shaper/ Figure 11. Spindle height locking knobs. G8693 Mini Shaper...
Ring Guard The Ring Guard (REF 19) is an important safety feature and should always be used when shap- ing. Before the Mini Shaper is turned on, the ring guard should be positioned approximately above the workpiece and locked in place.
Figure 15. -18- Using Router Bits The G8693 Mini Shaper is equipped with a removable power cord let. See Figure 16. Before making any adjustments or conversions to...
Figure 16. Wood Grain The Shaper cutter runs at high RPM, so with most woods it makes little difference if the cut is with or against the grain. However, with some very open grained woods such as redwood or fir, cutting against the grain may result in a rough, splintered surface.
When about 2'' of the test piece is adjacent to-the outfeed side of the Fence, stop the Shaper and unplug it! Clamp the test piece to the table so it will not move from that position. Loosen all three knobs holding the Fence and Fence Segment.
Dust Collection Your Mini Shaper has a rear chip discharge which fits any standard dust collection with a 2 ⁄ '' hose. ⁄ '' to 1 ⁄ '' hose adapter is supplied with the Mini Shaper. Attaching a dust collection system will keep your work area cleaner.
Clean frequently with Gum and Pitch Remover. The table and other non-painted surfaces on the Model G8693 should be protected against rust and pitting. Wiping the Shaper clean after every use ensures that moisture from wood dust isn’t allowed to trap moisture against bare metal sur- faces.
Washington location using the address in Section 3:GENERAL INFORMATION. The specifications, drawings, and photographs illustrated in this manual represent the Model G8693 as supplied when the manual was prepared. However, due to Grizzly’s policy of continuous improvement, changes may be made at any time with no obli- gation on the part of Grizzly.
WARRANTY AND RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
Do you think your purchase represents good value? ___Yes Would you recommend Grizzly Imports to a friend? ___Yes Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than three times. ___Yes Comments:_________________________________________________...
