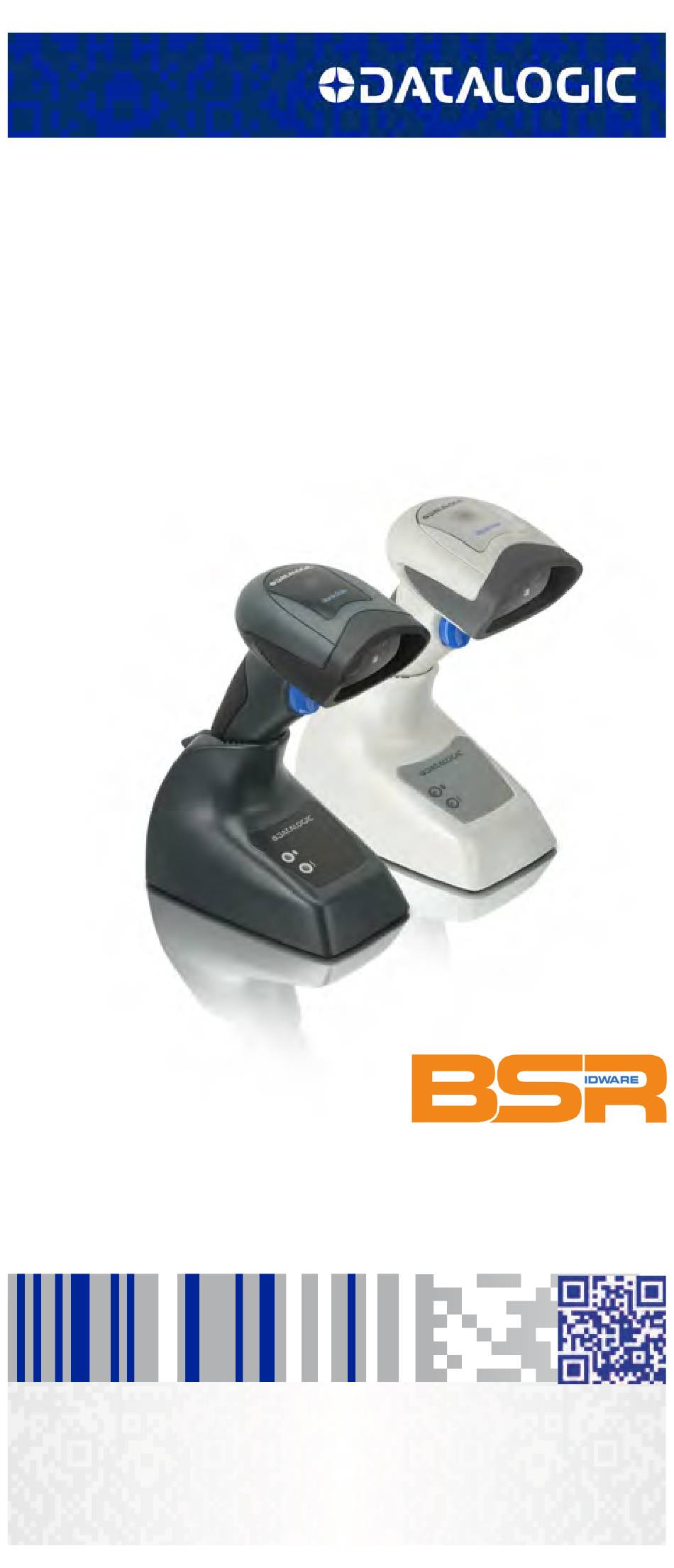

- Page 1 QuickScan™ QM21X1 General Purpose Handheld Linear Imager Bar Code Reader with Datalogic’s STAR Cordless System™ BSR idware GmbH Jakob-Haringer-Str.3 A-5020 Salzburg Web: www.bsr.at Quick Reference Guide...
- Page 2 Datalogic ADC, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic ADC”). Owners of Datalogic...
-
Page 3: Table Of Contents
Replacing the Battery Pack ..........8 Using the Quickscan™ QM21X1 ..........9 Bar Code Reading ..............9 Linking the Reader ..............10 Link Datalogic RF Devices to Base......10 Power Off ..................10 Programming ................10 Using Programming Bar Codes ........11 Configure Other Settings .......... - Page 4 Ergonomic Recommendations ..........36 Cleaning ................37 Services and Support ..............38 QuickScan™ QM24XX...
- Page 5 Agreement. If you use the Datalogic Product, you will be deemed to have accepted the terms and conditions of this Agreement. If you do not intend to be bound to the terms of...
- Page 6 Datalogic or Datalogic's third party licensors and that the Software is protected by intellectual property laws and treaties. The license set forth in this Agreement does not transfer to End User any ownership of Datalogic' s or its third party licen- sors' copyrights, patents, trademarks, service marks, trade secrets, or other intel- lectual property rights and End User shall have no right to commence any legal actions to obtain such rights.
- Page 7 Street, Eugene, OR 97402. 7.2 In the defense or settlement of any such claim, Datalogic may, at its option, 1) procure for End User the right to continue using the Datalogic Product, 2) modify the Datalogic Product so that it becomes non-infringing, 3) replace the...
-
Page 8: Software Product Policy
Software Product Policy Datalogic ADC, Inc., 959 Terry Street, Eugene, OR 97402, or such other address as may be specified by Datalogic in writing. 11.3 Waiver. A party's failure to enforce any of the terms and conditions of this Agreement shall not prevent the party' s later enforcement of such terms and conditions. -
Page 9: Setting Up The Reader
QuickScan™ QM21X1 With rich feature sets and extensive options, the QuickScan™ product series from Datalogic represents the premium level of data collection equipment for general purpose applications. The QuickScan QM21X1 readers have enhanced optics with improved motion tolerance allowing codes placed on fast... -
Page 10: Locking The Reader To The Base
Setting Up the Reader Locking the Reader to the Base The Base Station provides a locking mechanism to ensure electrical contact between Reader and Base, in case of inad- vertent movements. Lock lever To Lock the Reader in the Base Insert the Reader into the Base. -
Page 11: Connecting The Base Station
Connecting the Base Station Engage the locking mechanism by pushing up the lever as far as it will go. Figure 2. Lever in locked position it is good practice to put the scanner in the locked condition at the end of the working shift, or when not in use for an extended period of time. -
Page 12: Base Station Connection And Routing
Connecting the Base Station Base Station Connection and Routing Remove the rubber Cable Stopper from the bottom of the Base Station. Securely plug the Power Cable (if used) and Interface (I/F) Cable connectors into their respective ports in the underside of the Base Station. Power Cable I/F Cable Cable Stopper... - Page 13 Connecting the Base Station Figure 3. Connecting the Base Station Wall plug Connector I/F Cable AC/DC Adapter DC Power Cord Base Station Host Connection — Verify before connection that the reader’s cable type is compatible with your host equipment. Most connections plug directly into the host device as shown Figure 4.
-
Page 14: System And Network Layout
Connecting the Base Station System and Network Layout Typical Setup with Cradle and Host Figure 5. Reader Layout Reader Host Base Station Power Supply Using the BC20XX™ Radio Base Radio Base LEDs LEDs on the QuickScan Base provide information about the Base as well as battery charging status, as shown in Figure Figure 6. -
Page 15: Charging The Battery Pack
Connecting the Base Station Table 1. Radio Base LEDs STATUS Yellow On = Base is powered Power on / Yellow Blinking = Base receives data and Data commands from the Host or the Reader. Charging Red On = the Battery is charging. Charge com- Green On = the Battery is completely pleted... -
Page 16: Replacing The Battery Pack
Connecting the Base Station Replacing the Battery Pack Using a coin or screwdriver, unscrew the captive screw located on the bottom of the scanner handle until the battery pack is disengaged. The battery pack will rise slightly in the rear, pushed by the contact springs. -
Page 17: Using The Quickscan™ Qm21X1
Using the Quickscan™ QM21X1 Using the Quickscan™ QM21X1 Bar Code Reading Point the reader at the target and pull the trigger to enable the illuminator (red beam) to decode the bar code label. The illuminator will remain on until the symbol is decoded. When scanning a bar code label, you can adjust the distance or angle to the label to help facilitate reading. -
Page 18: Linking The Reader
Data Editing and Symbologies chapters. The reader can also be configured with Datalogic Aladdin™ software (available on the Datalogic website). Aladdin pro- vides RS-232 interface configuration, as well as bar code printing. -
Page 19: Using Programming Bar Codes
Programming Using Programming Bar Codes This manual contains bar codes which allow you to reconfig- ure your reader. Some programming bar code labels, like the "Standard Product Default Settings" on page 11, require only the scan of that single label to enact the change. Other bar codes require the reader to be placed in Program- ming Mode prior to scanning them. -
Page 20: Selecting The Base Interface Type
Selecting the Base Interface Type Selecting the Base Interface Type Upon completing the physical connection between the base and its host, proceed directly to Interface Selection (below) for information and programming for the interface type the base is connected to (for example: RS-232, Keyboard Wedge, USB) and scan the appropriate bar code to select your system’s correct interface type. - Page 21 Select RS232-WN RS-232 for use with OPOS/UPOS/JavaPOS Select RS-232 OPOS USB COM to simulate RS-232 standard interface Select USB-COM-STD a. Download the correct USB COM driver from www.datalogic.com USB-OEM USB-OEM (can be used for OPOS/UPOS/JavaPOS) Select USB-OEM Quick Reference Guide...
-
Page 22: Keyboard Interface
Selecting the Base Interface Type Keyboard Interface Use the programming bar codes to select options for USB Keyboard and Wedge Interfaces. KEYBOARD AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/ Standard Key Encoding Select KBD-AT Keyboard Wedge for IBM AT PS2 with standard key encoding but without external keyboard Select KBD-AT-NK... - Page 23 Selecting the Base Interface Type KEYBOARD (continued) PC/XT w/Standard Key Encoding Select KBD-XT Keyboard Wedge for IBM Terminal 3153 Select KBD-IBM-3153 Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make only keyboard Select KBD-IBM-M Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make break keyboard Select KBD-IBM-MB USB Keyboard with alternate key encoding...
-
Page 24: Scancode Tables
Selecting the Base Interface Type KEYBOARD (continued) USB Keyboard for Apple computers Select USB-KBD-APPLE Keyboard Wedge for DIGITAL Terminals VT2xx, VT3xx, VT4xx Select KBD-DIG-VT USB Keyboard with standard key encoding Select USB Keyboard Scancode Tables Reference the QuickScan QM21X1 ™ PRG for information about control character emulation which applies to keyboard interfaces. - Page 25 Selecting the Base Interface Type All other interfaces support ONLY the following Country Modes: U.S., Belgium, Britain, France, Germany, Italy, Spain, Sweden. COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Country Mode = U.S. Country Mode = Belgium Country Mode = Britain Country Mode = Croatia* Country Mode = Czech Republic* *Supports only the interfaces listed in the Country Mode feature description Quick Reference Guide...
- Page 26 Selecting the Base Interface Type COUNTRY MODE (continued) Country Mode = Denmark* Country Mode = France Country Mode = French Canadian Country Mode = Germany Country Mode = Hungary* Country Mode = Italy *Supports only the interfaces listed in the Country Mode feature description QuickScan™...
- Page 27 Selecting the Base Interface Type COUNTRY MODE (continued) Country Mode = Japanese 106-key* Country Mode = Lithuanian Country Mode = Norway* Country Mode = Poland* Country Mode = Portugal* Country Mode = Romania* Country Mode = Slovakia* *Supports only the interfaces listed in the Country Mode feature description Quick Reference Guide...
- Page 28 Selecting the Base Interface Type COUNTRY MODE (continued) Country Mode = Spain Country Mode = Sweden Country Mode = Switzerland* *Supports only the interfaces listed in the Country Mode feature description QuickScan™ QM21X1...
-
Page 29: Caps Lock State
Selecting the Base Interface Type Caps Lock State This option specifies the format in which the reader sends character data. This applies to keyboard wedge interfaces. This does not apply when an alternate key encoding keyboard is selected. CAPS LOCK STATE ENTER/EXIT PROGRAMMING MODE Caps Lock State = Caps Lock OFF Caps Lock State = Caps Lock ON... -
Page 30: Numlock
Selecting the Base Interface Type Numlock This option specifies the setting of the Numbers Lock (Num- lock) key while in keyboard wedge interface. This only applies to alternate key encoding interfaces. It does not apply to USB keyboard. NUMLOCK ENTER/EXIT PROGRAMMING MODE Numlock = Numlock key unchanged Numlock = Numlock key toggled QuickScan™... -
Page 31: Good Read Green Spot Duration
Selecting the Base Interface Type Good Read Green Spot Duration Successful reading can be signaled by a good read green spot. Use the bar codes below to specify the duration of the good read pointer beam after a good read. GOOD READ GREEN SPOT DURATION ENTER/EXIT PROGRAMMING MODE Green Spot Duration = Disable (Green Spot is Off) -
Page 32: Scan Modes
Scan Modes Scan Modes The imager can operate in one of several scanning modes. Trigger Single — When the trigger is pulled, scanning is acti- vated until one of the following occurs: • a programmable duration has elapsed • a label has been read •... - Page 33 Scan Modes SCAN MODE ♦ Scan Mode = Trigger Single Scan Mode = Trigger Hold Multiple Scan Mode = Trigger Pulse Multiple $CSNRM03 Scan Mode = Flashing Scan Mode = Always On Scan Mode = Stand Mode Quick Reference Guide...
-
Page 34: Technical Specifications
Technical Specifications Technical Specifications The following table contains Physical and Performance Char- acteristics, User Environment and Regulatory information. Physical Characteristics Color Black or White Height 6.4”/163 mm Dimensions Length 3.6”/91 mm Width 1.6”/41 mm Weight Reader - 6.7 ounces (190 g) (approximate, without Cradle - 7.6 ounces (215 g) cable) - Page 35 Technical Specifications Performance Characteristics Light Source LEDs Roll (Tilt) Angle Up to ± 45° Pitch Angle ± 65° Skew (Yaw) Angle ± 70° 56°± 2° Field of View a. Charge Times are much lower when battery is within daily typical operating condition.
- Page 36 128 ISBT; Interleaved 2 of 5; Standard 2 of 5; Interleaved 2 of 5 CIP (HR); Industrial 2 of 5; Discrete 2 of 5; Datalogic 2 of 5 (China Post Code/Chi- nese 2 of 5); IATA 2of5 Air cargo code; Code 11; Codabar; Codabar (NW7);...
- Page 37 Technical Specifications Ambient Light Up to 120,000 Lux Immunity Contaminants Spray/rain Dust/ IEC 529-IP42 (scanner only) particulates ESD Level 16 kV (Air Discharge) a. See "Interface Selection" on page 12 for a listing of available interface sets by version type. Regulatory Electrical Safety UL 60950, CSA C22.2 No.
-
Page 38: Led And Beeper Indications
LED and Beeper Indications LED and Beeper Indications The reader’s beeper sounds and its LED illuminates to indi- cate various functions or errors on the reader. An optional “Green Spot” also performs useful functions. The following tables list these indications. One exception to the behaviors listed in the tables is that the reader’s functions are program- mable, and so may or may not be turned on. - Page 39 LED and Beeper Indications Indication Description Beeper Upon successful read of a label, the Green Spot software shall turn flashes the green spot on momentarily for the time speci- fied by the config- ured value. Except when in sleep mode or when a Good Read LED Duration other than 00 is selected Programming Mode - The following indications ONLY occur when...
-
Page 40: Error Codes
Error Codes Error Codes Upon startup, if the reader sounds a long tone, this means the reader has not passed its automatic Selftest and has entered FRU (Field Replaceable Unit) isolation mode. If the reader is reset, the sequence will be repeated. The following table describes the LED flashes/beep codes associated with an error found. -
Page 41: Datalogic Adc Limited Factory Warranty
(“Datalogic”) hardware products are warranted against defects in material and workmanship under normal and proper use. The liability of Datalogic under this warranty is limited to furnishing the labor and parts necessary to remedy any defect covered by this warranty and restore the product to its normal operating condition. -
Page 42: Warranty Exclusions
Datalogic shall pay for the return of the product to Customer if the shipment is to a loca- tion within the country in which the Datalogic service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations. -
Page 43: Risk Of Loss
Risk of Loss Customer shall bear risk of loss or damage for product in transit to Datalogic. Datalogic shall assume risk of loss or damage for product in Datalogic’s possession. In the absence of specific written instructions for the return of product to... - Page 44 Ergonomic Recommendations Ergonomic Recommendations To avoid or minimize potential risk of ergo- nomic injury follow the recommendations below. Consult with your local Health & Safety Manager to ensure you are adhering to your company’s safety programs prevent CAUTION employee injury. •...
- Page 45 Ergonomic Recommendations Cleaning Exterior surfaces and scan windows exposed to spills, smudges or debris require periodic cleaning to ensure best performance during scanning. Contacts on the scanner and base should also be cleaned as needed to ensure a good con- nection.
- Page 46 Services and Support Services and Support Datalogic provides several services as well as technical sup- www.datalogic.com port through its website. Log on to click on the links indicated for further information. Products Search to find your product page where you can download Manuals Software &...
