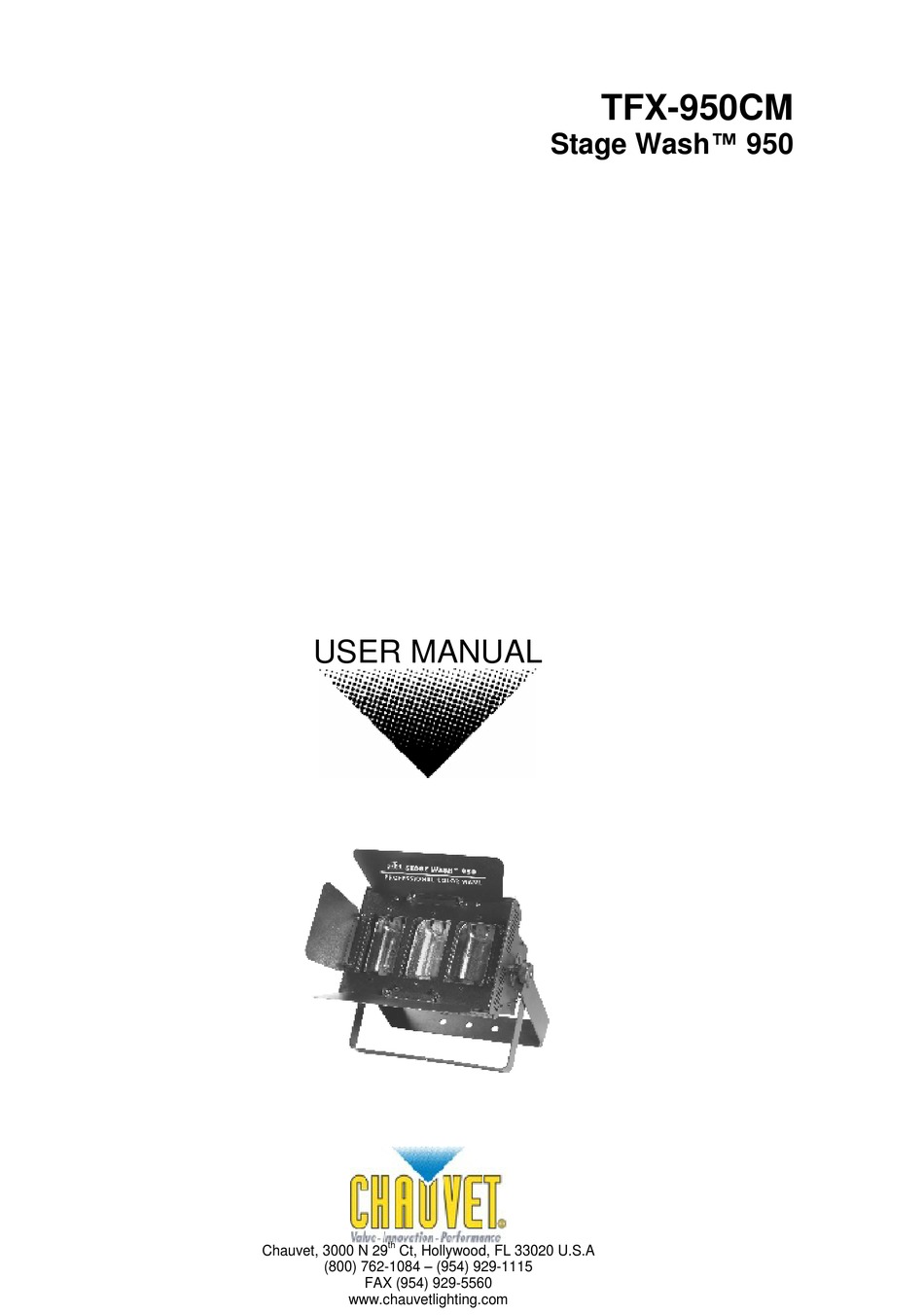

Page 1: User Manual
TFX-950CM Stage Wash™ 950 USER MANUAL Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com... -
Page 2: Table Of Contents
C&B Mode (Color and Brightness)... 13 RGB and Chase Mode... 13 ) ... 14 OLOR ABLE RESET ... 18 AINTENANCE ... 19 ETURNS ROCEDURE ... 19 LAIMS ... 20 ENERAL ROUBLESHOOTING ... 21 ECHNICAL PECIFICATIONS TFX-950CM User Manual Revision: 2006-01-20/16:37... -
Page 3: Before You Begin
EFORE EGIN What is included 1 x Stage Wash™ 950CM (TFX-950CM) Power cord with plug 3 x EHM 300w 120v or 3 x EHM2 300w 230v lamps Warranty Card & Manual Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. -
Page 4: Introduction
C&B (Color & Brightness) Mode Channel Function Color Selection Dimmer Combined RGB & Chase Mode Channel Function Control Mode Red or Dimming Green or Fade Blue or Speed For complete channel listing see DMX Values in the Appendix section. TFX-950CM User Manual Revision: 2006-01-20/16:37... -
Page 5: Product Overview
Control panel buttons DMX Input Sound connector sensitivity knob DMX Output Foot controller connector connector for TFX-SWF TFX-950CM User Manual DMX channel values and brief instructions Built in Voltage microphone Selector Switch IEC power Fuse connector for compartment power cable... -
Page 6: Setup
Before applying power to a fixture, check that the source voltage matches the fixture’s requirement. All fixtures must be connected to circuits with a suitable Earth Ground. TFX-950CM User Manual TFX-950CM Lamp Installation Remove these 2 screws Lamps exposed Slide switch up or down depending on your line voltage. -
Page 7: Mounting
DO U BL E BR AC K ET Y O K E ( F LO O R ST AN D) The TFX-950CM can also be positioned on the floor using its double bracket yoke. This product gets extremely hot under normal operation and you should take extreme care to avoid any contact what so ever with the fixture while in use. -
Page 8: Operating Instructions
PERATING NSTRUCTIONS Operating Modes The TFX-950CM can be operated in three ways. A stand-alone mode will listen to sound and run through its diverse range of built in programs. An optional TFX-SWF wired controller provides simple remote control. ... -
Page 9: Master/Slave
There are three different DMX channel configurations on the Stage Wash. Each mode or configuration allows the user to control the fixure in a different manner using a universal DMX controller. TFX-950CM User Manual Daisy Chain Connection A:0:0:1 AUDIO DMX Signal Received MODE... - Page 10 Repeat step 1 until both the RGB&D and the C&B led turn on. The display will now read parameter A: which represents the DMX channel address value. Use the UP and DOWN buttons to change values. TFX-950CM User Manual Operating Instructions Channel Function...
-
Page 11: Tfx-Swf Easy Controller (Optional)
TFX-CONPK Stage Wash™ Controller Pack (Optional) The TFX-CONPK is a package that includes the TFX-32CON which is an enhanced dedicated controller for the TFX-950CM, TFX-64CM and TFX-1550CM fixtures. The TFX-32F foot controller is also included for hands-free operation. The TFX-32CON provides the following features: ... -
Page 12: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) -
Page 13: Dmx Channel Values
RGB Mode 8 Built-in Programs (Auto) 8 Built-in Programs (Sound) Chase (Auto) Chase (Sound) 40 Color Chase (Auto) 40 Color Chase (Sound) TFX-950CM User Manual Function Notes Intensity: 0% ~ 100% Green Intensity: 0% ~ 100% Blue Intensity: 0% ~ 100% Dimmer 0 ... -
Page 14: Mix Table (Preset )
Color Mix Table (Preset) DMX Value Red Intensity 0% ~ 100% TFX-950CM User Manual Green Intensity Blue Intensity Notes 0% ~ 100% 0% ~ 100% Blackout Red @ Full only Red @ Full Proportional Green Red & Green @ Full... - Page 15 TFX-950CM User Manual Green @ Full Proportional Red Green @ Full only Green @ Full Proportional Blue Green & Blue @ Full Blue @ Full Proportional Green Appendix Revision: 2006-01-20/16:37...
- Page 16 TFX-950CM User Manual Blue @ Full Proportional Green Blue @ Full only Blue @ Full Proportional Red Red & Blue @ Full Red @ Full Proportional Blue Appendix Revision: 2006-01-20/16:37...
- Page 17 TFX-950CM User Manual Red @ Full Proportional Blue Red @ Full Proportional Green and Blue Red & Blue @ Full, Green @ Blue @ Full Proportional Red and Green Green & Blue @ Full, Red @ Green @ Full Proportional Red and Blue...
-
Page 18: Maintenance
Clean with soft cloth using normal glass cleaning fluid. - Always dry the parts carefully. - Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days. TFX-950CM User Manual Blue @ Full... -
Page 19: Returns Procedure
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 20: General Troubleshooting
Check cable connections Remote does not work Make sure connector is firmly connected to device Stand alone mode All Chauvet lighting fixtures featuring stand-alone functions do not require additional settings, simply power the fixture and it will automatically enter into this mode... -
Page 21: Technical Specifications
Data pin configuration ...pin 1 shield, pin 2 (-), pin 3 (+) Protocols...DMX-512 USITT DMX Channels ...2 to 4 ORDERING INFORMATION Stage Wash™ 950 ... TFX-950CM Stage Wash™ Controller Pack... TFX-CONPK CA-32F Colormix foot Controller... TFX-SWF Fuse 2A ... P170FUSE002 Fuse 10A ...
