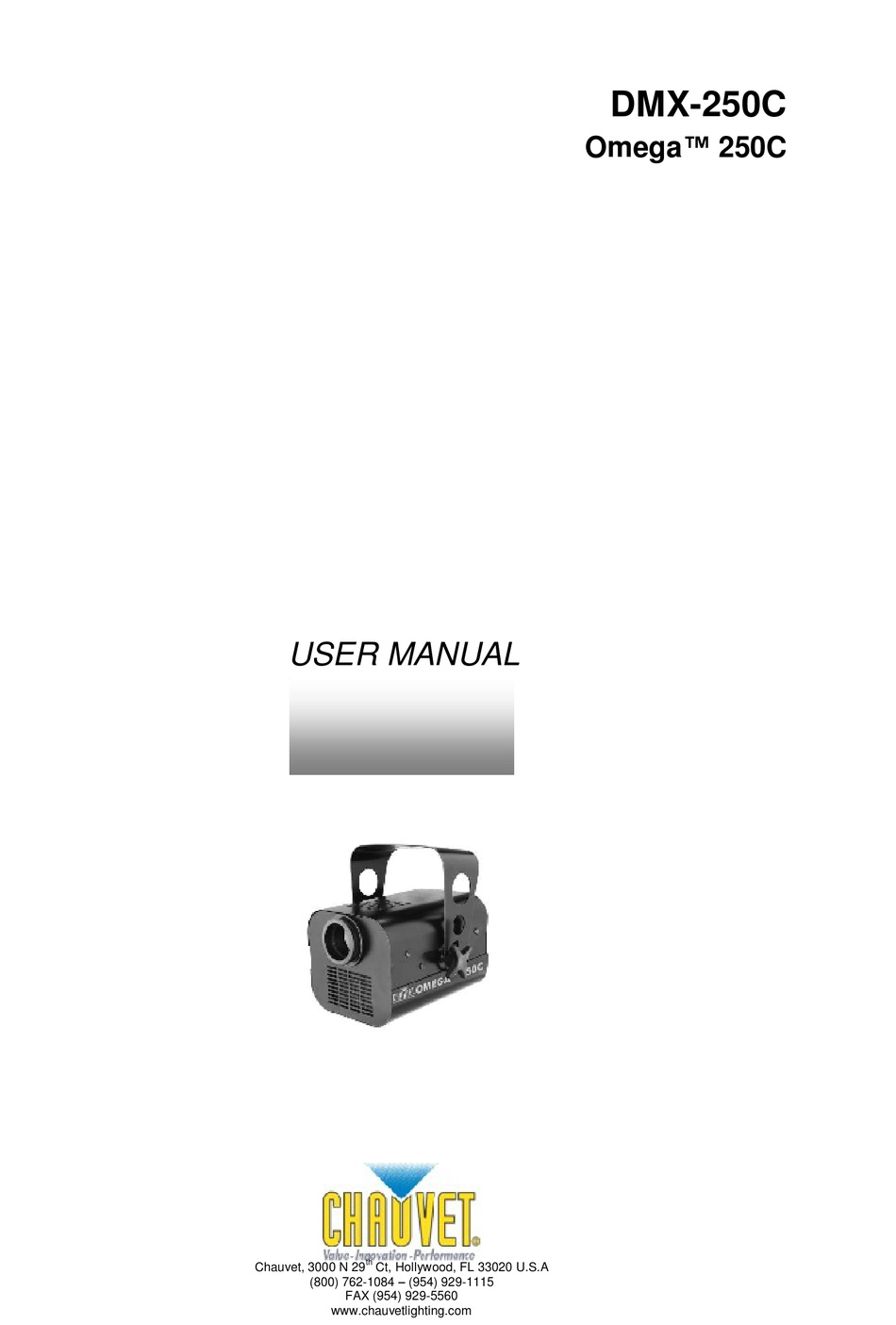

Page 1: User Manual
DMX-250C Omega™ 250C USER MANUAL Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com... -
Page 2: Table Of Contents
DMX P ... 11 RIMER Fixture Linking ... 11 DMX C ... 12 HANNEL ALUES ... 13 AINTENANCE ... 13 ETURNS ROCEDURE ... 13 LAIMS ... 14 ENERAL ROUBLESHOOTING ... 15 ECHNICAL PECIFICATIONS DMX-250C User Manual Revision: 5/17/2005 10:49 PM... -
Page 3: Before You Begin
EFORE EGIN What is included Omega™ 250C (DMX-250C) Power cord with plug ELC 24V 250W MR-16 lamp Diffusion filter an O-ring locking attachment (Installed) Manual with Warranty Card Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. -
Page 4: Introduction

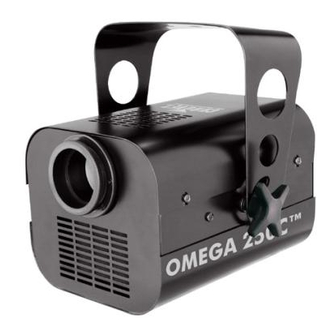

NTRODUCTION The Omega™ 250C DMX-250C brings the latest automated intelligent lighting technology to a super compact and affordable fixture. The Omega™ 250C features a super bright 250 watt halogen bulb encased in a highly optimized dichroic reflector ensuring optimum lamp performance. DMX-512 control means total control of your light show and an internal microphone enables sound activated programs to perform seamlessly. -
Page 5: Product Overview
Voltage Selector Choose either 115V or 230V operation Top Cover also Lamp cover Manual Focus Lens Gun Removable Diffusion Filter DMX-250C User Manual Safety Hook Attach safety cable to this hook Hanging Bracket (Yoke) Yoke tensioning knob Revision: 5/17/2005 10:49 PM... -
Page 6: Setup
Before applying power to a fixture, check that the source voltage matches the fixture’s requirement. All fixtures must be connected to circuits with a suitable Earth Ground. DMX-250C User Manual Unit with top cover removed and lamp exposed Slide switch up or down depending on your line voltage. -
Page 7: Mounting
Remove the damaged fuse from its holder and replace with exact same type fuse. Insert the fuse holder back in its place and reconnect power. DMX-250C User Manual always replace with the same type fuse. The fuse is located inside this compartment. -
Page 8: Operating Instructions
PERATING NSTRUCTIONS Operating Modes The Omega™ 250C DMX-250C can be operated in three ways. A stand-alone mode will listen to sound and run through its diverse range of built in programs. Master/Slave mode will allow the command of up to as many units you want in a synchronized light show to the sound. -
Page 9: Master/Slave Show Customization
Set the start address using the group of DIP switches located usually on bottom of the fixture. Each dip switch has an associated value. Adding the value of each switch in the ON position will provide DMX-250C User Manual Operating Instructions... - Page 10 = 24 Resolving address using simple math. Address 233 DMX-250C User Manual HE CHANNEL ADDRESSES WERE SELECTED AT RANDOM YOUR FIXTURES FOLLOWING A NUMERICAL ORDER 233 – (128) = 105, Turn ON Dip # 8 105 – (64) = 41, Turn ON Dip # 7 41 –...
-
Page 11: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) -
Page 12: Dmx Channel Values
DMX Channel Values Channel DMX-250C User Manual Value Function Speed 000 219 Fast > Slow 220 239 Sound activated mode; Slow 240 255 Sound activated mode; Fast Color 000 009 Closed 010 019 White/Open 020 029 Magenta 030 ... -
Page 13: Maintenance
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 14: General Troubleshooting
Remote does not work Make sure connector is firmly connected to device Stand alone mode All Chauvet lighting fixtures featuring stand-alone functions do not require additional settings, simply power the fixture and it will automatically enter into this mode DMX-250C User Manual... -
Page 15: Technical Specifications
Data output ... locking 3-pin XLR female socket Data pin configuration... pin 1 shield, pin 2 (-), pin 3 (+) Protocols ...DMX-512 USITT DMX Channels... 4 ORDERING INFORMATION Omega™ 250C... DMX-250C Fuse ...P170FUSE003 DMX-250C User Manual Revision: 5/17/2005 10:49 PM Appendix...
