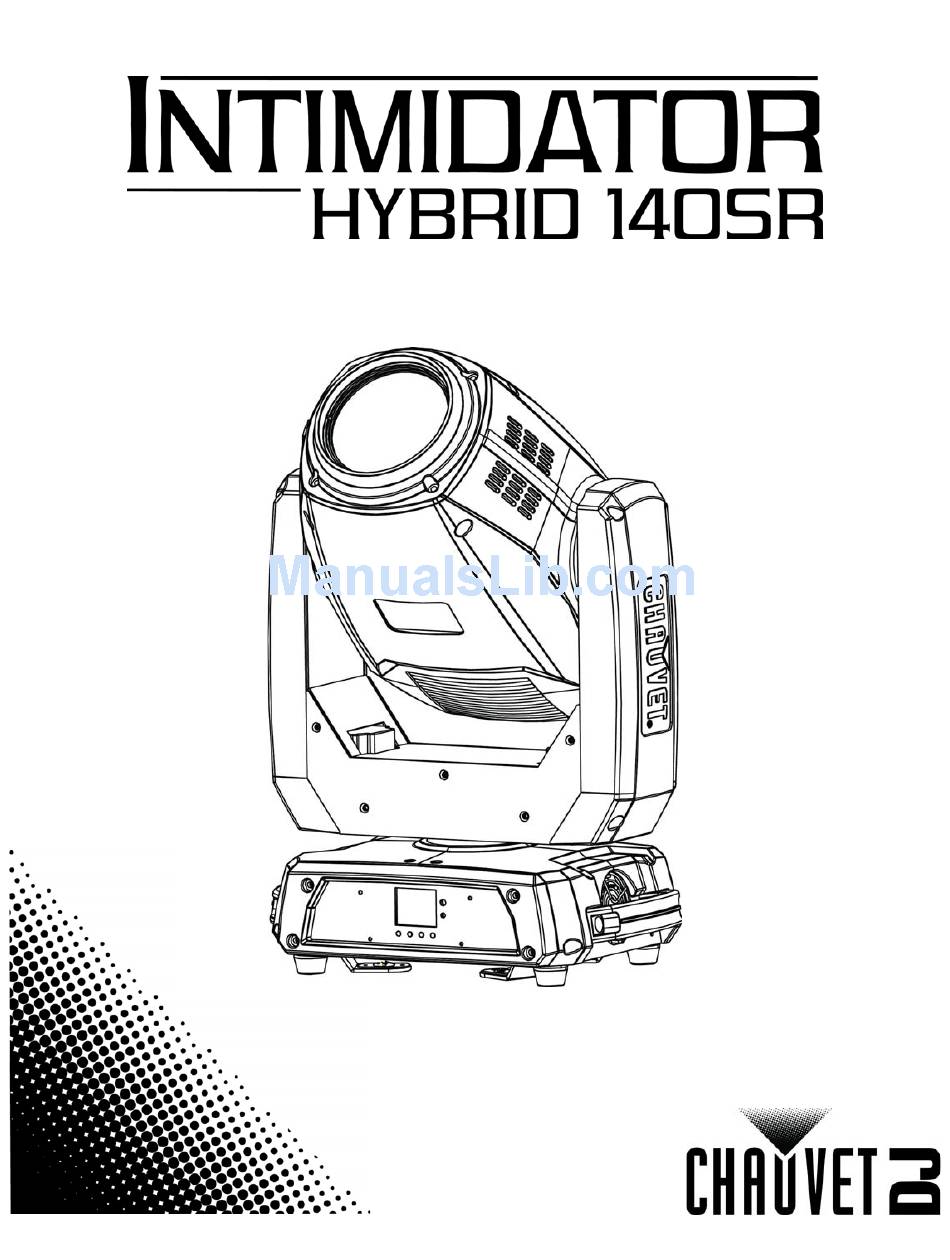

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    On if DMX is On....................... 19 Off if DMX is Off....................... 19 Ignition Delay at Power On ..................19 Low Power Delay with Shutter Closed..............20 Reset Lamp Timer ....................20 Lamp Power ......................20 Intimidator Hybrid 140SR User Manual Rev. 2...
  • Page 3 IRC-6 Operation ....................Master/Slave Mode ..................Zero Adjust Mode..................5. Maintenance................Product Maintenance ..................Lamp Replacement ..................Procedure......................Maintaining Lamp Lifespan ................Lamp Adjustment ..................6. Technical Specifications ............Returns.................... Contact Us ..................Intimidator Hybrid 140SR User Manual Rev. 2...

  • Page 4: Before You Begin

    Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetdj.com.

  • Page 5: Product At A Glance

    Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Intimidator Hybrid 140SR User Manual Rev. 2 Page 2 of 29...

  • Page 6: Introduction

    NTRODUCTION 2. I NTRODUCTION Product Overview Moving Head Yoke Infrared Sensor Indicator Carry Handles Safety Menu Power Power Fuse Display Loop Buttons Holder In/Out Product Dimensions 20.2 in 513 mm 8.6 in 12.6 in 220 mm 322 mm Page 3 of 29 Intimidator Beam 140SR User Manual Rev.

  • Page 7: Setup

    ETUP AC Power The Intimidator Hybrid 140SR has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.

  • Page 8: Mounting

    Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Intimidator Hybrid 140SR may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming purposes.

  • Page 9: Operation

    Selects the 360° pan angle range Selects the 180° pan angle range Selects the 270° tilt angle range Tilt Angle Selects the 180° tilt angle range Selects the 90° tilt angle range Intimidator Hybrid 140SR User Manual Rev. 2 Page 6 of 29...
  • Page 10 Lamp On Time _ _ _ _ _ Displays how long the lamp has been running Remain Time _ _ _ _ _ Displays time remaining in maintenance cycle Page 7 of 29 Intimidator Hybrid 140SR User Manual Rev. 2...

  • Page 11: Configuration (Dmx)

    PERATION Configuration (DMX) The Intimidator Hybrid 140SR works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads/ DMX_Primer_rev05_WO.pdf. Starting Address When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses.

  • Page 12: Dmx Channel Assignments And Values

    053 Cool White  059 Ultraviolet  187 Color indexing  219 Color cycling rainbow, fast to slow  223 Stop  255 Reverse color cycling rainbow, slow to fast  Page 9 of 29 Intimidator Hybrid 140SR User Manual Rev. 2...
  • Page 13 114 Gobo 1 shake, slow to fast  127 Open  189 Cycle effect, fast to slow  193 Stop  255 Reverse cycle effect, slow to fast  Intimidator Hybrid 140SR User Manual Rev. 2 Page 10 of 29...
  • Page 14 010 No function  Auto Focus 127 Auto focus Gobo 1  255 Auto focus Gobo 2  Zoom 255 Zoom out to zoom in  Frost 255 0–100%  Page 11 of 29 Intimidator Hybrid 140SR User Manual Rev. 2...
  • Page 15 143 Prism reset  151 Focus and zoom reset  159 All reset  167 Shutter reset  231 No function  239 Lamp Off  255 No function  Intimidator Hybrid 140SR User Manual Rev. 2 Page 12 of 29...

  • Page 16: 13Ch

    053 Cool White  059 Ultraviolet  187 Color indexing  219 Color cycling rainbow, fast to slow  223 Stop  255 Reverse color cycling rainbow, slow to fast  Page 13 of 29 Intimidator Hybrid 140SR User Manual Rev. 2...
  • Page 17 114 Gobo 1 shake, slow to fast  127 Open  189 Cycle effect, fast to slow  193 Stop  255 Reverse cycle effect, slow to fast  Intimidator Hybrid 140SR User Manual Rev. 2 Page 14 of 29...
  • Page 18 010 No function  Auto Focus 127 Auto focus Gobo 1  255 Auto focus Gobo 2  Zoom 255 Zoom out to zoom in  Frost 255 0–100%  Page 15 of 29 Intimidator Hybrid 140SR User Manual Rev. 2...

  • Page 19: Configuration (Standalone)

    Press <ENTER>. Use <UP> or <DOWN> to select Sound. Press <ENTER>. Sound Sensitivity To change the sound sensitivity on the Intimidator Hybrid 140SR, follow the instructions below: Press <MENU>. Use <UP> or <DOWN> to select Setup. Press <ENTER>. Use <UP> or <DOWN> to select Sensitivity.

  • Page 20: Manual Mode

    10. Repeat steps 6-9 until the product is set as desired. Configuration (Settings) Pan Reverse To set the pan orientation on the Intimidator Hybrid 140SR, follow the instructions below: Press <MENU>. Use <UP> or <DOWN> to select Setup. Press <ENTER>.

  • Page 21: Tilt Angle

    Use <UP> or <DOWN> to select OFF or ON. Press <ENTER>. Lamp State at Power On To define whether the lamp should be on or off when powering on the Intimidator Hybrid 140SR, do the following: Press <MENU>. Use <UP> or <DOWN> to select Setup.

  • Page 22: Lamp Control Via Dmx

    Use <UP> or <DOWN> to select NO or YES. Press <ENTER>. On if DMX is On To set the Intimidator Hybrid 140SR lamp to be on when a DMX signal is present, do the following: Press <MENU>. Use <UP> or <DOWN> to select Setup.

  • Page 23: Low Power Delay With Shutter Closed

    Press <ENTER>. Lamp Power The Intimidator Hybrid 140SR can operate with either a 132 W Osram HRI lamp, or a 140 W Osram HRI lamp. To set the Intimidator Hybrid 140SR in the correct mode for the installed lamp, follow the instructions below: Press <MENU>.

  • Page 24: Reset Maintenance Timer

    Press <ENTER>. Use <UP> or <DOWN> to select Reset. Press <ENTER>. Factory Reset To restore the Intimidator Hybrid 140SR to factory default settings, follow the instructions below: Press <MENU>. Use <UP> or <DOWN> to select Setup. Press <ENTER>. Use <UP> or <DOWN> to select Factory Set.

  • Page 25: Irc-6 Infrared Remote Control

    PERATION IRC-6 Infrared Remote Control The Intimidator Hybrid 140SR is compatible with the IRC-6 infrared remote control from Chauvet. To set the Intimidator Hybrid 140SR to IR mode, follow the instructions below: Press <MENU>. Use <UP> or <DOWN> to select Run Mode.

  • Page 26: Master/Slave Mode

    The Master/Slave mode allows a single Intimidator Hybrid 140SR product (the “master”) to control the actions of one or more Intimidator Hybrid 140SR products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in either Stand-Alone mode or with the IRC-6, while the slave products will be set to operate in Slave mode.

  • Page 27: Zero Adjust Mode

    PERATION Zero Adjust Mode The Intimidator Hybrid 140SR contains a passcode protected mode which allows the user to calibrate and adjust several of the product’s operating parameters. In order to access this mode, do the following: Press and hold <MENU> for at least 3 seconds.

  • Page 28: Maintenance

    Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Lamp Replacement The Intimidator Hybrid 140SR is equipped with a 140 W Osram HRI discharge lamp. Follow the procedure below to safely replace the lamp. •...

  • Page 29: Maintaining Lamp Lifespan

    Reverse the procedure to install the new lamp. Ensure the lamp is centered in the assembly. Maintaining Lamp Lifespan Observe the following to preserve the quality and lifespan of the Intimidator Hybrid 140SR lamp: ALWAYS turn the lamp off by using the DMX controller or the product’s control panel, then wait at least 5 minutes before switching off the product.

  • Page 30: Technical Specifications

    EMPERATURE OOLING YSTEM 104 °F (40 °C) Fan-assisted convection I/O C ONNECTOR HANNEL ANGE 3-pin XLR 13 or 19 Ordering UPC N RODUCT UMBER Intimidator Hybrid 140SR 08011242 781462215903 Page 27 of 29 Intimidator Hybrid 140SR User Manual Rev. 2...

  • Page 31: Returns

    Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number. Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on the box.

  • Page 32: Contact Us

    Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details. Page 29 of 29 Intimidator Hybrid 140SR User Manual Rev. 2...
