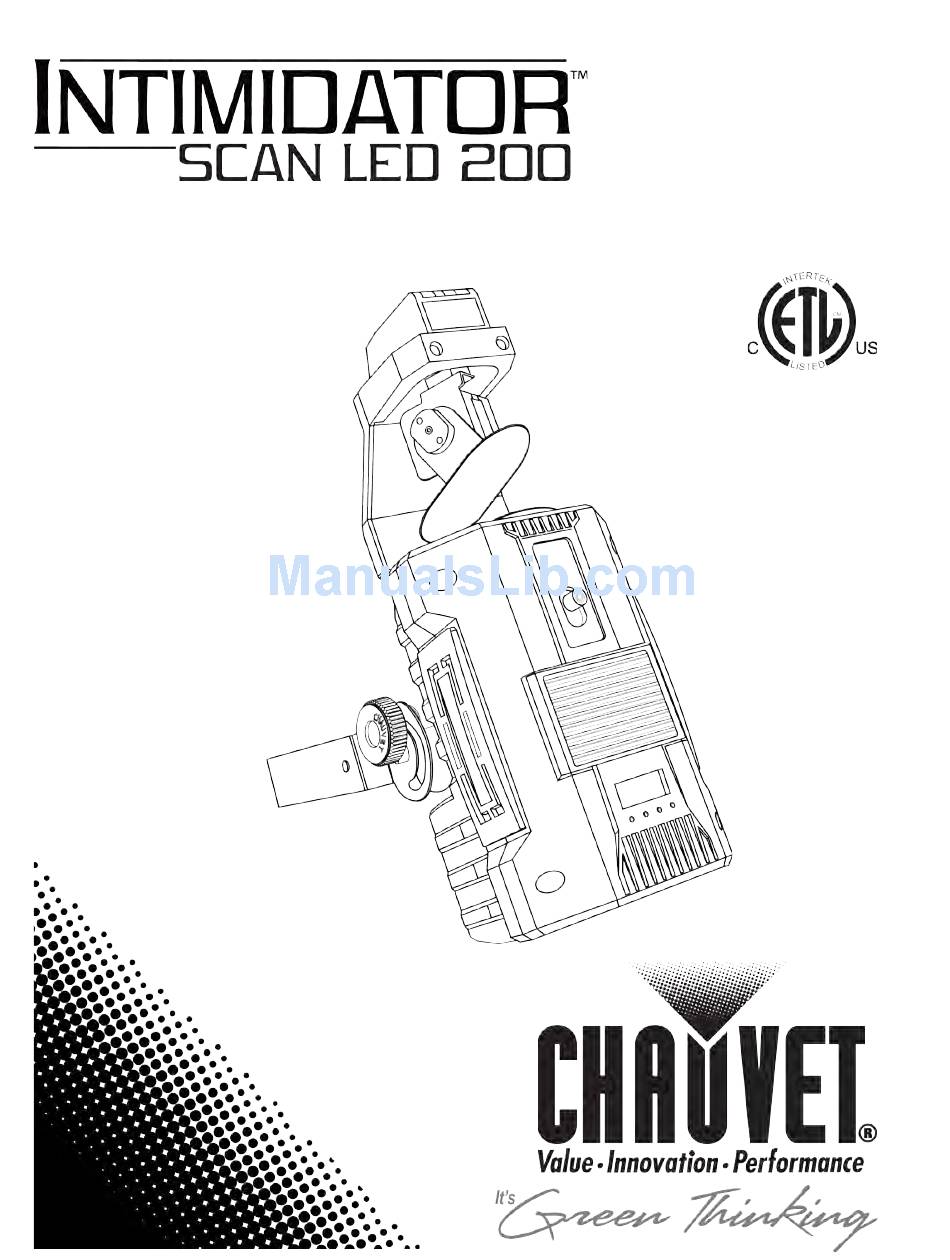

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before you Begin ... 3 What is Included ... 3 Unpacking Instructions ... 3 Text Conventions ... 3 Icons ... 3 Document Information ... 3 Product at a Glance ... 4 Safety Notes ... 4 2. Introduction... 5 Product Overview ... -
Page 3: Before You Begin
Document Information The information and specifications contained in this document are subject to change without notice. CHAUVET® assumes no responsibility or liability for any errors or omissions that may appear in this manual. © Copyright 2011 CHAUVET®. All rights reserved Printed in P.R.C. -
Page 4: Product At A Glance
Product at a Glance Use on Dimmer Outdoor Use Sound Activated Master/Slave Safety Notes Please read the following notes carefully because they include important safety information about the installation, usage, and maintenance of this product. · Keep this User Manual for future consultation. If you sell this product to another user, be sure that they also receive this document. -
Page 5: Introduction
2. I NTRODUCTION Product Overview Fuseholder Microphone DMX In Power Out DMX Out Power In Intimidator™ Scan LED 200 User Manual (Rev. 02a) Page 5 of 22... -
Page 6: Product Dimensions
Product Dimensions Page 6 of 22 Intimidator™ Scan LED 200 User Manual (Rev. 02a) -
Page 7: Setup
3. S ETUP AC Power This product has an auto-ranging power supply and it can work with an input voltage range of 100~240 VAC, 50/60 Hz. To determine the power requirements for a particular fixture, see the label affixed to the back plate of the fixture or refer to the fixture’s specifications chart. -
Page 8: Power Linking
The power linking diagram shown above corresponds to the North American version of this product ONLY! If using this product in other markets, you must consult with the local CHAUVET® distributor as power linking connectors and requirements may differ in your country or region. -
Page 9: Mounting
Mounting Orientation The Intimidator™ Scan LED 200 may be mounted in any position, provided there is adequate room for ventilation around it. Rigging Before deciding on a location for this product, always make sure that it will be easy to access the unit for maintenance and programming purposes. -
Page 10: Operation
4. O PERATION Control Panel Operation To access the control panel functions, use the four buttons located underneath the display. Button <MODE/ESC> <UP> <DOWN> <ENTER> Menu Map Menu DMX Address Standalone Mode Pan Invert Tilt Invert Display Invert Personality Reset Load Default Page 10 of 22 Function... -
Page 11: Dmx Operation
DMX Operation Set this product in DMX mode to control it with a DMX controller. 1) Connect this product to a suitable power outlet. 2) Turn this product on. 3) Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket of this product. -
Page 12: Standalone Operation
Standalone Operation Master/Slave Mode (Sound-Active, Auto Mode) This mode allows a single unit, the master, to operate in one of the standalone modes, while one or more fixtures, slaves, synchronize their responses to the master. Master: The master fixture may be set in any of the STANDALONE modes: sound-active, fast, or slow. -
Page 13: Service Mode
Service Mode Hidden Menu Map This fixture has a hidden menu. The purpose of this menu is to adjust the home position (electronic adjustment) of the attributes listed below. Main Function P128 t128 9128 C128 H128 Y128 Please see the instructions below to access this hidden menu: 1) Press <... -
Page 14: Dmx Channel Assignments And Values
DMX Channel Assignments and Values 8-Channel Mode Channel Tilt Color Shutter Dimmer Gobo Wheel Page 14 of 22 Function Value Setting 000 ó 255 0°~180° 000 ó 255 0°~90° 000 ó 007 Open (white) 008 ó 015 Dark Blue 016 ó 023 Yellow 024 ó... - Page 15 8-Channel Channel Mode (Cont.) Function Movement Macros Intimidator™ Scan LED 200 User Manual (Rev. 02a) Continued from previous page Function Value Setting 000 ó 007 No function 008 ó 015 Pan/tilt move-in-black 016 ó 023 Pan/tilt move-in-black (disable) 024 ó 031 Color wheel move-in-black 032 ó...
-
Page 16: 5-Channel Mode
5-Channel Mode Channel Tilt Color Shutter Gobo Wheel Page 16 of 22 Function Value Setting 000 ó 255 0°~180° 000 ó 255 0°~90° 000 ó 007 Open (white) 008 ó 015 Dark Blue 016 ó 023 Yellow 024 ó 031 Pink 032 ó... -
Page 17: Technical Information
5. T ECHNICAL NFORMATION General Maintenance Dust build up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life or mechanical wear. To maintain optimum performance and minimize wear, you should clean your lighting fixtures at least twice a month. -
Page 18: General Troubleshooting
Product does not power up Fixture does not respond to DMX Intermittent DMX Problems If you still experience problems after trying the above solutions, contact CHAUVET® Technical Support. Page 18 of 22 Possible Cause · · Excessive load on the circuit ·... -
Page 19: Returns Procedure
Be sure to pack the fixture properly. Any shipping damage resulting from inadequate packaging will be the customer’s responsibility. As a suggestion, proper UPS packing or double-boxing is always a safe method to use. CHAUVET® reserves the right to use its own discretion to repair or replace returned product(s). Claims The carrier is responsible for any damage incurred during shipping to this product or any part that shipped with it. -
Page 20: Dmx Primer
DMX Primer The USITT DMX512-A data transmission protocol (DMX, from now on) is based on the EIA-485 standard and it has 512 channels (001 to 512). This system requires a controller (DMX controller), one or more DMX compatible fixtures, and a DMX circuit (also known as “DMX universe”) to link the fixtures to the controller. -
Page 21: Dmx Cabling
You can purchase CHAUVET® certified DMX cables directly from a dealer/distributor or make your own DMX cable. If you choose to make your own DMX cable, you must use a data-grade cable such... -
Page 22: Technical Specifications
6. T ECHNICAL PECIFICATIONS Dimensions and Weight Length 13.2 in (335 mm) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Switching (internal) Parameter Consumption Operating Power linking Power I/O Power input connector Power output connector Power Cord plug Light Source White LED...
