Greenlee 3561 Instruction Manual

Speed booster for the ultra tugger
Hide thumbs
Table of Contents

Advertisement

Quick Links

INSTRUCTION MANUAL
NRTL/C
LR 91904-8
03561

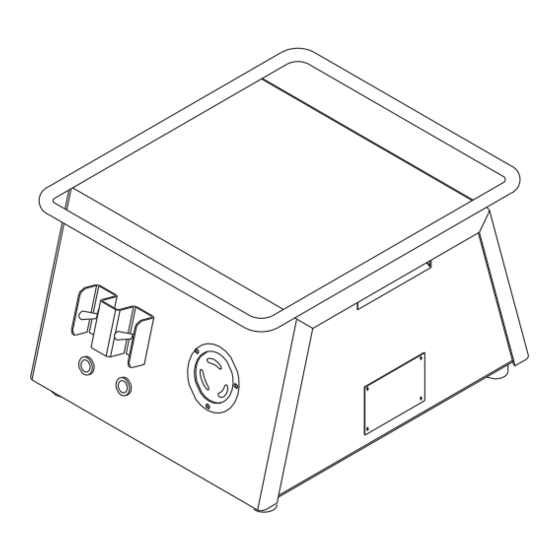

Speed Booster
for the Ultra Tugger
®
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
99923394
© 2008 Greenlee Textron Inc.
IM 1316 REV 7 2/08

Advertisement

Table of Contents
loading

Related Manuals for Greenlee 3561

Summary of Contents for Greenlee 3561

  • Page 1 LR 91904-8 03561 Speed Booster for the Ultra Tugger ® Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 99923394 © 2008 Greenlee Textron Inc. IM 1316 REV 7 2/08...

  • Page 2: Safety Information

    Ultra Tugger can still be used without the Speed Booster. All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products. KEEP THIS MANUAL 4455 Boeing Dr.

  • Page 3: Front Panel Identification

    HIGH SPEED Electric Shock Hazard: The Speed Booster is for use with the Greenlee Ultra Tugger™ Cable Puller only. The Speed Booster produces more than 120 volts; plugging anything other than the Ultra Tugger™ into the Speed Booster can result in severe injury or death.

  • Page 4: Operation

    2. Plug the Speed Booster into a 120 volt, 20 amp receptacle. 3. Plug the puller into the receptacle on the Speed Booster. Greenlee / A Textron Company 03561 Speed Booster Operation 1. Turn on the Speed Booster using the circuit breaker/ power switch located in back of Speed Booster.

  • Page 5: Maintenance

    Ultra Tugger Plug Modification Modification of the plug should only be done by a Greenlee Authorized Service Center or qualified electrician. Failure to observe this precaution may result in damage to Speed Booster or puller. To modify the Ultra Tugger for use with the Speed Booster: 1.
  • Page 6 Operation part of 23 24,25,26 Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070 03561 Speed Booster...

  • Page 7: Parts List

    50035800 50303929 Service Kits: 50048848 50062115 50062123 Greenlee / A Textron Company Description Cover ... 1 Guard, circuit breaker ... 1 Screw, machine, #6 – 32 x .250 round head ... 2 Power cord ... 1 Bushing, strain relief ... 1 Nut, lock , 1/2"...
  • Page 8 03561 Speed Booster Schematic .25W 4.7K .25W Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
  • Page 9 (not shown) Wakefield Note: Attach U1 to heat sink with a suitable thermal compound. Motorola generic Greenlee / A Textron Company Model/Part No. Description Capacitor, .1 µF, 50V ... 4 Capacitor, 100 µF, 25V ... 1 Capacitor, 1000 µF, 35V ... 1 Capacitor, 22 µF, 16V ...

  • Page 10: Wiring Diagram

    Wiring Diagram WHITE GREEN CHASIS GROUND (on cover) Greenlee / A Textron Company AMBER “POWER” “BOOST” BLUE BROWN ORANGE YELLOW BLACK CHASIS GROUND (on box) 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070 03561 Speed Booster BLACK WHITE...
  • Page 11 If the connector is loose on the tab, adjust the connector using needlenose pliers or similar tool. 4. Potentiometer (R11) should be calibrated and sealed from board supplier. Greenlee / A Textron Company NOTE: Wire must pass through hole in T1 Coil...
  • Page 12 Fax: Canada 800-435-0786 Fax: International +1-815-397-7070 Fax: +1-815-397-9247 4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070 • An ISO 9001 Company Greenlee Textron Inc. is a subsidiary of Textron Inc. www.greenlee.com 800-451-2632 815-397-1865 800-524-2853 Printed in USA...
