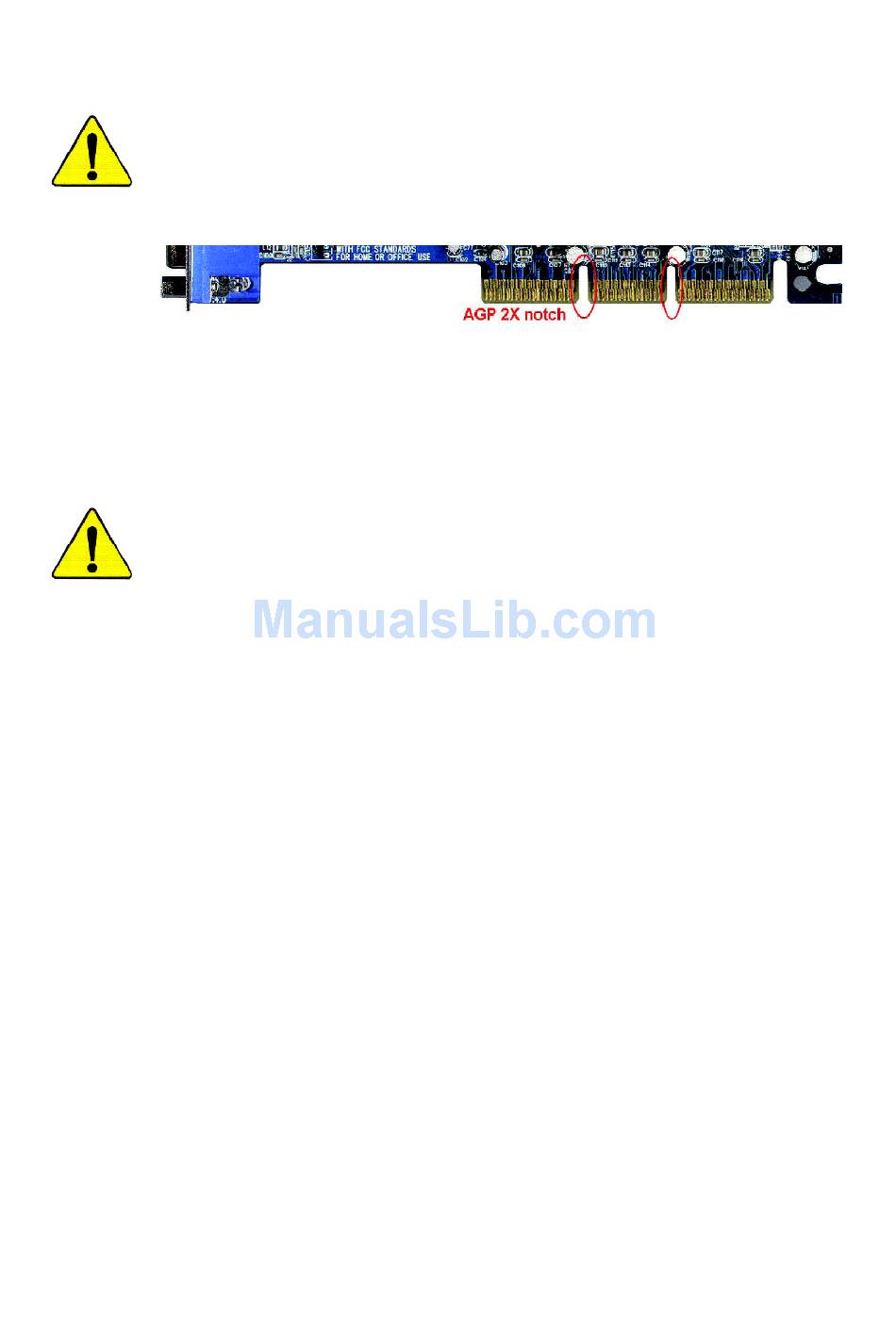

When you installing AGP card, please make sure the following notice
is fully understood and practiced. If your AGP card has "AGP 4X
(1.5V) notch"(show below), please make sure your AGP card is AGP
4X (1.5V).
AGP 4X notch
Caution: AGP 2X card is not supported by GA-8VM533. You might
experience system unable to boot up normally. Please insert an AGP 4X
card.
Example 1: Diamond Vipper V770 golden finger is compatible with 2X/4X
mode AGP slot. It can be switched between AGP 2X(3.3V) or 4X(1.5V) mode
by adjusting the jumper. The factory default for this card is 2X(3.3V).
The GA-8VM533 (or any AGP 4X only) motherboards might not function
properly, if you install this card without switching the jumper to
4X(1.5V) mode in it.
Example 2: Some ATi Rage 128 Pro graphics cards made by "Power Color",
the graphics card manufacturer & some SiS 305 cards, their golden finger is
compatible with 2X(3.3V)/4X(1.5V) mode AGP slot, but they support 2X(3.3V)
only. The GA-8VM533 (or any AGP 4X only) motherboards might not function
properly, If you install this card in it.
Note : Although Gigabyte's AG32S(G) graphics card is based on ATi Rage
128 Pro chip, the design of AG32S(G) is compliance with AGP 4X(1.5V)
specification. Therefore, AG32S(G) will work fine with GA-8VM533 based
motherboards.

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte GA-8VM533

Summary of Contents for Gigabyte GA-8VM533

  • Page 1 & some SiS 305 cards, their golden finger is compatible with 2X(3.3V)/4X(1.5V) mode AGP slot, but they support 2X(3.3V) only. The GA-8VM533 (or any AGP 4X only) motherboards might not function properly, If you install this card in it.
  • Page 2 The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the information contained herein. Third-party brands and names are the property of their respective owners. Please do not remove any labels on motherboard, this may void the warranty of this motherboard.

  • Page 3: Declaration Of Conformity

    We, Manufacturer/Importer (full address) G.B.T. Technology Träding GMbH Ausschlager Weg 41, 1F, 20537 Hamburg, Germany declare that the product Mother Board GA-8VM533 is in conformity with in accordance with 89/336 EEC-EMC Directive o EN 61000-3-2* T EN 60555-2 o EN 61000-3-3*...
  • Page 4 Per FCC Part 2 Section 2.1077(a) Responsible Party Name: Phone/Fax No: hereby declares that the product Product Name: Motherboard Model Number: GA-8VM533 Conforms to the following specifications: FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a), Class B Digital Device Supplementary Information: This device complies with part 15 of the FCC Rules.
  • Page 5 GA-8VM533 P4 Titan Series Motherboard USER'S MANUAL Pentium 4 Processor Motherboard ® Rev. 1002 12ME-8VM533-1002...

  • Page 6: Table Of Contents

    Item Checklist ... 4 WARNING! ... 4 Chapter 1 Introduction ... 5 Features Summary ... 5 GA-8VM533 Motherboard Layout ... 7 Block Diagram ... 8 Chapter 2 Hardware Installation Process ... 11 Step 1: Install the Central Processing Unit (CPU) ... 12 Step 1-1: CPU Installation ...
  • Page 7 PnP/PCI Configurations ... 41 PC Health Status ... 42 Frequency/Voltage Control ... 43 Load Fail-Safe Defaults ... 45 Load Optimized Defaults ... 46 Set Supervisor/User Password... 47 Save & Exit Setup ... 48 Exit Without Saving ... 49 Chapter 4 Technical Reference ... 51 @BIOS™...

  • Page 8: Item Checklist

    (M anual; SATA cable x1; Power cable x 1) WARNING! Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some precautions whenever you work on your computer.

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction Features Summary Form Factor — 24.5cm x 20.8cm Micro ATX size form factor, 4 layers PCB — Socket 478 for Intel — Support Intel — Support Intel — Intel ® — 2nd cache depends on CPU Chipset —...
  • Page 10 CPU, chipset and most of the peripherals. Whether your system can run under these specific bus frequencies properly will depend on your hardware configurations, including CPU, Chipsets, Memory, Cards… etc. GA-8VM533 Motherboard - 6 -...

  • Page 11: Ga-8Vm533 Motherboard Layout

    GA-8VM533 Motherboard Layout KB_MS SOC KET 478 IDE1 A TX_12V IDE2 AUDIO V T6 103 VIA P4M 533 F_AU DIO PCI1 CODEC VI A 8235 PCI2 BIOS PCI3 I TE 8705 F_U SB2 F_PANEL F_U SB1 CD_I N PWR_LE D...

  • Page 12: Block Diagram

    3 PCI VT6103 PCI BUS 33MHz 6 Channel CODEC PCICLK (33MHz) PCICLK (33MHz) USBCLK (48MHz) 14.318 MHz 33 MHz GA-8VM533 Motherboard Pentium 4 CPUCLK+/- (100/133MHz) Socket 478 System Bus 200/266MHz 533/400MHz MCHCLK (100/133MHz) P4M533 AGPCLK66 MHz 33 MHz 14.318 MHz...
  • Page 13 - 9 - Introduction...
  • Page 14 GA-8VM533 Motherboard - 10 -...

  • Page 15: Chapter 2 Hardware Installation Process

    Chapter 2 Hardware Installation Process To set up your computer, you must complete the following steps: Step 1- Install the Central Processing Unit (CPU) Step 2- Install memory modules Step 3- Install expansion cards Step 4- Connect ribbon cables, cabinet wires, and power supply Step 4 Step 4 Step 3...

  • Page 16: Step 1: Install The Central Processing Unit (Cpu)

    90-degree when a noise "cough" made. Pin1 indicator 3. CPU Top View GA-8VM533 Motherboard 2. Pull the rod to the 90-degree directly. Pin1 indicator 4. Locate Pin 1 in the socket and look for a (golden) cut edge on the CPU upper corner.

  • Page 17: Step 1-2: Cpu Cooling Fan Installation

    Step 1-2: CPU Cooling Fan Installation Before installing the CPU cooling fan, adhere to the following warning: 1. Please use Intel approved cooling fan. 2. We recommend you to apply the thermal tape to provide better heat conduction between your CPU and cooling fan. (The CPU cooling fan might stick to the CPU due to the hardening of the thermal paste.

  • Page 18: Step 2: Install Memory Modules

    To install the memory module, just push it vertically into the DIMM socket. The DIMM module can only fit in one direction due to the notch. Memory size can vary between sockets. GA-8VM533 Motherboard - 14 - Notch...
  • Page 19 1. The DIMM slot has a notch, so the DIMM memory module can only fit in one direction. 2. Insert the DIM M memory module vertically into the DIMM slot. Then push it down. 3. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.

  • Page 20: Step 3: Install Expansion Cards

    7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS. 8. Install related driver from the operating system. AGP Card GA-8VM533 Motherboard Please carefully pull out the small white- drawable bar at the end of the AGP slot when you try to install/ Uninstall the AGP card.

  • Page 21: Step 4: Connect Ribbon Cables, Cabinet Wires And Power Supply

    Step 4: Connect ribbon cables, cabinet wires and power supply Step 4-1: I/O Back Panel Introduction u PS/2 Keyboard and PS/2 Mouse Connector PS/2 Mouse Connector (6 pin Female) PS/2 Keyboard Connector (6 pin Female) v Parallel Port, Serial Port and VGA Port (LPT/COMA/VGA) Parallel Port (25 pin Female) COMA...

  • Page 22: Audio Connectors

    (Front Speaker) MIC In(Center and Subwoofer) If you want the detail information for 6-channel audio setup installation, please refer to page 68. GA-8VM533 Motherboard Before you connect your device(s) into USB connector(s), please make sure your device(s) such as USB keyboard,mouse, scanner, zip, speaker..etc.

  • Page 23: Step 4-2: Connectors Introduction

    Step 4-2: Connectors Introduction 1) ATX_12V 2) ATX 3) CPU_FAN 4) FDD 5) IDE1 / IDE2 6) BAT 7) F_PANEL 8) PWR_LED 9) F_AUDIO 10) CD_IN 11) F_USB1 / F_USB2 - 19 - Hardware Installation Process...
  • Page 24 If this "ATX_12V connector" is not connected, system cannot boot. 2) ATX (ATX Power) AC power cord should only be connected to your power supply unit after ATX power cable and other related devices are firmly connected to the mainboard. GA-8VM533 Motherboard Pin No. Definition +12V +12V Pin No.
  • Page 25 3) CPU_FAN (CPU Fan Connector) Please note, a proper installation of the CPU cooler is essential to prevent the CPU from running under abnormal condition or damaged by overheating. The CPU fan connector supports Max. current up to 600 m A. 4) FDD (Floppy Connector) Please connect the floppy drive ribbon cables to FDD.
  • Page 26 Im portant Notice: Please connect first hard disk to IDE1 and connect CD-ROM to IDE2. The red stripe of the ribbon cable must be the sam e side with the Pin1. 6) BAT (BATTERY) GA-8VM533 Motherboard IDE2 IDE1 CAUTION Danger of explosion if battery is incorrectly replaced.
  • Page 27 7) F_PANEL (2 x 10 pins Connector) Please connect the power LED, PC speaker, reset switch and power switch etc of your chassisfront panel to the F_PANEL connector according to the pin assignment above. HD (IDE Hard Disk Active LED) SPEAK (Speaker Connector) RES (Reset Switch) PW (Soft Power Connector)
  • Page 28 To find out if the chassis you are buying support front audio connector, please contact your dealer. Please note, you can have the alternative of using front audio connector or of using rear audio connector to play sound. GA-8VM533 Motherboard Pin No. Definition...
  • Page 29 10) CD_IN (CD In Connector) Connect CD-ROM or DVD-ROM audio out to the connector. 11) F_USB1 / F_USB2 (Front USB Connector, Yellow) Be careful with the polarity of the front USB connector. Check the pin assignment while you connect the front USB cable. Please contact your nearest dealer for optional front USB cable. Pin No.
  • Page 30 GA-8VM533 Motherboard - 26 -...

  • Page 31: Chapter 3 Bios Setup

    Chapter 3 BIOS Setup BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is turned off. ENTERING S ETUP After pow er on the computer, pressing <Del>...

  • Page 32: The Main Menu (For Example: Bios Ver. : F1)

    Standard CMOS Features This setup page includes all the items in standard compatible BIOS. Advanced BIOS Features This setup page includes all the items of Award special enhanced features. GA-8VM533 Motherboard Load Fail-Safe Defaults Load Optimized Defaults Set Superv isor Passw ord Set User Passw ord Sav e &...

  • Page 33: Integrated Peripherals

    Integrated Peripherals This setup page includes all onboard peripherals. Power Manag ement Setup This setup page includes all the items of Green function features. PnP/PCI Configurations This setup page includes all the configurations of PCI & PnP ISA resources. PC Health Status This setup page is the System auto detect Temperature, voltage, fan, speed.

  • Page 34: Standard Cmos Features

    The year, from 1999 through 2098 Time The times format in <hour> <minute> <second>. The time is calculated base on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. GA-8VM533 Motherboard Tue, Aug 13 2002 Item Help 22:31:24 Menu Lev el u...
  • Page 35 IDE Primary Master, Slave / Secondary Master, Slave The category identifies the types of hard disk from drive C to F that has been installed in the computer. There are two types: auto type, and manual type. Manual type is user-definable; Auto type which will automatically detect HDD type.

  • Page 36: Base Memory

    640 K for systems with 640 K or more memory installed on the motherboard. Extended Memory The BIOS determines how much extended memory is present during the POST. This is the amount of memory located above 1 MB in the CPU's memory address map. GA-8VM533 Motherboard - 32 -...

  • Page 37: Advanced Bios Features

    Advanced BIOS Features CMOS Setup Utility -Copy right (C) 1984-2003 Aw ard Softw are First Boot Dev ice Second Boot Dev ice Third Boot Dev ice Passw ord Check # CPU Hy per-Threading higf: Mov e Enter:Select +/-/PU/PD:Value F10:Sav e ESC:Ex it F1:General Help F5:Prev ious Values Figure 3: Adv anced BIOS Feat u res "...

  • Page 38: Password Check

    Enabled Enables CPU Hy per Threading Feature. Please note that this feature is only w orking for operating sy stem w ith multi processors mode supported. (Default v alue) Disabled Disables CPU Hy per Threading. GA-8VM533 Motherboard - 34 -...

  • Page 39: Integrated Peripherals

    Integrated Peripherals CMOS Setup Utility -Copy right (C) 1984-2003 Aw ard Softw are OnChip IDE Channel0 OnChip IDE Channel1 AC97 Audio VIA onboard LAN USB 1.1 Controller USB 2.0 Controller USB Key board Support USB Mouse Support Onboard Serial Port 1 Onboard Parallel Port Parallel Port Mode higf: Mov e Enter:Select +/-/PU/PD:Value F10:Sav e ESC:Ex it F1:General Help...

  • Page 40: Onchip Ide Channel0

    Enable USB 2.0 Controller. (Default value) Disabled Disable USB 2.0 Controller. USB Keyboard Support M When a USB keyboard is installed, please set at Enabled. Enabled Enable USB Keyboard Support. Disabled Disable USB Keyboard Support. (Default value) GA-8VM533 Motherboard - 36 -...

  • Page 41: Onboard Serial Port 1

    USB Mouse Support Enabled Enable USB Mouse Support. Disabled Disable USB Mouse Support. (Default value) Onboard Serial Port 1 Auto BIOS will automatically setup the port 1 address. 3F8/IRQ4 Enable onboard Serial port 1 and address is 3F8,Using IRQ4. (Default value) 2F8/IRQ3 Enable onboard Serial port 1 and address is 2F8,Using IRQ3.

  • Page 42: Power Management Setup

    USB device wakeup From S3 can be set when ACPI standby state set to S3/STR. Enabled USB Device can wakeup system from S3. Disabled USB Device can't wakeup system from S3. (Default value) GA-8VM533 Motherboard Pow er Management Setup [S1(POS)] Disabled [Instant-off]...

  • Page 43: Keyboard Power On

    Soft-off by PWRBT N N Instant-off Press power button then Power off instantly. (Default value) Delay 4 Sec. Press power button 4 sec to Power off. Enter suspend if button is pressed less than 4 sec. AC Back Function Memory System power on depends on the status before AC lost.

  • Page 44: Modem Ring Resume

    Enable alarm function to POWER ON system. If RTC Alarm Lead To Power On is Enabled. Date ( of Month) Alarm : Time ( hh: mm: ss) Alarm :(0~23) : (0~59) : (0~59) GA-8VM533 Motherboard Everyday, 1~31 - 40 -...

  • Page 45: Pnp/Pci Configurations

    PnP/PCI Configurations CMOS Setup Utility -Copy right (C) 1984-2003 Aw ard Softw are PCI 1 IRQ Assignment PCI 2 IRQ Assignment PCI 3 IRQ Assignment higf: Mov e Enter:Select +/-/PU/PD:Value F10:Sav e ESC:Ex it F1:General Help F5:Prev ious Values PCI1 IRQ Assignment Auto 3,4,5,7,9,10,11,12,14,15 PCI2 IRQ Assignment...

  • Page 46: Pc Health Status

    Detect CPU Temp. automatically. . Current CPU FAN Speed (RPM) Detect Fan speed status automatically. CPU Fan Fail Warning Disabled Don't monitor current fan speed. (Default value) Enabled Alarm when stops. GA-8VM533 Motherboard PC Health Status 1.520V 2.480V 3.280V 11.968V 45°C 4440RPM...

  • Page 47: Frequency/Voltage Control

    Frequency/Voltage Control CMOS Setup Utility -Copy right (C) 1984-2003 Aw ard Softw are CPU Clock Ratio Auto Detect PCI/DIMM Clk Spread Spectrum CPU Clock higf: Mov e Enter:Select +/-/PU/PD:Value F10:Sav e ESC:Ex it F1:General Help F5:Prev ious Values F6:Fail-Safe Defaults Figure 8: Frequency /Volt a ge Control CPU Clock Ratio This option w ill not be show n or not be av ailable if y ou are using a CPU w ith the locked ratio.

  • Page 48: Cpu Clock

    Set Spread Spectrum to +/- 0.35% . +/- 0.25% Set Spread Spectrum to +/- 0.25% . CPU Clock Set CPU Clock to 100MHz~132MHz. Set CPU Clock to 133MHz~165MHz. Incorrect using it may cause your system broken. For power End-User use only! GA-8VM533 Motherboard - 44 -...

  • Page 49: Load Fail-Safe Defaults

    Load Fail-Safe Defaults CMOS Setup Utility -Copy right (C) 1984-2003 Aw ard Softw are }Standard CMOS Features }Adv anced BIOS Features }Integrated Peripherals }Pow er Management Setup }PnP/PCI Configurations Load Fail-Safe Defaults? (Y/N )?N Figure 11: Load Fail-Safe Defaults }PC Health Status }Frequency /Voltage Control ESC:Quit F8:Q-Flash...

  • Page 50: Load Optimized Defaults

    Figure 10: Load Optimized Defaults Load Optimized Defaults Selecting this field loads the factory defaults for BIOS and Chipset Features which the system automatically detects. GA-8VM533 Motherboard Load Fail-Safe Defaults Load Optimized Defaults Set Superv isor Passw ord Set User Passw ord Sav e &...

  • Page 51: Set Supervisor/User Password

    Set Supervisor/User Password CMOS Setup Utility -Copy right (C) 1984-2003 Aw ard Softw are }Standard CMOS Features }Adv anced BIOS Features }Integrated Peripherals }Pow er Management Setup }PnP/PCI Configurations Enter Password: Figure 11: Load Fail-Safe Defaults }PC Health Status }Frequency /Voltage Control ESC:Quit F8:Q-Flash When you select this function, t h e following message will appear at the center of the screen to assist you...

  • Page 52: Save & Exit Setup

    Figure 12: Sav e & Ex it Setup Type "Y" will quit the Setup Utility and save the user setup value to RTC CMOS. Type "N" will return to Setup Utility. GA-8VM533 Motherboard Load Fail-Safe Defaults Load Optimized Defaults Set Superv isor Passw ord Set User Passw ord Sav e &...

  • Page 53: Exit Without Saving

    Exit Without Saving CMOS Setup Utility -Copy right (C) 1984-2003 Aw ard Softw are }Standard CMOS Features }Adv anced BIOS Features }Integrated Peripherals }Pow er Management Setup }PnP/PCI Configurations }PC Health Status Quit Without Saving (Y/N)? N }Frequency /Voltage Control ESC:Quit F8:Q-Flash Type "Y"...
  • Page 54 GA-8VM533 Motherboard - 50 -...

  • Page 55: Chapter 4 Technical Reference

    Or you may want to keep a backup for your current BIOS, just choose "Save Current BIOS" to save it first. You make a wise choice to use Gigabyte, and @BIOS update your BIOS smartly. You are now worry free from updating wrong BIOS, and capable to maintain and manage your BIOS easily.

  • Page 56: Easytune™ 4 Introduction

    4 has already turned the "Overclock" technology toward to a newer generation. This wonderful software is now free bundled in Gigabyte motherboard attached in driver CD. Users may make a test drive of "EasyTune 4" to find out more amazing features by themselves.

  • Page 57: Flash Bios Method Introduction

    Please note that because updating BIOS has potential risk, please do it with caution!! We are sorry that Gigabyte Technology Co., Ltd is not responsible for damages of system because of incorrect manipulation of updating BIOS to avoid any claims from end-users.
  • Page 58 Part One: Updating BIOS with Q-Flash Some of Gigabyte motherboards are equipped with dual BIOS. In the BIOS menu of the motherboards supporting Q-Flash combined in the same screen. This section only deals with how to use Q-Flash In the following sections, we take GA-7VRXP as the example to guide you how to flash BIOS from an older version to the latest version.
  • Page 59 Step 2: Press F8 button on your keyboard and then Y button to enter the Q-Flash AMIBIOS SIMPLE SETUP UTILITY - VERSION 2.00 (C ) 2001 A merican M egatrends, Inc. All Rights Reserv ed STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP ENTER DUAL BIOS/Q-FLASH UTILITY (Y/N) ? Y...
  • Page 60 Boot From......Main Bios Main ROM Type/Size.... Backup ROM Type/S ize.... Wide Range Protection Disable Enter : Run GA-8VM533 Motherboard /Dual BIOS utility. Pressing the ™ utility. As described in the “ Before you ™...
  • Page 61 Later, you will see a box pop up showing the BIOS files you previously downloaded to the floppy disk. 2.Move to the BIOS file you want to flash and press Enter. In this example, we only download one BIOS file to the floppy disk so only one BIOS file, 7VRXP.F12, is listed.
  • Page 62 Sav e Backup B IOS to Floppy Enter : Run hi:Mov e ES C:Reset Please do not take out the floppy disk when it begins flashing BIOS. GA-8VM533 Motherboard 256K 256K You can press "Enter" to continue updating BIOS or "ESC" to abort.
  • Page 63 4. Press any keys to return to the Q-Flash Boot From......Main Bios Main ROM Type/Size.... Backup ROM Type/S ize.... Wide Range Protection Disable Auto Recovery Enter : Run You can repeat Step 1 to 4 to flash the backup BIOS, too.
  • Page 64 ESC: Quit your keyboard F7: O ptimized V alues GA-8VM533 Motherboard Ame r ican R el e ase :0 8 /2 3/2 00 2 Meg a tre n d s AMIBIOS ( C) 19 9 9 Ame ri ca n Me ga tr en d...

  • Page 65: Save And Exit

    STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP / PCI CONFIGURATION Press Y on your LOAD FAIL-SAFE DE FAULTS LOAD OPTIMIZED DEFA ULTS keyboard to load ESC: Quit defaults. F7: O ptimized V alues 7. Select Save & Exit Setup item to save the settings to CMOS and exit the BIOS menu. System will reboot after you exit the BIOS menu.
  • Page 66 Part Two: Updating BIOS with Q-Flash This part guides users of single-BIOS motherboards how to update BIOS using the Q-Flash Entering the Q-Flash utility: ™ Step1: To use the Q-Flash utility, you must press Del in the boot screen to enter BIOS menu.

  • Page 67: Exploring The Q-Flash Utility Screen

    Exploring the Q-Flash utility screen ™ The Q-Flash BIOS utility screen consists of the following key components. ™ Flash Ty pe/ Size....SST 49LF002A Task menu for the Q-flash utility Enter: Run Task menu for the Q-Flash utility: Contains the names of three tasks.
  • Page 68 Don't turn off P ower Or RES ET System h/i: M ove Enter: Run After BIOS file is read, you’ ll see a confirmation dialog box asking you "Are you sure to update BIOS?" GA-8VM533 Motherboard 256K Keep DMI DataE nable Save BIOS to Floppy 1 File(s) found...
  • Page 69 Flash Ty pe/ Size....SST 49LF002A CHECKSUM = AC03 Are you sure to update BI OS? [E nter] to continue updating B IO S or "ES C" to abort. Enter: Run h/i: M ove 3. Press Y button if you make sure to update BIOS. Then it will begin to update BIOS.

  • Page 70: Method 2 : @Bios Utility

    Method 2 : @BIOS Utility If you don't have DOS boot disk, we recommend that you used Gigabyte @BIOS BIOS. Press here. 1. Click "@BIOS" item. 3.Click "P". Click here Methods and steps: I. Update BIOS through Internet a. Click "Internet Update" icon b.
  • Page 71 Otherwise, your system won't boot. c. In method I, if the BIOS file you need cannot be found in @BIOS Gigabyte's web site for downloading and updating it according to method II. d. Please note that any interruption during updating will cause system unbooted server, please go onto ™...

  • Page 72: 6-Channel Audio Function Introduction

    Right click the audio icon "Volum e" from the windows tray at the bottom of the screen. Click the "Adjust Audio Properties". STEP 3 : Click "Advanced". GA-8VM533 Motherboard M IC In Line Out - 68 - Line In...
  • Page 73 STEP 4 : Choose the "5.1 surround sound speakers" and click "OK". STEP 5 : You'll find an icon on the taskbar's status area. Click the audio icon "Volume" from the windows tray at the bottom of the screen. STEP 6 : Click Options\Advanced Controls.
  • Page 74 STEP 8 : Click "Smart 5.1 Enabld" and "Close". GA-8VM533 Motherboard - 70 -...

  • Page 75: Xpress Recovery Introduction

    Xpress Recovery Introduction What is Xpress Recovery? Xpress Recovery utility is an utility for backing up and restoring O.S. partition . If the hard drive can not work properly, you can restore it to the original state. 1. It supports FAT16, FAT32, NTFS format . 2.
  • Page 76 You can highlight the item by using the arrows keys on your keyboard and enter key to enter the menu. Text Mode: Xpress Recovery V1.0 (C) Copy Right 2003. GIGABYTE Technilogy CO. , Ltd. BMP Mode: Xpress Recovery V1.0 (C) Copy Right 2003. GIGABYTE Technilogy CO. , Ltd.
  • Page 77 1.Execute Backup Utility: Press B to Backup your System or Esc to Exit The Backup utility will scan the system automatically and back up it. The backed up data will be saved as an hidden image . 2.Execute Restore Utility: This program will recover your system to factory default.
  • Page 78 GA-8VM533 Motherboard - 74 -...

  • Page 79: Chapter 5 Appendix

    Revision History Chapter 5 Appendix Install Drivers Pictures below are shown in Windows XP (CD ver. 2.3) Insert the driver CD-title that came with your motherboard into your CD-ROM drive, the driver CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in "My computer", and execute the setup.exe.
  • Page 80 Pack. After install Windows Service Pack, it will show a question mark "?" in "Universal Serial Bus controller" under "Device Manager". Please remove the question mark and restart the system (System will auto-detect the right USB2.0 driver). GA-8VM533 Motherboard Driver install finished!! you have to reboot system!!

  • Page 81: Software Application

    SOFTWARE APPLICATION This page reveals the value-added software developed by Gigabyte and its worldwide partners. n Gigabyte Windows Utilities Manager(GWUM) This utility can integrate the Gigabyte's applications in the system tray. n Gigabyte Management Tool(GMT) A useful tool which can manage the computer via the network.

  • Page 82: Software Information

    SOFTWARE INFORMATION This page list the contects of softwares and drivers in this CD title. HARDWARE INFORMATION This page lists all device you have for this motherboard. CONTACT US Please see the last page for details. GA-8VM533 Motherboard - 78 -...
  • Page 83 Below is a collection of general asked questions. To check general asked questions based on a specific motherboard model, please log on to http://tw.giga-byte.com/faq/faq.htm Question 1: I cannot see some options that were included in previous BIOS after updating BIOS. Why? Answer: Some advanced options are hidden in new BIOS version.
  • Page 84 Question 8: How do I disable onboard VGA card in order to add an external VGA card? Answer: Gigabyte motherboards will auto-detect the external VGA card after it is plugged in, so you don't need to change any setting manually to disable the onboard VGA.
  • Page 85 Question 10: Sometimes I hear different continuous beeps from computer after system boots up. What do these beeps usually stand for? Answer: The beep codes below may help you identify the possible computer problems. However, they are only for reference purposes. The situations might differ from case to case. gAMI BIOS Beep Codes *Computer gives 1 short beep when system boots successfully.
  • Page 86 Answer:Please set in the BIOS as follow: 1. Advanced BIOS features-->(SATA)/RAID/SCSI boot order: "SCSI" 2. Advanced BIOS features--> First boot device: "SCSI" Then it depends on the mode(RAID or ATA) that you need to set in RAID/ SCSI BIOS. GA-8VM533 Motherboard - 82 -...

  • Page 87: Troubleshooting

    Troubleshooting If you encounter any trouble during boot up, please follow the troubleshooting procedures . Turn off the power and unplug the AC power cable, then remove all of the add-on cards and cables from motherboard. Please make sure motherboard & chassis are not short Please make sure all jumper settings (such as CPU system bus speed, frequency ratio, voltage and etc.) are set properly.
  • Page 88 Then try to reboot the system. If the above procedure unable to solve your problem, please contact with your local retailer or national distributor for help. Or, you could submit your question to the service mail via Gigabyte website technical support zone (http://www.gigabyte.com.tw).
  • Page 89 Technical Support/RMA Sheet Customer/Country: Contact Person: E-mail Add. : Model name/Lot Number: BIOS version: O.S./A.S.: Hardware Mfs. Model name Configuration Memory Brand Video Card Audio Card CD-ROM / DVD-ROM Modem Network AMR / CNR Keyboard Mouse Power supply Other Device Problem Description: Company: Phone No.:...
  • Page 90 Extended Capabilities Port ESCD Extended System Configuration Data Error Checking and Correcting Electromagnetic Compatibility Enhanced Parallel Port Electrostatic Discharge Floppy Disk Device Front Side Bus Hard Disk Device Integrated Dual Channel Enhanced Interrupt Request GA-8VM533 Motherboard to be continued... - 86 -...
  • Page 91 Acronyms Meaning IOAPIC Input Output Advanced Programmable Input Controller Industry Standard Architecture Local Area Network Input / Output Logical Block Addressing Light Emitting Diode Megahertz MIDI Musical Instrument Digital Interface Memory Translator Hub Memory Protocol Translator Network Interface Card Operating System Original Equipment Manufacturer PCI A.G.P.
  • Page 92 GA-8VM533 Motherboard - 88 -...
  • Page 93 - 89 - Memo...
  • Page 94 GA-8VM533 Motherboard - 90 -...
  • Page 95 - 91 - Memo...
  • Page 96 GA-8VM533 Motherboard — The Netherlands Giga-Byte Technology B.V. Address: Verdunplein 8 5627 SZ, Eindhoven, The Netherlands Tel: +31 40 290 2088 NL Tech.Support : 0900-GIGABYTE (0900-44422983, 0.2/M) BE Tech.Support : 0900-84034 ( Fax: +31 40 290 2089 E-mail:info@giga-byte.nl Tech. Support E-mail:support@giga-byte.nl WEB Address: http://nl.giga-byte.com...
