Step 1: Install the Central Processing Unit (CPU)

Befor You will know.....
You may use the 4 screws which come with the mainboard to reinforce the support between P4
CPU heat-sink on the mainboard and chassis.
In order to follow the installation steps below; your chassis must be WILLMETTE/850 board design
compatible.

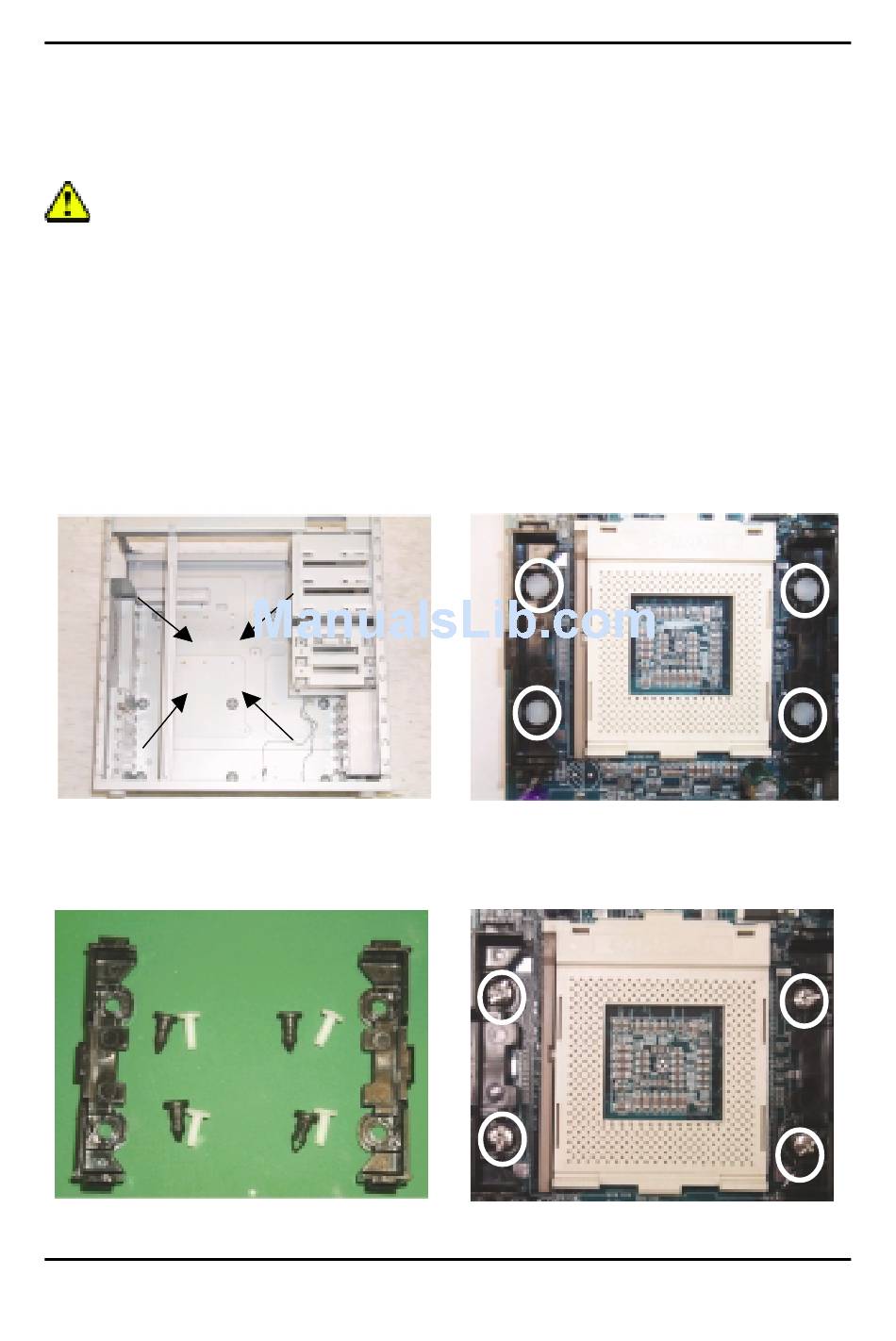

Step1: The 4 new mounting holes on the chassis
are for additional support for P4 CPU heat-
sink on the mainboard.
Figure1
Step3:
Figure3
Step2: Please remove 4 sets of plastic Push-pins
as indicated on Figure2. Remove the white
pins first, then black pins as indicated on
Figure3.
Step4:Fit the 4 screws with 2 CPU retention
modules on the chassis.
1 0
Figure2
Figure4
