OWNER'S MANUAL
Safety and Reference

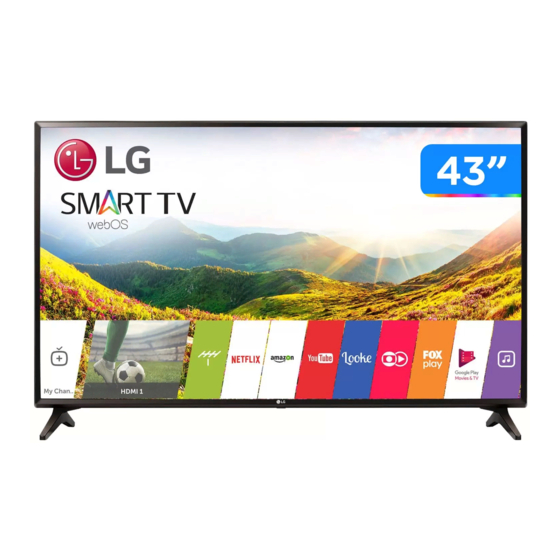

LED TV*
* LG LED TVs are LCD TVs with LED backlighting.
Please read this manual carefully before operating
your TV and retain it for future reference.
43LJ550M
49LJ550M
43LJ5500
49LJ5500
43LJ5550
49LJ5550
*MFL69728342*
55LJ550M
55LJ5500
55LJ5550
P/NO : MFL69728342 (1702-REV00)
www.lg.com
Advertisement
Table of Contents
Related Manuals for LG 43LJ5550
Summary of Contents for LG 43LJ5550
- Page 1 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TVs are LCD TVs with LED backlighting. Please read this manual carefully before operating your TV and retain it for future reference. 43LJ550M 49LJ550M 55LJ550M 43LJ5500 49LJ5500 55LJ5500 43LJ5550 49LJ5550 55LJ5550 www.lg.com...
- Page 2 Warning! Important Safety • Only use attachments/accessories specified by the manufacturer. instructions • Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution Read these instructions. Keep these instructions. when moving the cart/apparatus combination to Heed all warnings.
- Page 3 Electronics. Unauthorized modification could • Use only an authorized AC adapter and power void the user’s authority to operate this product. cord approved by LG Electronics. Otherwise, this • Outdoor Antenna Grounding (Can differ by may result in fire, electric shock, malfunction, or country): If an outdoor antenna is installed, product deformation.
- Page 4 • Keep the product away from direct sunlight. • The items supplied with your product may vary • Never touch this apparatus or antenna during a depending upon the model. lightning storm. • Product specifications or contents of this manual •...
-
Page 5: Lifting And Moving The Tv
Lifting and Moving the TV Using the Button When moving or lifting the TV, read the following You can operate the TV by pressing the button. to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size. -
Page 6: Mounting On A Table
We recommend • Do not apply foreign substances (oils, that you use an LG brand wall mount. The LG wall lubricants, etc.) to the screw parts when mount is easy to adjust or to connect the cables. -
Page 7: Connections (Notifications)
43LJ550M 49LJ5550 Model 43LJ5500 You can connect various external devices to the TV. 55LJ550M 43LJ5550 Supported external devices are: HD receivers, DVD 55LJ5500 players, VCRs, audio systems, USB storage devices, 55LJ5550 PC, gaming devices, and other external devices. For VESA (A x B) -
Page 8: Other Connections
Other Connections Connect your TV to external devices. For the best (Power) Turns the TV on or off. picture and audio quality, connect the external (Input) Changes the input source. device and the TV with the HDMI cable. Activates or deactivates the subtitles. •... -
Page 9: Open Source Software Notice Information
(Q.Settings) Accesses the Quick Settings. LG Electronics will also provide open source code By zooming in on the selected area, you can to you on CD-ROM for a charge covering the cost view it in full screen. -
Page 10: Specifications
Specifications • Abnormal Display - If the TV feels cold to the touch, there may be a small flicker when it is turned on. This is normal; there is nothing wrong with TV. Some Product specifications may be changed without minute dot defects may be visible on the prior notice due to upgrade of product functions. -
Page 11: Fcc Notice
Regulatory FCC Radio Frequency Interference Requirements (for UNII devices) High power radars are allocated as primary users FCC NOTICE of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with (For USA) and/or damage this device. -
Page 12: Note To Cable/Tv Installer
WARNING! (For Canada) [For product having the wireless function using 5 Never place a television set in an unstable GHz frequency bands] location. A television set may fall, causing serious • The device for operation in the band 5150–5250 personal injury or death. Many injuries, particularly MHz is only for indoor use to reduce the to children, can be avoided by taking simple potential for harmful interference to co-channel... -
Page 15: Child Safety
CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER ELECTRONICS INDUSTRY CARES • Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable. • As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations. - Page 16 LG Customer Information Center Declaration of Conformity For inquires or comments, visit www.lg.com or call; Trade Name Model 43LJ550M-UB, 43LJ5500-UA, USA, Consumer User 1-800-243-0000 43LJ5550-UC, 49LJ550M-UB, USA, Commercial User 1-888-865-3026 49LJ5500-UA, 49LJ5550-UC, CANADA 1-888-542-2623 55LJ550M-UB, 55LJ5500-UA, 55LJ5550-UC Register your product Online! Responsible LG Electronics Inc.
-
Page 17: External Control Device Setup
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com... -
Page 18: Key Codes
KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button... - Page 19 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
-
Page 20: Customer Computer
EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &... -
Page 21: Communication Parameters
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA... - Page 22 EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
- Page 23 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 24 EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
- Page 25 EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
- Page 26 EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
- Page 27 11 11 EXTERNAL CONTROL DEVICE SETUP 2. Tune to the BS (ISDB-BS) channel 30. 24. Input select (Command: x b) Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
- Page 28 EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.
- Page 30 Please read this manual carefully before operating your set and retain it for future reference. 43LJ5500 49LJ5500 ESPAÑOL Guía Rápida de Configuración 43LJ5550 49LJ5550 Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas. 55LJ550M FRANÇAIS...
- Page 31 ENGLISH Read Safety & Reference. ESPAÑOL Leer Seguridad y Consultas. FRANÇAIS Lisez Sécurité et références. 43LJ550M 43LJ5500 43LJ5550...
- Page 32 49LJ550M 55LJ550M 49LJ5500 55LJ5500 49LJ5550 55LJ5550 49LJ550M 49LJ5550 55LJ550M 55LJ5550 49LJ5500 55LJ5500...
- Page 33 ENGLISH Easy TV Connect Guide (Animation) ESPAÑOL Guía Rápida de Conexión del televisor (Sólo en Inglés) FRANÇAIS Guide simplifié pour la connexion du téléviseur (Offert en anglais seulement)
- Page 36 : kg (lbs / libras / lb) 43LJ550M-UB 80.8 80,8 43LJ5500-UA 0.85 A / 85 W 0,85 A / 85 W (38.4) (38,4) (24.2) (24,2) (7.3) (7,3) (22.6) (22,6) (3.1) (3,1) (17.8) (17,8) (17.6) (17,6) 43LJ5550-UC AC 100 - 240 V ~ 50 / 60 Hz...
- Page 37 (For USA and Canada only) (Pour les États-Unis et le Canada) (Para Estados Unidos y Canadá) Ce produit est conforme aux normes This product qualifies for ENERGY ENERGY STAR® lorsque le « réglage STAR® in the factory default (Home d’usine par défaut (Résidentiel) » est configuration) setting.
